GPI M30 Mechanical Fuel Meter, 5-30 GPM, 1 in. NPT, Gallons (165100-01)
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details
The GPI M30 is a mechanical fuel meter with no batteries to change. Its nutating disc reads 5 to 30 gallons per minute within +/- 2%, and a magnetic drive replaces the usual driveshaft seal, so there is no shaft seal to leak. It bolts straight to GPI Quick-Fit modular pumps and filter heads, and the included 1 in. NPT adapters let you install it in a standard pipe line.
Features

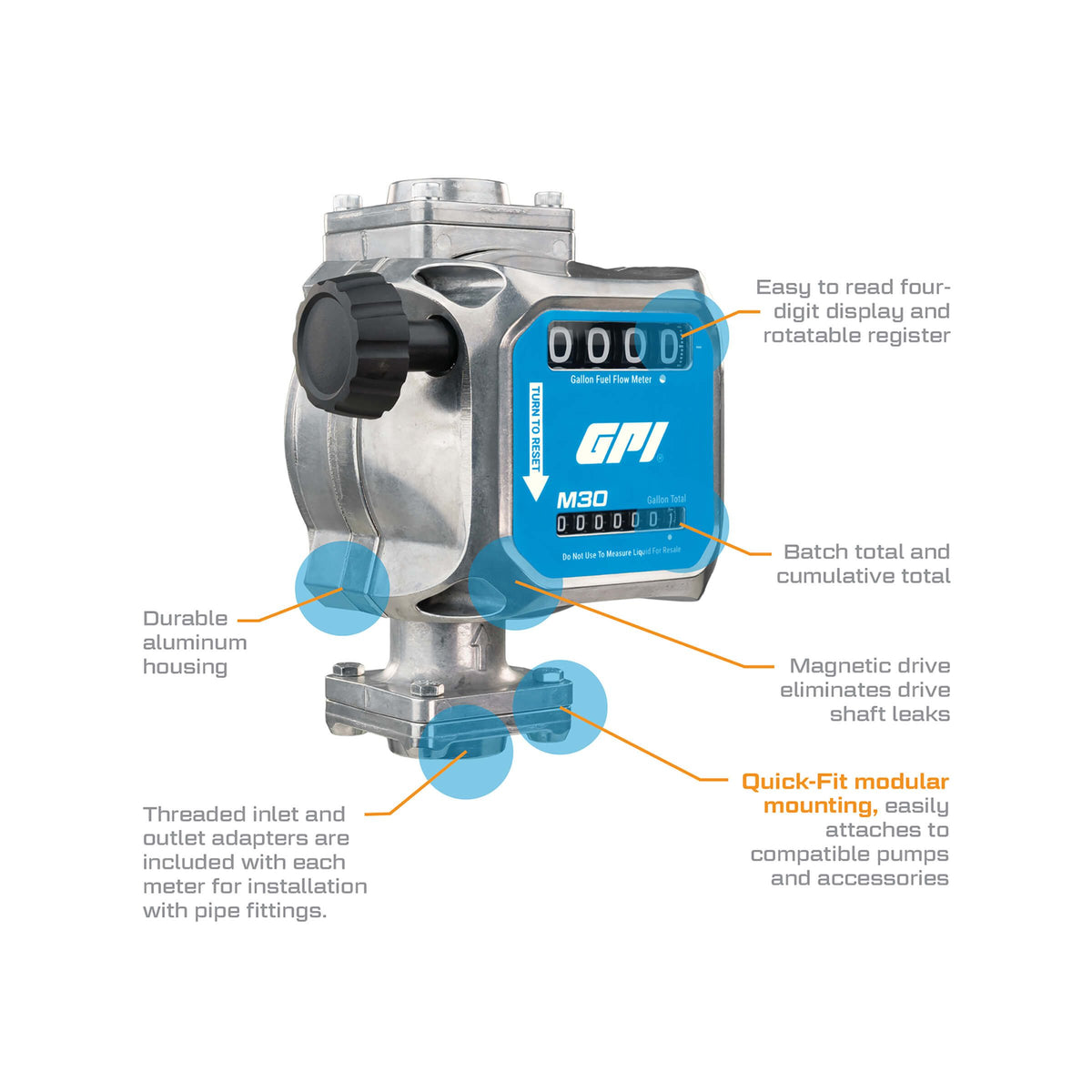

- Reads 5 to 30 GPM (19 to 114 L/min) within +/- 2% of reading
- Magnetic drive: no driveshaft seal to leak, and less drag for accurate readings

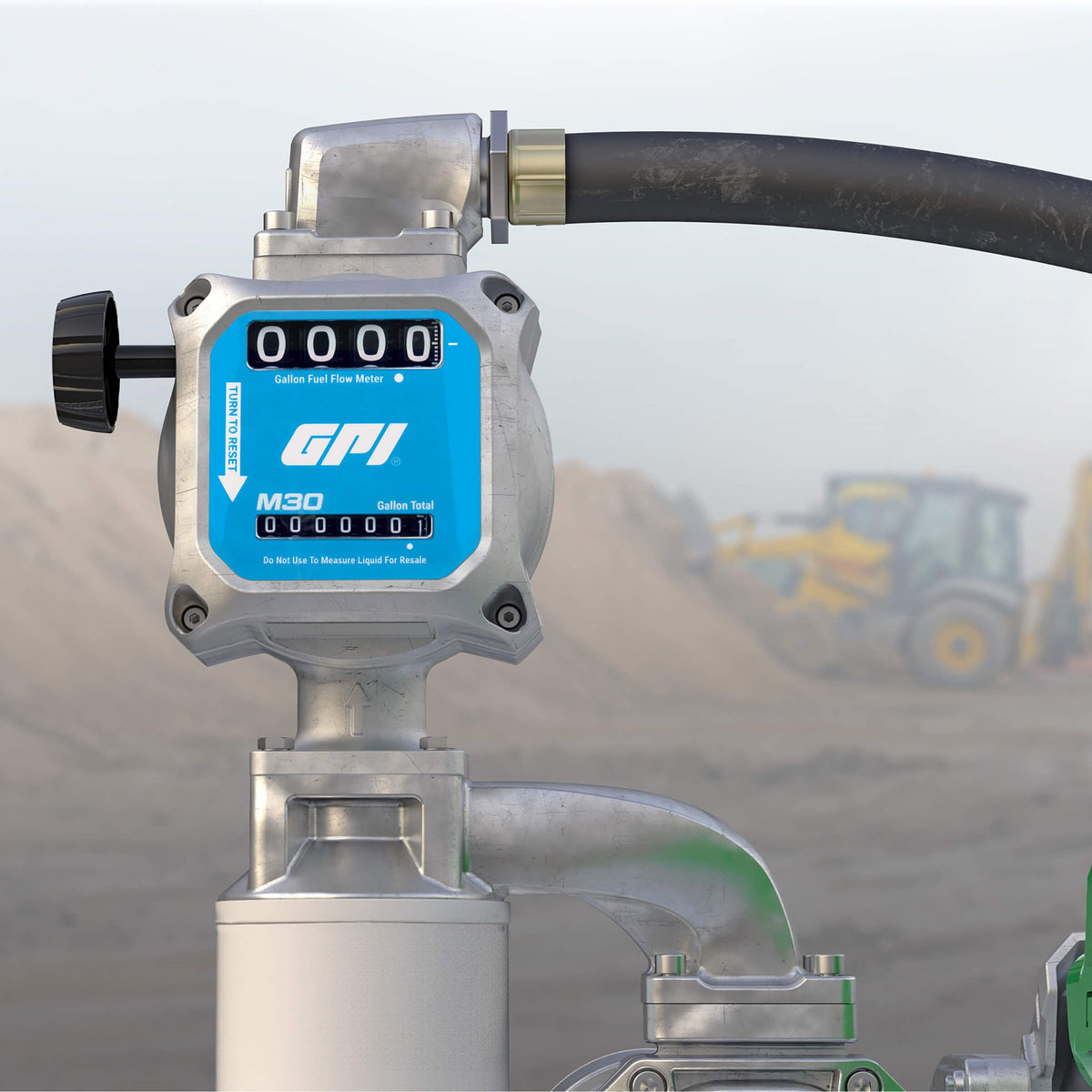

- Bolts to GPI Quick-Fit modular pumps and filter adapters with four bolts
- 1 in. NPT inlet and outlet adapters included for pipe installs

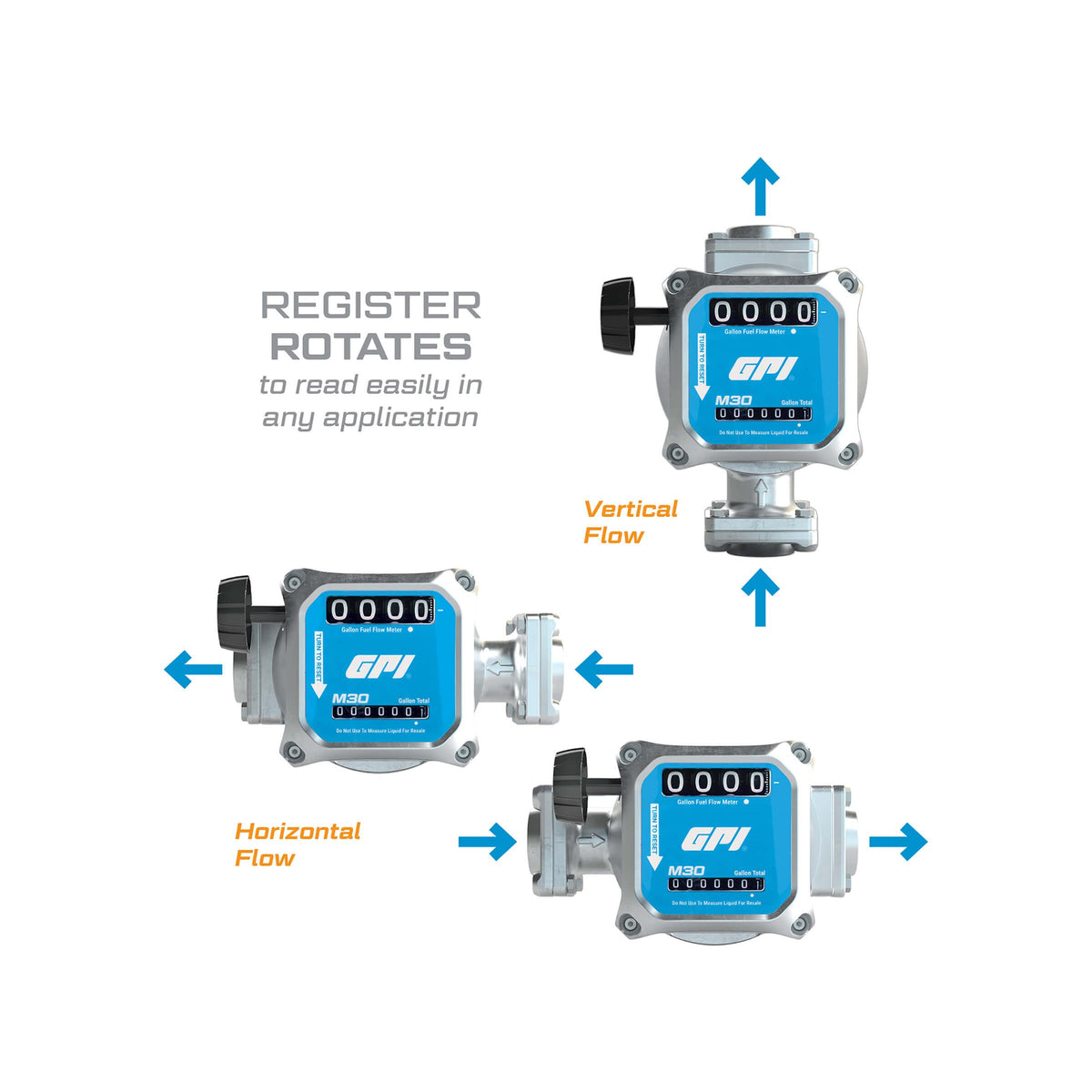

- Mounts in several directions, and the register turns to read from any angle
- 4-digit batch total (up to 999.9) with twist-knob reset, plus a running total
- Field calibration possible
- Aluminum housing; for diesel (up to B20), gasoline (up to E15) and kerosene
- Limited lifetime warranty
Specifications
| Part number | 165100-01 |
|---|---|
| Model | M30-G8N |
| Flow range | 5 - 30 GPM (19-114 L/mn) |
| Accuracy | +/- 2% of Reading |
| Display | Batch Total up to 999.9, Cumulative up to 999,999.9 |
| Units | Gallon |
| Field calibration | Yes |
| Housing | Aluminum |
| Meter type | Nutating Disc |
| Inlet | 1 in. FNPT |
| Outlet | 1 in. FNPT |
| Max pressure | 50 PSI (3.45 bar) |
| Operating temperature | -20° F to 125° F (-29° C to 52° C) |
| Fluids | Diesel up to B20, Gasoline up to E15, Kerosene |
| Wetted materials | Acetal, NBR, Neodymium (Nickel-plated), PBT/Polyester, Stainless Steel |
| Approvals | CE. Complies with the requirements of the EMC Directive 89/336/EEC.; IECEx; U.L. Listed to U.S. and Canadian Standards |
| Warranty | Limited lifetime |
| Shipping weight | 5 lb |

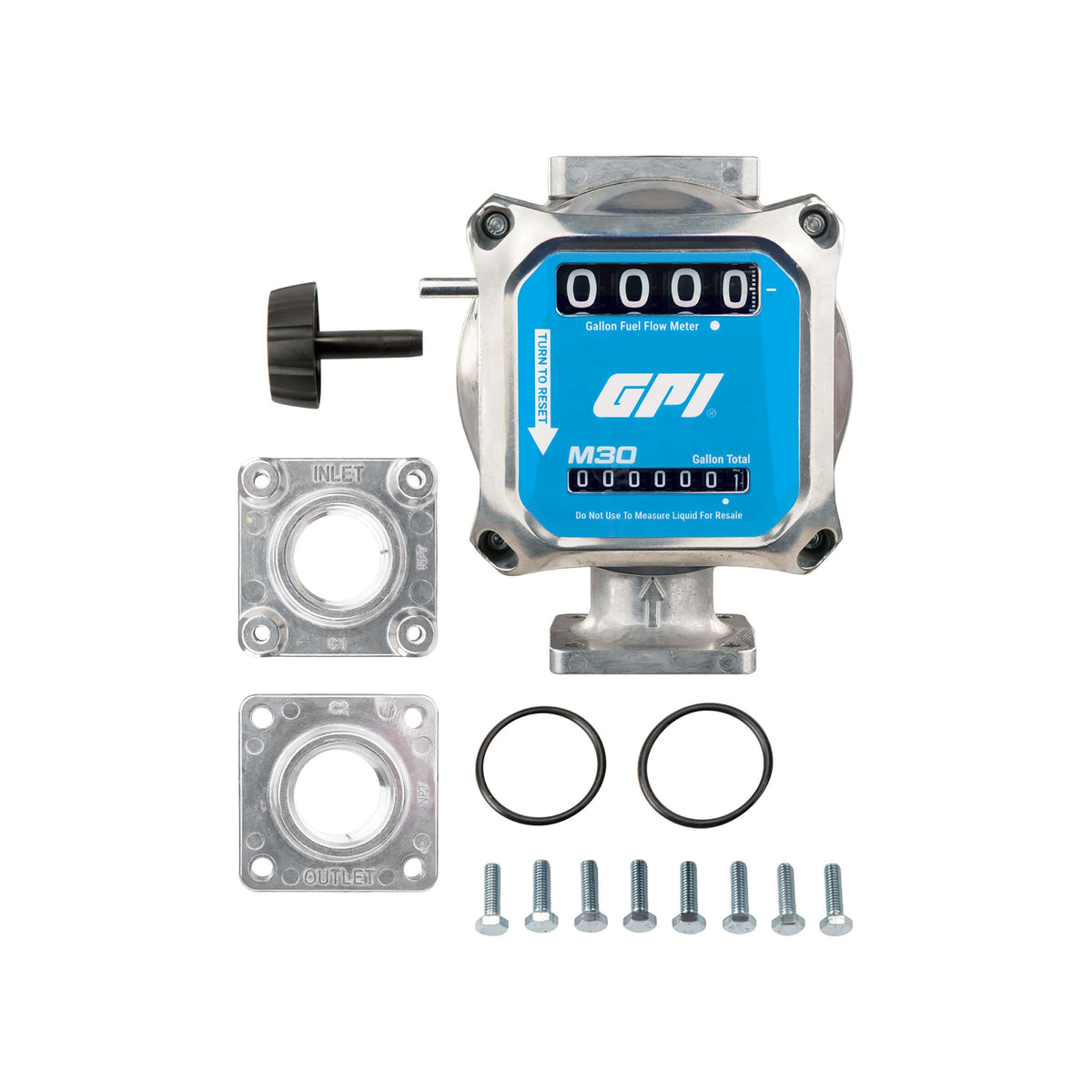

What's in the box
M30-G8N Mechanical fuel meter with gallon register, owner's manual
