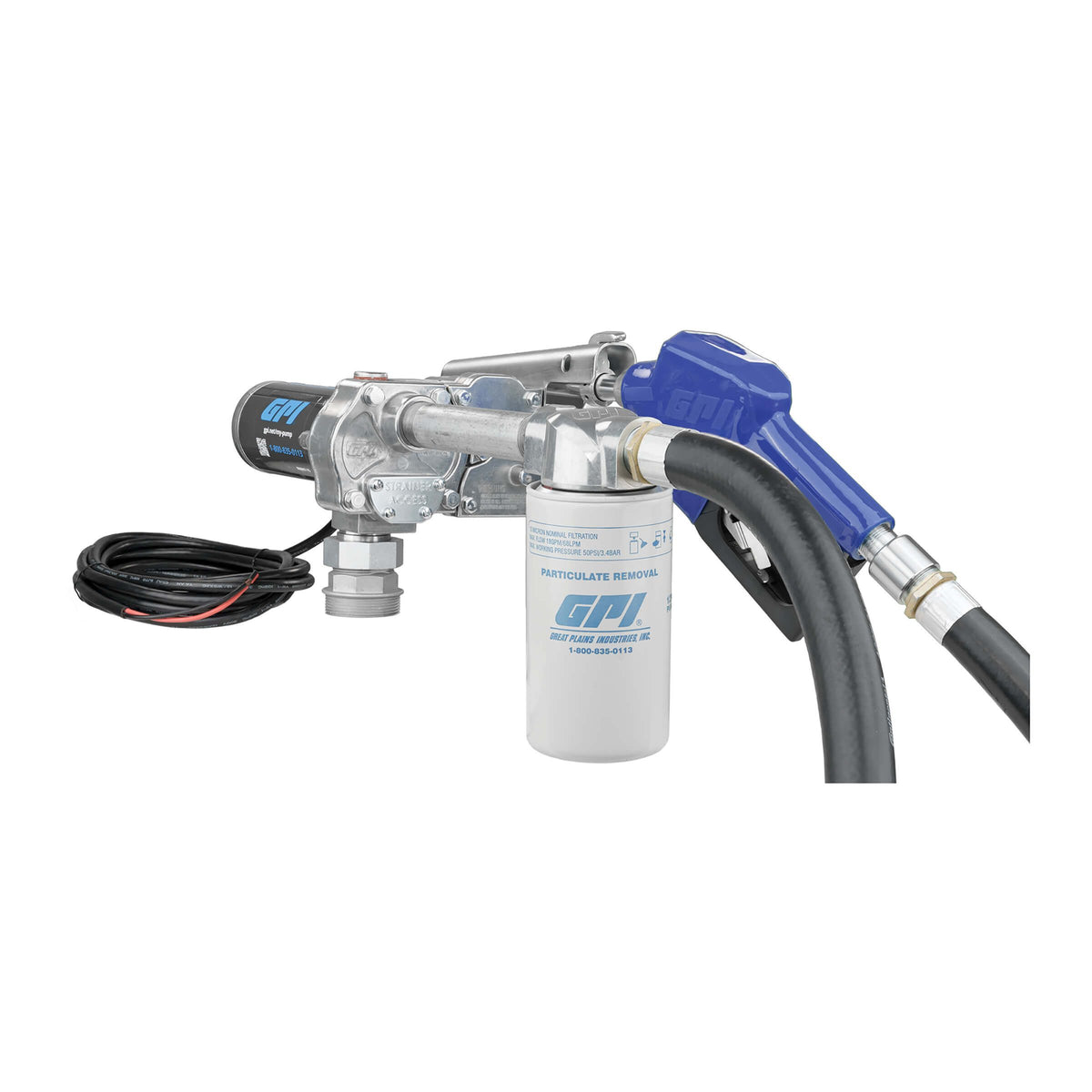

GPI M-180S-AU 18 GPM 12V Fuel Transfer Pump with Auto Unleaded Nozzle and Filter (110612-02)
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

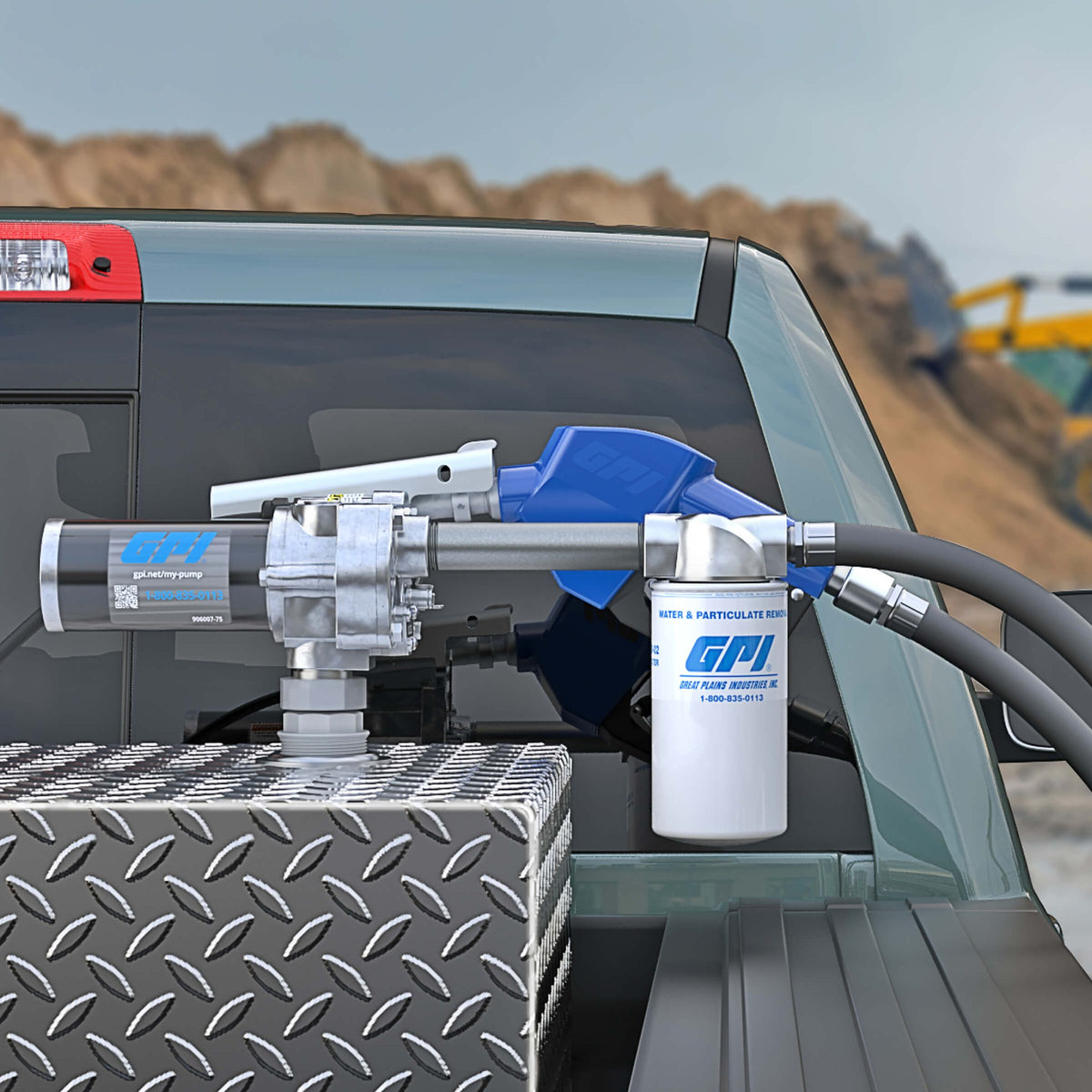

The GPI M-180S is a 12-volt rotary gear pump for truck bed transfer tanks and farm, construction or fleet fuel tanks. It moves diesel (up to B20), gasoline (up to E15) and kerosene at up to 18 gallons per minute, a little faster than the M-150S, through a 1 in. outlet and hose. The self-priming gear pump sits in a light die-cast aluminum body with a powder-coated motor can, and the 18 ft. power cord comes factory installed.
This kit adds a filter to the pump: it comes with an 18 GPM, 10 micron particulate filter with its adapter and installation kit, a 3/4 in. automatic shut-off nozzle (unleaded spout), a 12 ft. x 1 in. hose, a lockable nozzle holder, a tank adapter and a telescoping suction pipe.

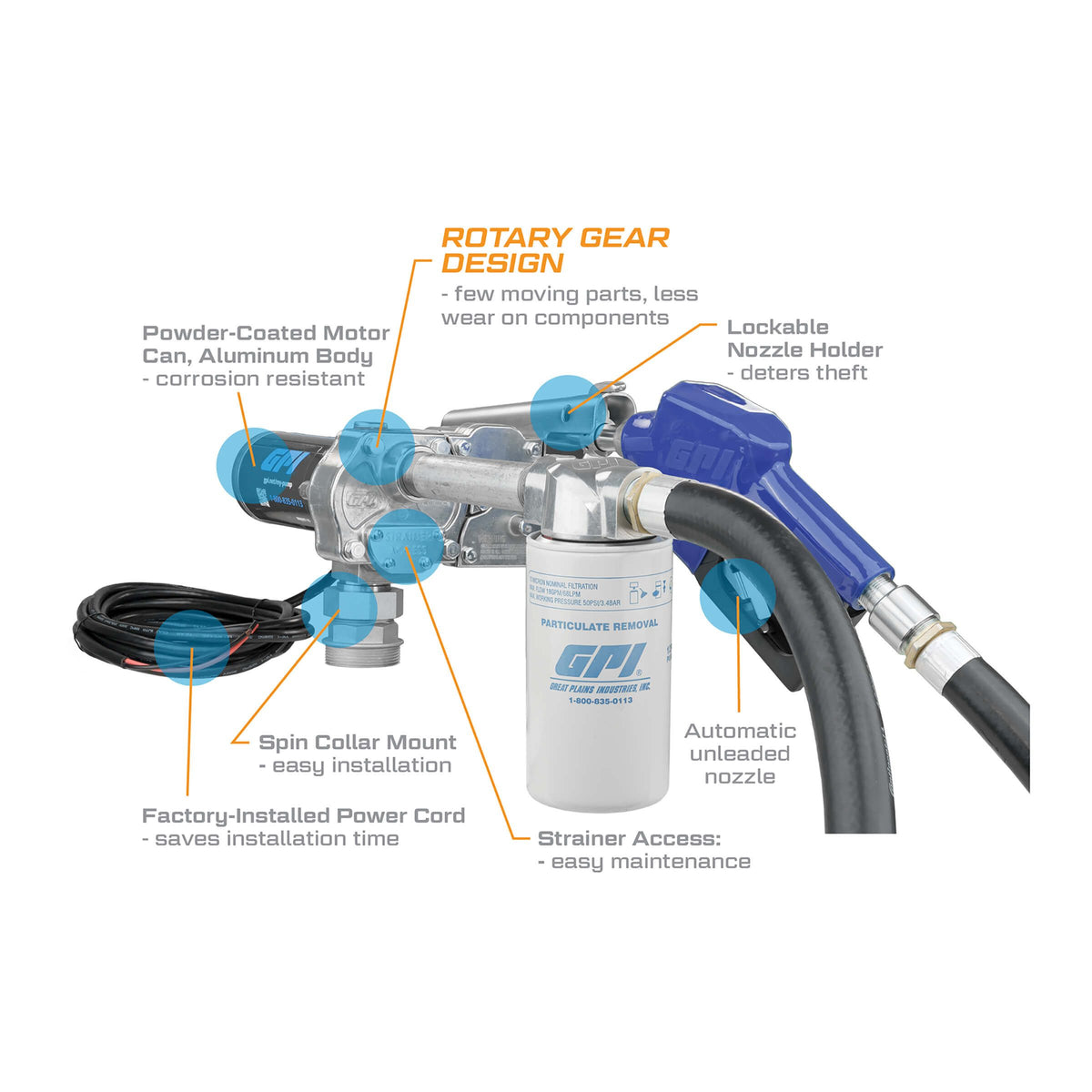

Features
- Up to 18 GPM (69 L/min) of diesel, gasoline or kerosene
- Self-priming rotary gear pump with fewer moving parts to wear
- Spin collar threads onto a 2 in. NPT tank opening without turning the whole pump
- Lightweight aluminum body and powder-coated motor can resist corrosion and ease stress on the tank
- Includes an 18 GPM, 10 micron particulate filter (1-12 UNF) to keep dirt and rust out of your equipment
- Lockable nozzle holder helps prevent fuel theft
- Low-profile design won't block your view
- Overload-protected motor with a factory-installed 18 ft. power cord
- Motor is cULus listed for hazardous locations (Class I, Division 2, Group D)
- Limited lifetime warranty
Specifications
| Part number | 110612-02 |
|---|---|
| Model | M-180S-AUF |
| Flow rate | 18 GPM (69 L/min) |
| Power | 12V (DC) |
| Motor | 0.25 HP |
| Current draw | 20 amps |
| Duty cycle | 30 min on/30 min off |
| Pump type | Rotary Gear |
| Power cord | 18 ft. (5.5 m), 12/2 AWG, factory installed |
| Mounting | Spin collar, 2 in. MNPT |
| Inlet | 1 in. FNPT |
| Outlet | 1 in. FNPT |
| Suction pipe | Polypropylene, telescoping 15 to 40 in. x 1 in. MNPT |
| Hose | 12 ft. (3.7 m) x 1 in. MNPT |
| Nozzle holder | Lockable |
| Max pressure | Up to 15 PSI (1.03 bar) |
| Discharge lift | Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C) |
| Operating temperature | -20° F to 125° F (-29° C to 52° C) |
| Fluids | Diesel up to B20, Gasoline up to E15, Kerosene |
| Wetted materials | Acetal, Aluminum, FKM, NBR, PPS, Stainless Steel |
| Warranty | Limited lifetime |
| Shipping weight | 31 lb |

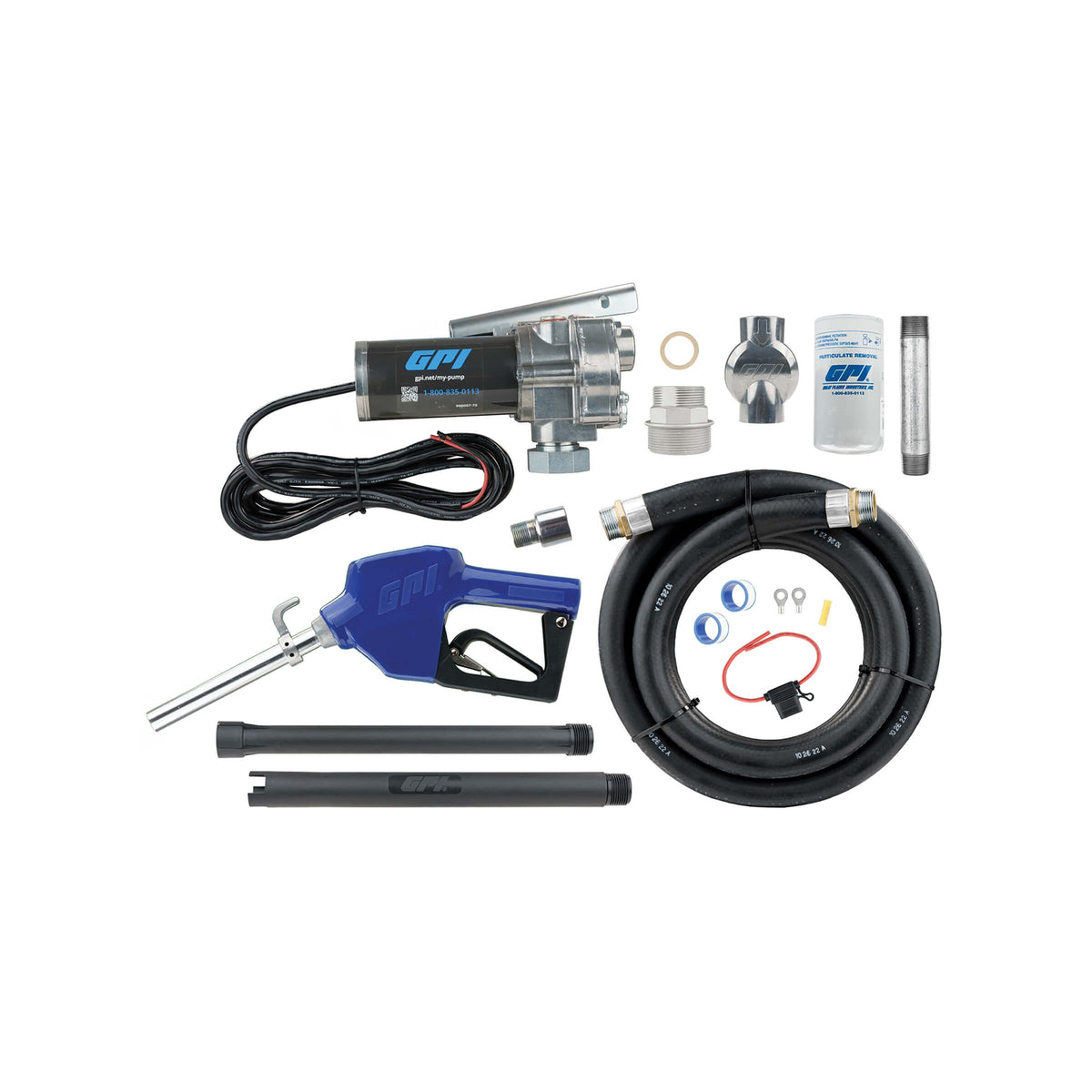

What's in the box
M-180S-AU with Filter fuel transfer pump, automatic shut-off, unleaded nozzle, dispensing hose, factory-installed power cord, telescoping suction pipe, tank adapter, fuse assembly, particulate filter, adapter and installation kit, owner's manual
