GPI

GPI M-150S-MU 15 GPM 12V Fuel Transfer Pump with Manual Unleaded Nozzle (110000-99)

Part # 110000-99 Fuel Transfer Pump
$484.99
Available to order · ships direct
FREE shipping on this itemFree UPS Ground to the lower 48 states. Ships direct in about 3–7 business days.
Price Match GuaranteeFind the same new item for less at an authorized US retailer and we'll match it. How it works
Check fit for your truck.

Pick your year, make and model to see if this part fits.

Select or change truck

Secure checkout with Shop Pay, Apple Pay, Google Pay or card

Fitment supportWe can help verify the right part
30-day returnsOn unused parts in original packaging
Local installProfessional installation in Bemidji, MN
Ships in about 3–7 business daysMost in-stock parts ship direct from the manufacturer's warehouse. Orders of $100 or more ship free by UPS Ground to the lower 48 states.
Free pickup in Bemidji, MNChoose pickup at checkout and we'll email you when it's ready.
Need a fitment check?Call (218) 308-0045 before ordering and we’ll help confirm the application.
Product details

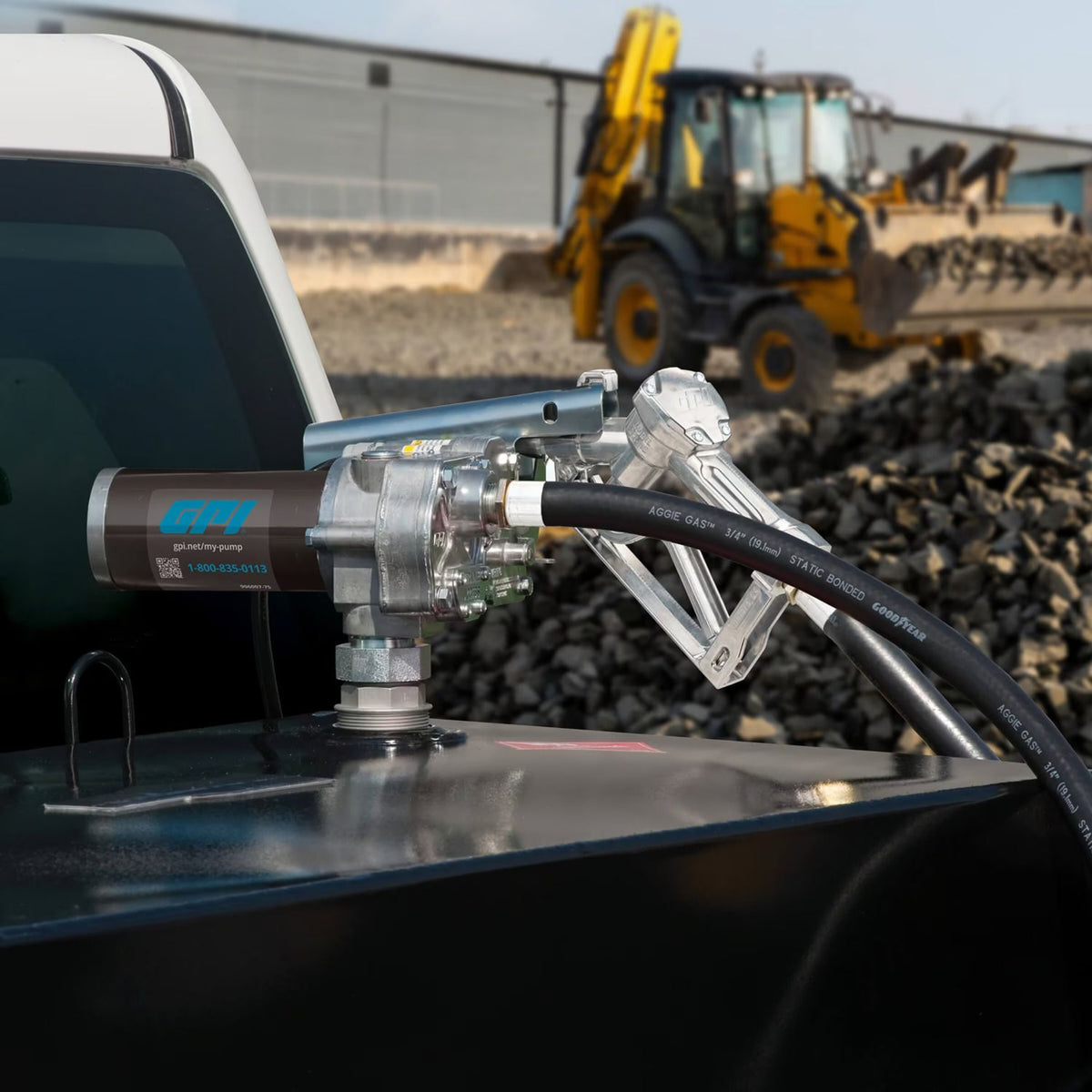

The GPI M-150S is a 12-volt rotary gear pump built for truck bed transfer tanks and farm or jobsite fuel tanks. It moves diesel (up to B20), gasoline (up to E15) and kerosene at up to 15 gallons per minute, and the gear design has fewer moving parts to wear out. The die-cast aluminum body is light on your tank's bung and resists corrosion, and the motor comes with an 18 ft. power cord already installed, ready to run off your truck battery.

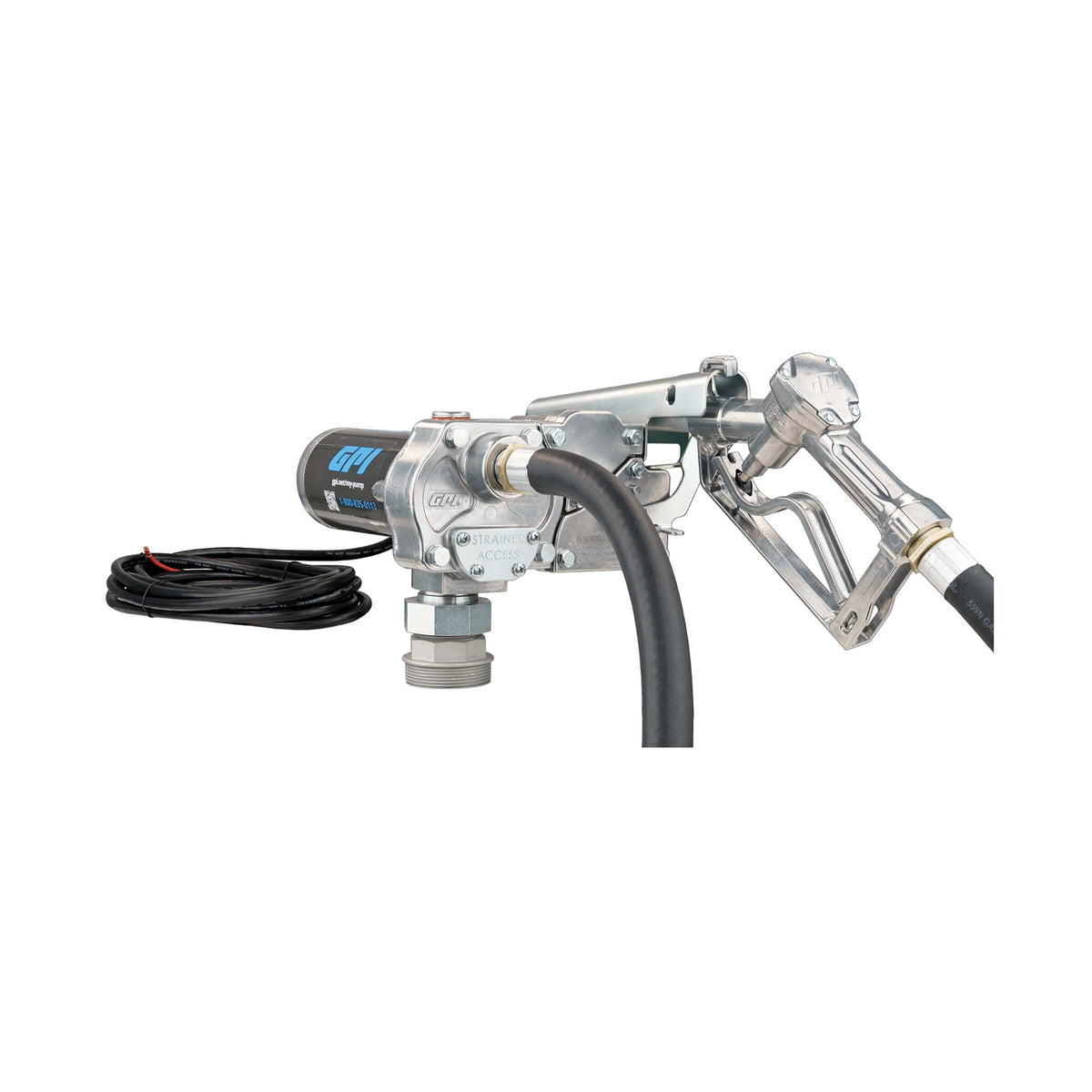

This kit comes with GPI's Black Diamond 3/4 in. manual nozzle (unleaded spout), a lockable nozzle holder, a 12 ft. hose and a telescoping suction pipe for tanks 15 to 40 in. deep. The spin collar lets you thread the pump onto the tank without turning the whole pump.

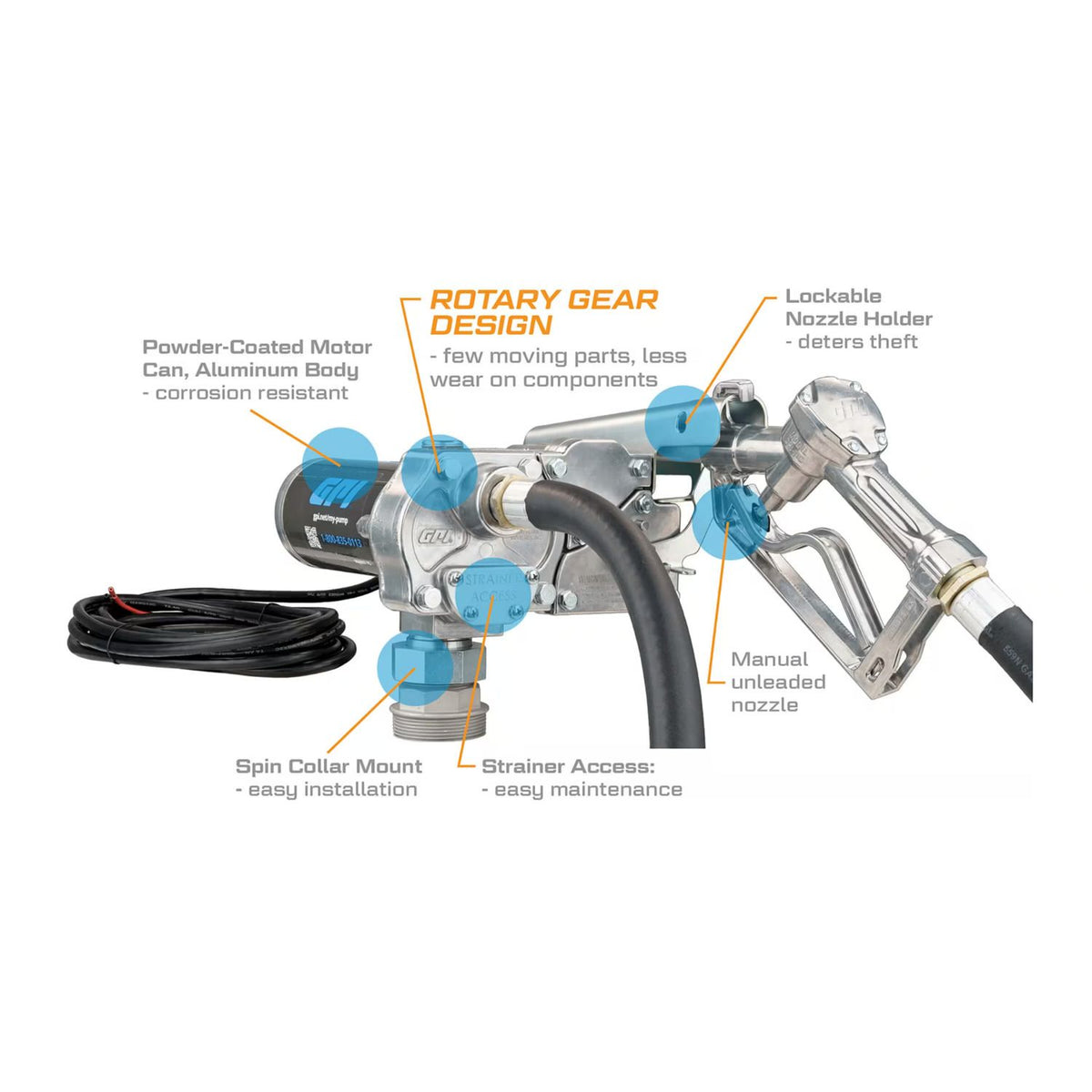

Features

  • Up to 15 GPM (57 L/min) of diesel, gasoline or kerosene
  • Rotary gear pump with fewer moving parts for less wear and a longer life
  • Lightweight die-cast aluminum body is easy on the tank bung and resists corrosion
  • Powder-coated motor can stands up to weather and years of work
  • Spin collar mount and factory-installed 18 ft. power cord for a quick install
  • Lockable nozzle holder helps prevent fuel theft
  • Strainer is easy to reach for cleaning
  • Motor is cULus listed for hazardous locations (Class I, Division 2, Group D)
  • Limited lifetime warranty

Specifications

Part number 110000-99
Model M-150S-MU
Batteries 12 Volt Battery
Flow rate 15 GPM (57 L/min)
Power 12V (DC)
Motor 0.20 HP, 1900 RPM
Current draw 18 amps
Duty cycle 30 min on/30 min off
Pump type Rotary Gear
Power cord 18 ft. (5.5 m), 12/2 AWG, factory installed
Mounting Spin collar, 2 in. MNPT
Inlet 1 in. FNPT
Outlet 3/4 in. FNPT
Suction pipe Polypropylene, telescoping 15 to 40 in. x 1 in. MNPT
Hose 12 ft. (3.7 m) x 3/4 in. MNPT
Nozzle holder Lockable
Max pressure Up to 15 PSI (1.03 bar)
Discharge lift Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C)
Operating temperature -20° F to 125° F (-29° C to 52° C)
Fluids Diesel up to B20, Gasoline up to E15, Kerosene
Wetted materials Acetal, Aluminum, FKM, NBR, PPS, Stainless Steel
Approvals cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
Warranty Limited lifetime
Shipping weight 24.5 lb

What's in the box

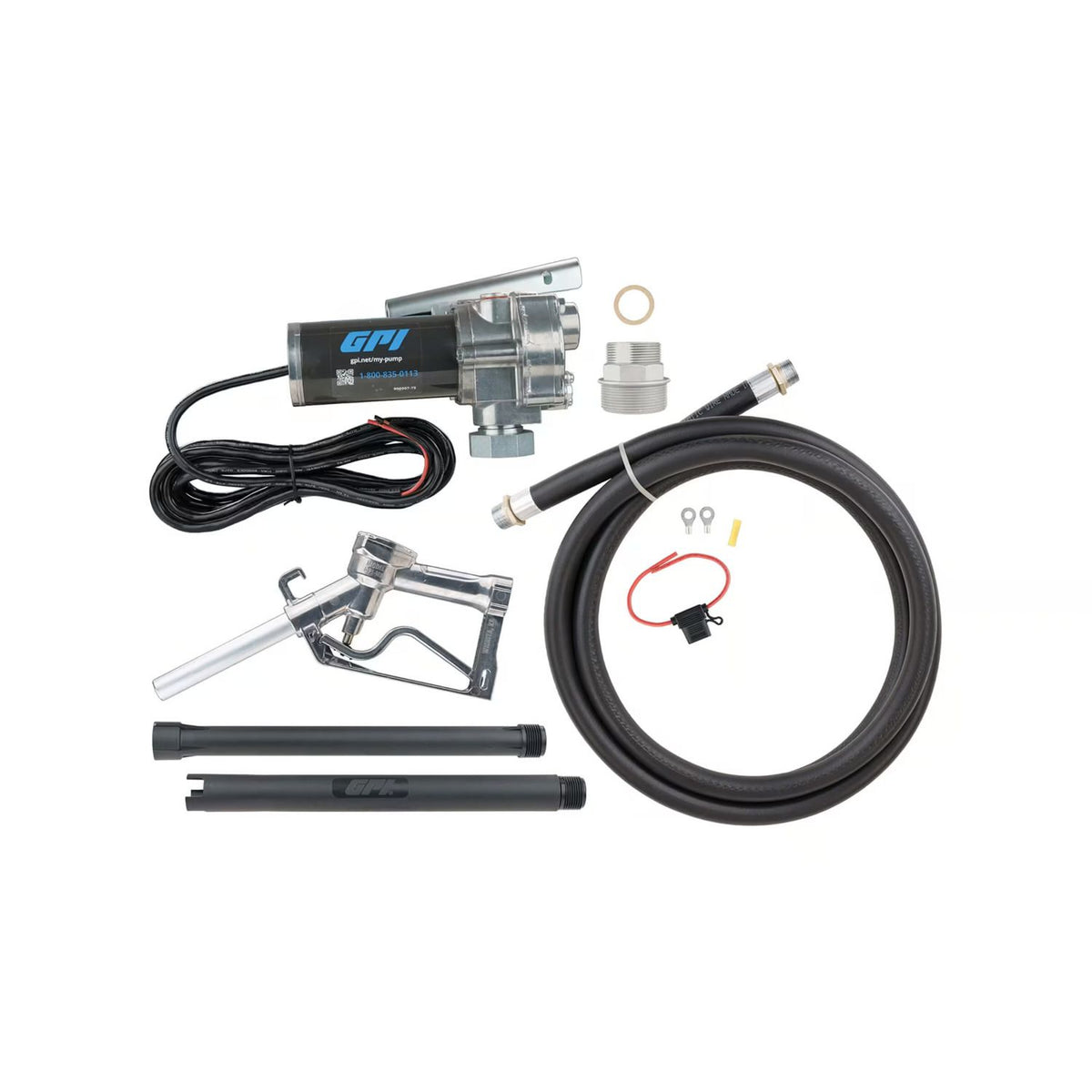

M-150S-MU fuel transfer pump with spin collar, manual shut-off unleaded nozzle, lockable nozzle holder, dispensing hose, factory-installed power cord, telescoping suction pipe, tank adapter, fuse assembly, owner's manual
