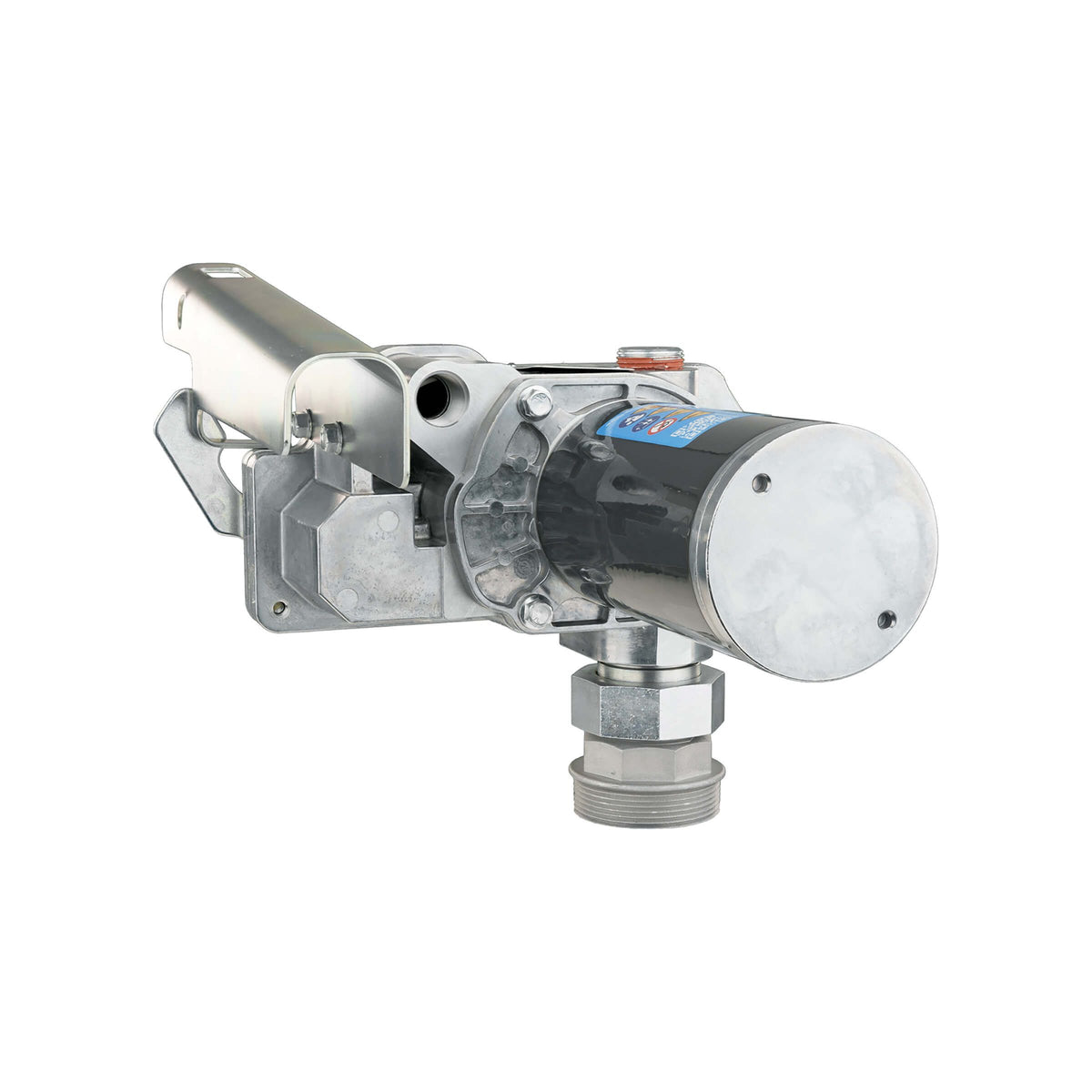

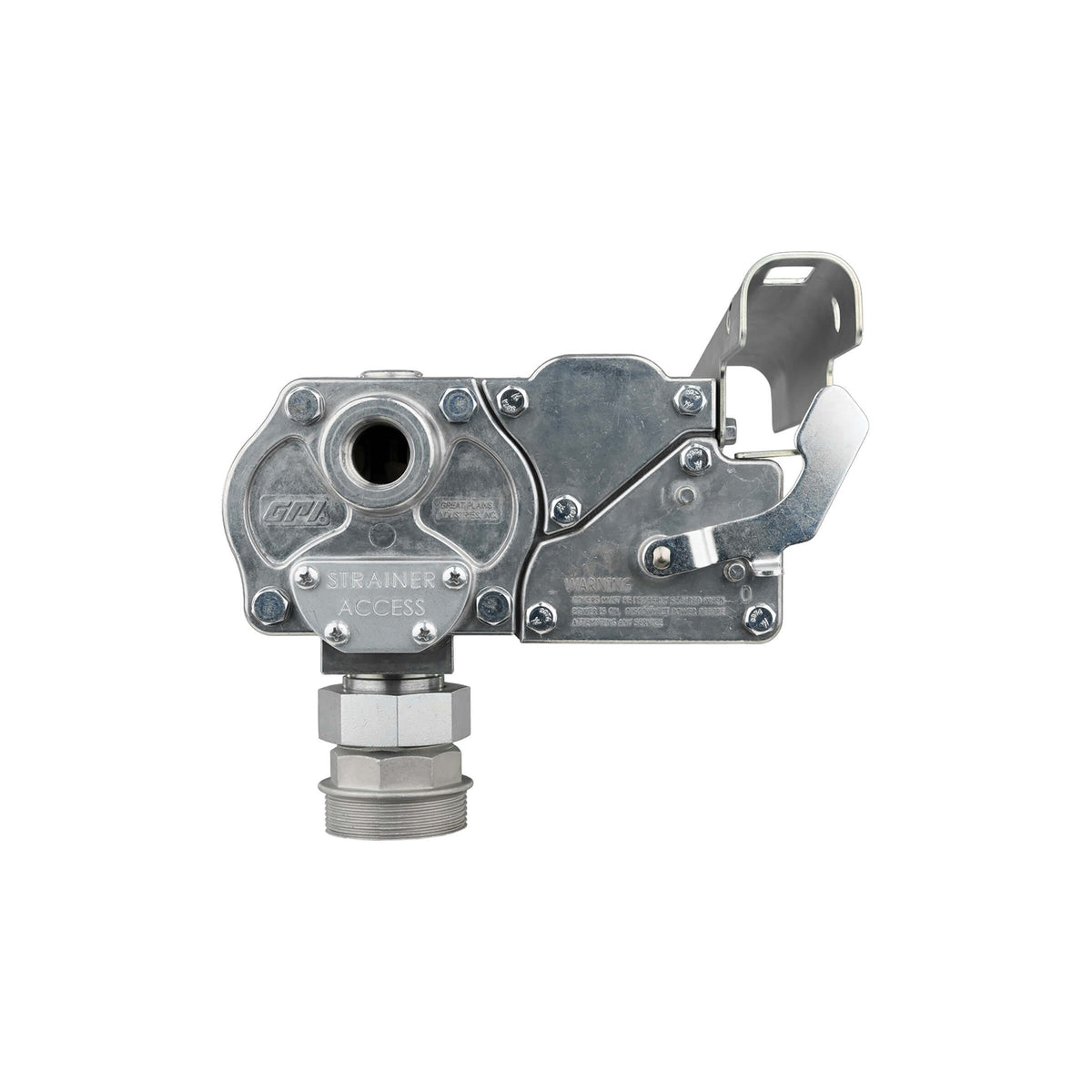

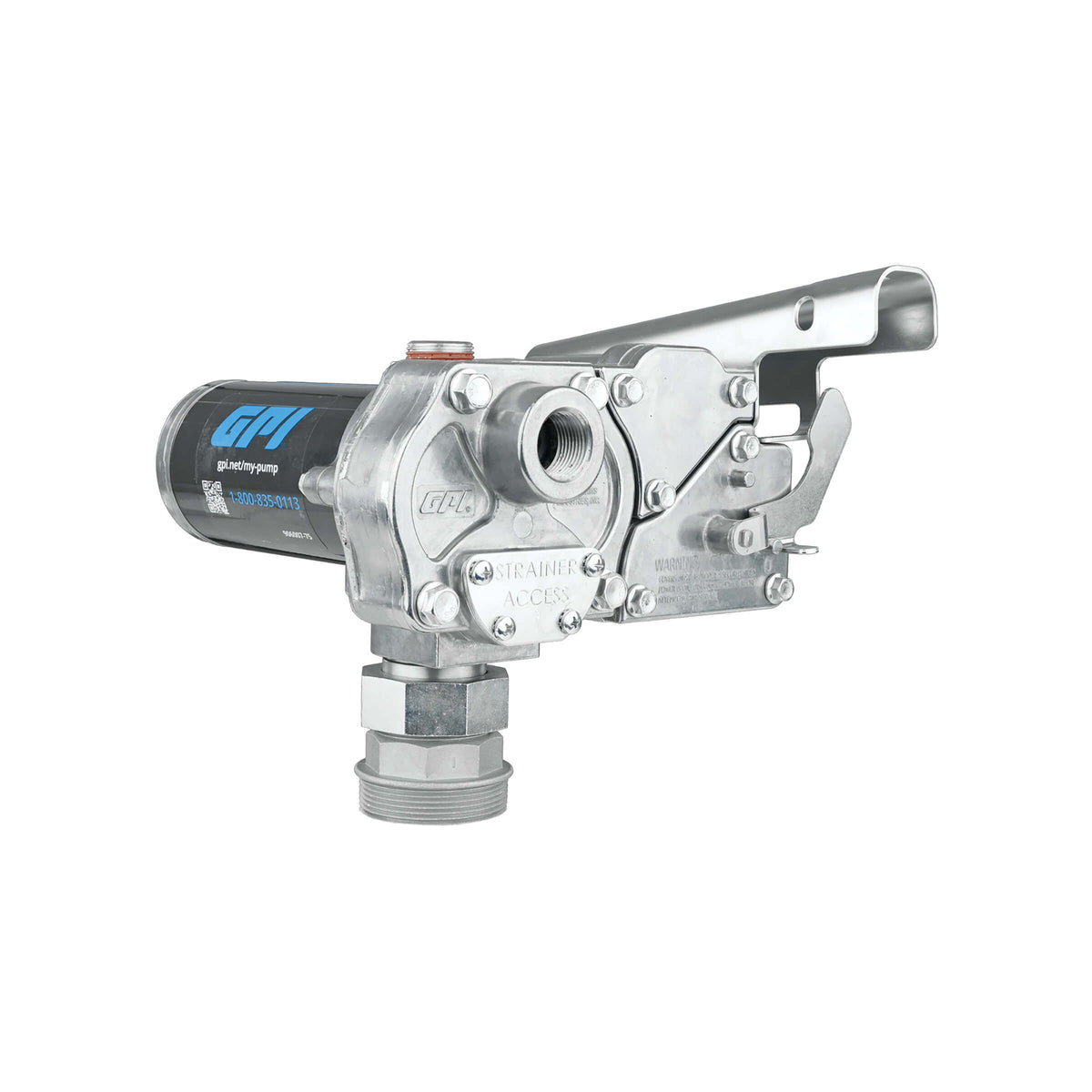

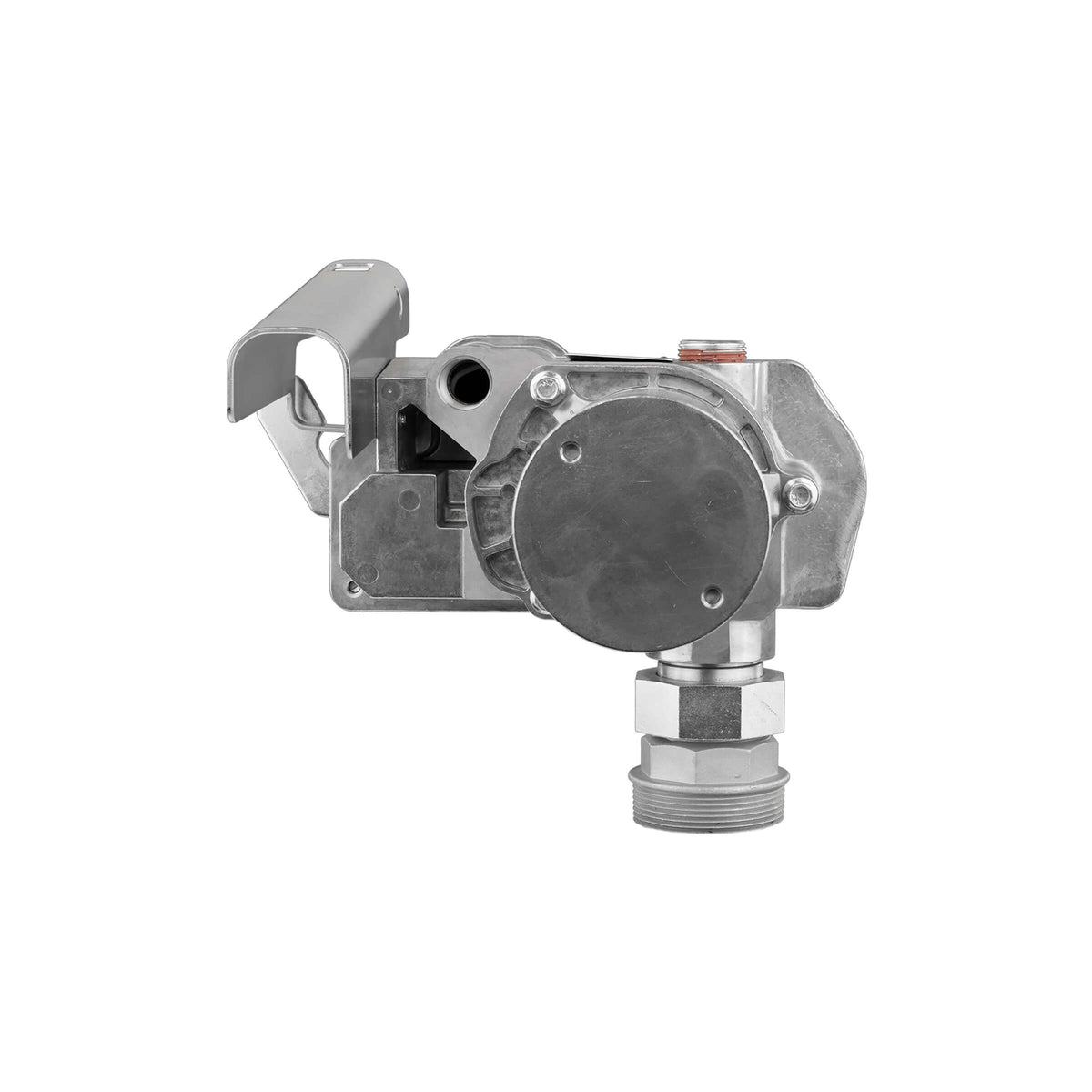

GPI M-150S 15 GPM 12V Methanol Transfer Pump, Pump Only (110700-01)
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details
This version of the GPI M-150S is built to pump methanol, for race teams, de-icing and other mobile methanol fueling. It runs on 12 volts and moves up to 15 gallons per minute, with nickel-plated aluminum and other methanol-ready parts wherever the fluid touches. It is sold as a pump only, so you can add the hose, nozzle and suction pipe that suit your setup, or keep it as a backup pump.

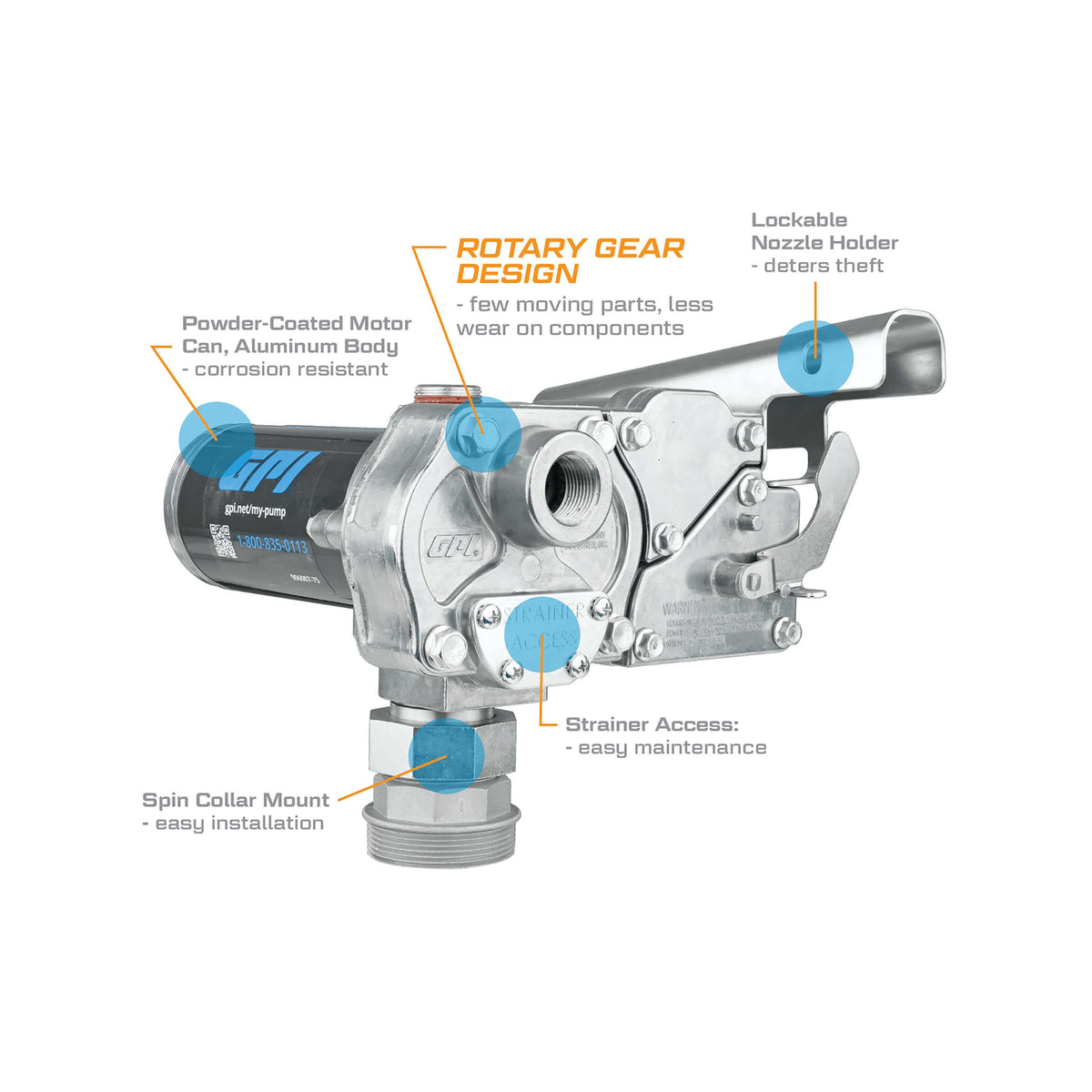

Features
- Made for methanol: wetted parts are nickel-plated aluminum, stainless steel, acetal, PPS and NBR
- Up to 15 GPM (57 L/min) from a 12V DC, 0.20 HP motor
- Spin collar mount for a 2 in. NPT tank opening
- Lockable nozzle holder, 18 ft. 12/2 AWG power cord, tank adapter and fuse included
- Hose, nozzle and suction pipe are not included
- Overload-protected motor; UL listed motor and CSA certified
- Limited lifetime warranty
Specifications
| Part number | 110700-01 |
|---|---|
| Model | M-150S-Methanol-PO |
| Flow rate | 15 GPM (57 L/min) |
| Power | 12V (DC) |
| Motor | 0.20 HP |
| Current draw | 18 amps |
| Duty cycle | 30 min on/30 min off |
| Pump type | Rotary Gear |
| Power cord | 18 ft. (5.5 m), 12/2 AWG Power cord |
| Mounting | Spin collar, 2 in. MNPT |
| Inlet | 1 in. FNPT |
| Outlet | 3/4 in. FNPT |
| Suction pipe | Not included |
| Hose | Not included |
| Nozzle holder | Lockable |
| Max pressure | Up to 15 PSI (1.03 bar) |
| Discharge lift | Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C) |
| Operating temperature | -20° F to 125° F (-29° C to 52° C) |
| Fluids | Methanol |
| Wetted materials | Acetal, NBR, Nickle-Plated Aluminum, PPS, Stainless Steel |
| Warranty | Limited lifetime |
| Shipping weight | 16 lb |

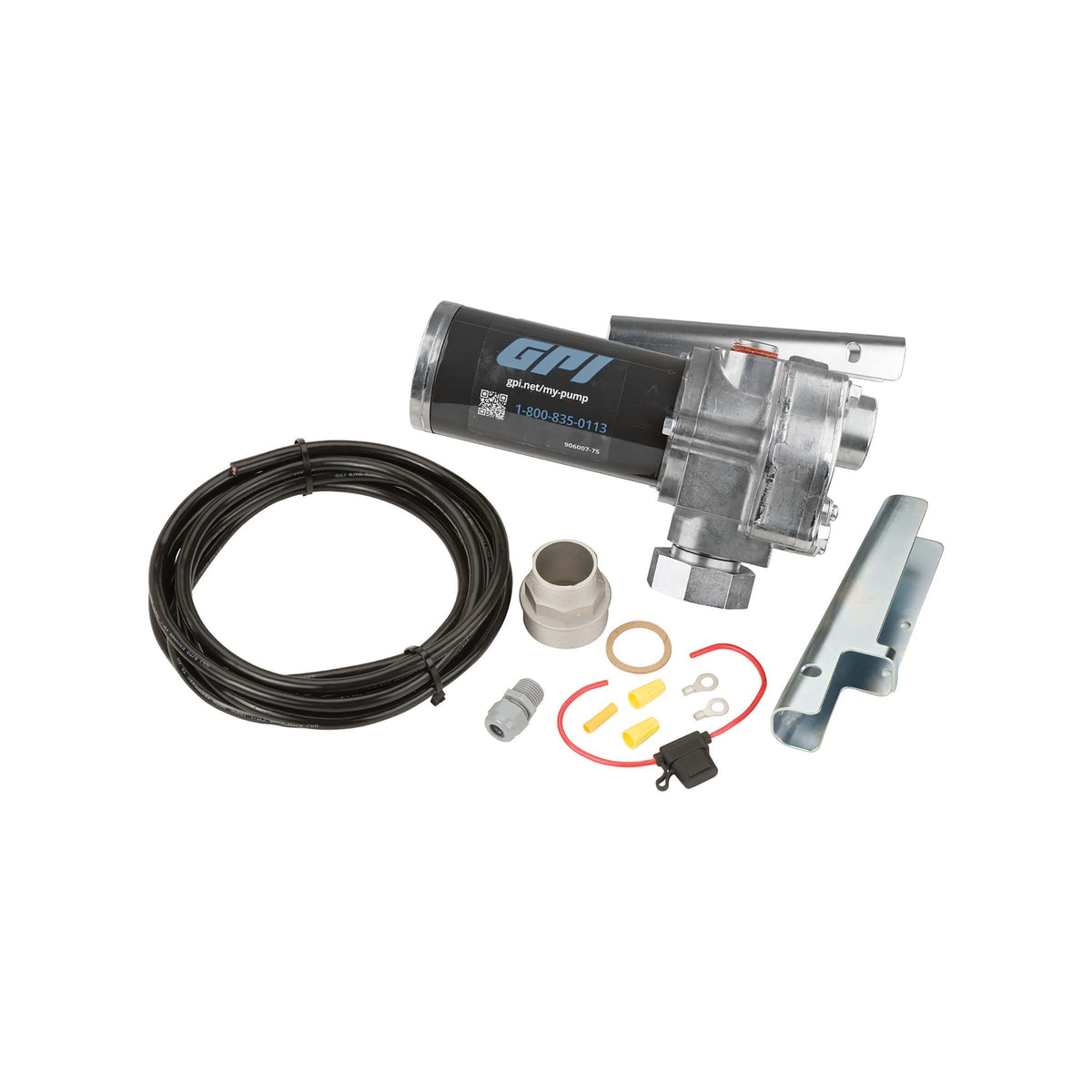

What's in the box
M-150S-Methanol-PO transfer pump with spin collar, power cord, lockable nozzle holder, tank adapter, fuse assembly, owner's manual
