GPI L5116 4 GPM 115/230V AC Oil Transfer Pump with Hose and Nozzle (142100-01)
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

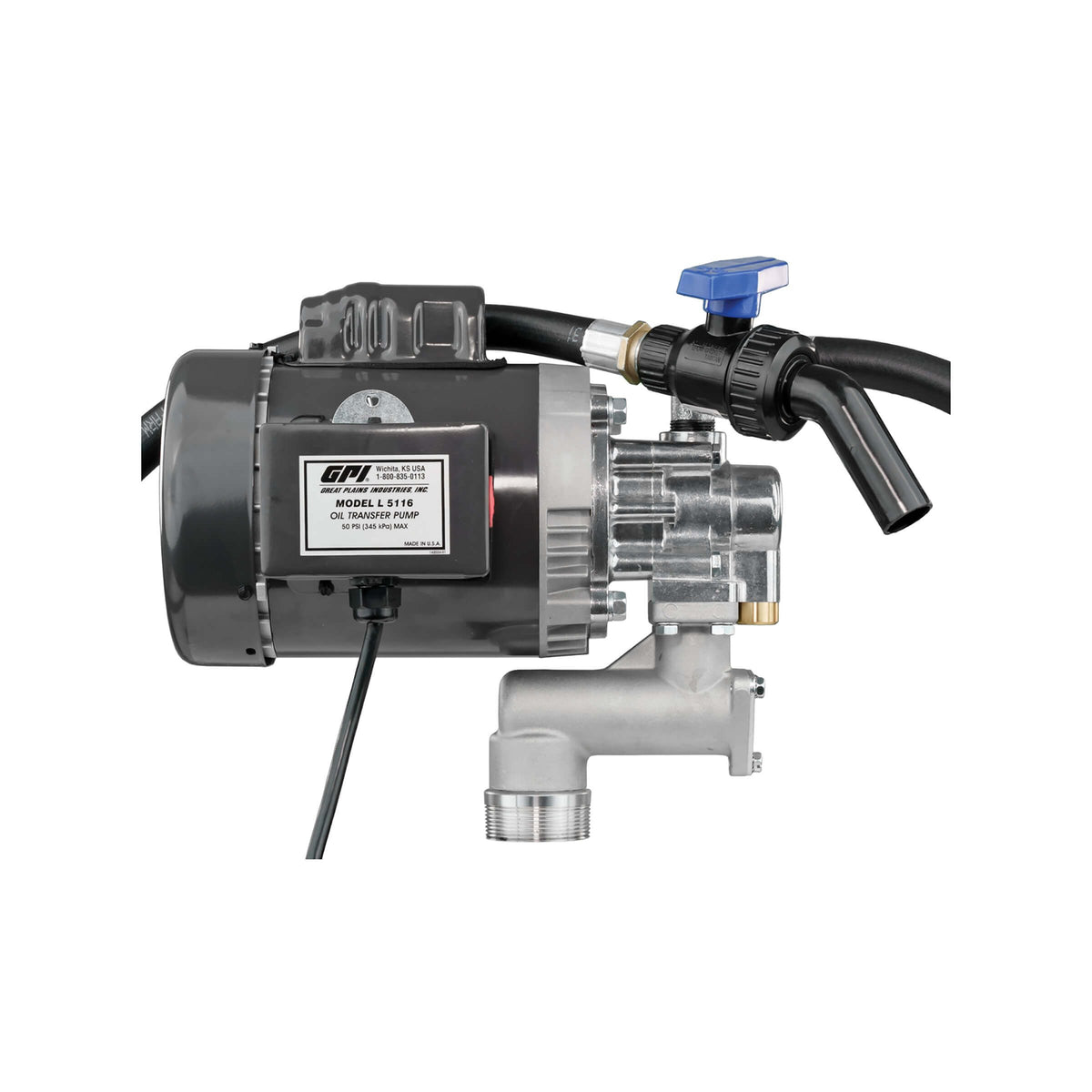

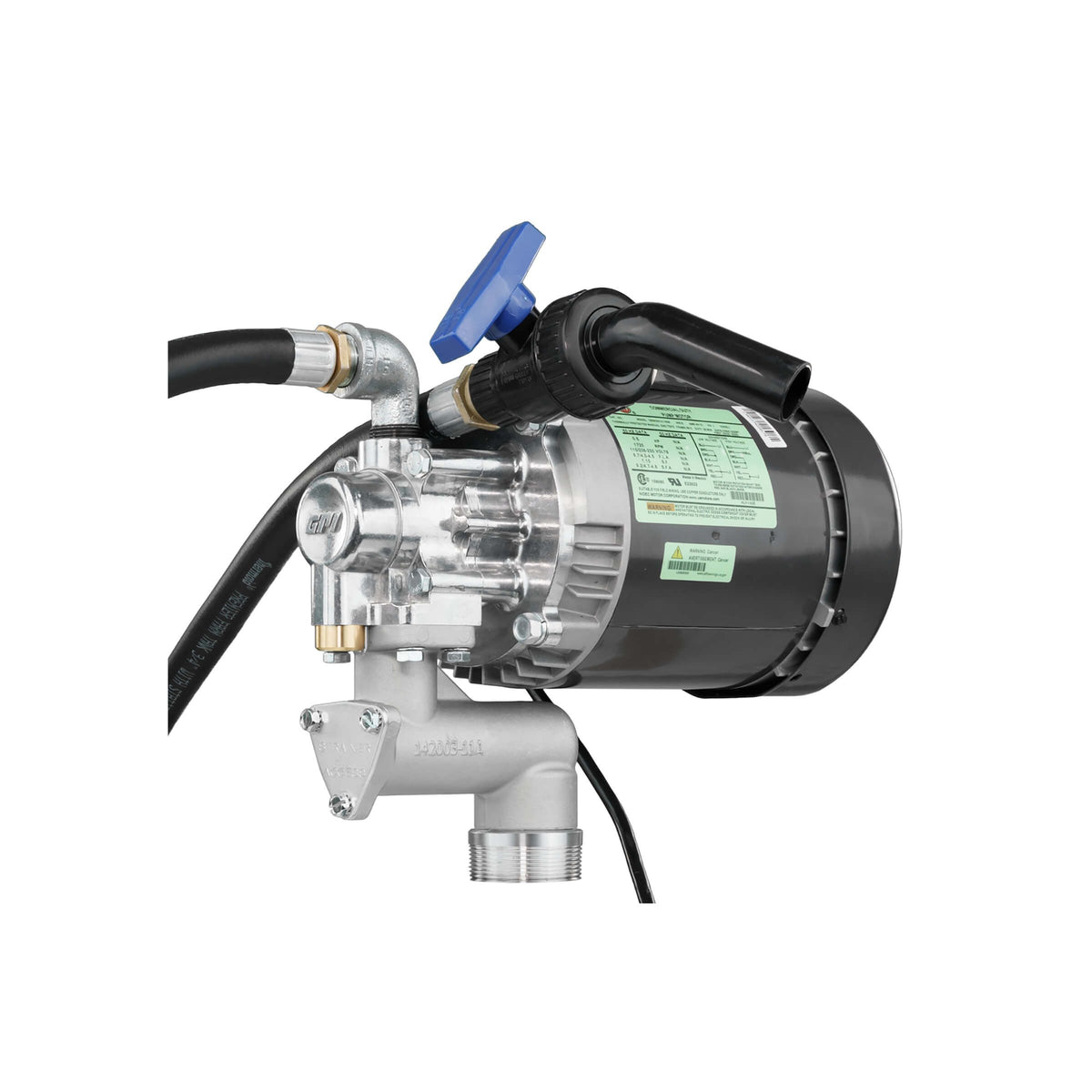

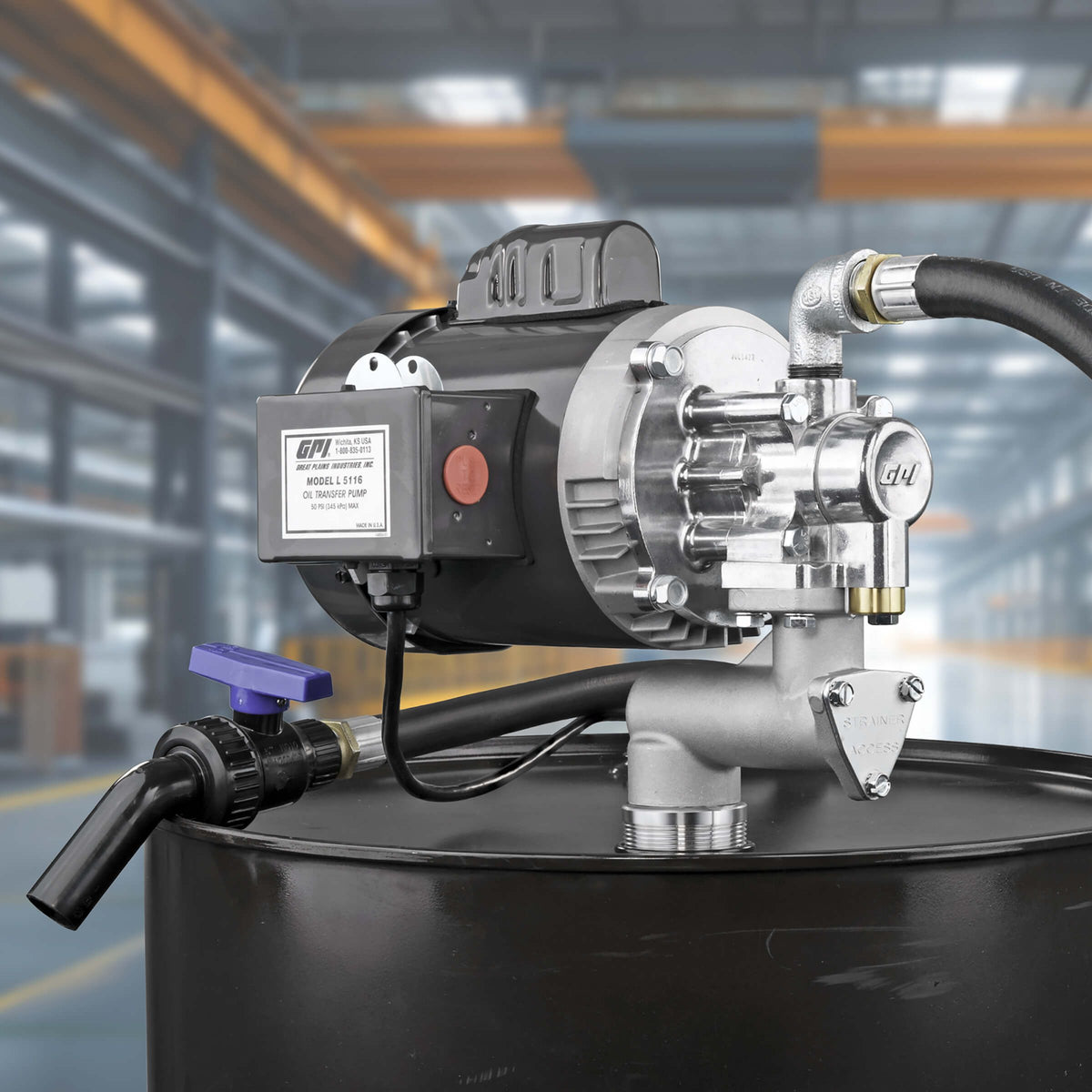

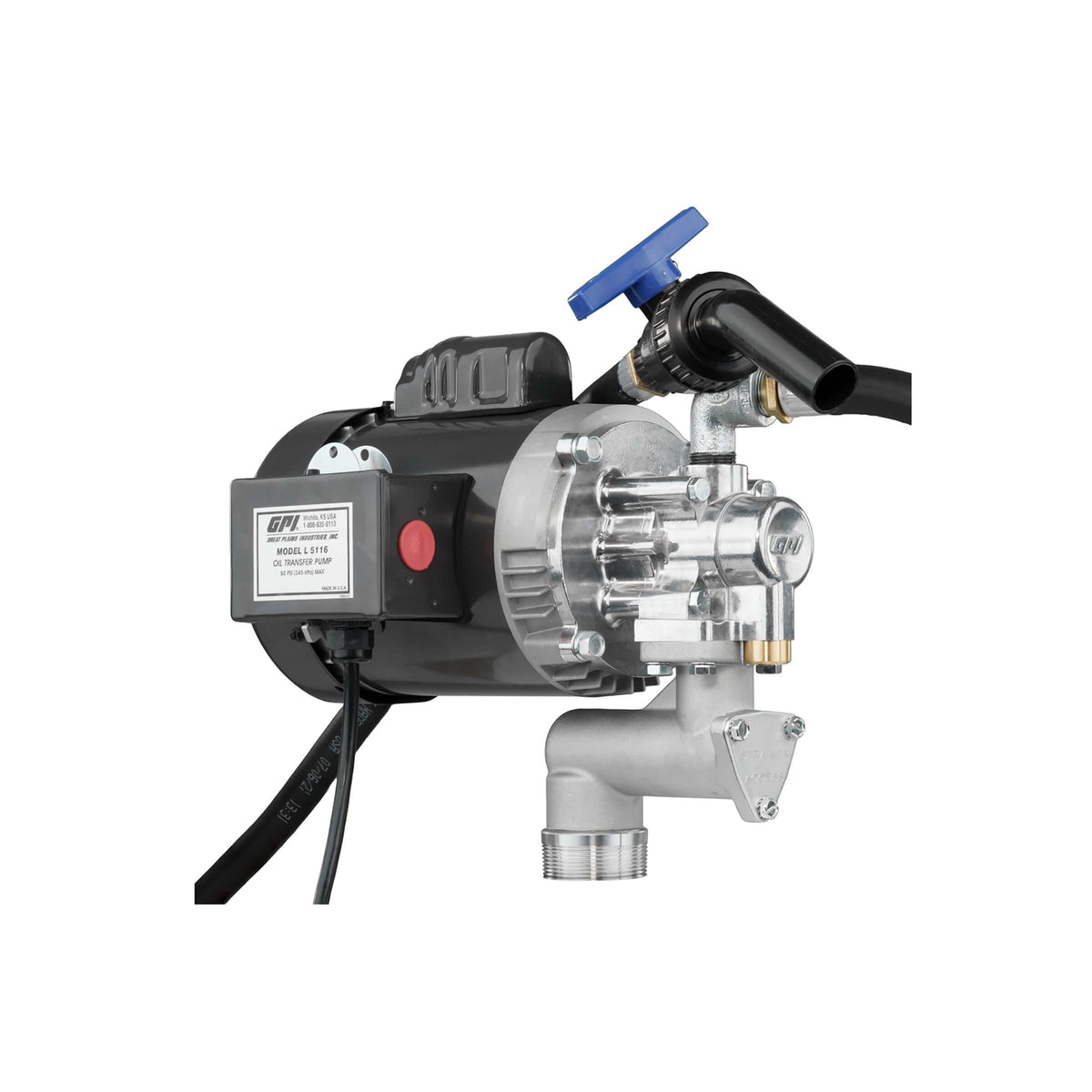

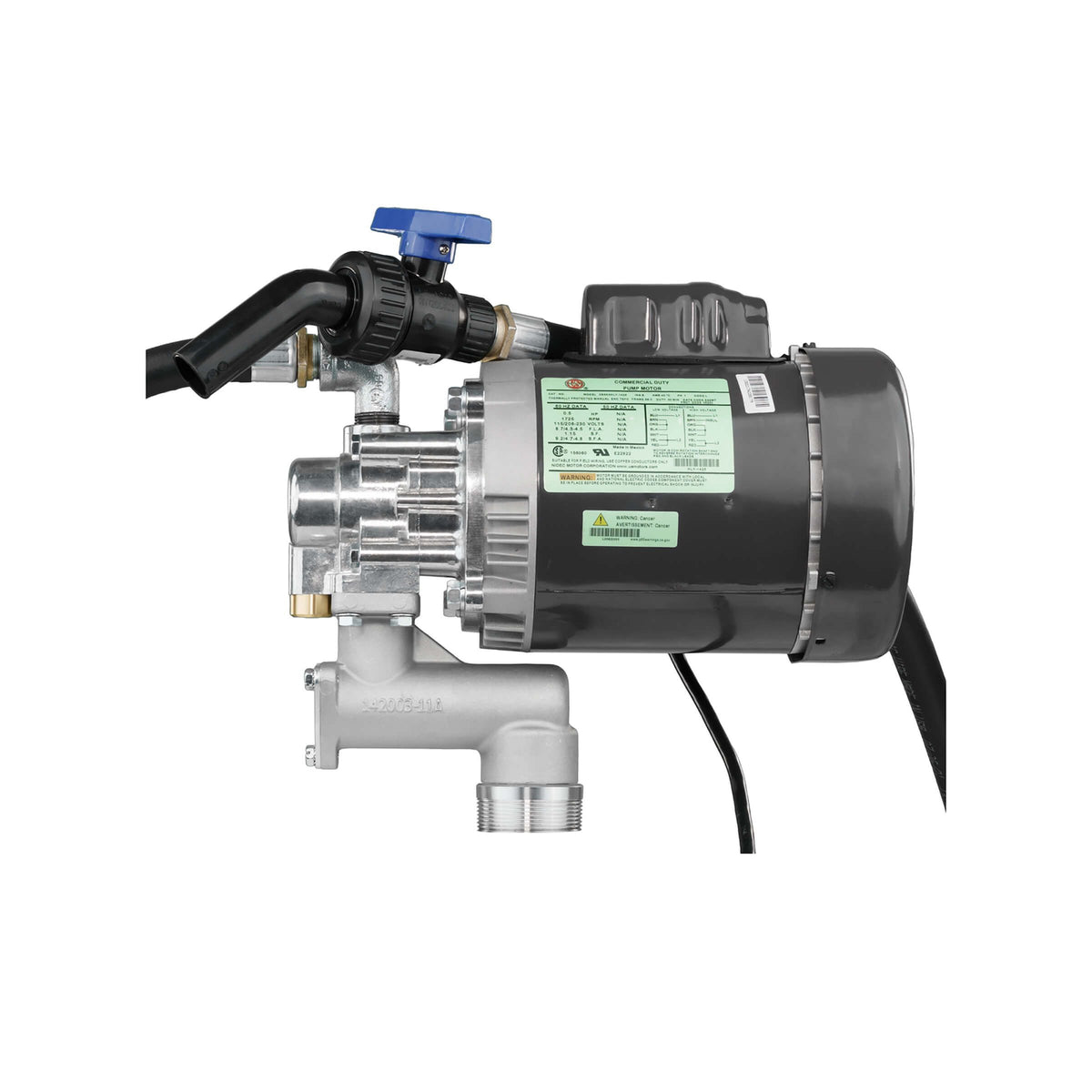

The GPI L5116 is an electric drum and tank pump for thick fluids: clean motor and gear oil up to 90W, hydraulic fluid and antifreeze. A 0.5 HP motor that runs on 115V or 230V AC drives a gerotor gear pump at up to 4 gallons (16 quarts) per minute, so it fits a shop, a fleet bay or a farm shed. It is not for gasoline or other fuels.
It comes ready to go with an 8 ft. x 3/4 in. hose, a ball valve nozzle, an adjustable suction pipe, a 90-degree street elbow and a factory-installed power cord with a grounded plug.

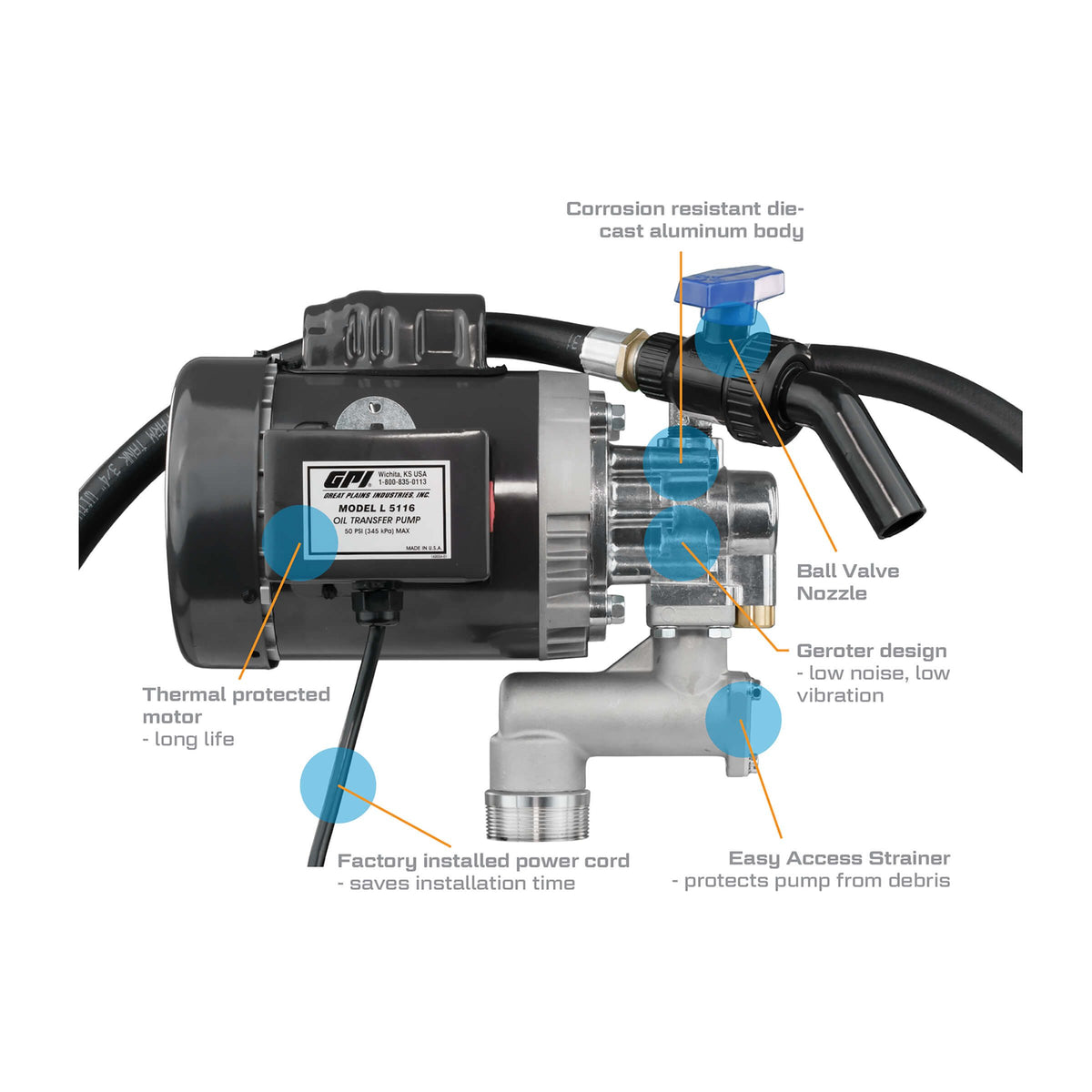

Features
- Moves oil up to 90W, hydraulic fluid and antifreeze at up to 4 GPM (15 L/min)
- Thermally protected 0.5 HP motor runs on 115V or 230V AC
- Gerotor gear pump in a cast aluminum housing, built for thick fluids
- Weight-centering inlet base reduces stress on the drum or tank, with an easy-access strainer
- Factory-installed power cord saves setup time
- For indoor, ordinary locations only: not for outdoor use, hazardous locations or flammable fuels
- Motor is a UL recognized component and CSA certified
- 2-year warranty

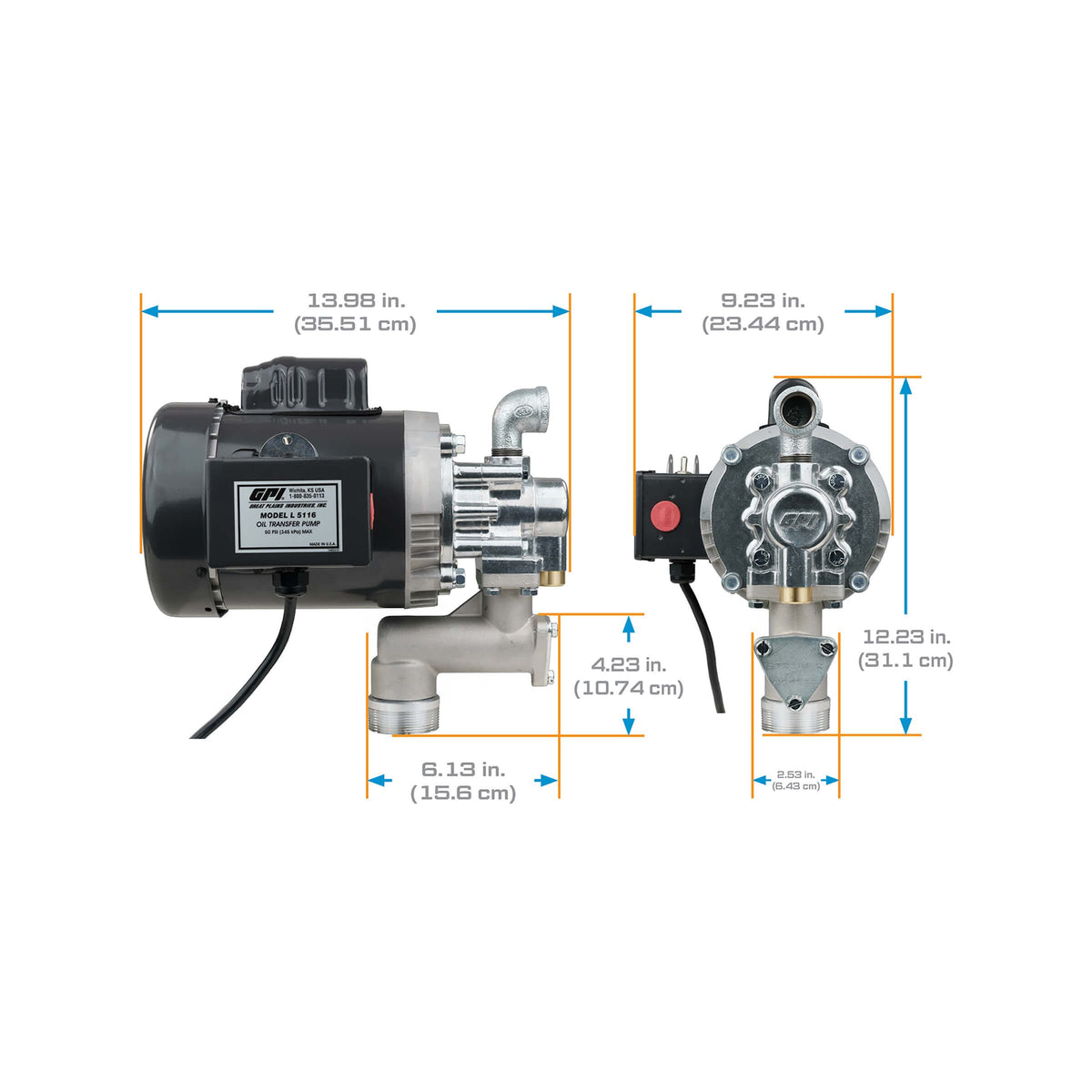

Specifications
| Part number | 142100-01 |
|---|---|
| Model | L5116 |
| Flow rate | 16 QPM/4 GPM (15 L/min) |
| Power | 115/230V (AC) 60 Hz |
| Motor | 0.50 HP, 1725 RPM |
| Current draw | 7.5 amps (115V/60Hz) / 3.7 amps (230V) |
| Duty cycle | 30 min on/30 min off |
| Pump type | Gerotor |
| Power cord | 3 ft. (.91 m) |
| Mounting | Center base, 2 in. MNPT |
| Inlet | 1 in. FNPT |
| Outlet | 3/4 in. FNPT |
| Suction pipe | Polypropylene, telescoping 15 to 40 in. x 1 in. MNPT |
| Hose | 8 ft. (2.44 m) x 3/4 in. |
| Max pressure | Up to 50 PSI (3.45 bar) |
| Operating temperature | See Viscosity Chart for Operating Temperature Range |
| Fluids | Anti-Freeze, Hydraulic Fluid, Up to 90W Oil |
| Wetted materials | Aluminum, Brass, NBR, Stainless Steel, Steel, Zinc-Plated Steel |
| Approvals | CSA Certified Motor, Motor UL Recognized Component |
| Warranty | 2 years |
| Shipping weight | 34 lb |

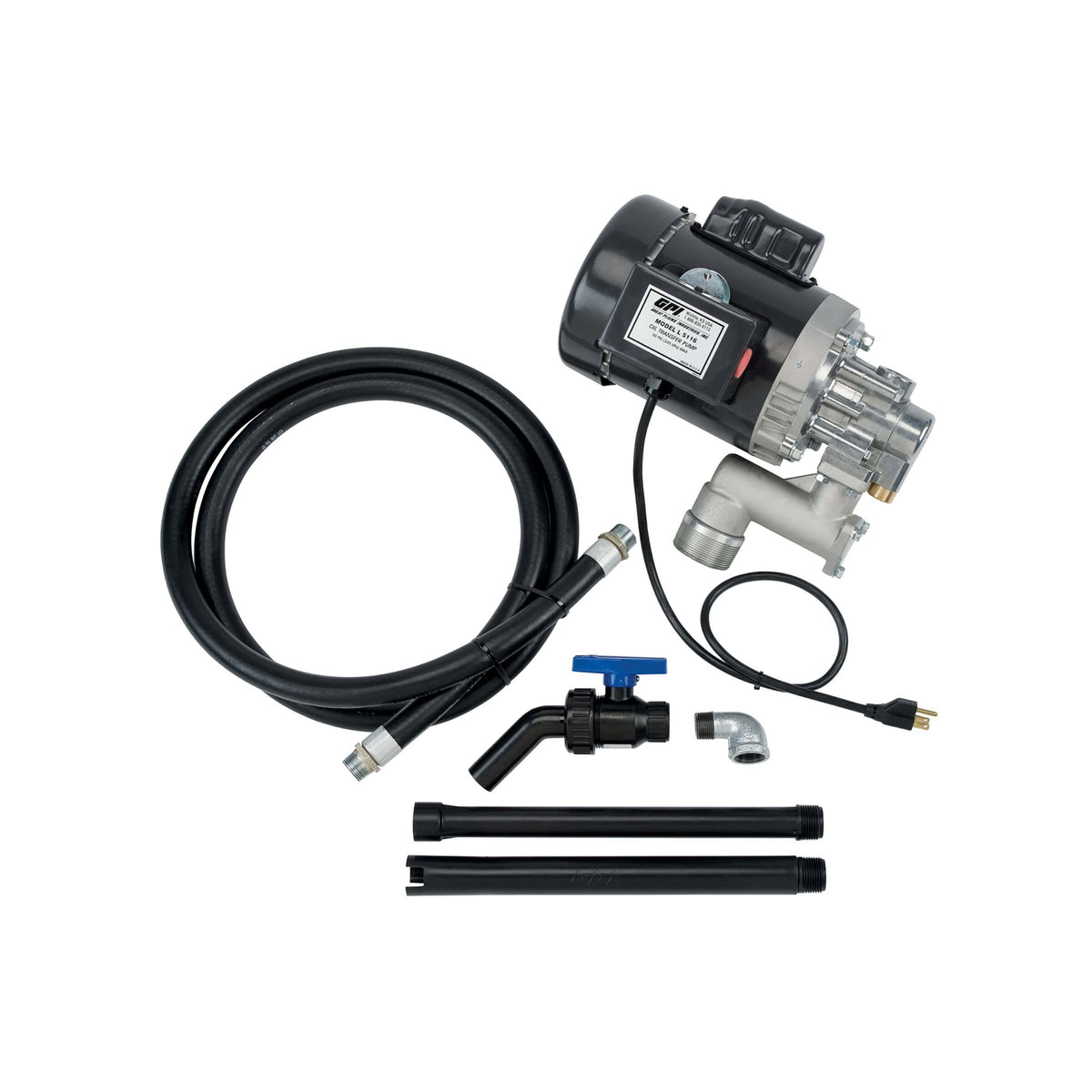

What's in the box
L5116 115/230V 16 Q/min pump, ball valve nozzle, dispensing hose, power cord with grounded plug, adjustable suction pipe, 90 degree street elbow
