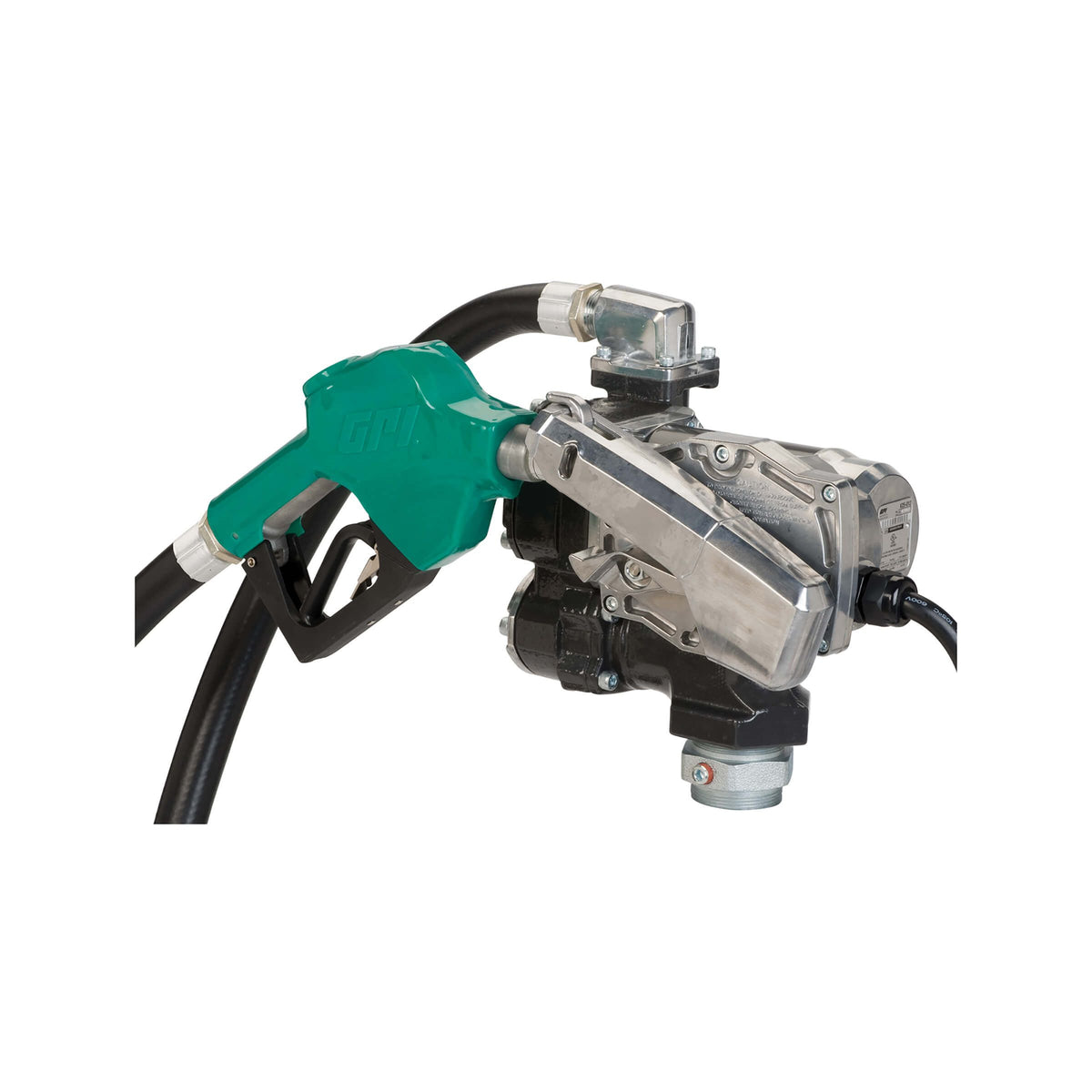

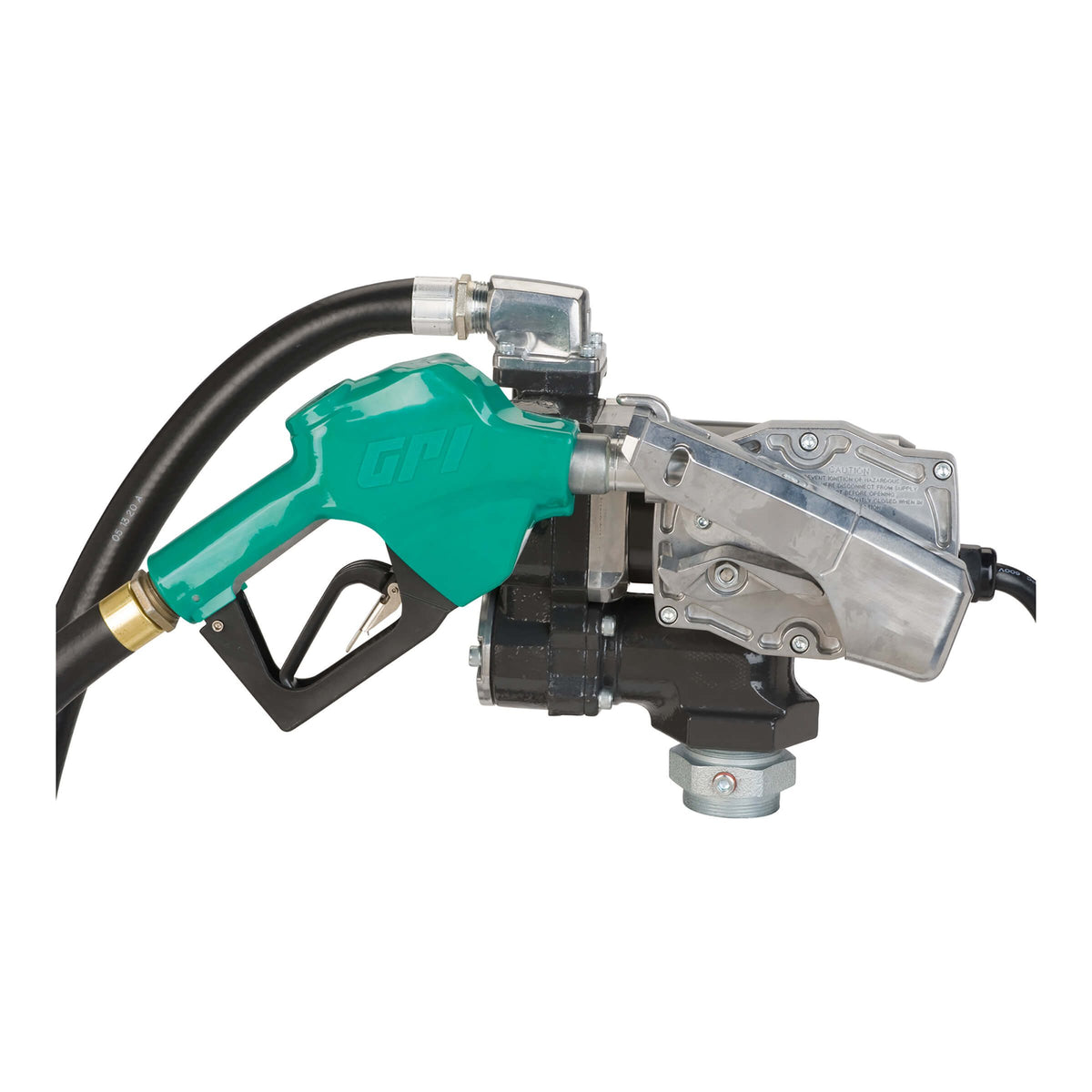

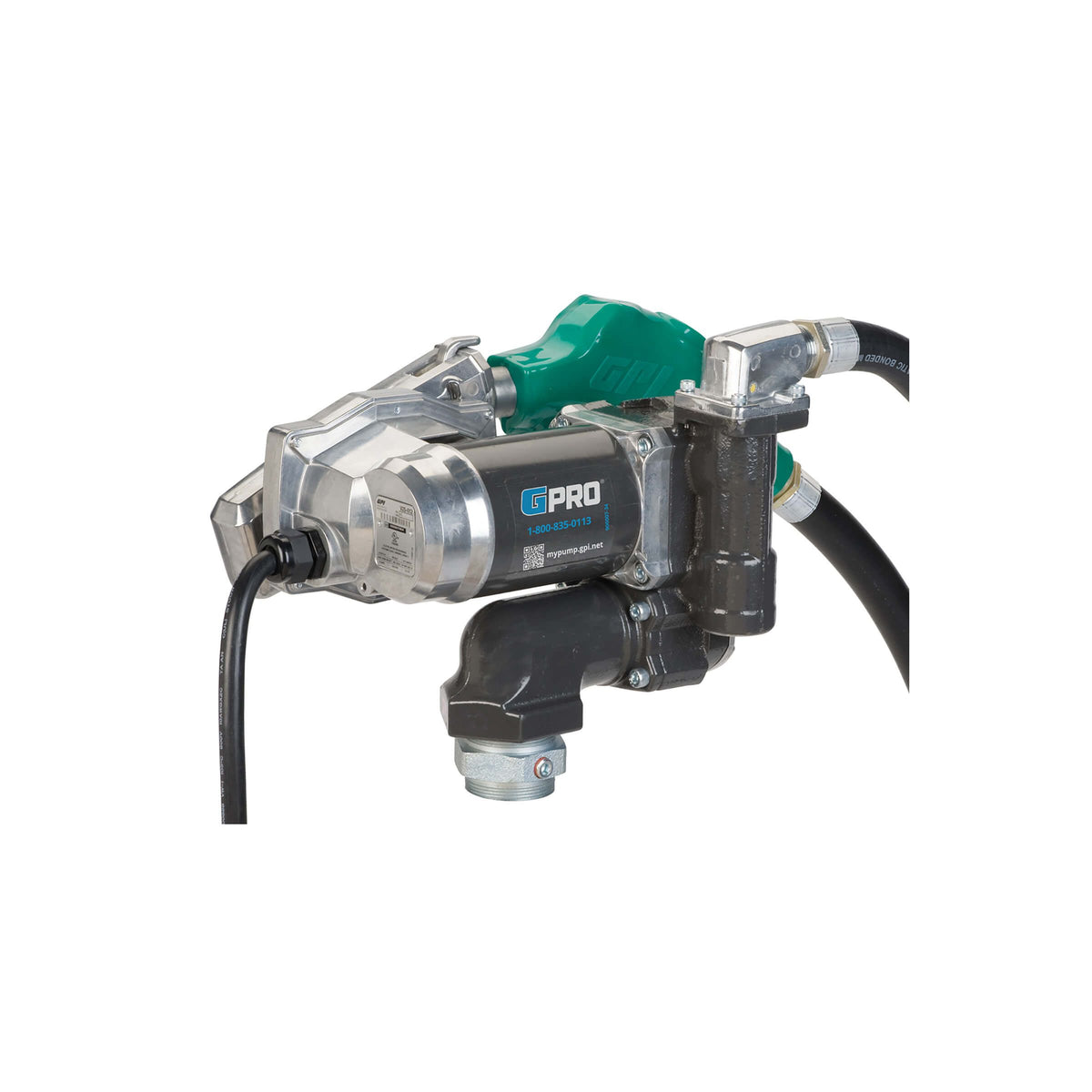

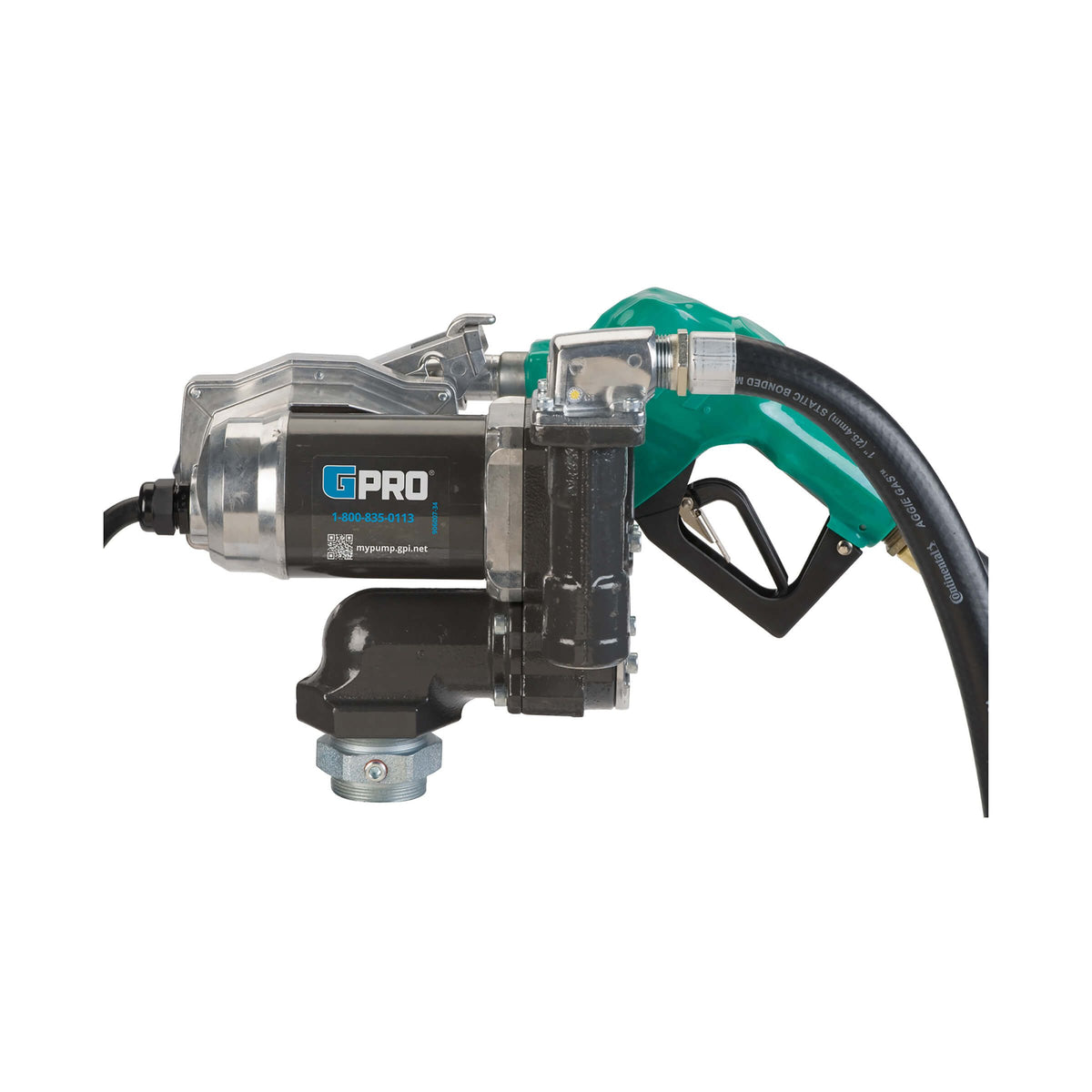

GPI GPRO V25 25 GPM 12V Fuel Transfer Pump with Auto Diesel Nozzle (170000-03)
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

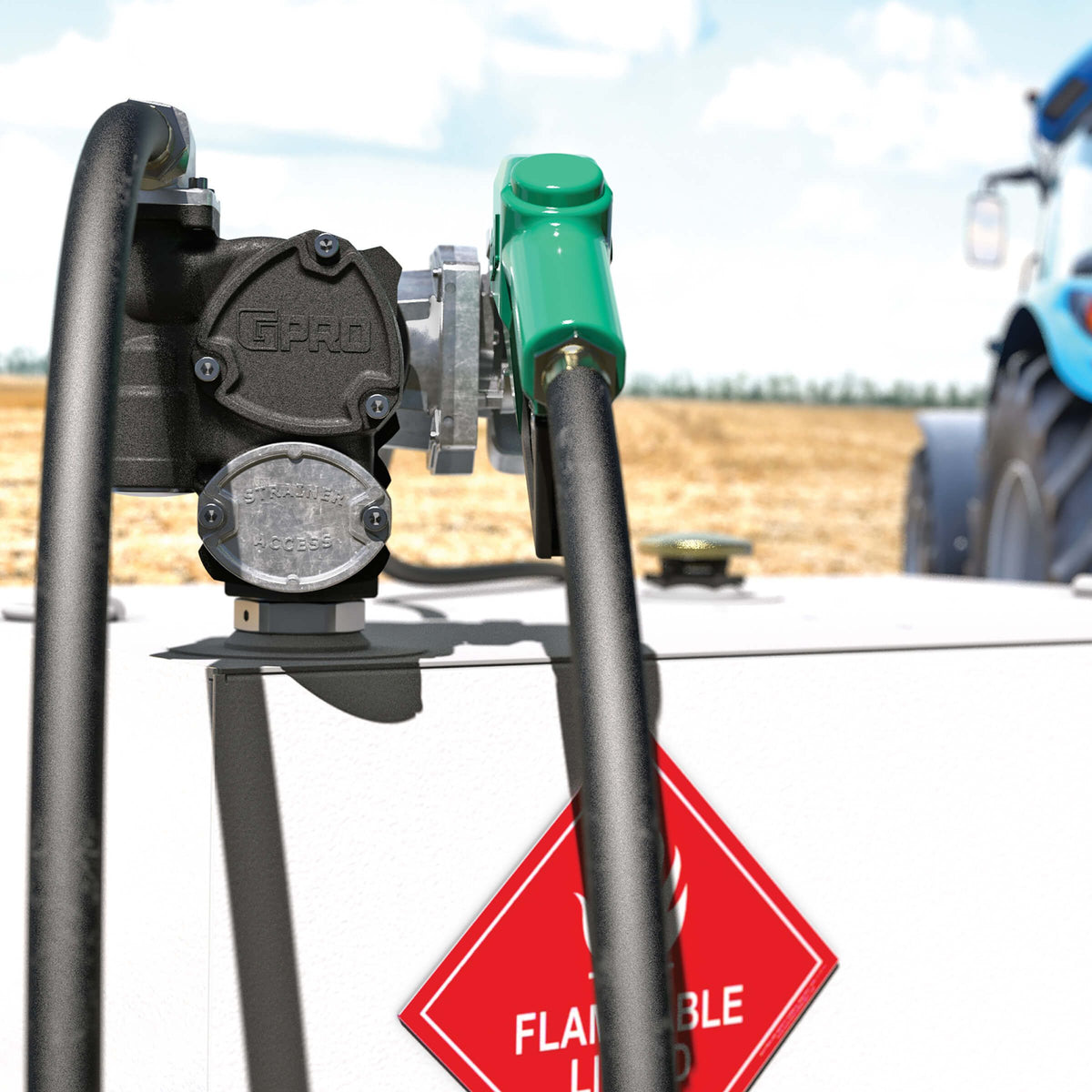

The GPRO V25 from GPI is a heavy-duty 12-volt sliding vane pump for fleets, farms and crews that fuel big equipment from a truck-mounted tank. It moves diesel (up to B20), gasoline (up to E15) and kerosene at up to 25 gallons per minute, with enough pressure to work well with a hose reel.
This kit includes a UL listed 1 in. automatic shut-off diesel nozzle that only latches when it senses fuel pressure, an 18 ft. UL listed hose, a lockable nozzle holder with spout guard, ring terminals, the Quick-Fit modular fitting with hardware, a tank adapter and a telescoping suction pipe.

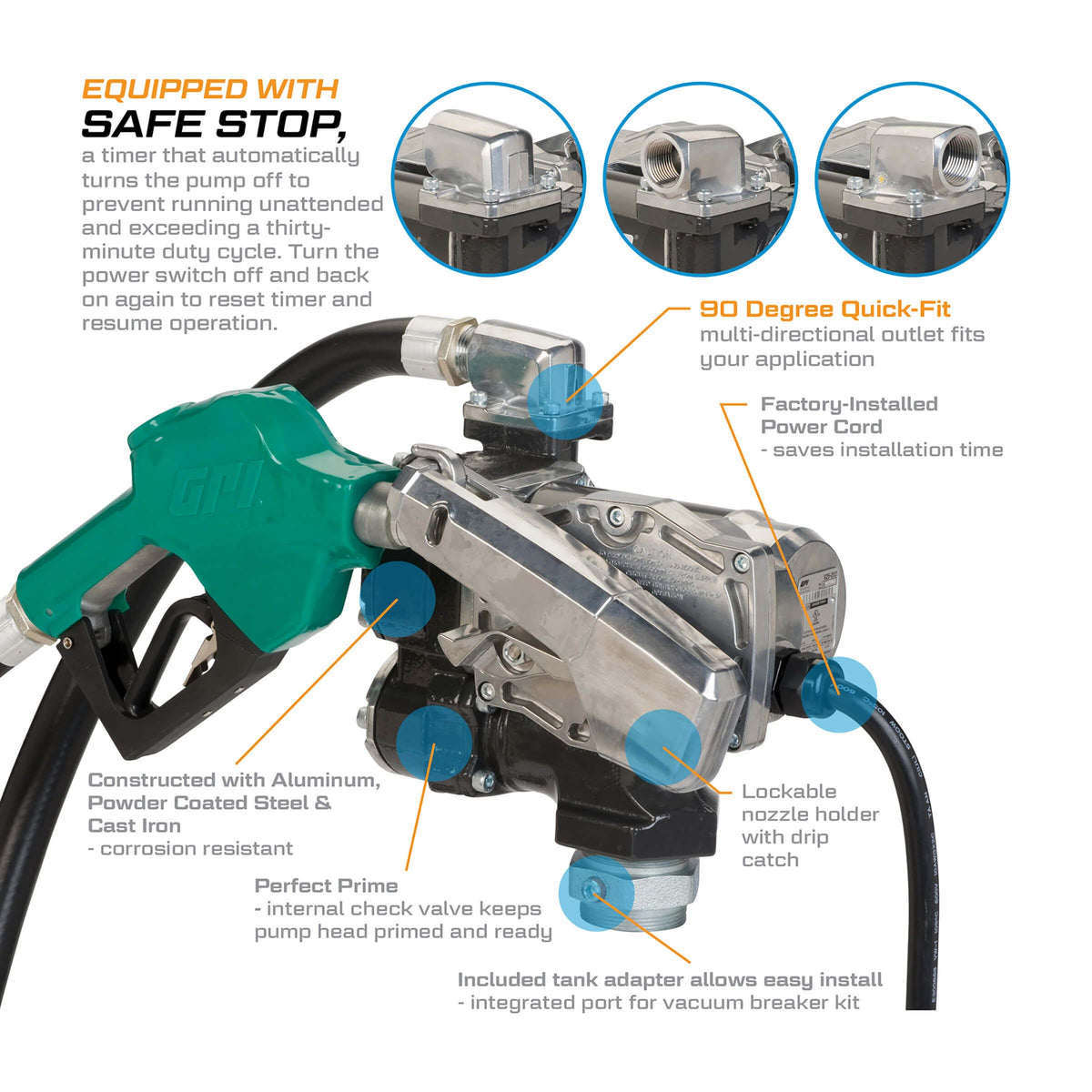

Features
- Up to 25 GPM (94 L/min) of diesel, gasoline or kerosene
- Safe-Stop timer shuts the pump off at the end of its 30-minute duty cycle so it can't run unattended (switch it off and on to reset)
- Overvoltage sensor protects the 12V motor if it is hooked to a 24V system by mistake
- Quick-Fit modular outlet: add a filter, a meter or both with four bolts and an O-ring
- Internal check valve with Perfect Prime keeps the pump primed and cuts wear from dry starts
- Outlet turns in 90-degree steps to suit your setup
- Strainer comes out by removing two bolts
- Lockable nozzle holder with spout guard keeps out weather and dirt
- Tank adapter included, ready for an anti-siphon vent kit
- Limited lifetime warranty
Specifications
| Part number | 170000-03 |
|---|---|
| Model | V25-012AD |
| Batteries | 12 Volt Battery |
| Flow rate | 25 GPM (94 L/min) |
| Power | 12V (DC) |
| Motor | 0.41 HP, 1620 RPM |
| Current draw | 35 amps |
| Duty cycle | 30 min on/30 min off |
| Pump type | Sliding Vane |
| Power cord | 18 ft. (5.5 m), 10/2 AWG, factory installed |
| Mounting | Direct mount, 2 in. MNPT |
| Inlet | 1 in. FNPT |
| Outlet | Modular, 1 in. FNPT |
| Suction pipe | Polypropylene, telescoping 15 to 40 in. x 1 in. MNPT |
| Hose | 18 ft. (5.5 m) x 1 in. MNPT UL listed hose assembly |
| Nozzle holder | Lockable, with spout guard |
| Max pressure | Up to 20 PSI (1.38 bar) |
| Discharge lift | Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C) |
| Operating temperature | -20° F to 125° F (-29° C to 52° C) |
| Fluids | Diesel up to B20, Gasoline up to E15, Kerosene |
| Wetted materials | Acetal, Aluminum, Carbon, Cast Iron, FKM, NBR, PBT/Polyester, Steel |
| Approvals | cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada |
| Warranty | Limited lifetime |
| Shipping weight | 57.2 lb |

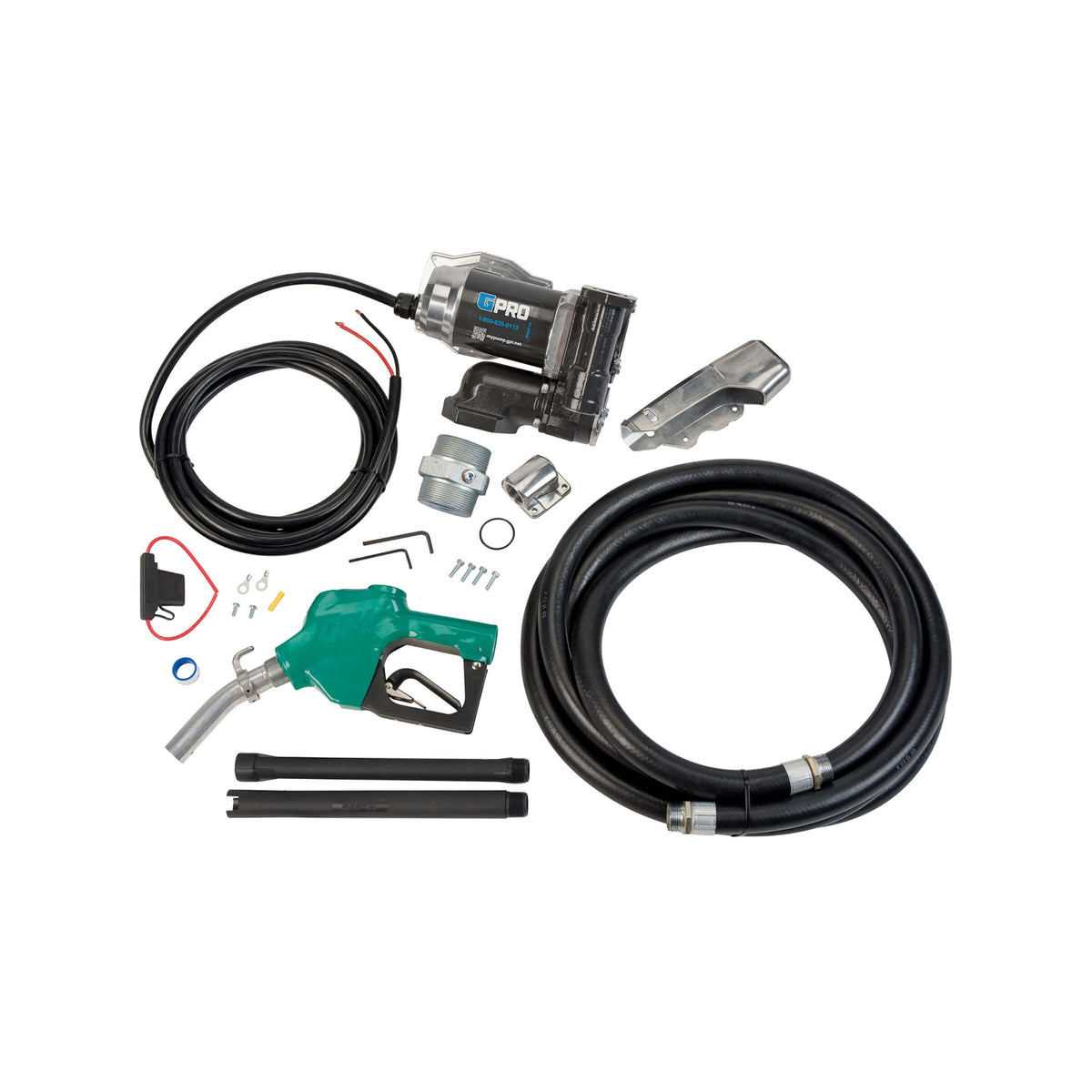

What's in the box
V25-012AD fuel transfer pump, automatic shut-off diesel nozzle, dispensing hose, factory-installed power cord, ring terminals, telescoping suction pipe, lockable nozzle holder, modular fitting with hardware, tank adapter, fuse assembly, owner's manual
Manuals and documents
- Owner's manual (PDF)
- Troubleshooting guide (PDF)
- Data sheet (PDF)
- Product sheet (PDF)

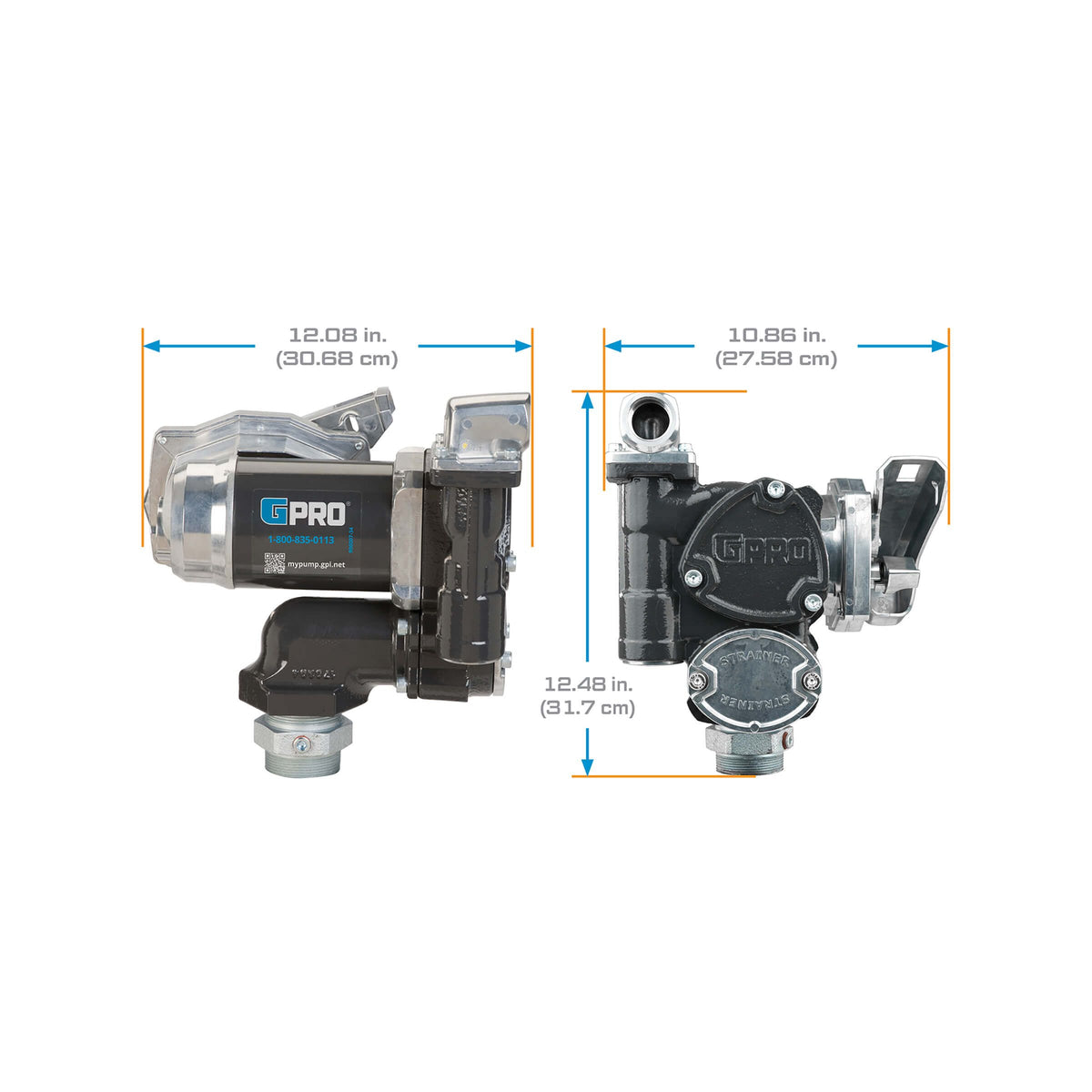

- Dimensions (PDF)
