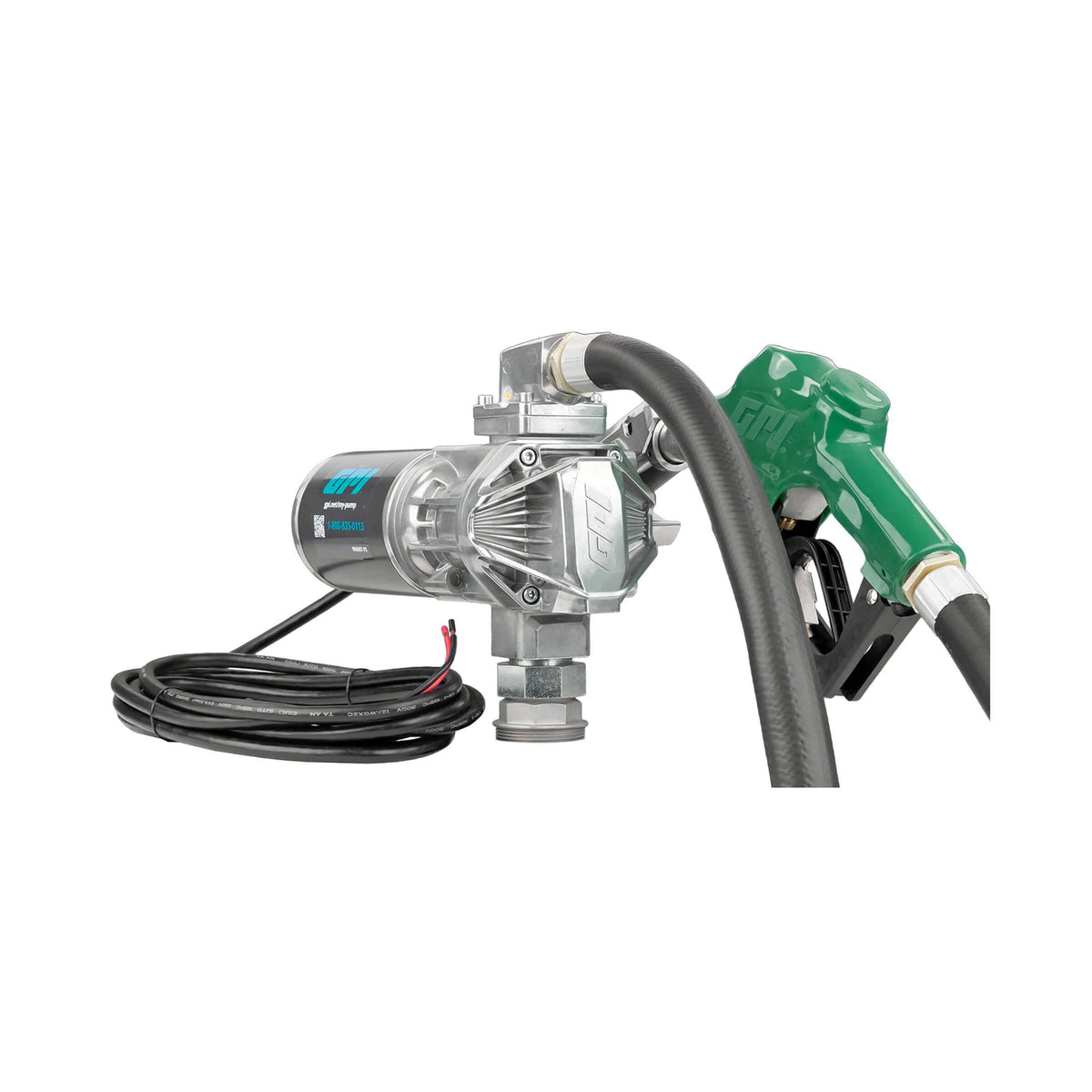

GPI G20 20 GPM 12V Fuel Transfer Pump with Auto Diesel Nozzle (162000-03)
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

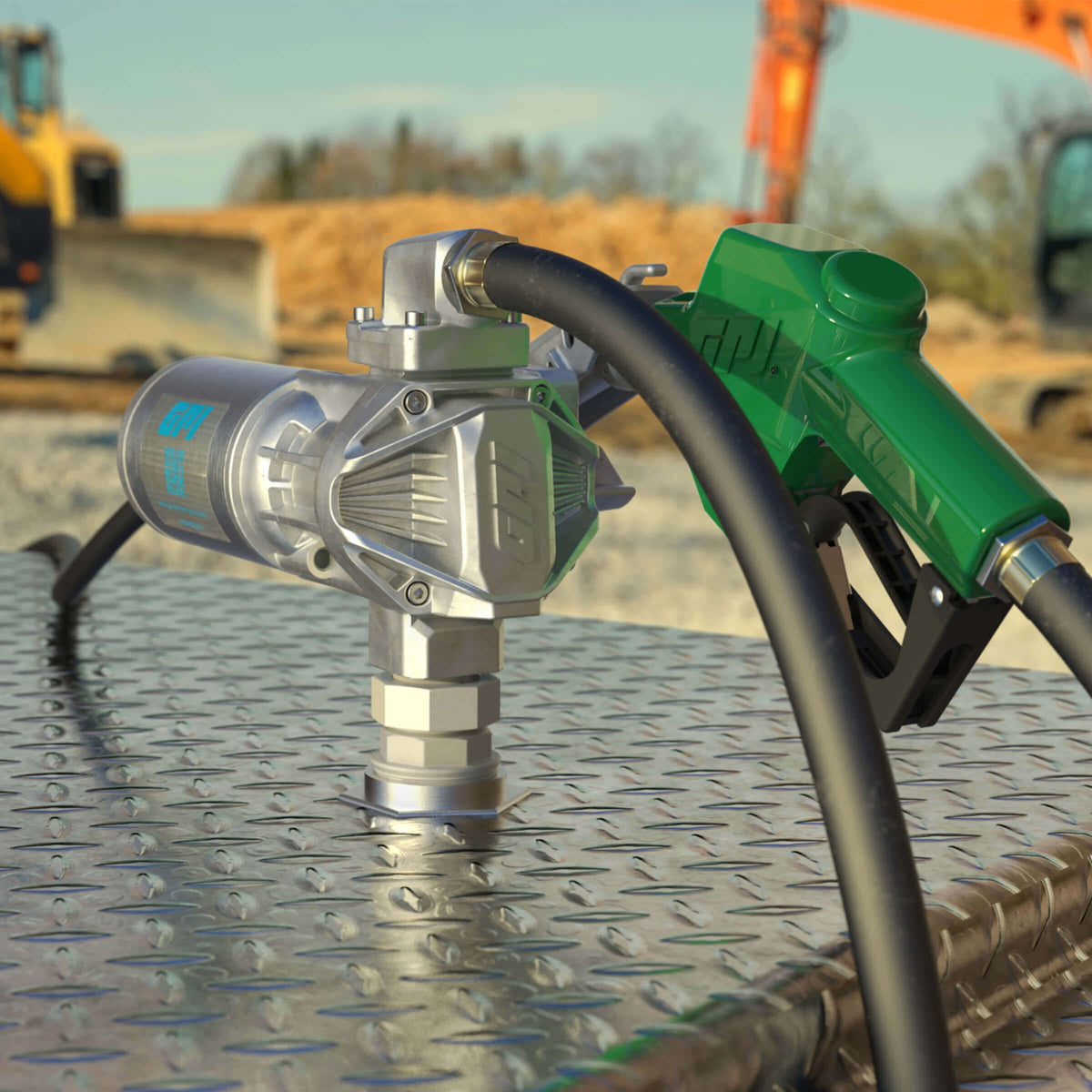

The GPI G20 is a 12-volt rotary gear pump that delivers a true 20 gallons per minute of diesel (up to B20), gasoline (up to E15) or kerosene from a truck bed or farm tank. Its Quick-Fit modular outlet lets you bolt on a GPI filter, meter or both later, so you can build your own fueling setup. The pump itself weighs about 19 lb.
This kit comes with a 1 in. automatic shut-off diesel nozzle, a 14 ft. x 1 in. hose, a lockable nozzle holder with spout guard, the Quick-Fit 90-degree outlet fitting with hardware, a tank adapter and a telescoping suction pipe for tanks 15 to 40 in. deep.

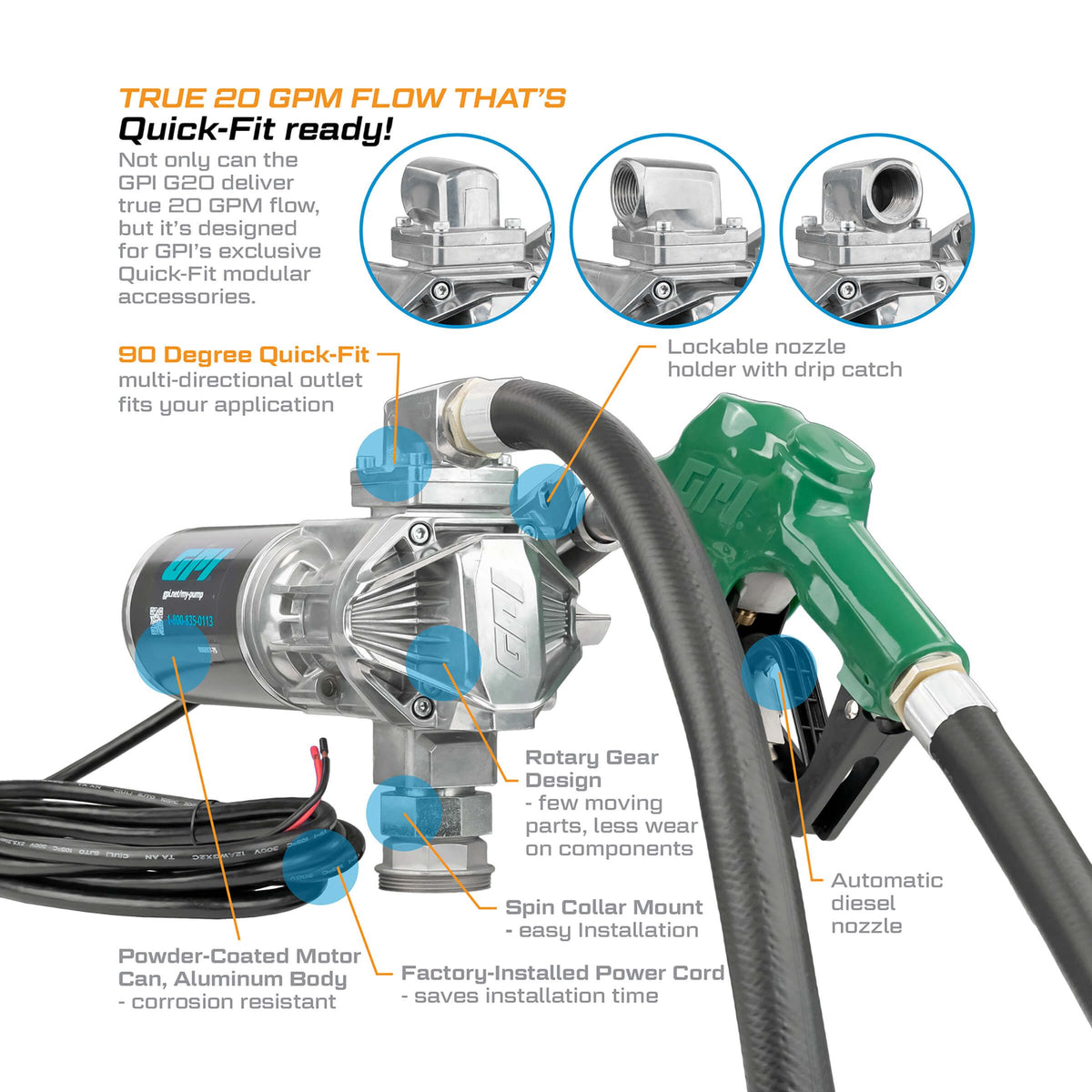

Features
- True 20 GPM (76 L/min) of diesel, gasoline or kerosene
- Quick-Fit modular outlet: add a filter, a meter or both
- Quick-Fit 1 in. NPT 90-degree outlet points the hose where you need it
- Rotary gear design with fewer moving parts for low maintenance and a long life
- Spin collar fits any 2 in. NPT tank opening and makes the pump easy to aim
- Powder-coated motor can and aluminum body resist rust and weather
- Lockable nozzle holder with spout guard keeps out weather and dirt
- Factory-installed 18 ft. power cord
- Limited lifetime warranty
Specifications
| Part number | 162000-03 |
|---|---|
| Model | G20-012AD |
| Flow rate | 20 GPM (76 L/min) |
| Power | 12V (DC) |
| Motor | 0.40 HP |
| Current draw | 34 amps |
| Duty cycle | 30 min on/30 min off |
| Pump type | Rotary Gear |
| Power cord | 18 ft. (5.5 m), 12/2 AWG, factory installed |
| Mounting | Spin collar, 2 in. MNPT |
| Inlet | 1 in. FNPT |
| Outlet | Modular, 1 in. FNPT |
| Suction pipe | Polypropylene, telescoping 15 to 40 in. x 1 in. MNPT |
| Hose | 14 ft. (5.2 m) x 1 in. MNPT |
| Nozzle holder | Lockable |
| Max pressure | Up to 12 PSI (0.82 bar) |
| Discharge lift | Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C) |
| Operating temperature | -22° F to 131° F (-30° C to 55° C) |
| Fluids | Diesel up to B20, Gasoline up to E15, Kerosene |
| Wetted materials | Acetal, Aluminum, FKM, NBR, PPS, Stainless Steel |
| Warranty | Limited lifetime |
| Shipping weight | 34.8 lb |

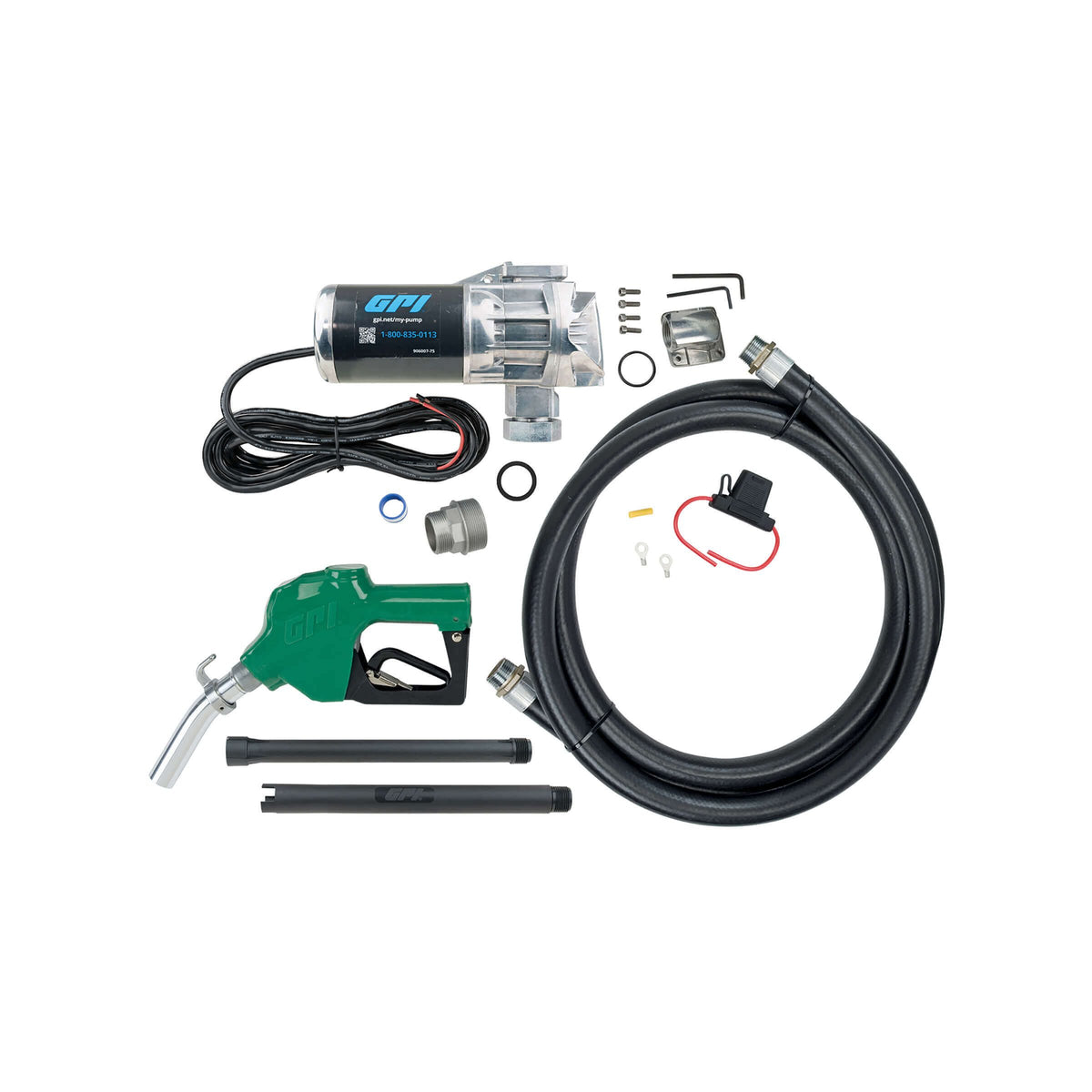

What's in the box
G20-012AD fuel transfer pump, auto-shut off diesel nozzle, dispensing hose, factory-installed power cord, telescoping suction pipe, modular fitting with hardware, tank adapter, fuse assembly, owner's manual
Manuals and documents
- Owner's manual (PDF)
- Troubleshooting guide (PDF)
- Data sheet (PDF)
- Product sheet (PDF)

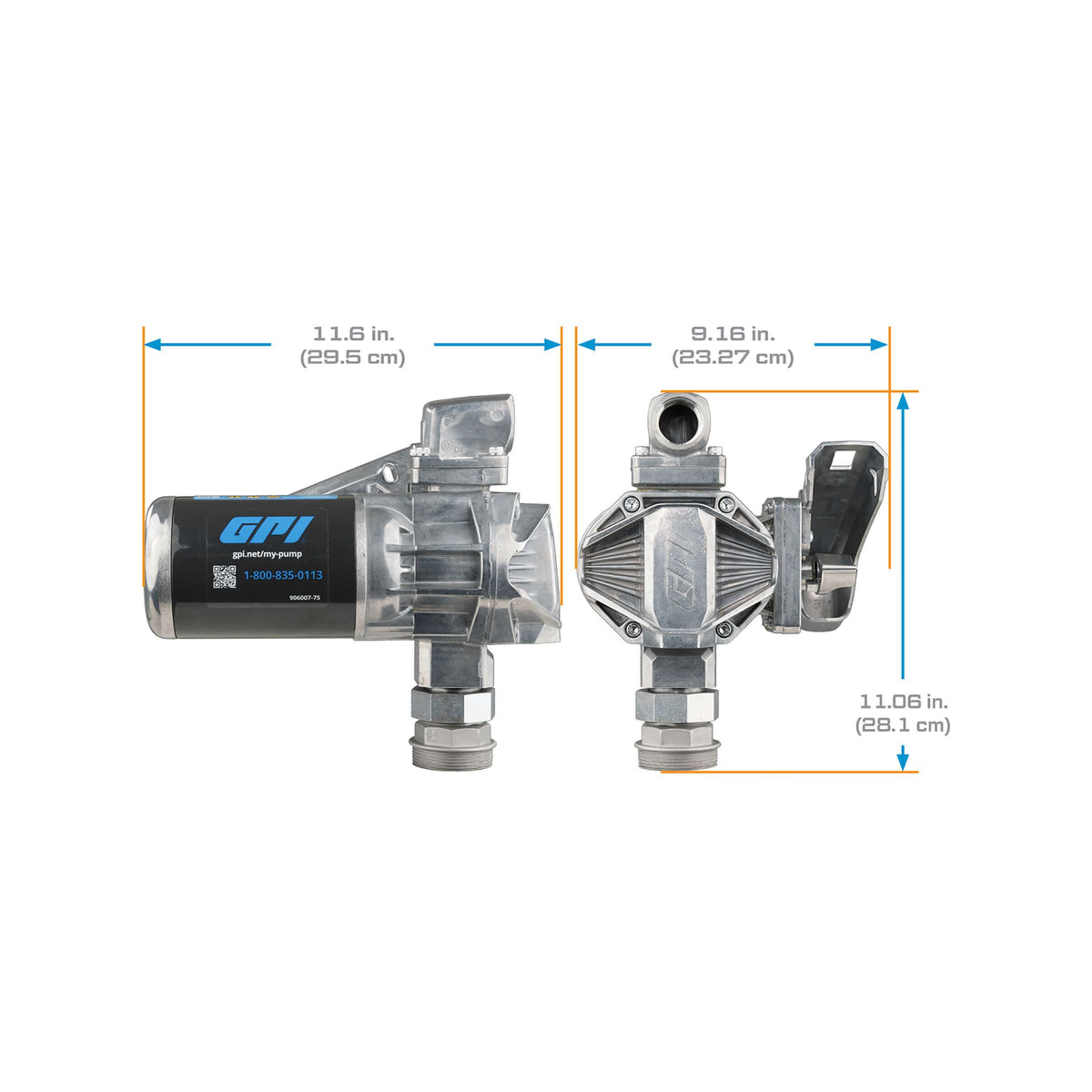

- Dimensions (PDF)
