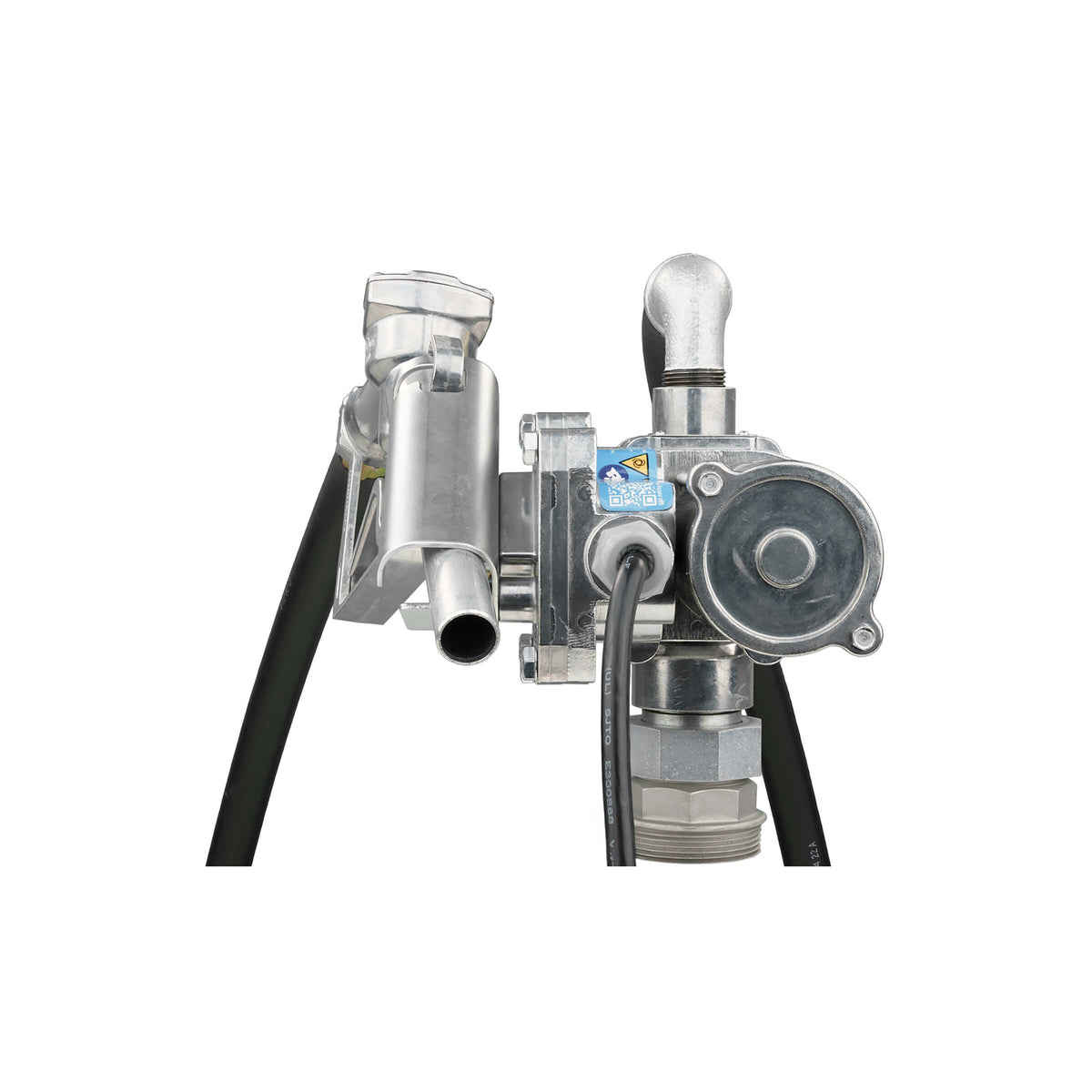

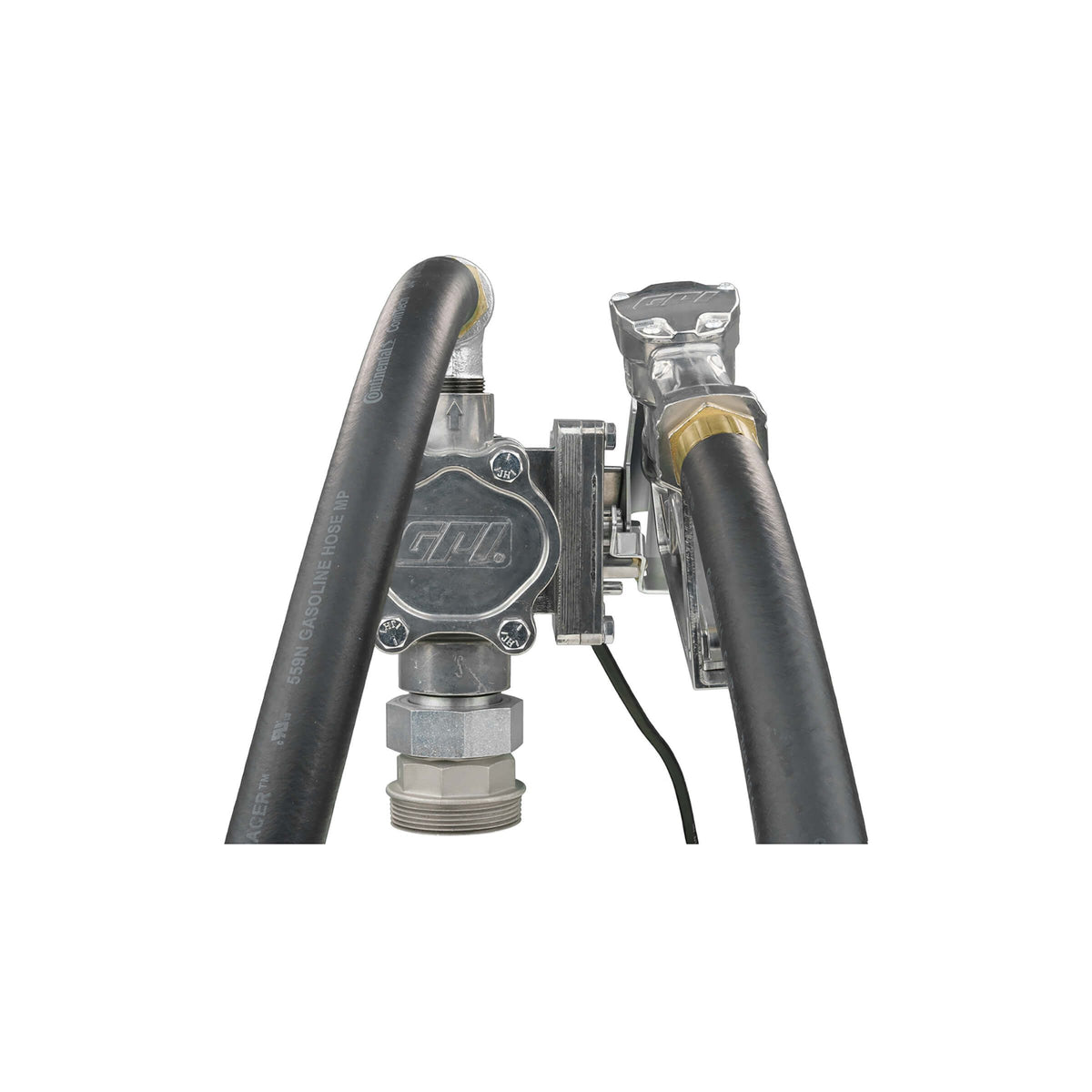

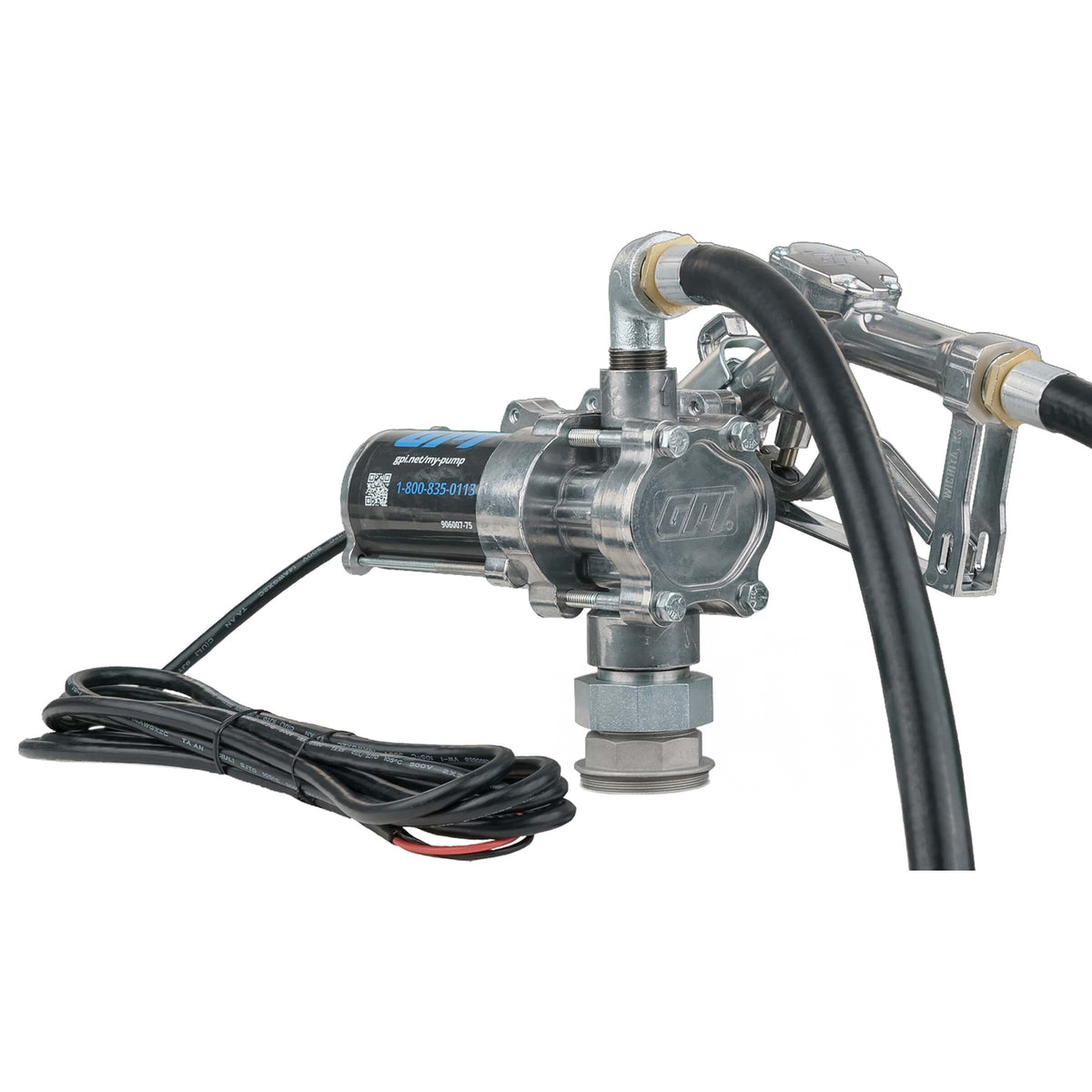

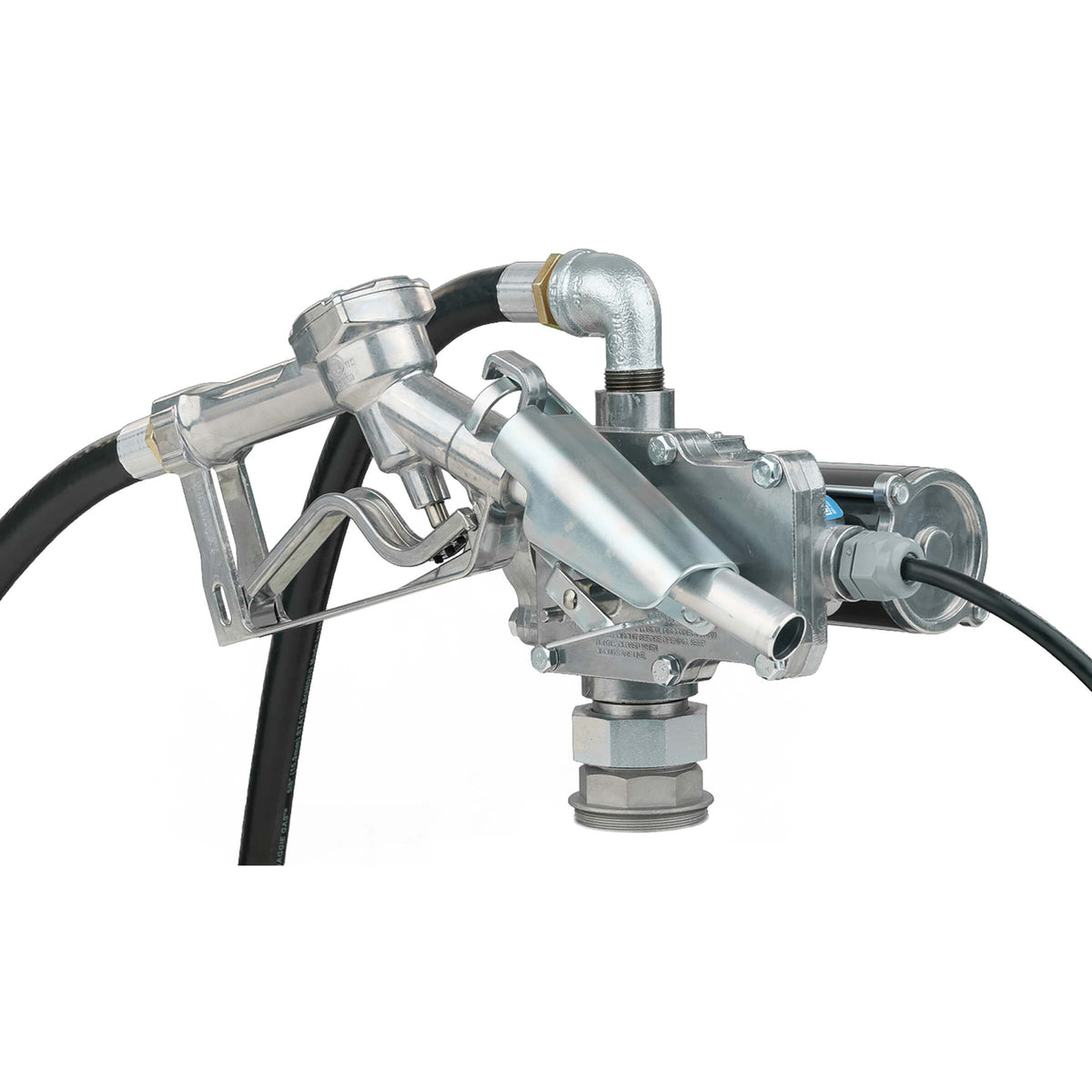

GPI EZ-8 8 GPM 12V Fuel Transfer Pump with Spin Collar and Manual Unleaded Nozzle (137100-05)
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

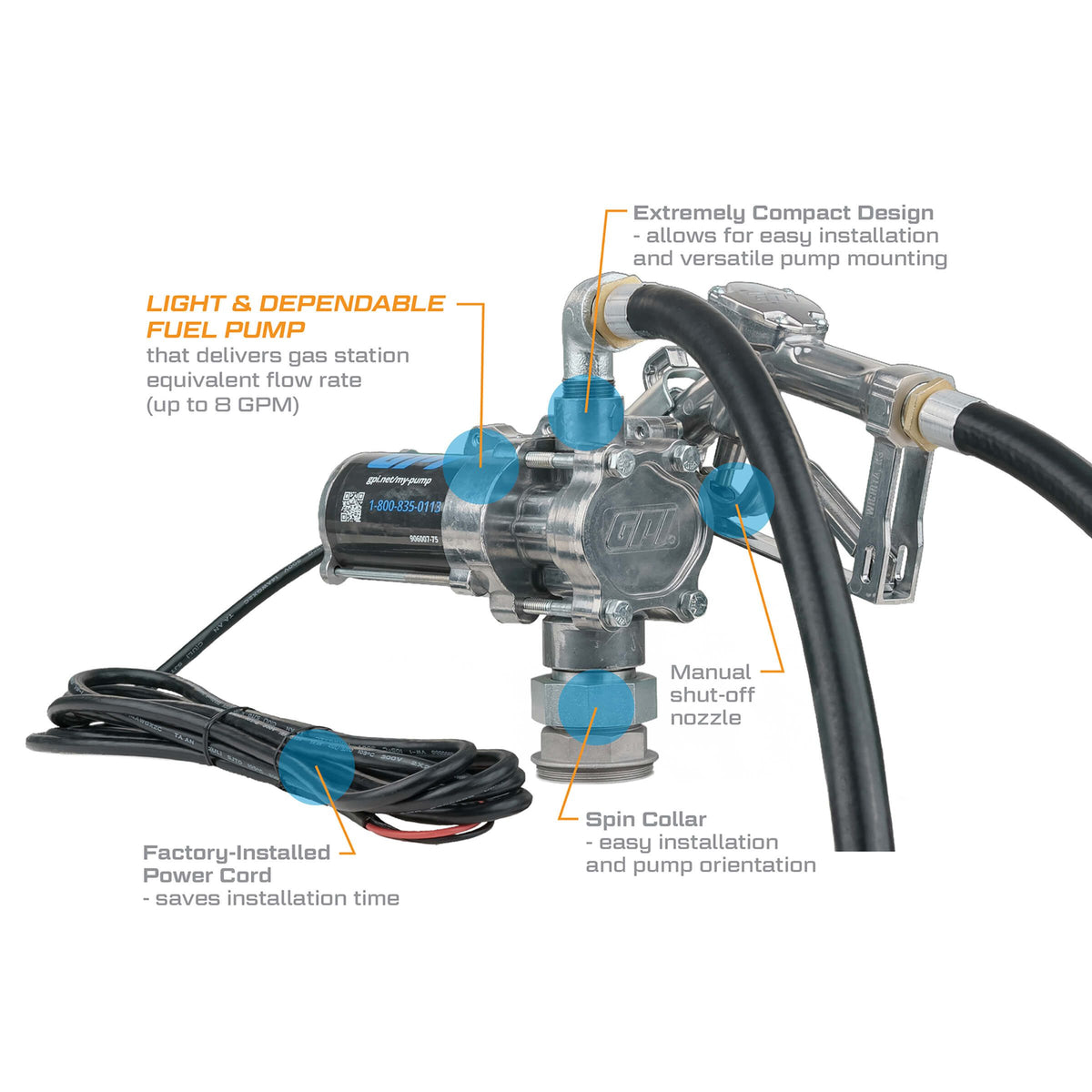

The GPI EZ-8 is a compact 12-volt pump for smaller transfer tanks and fuel drums up to 100 gallons. It moves diesel (up to B20), gasoline (up to E15) and kerosene at up to 8 gallons per minute, about what a gas station pump delivers, and it is light enough that it won't stress a small tank or barrel.
This version has a spin collar, so you can thread it onto a 2 in. NPT tank opening and then turn the pump to face where you want it. It comes with GPI's Black Diamond 3/4 in. manual nozzle (unleaded spout), a 10 ft. hose with static wire, a telescoping suction pipe, a street elbow and a tank adapter.
Features
- Up to 8 GPM (30 L/min), self-priming and low maintenance
- Light enough for small tanks and drums without stressing the fitting
- Spin collar mount makes it easy to install and aim the pump on a 2 in. NPT opening
- Powder-coated motor can and aluminum body resist corrosion
- Thermal overload protection extends pump life
- Factory-installed 15 ft. power cord
- Motor is cULus listed for hazardous locations (Class I, Division 2, Group D)
- 2-year warranty
Specifications
| Part number | 137100-05 |
|---|---|
| Model | EZ-8 (spin collar) |
| Flow rate | 8 GPM (30 L/min) |
| Power | 12V (DC) |
| Motor | 0.10 HP |
| Current draw | 15 amps |
| Duty cycle | 15 min on / 30 min off |
| Pump type | Rotary Gear |
| Power cord | 15 ft. (4.6 m), 14/2 AWG, factory installed |
| Mounting | Spin collar, 2 in. MNPT |
| Inlet | 1 in. FNPT |
| Outlet | 3/4 in. FNPT |
| Suction pipe | Polypropylene, telescoping 15 to 40 in. x 1 in. MNPT |
| Hose | 10 ft. (3.05 m) x 3/4 in. MNPT |
| Nozzle holder | Non-lockable |
| Max pressure | Up to 15 PSI (1.03 bar) |
| Discharge lift | Up to 10 ft. (3 m) at Sea Level 70°F (21.1° C) |
| Operating temperature | -20° F to 125° F (-29° C to 52° C) |
| Fluids | Diesel up to B20, Gasoline up to E15, Kerosene |
| Wetted materials | Acetal, Aluminum, FKM, NBR, PPS, Stainless Steel |
| Warranty | 2 years |
| Shipping weight | 17 lb |

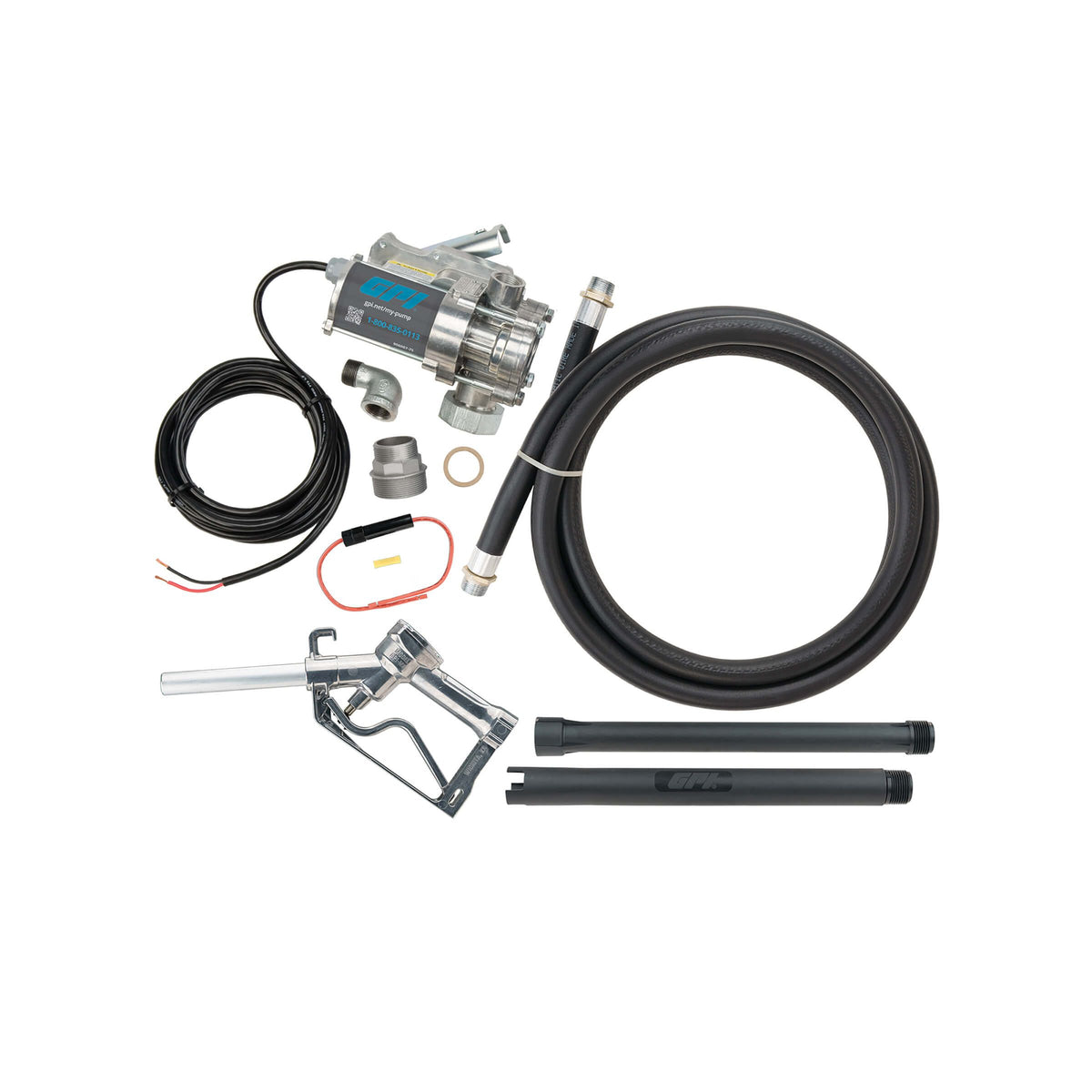

What's in the box
EZ-8 8 GPM pump with spin collar, manual unleaded nozzle, dispensing hose with static wire, factory-installed power cord, telescoping suction pipe, street elbow, tank adapter, fuse assembly, owners manual
