GPI

GPI 01N Digital Water Meter, 3-30 GPM, 1 in. NPT, Nylon (113255-4)

Part # 113255-4 Flow Meter
$229.99
Available to order · ships direct
FREE shipping on this itemFree UPS Ground to the lower 48 states. Ships direct in about 3–7 business days.
Price Match GuaranteeFind the same new item for less at an authorized US retailer and we'll match it. How it works
Check fit for your truck.

Pick your year, make and model to see if this part fits.

Select or change truck

Secure checkout with Shop Pay, Apple Pay, Google Pay or card

Fitment supportWe can help verify the right part
30-day returnsOn unused parts in original packaging
Local installProfessional installation in Bemidji, MN
Ships in about 3–7 business daysMost in-stock parts ship direct from the manufacturer's warehouse. Orders of $100 or more ship free by UPS Ground to the lower 48 states.
Free pickup in Bemidji, MNChoose pickup at checkout and we'll email you when it's ready.
Need a fitment check?Call (218) 308-0045 before ordering and we’ll help confirm the application.
Product details

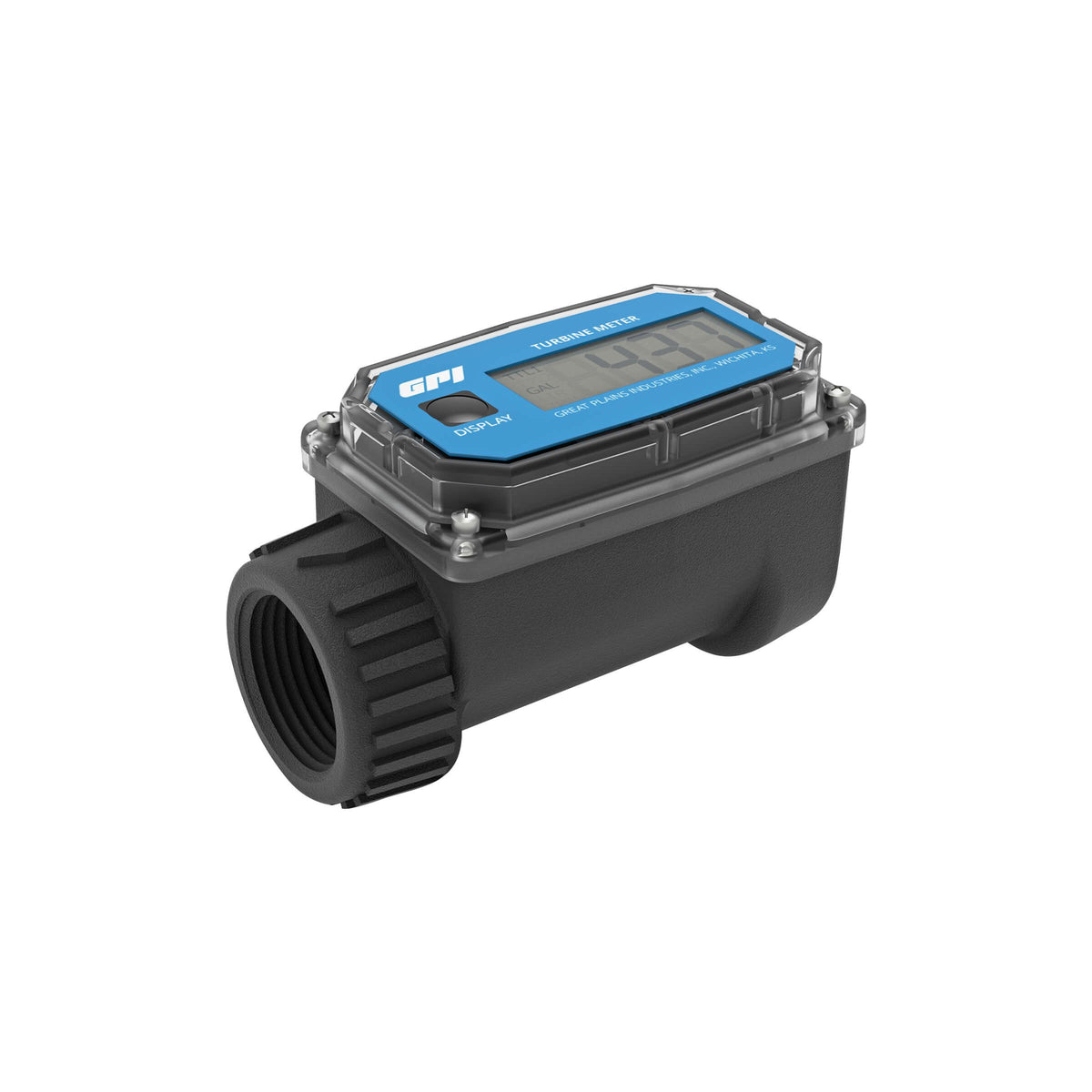

The GPI 01N is a compact digital flow meter for water, not fuel. It installs in a hose or pipe with 1 in. NPT connections and reads 3 to 30 gallons per minute from a pump or a gravity-feed system, with a 4-digit display of the batch and running totals. The nylon turbine meter weighs just 12 oz.

Features

  • For water only
  • Reads 3 to 30 GPM (10 to 100 L/min) in gallons, +/- 5% accuracy
  • Installs in a hose or pipe with 1 in. female NPT connections

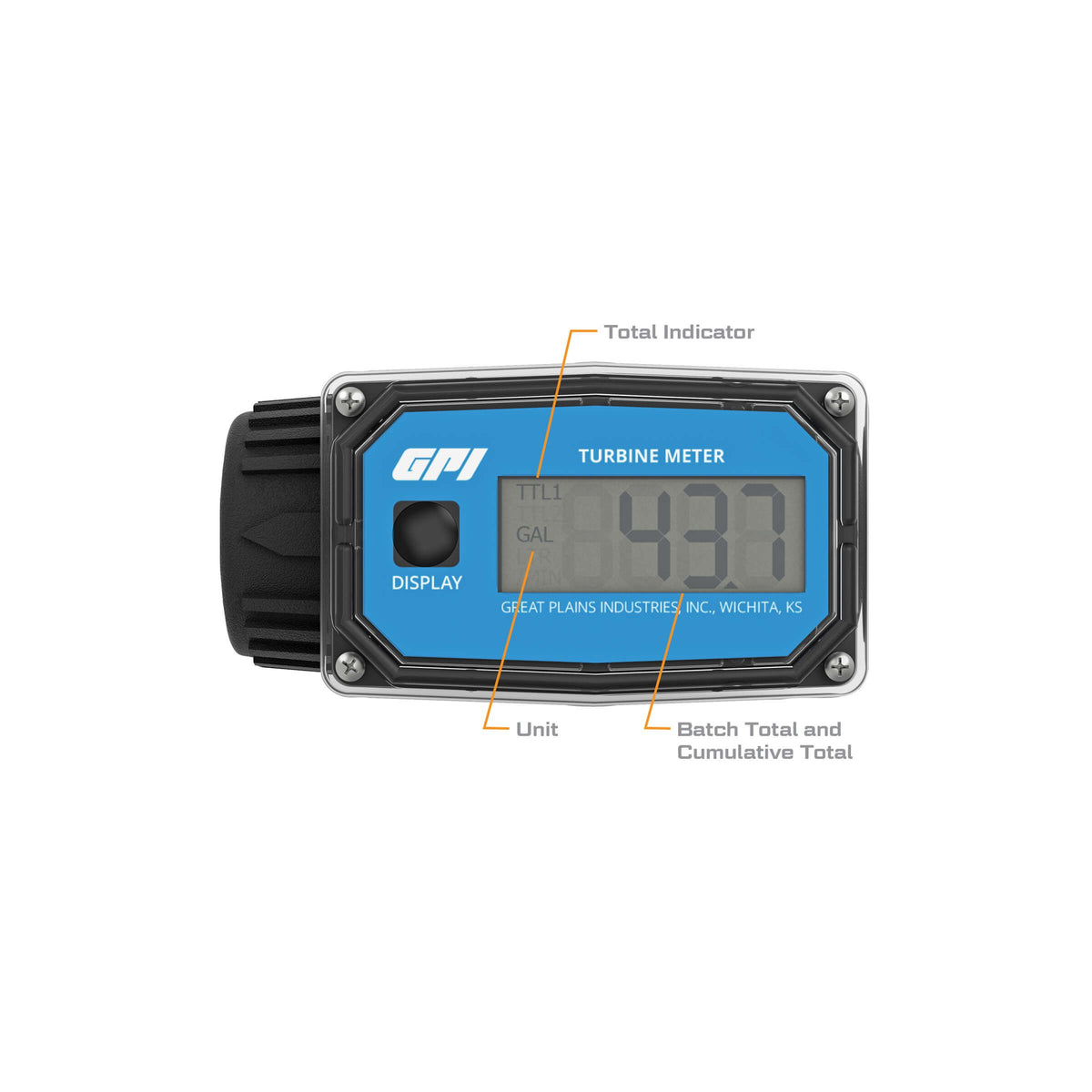

  • 4-digit LCD shows batch and cumulative totals
  • Lightweight nylon turbine meter, 12 oz.
  • Runs on two AAA batteries (included)
  • CE certified
  • 2-year warranty

Specifications

Part number 113255-4
Model 01N31GM
Flow range 3 - 30 GPM (10-100 L/min)
Accuracy +/- 5%
Display Batch & Cumulative Totals, 4-digit LCD
Units Gallon
Max pressure 150 PSI (10.34 bar)
Batteries (2) AAA Alkaline Batteries
Housing Nylon
Connections NPT (Female), 1 in.
Meter type Turbine
Operating temperature 14° to 130° F (-10° to 55° C)
Fluids Water
Wetted materials 316 Stainless Steel, Ceramic, Ferrite, Nylon, Tungsten Carbide
Approvals CE. Complies with the requirements of the EMC Directive 89/336/EEC.
Warranty 2 years
Shipping weight 1 lb

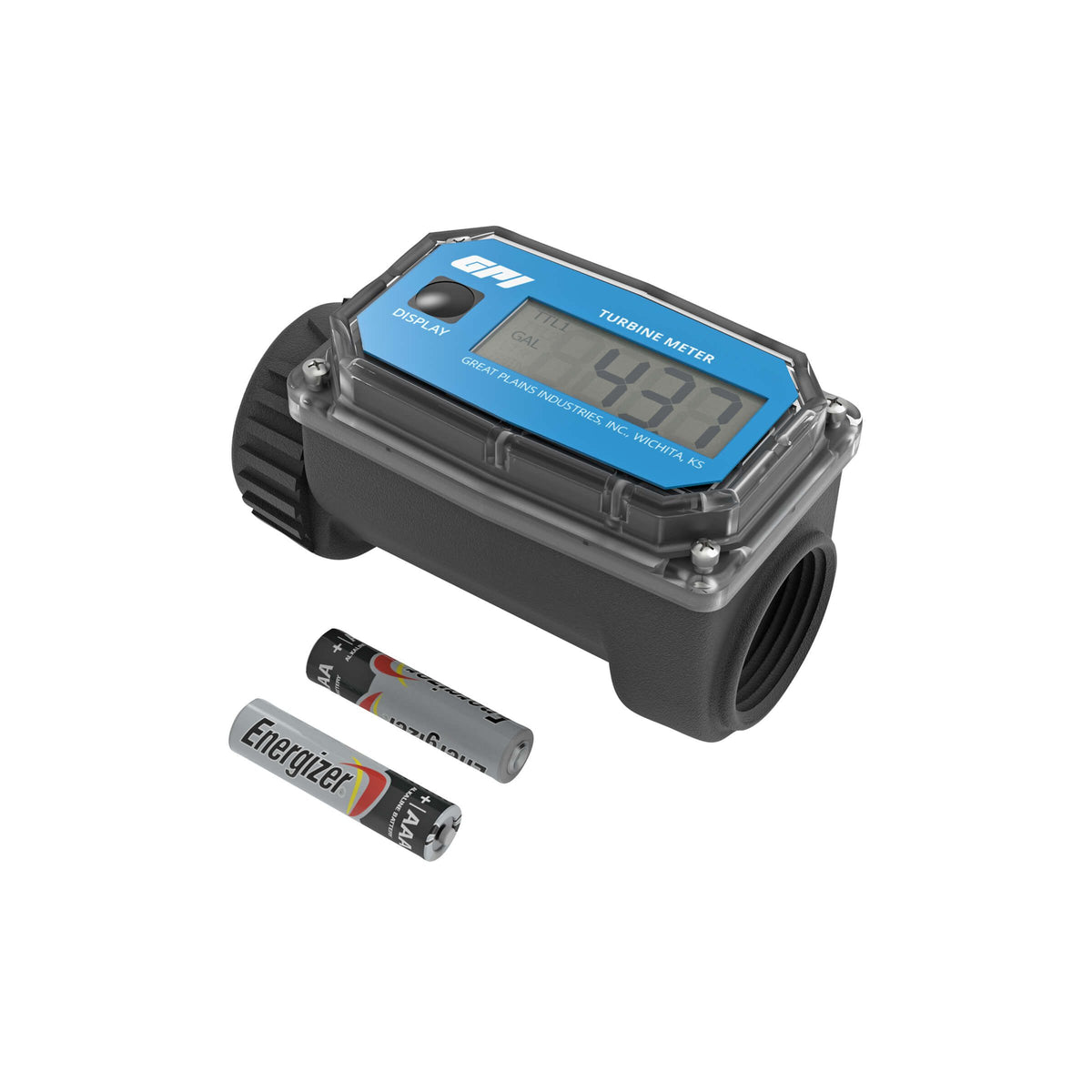

What's in the box

Digital water meter, (2) alkaline AAA batteries, owner's manual
