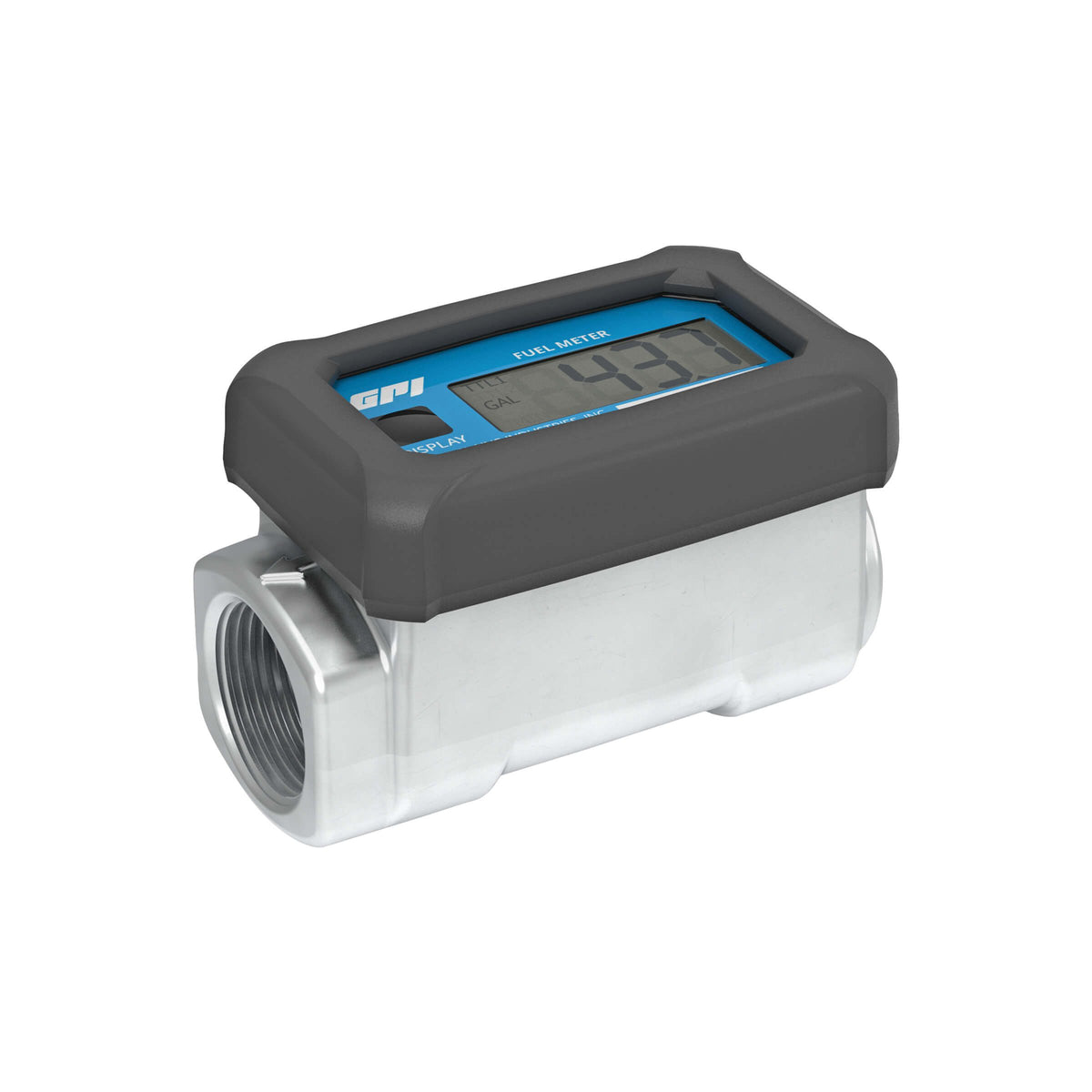

GPI 01A Digital Fuel Meter, 3-30 GPM, 1 in. NPT, Gallons (113255-1)
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

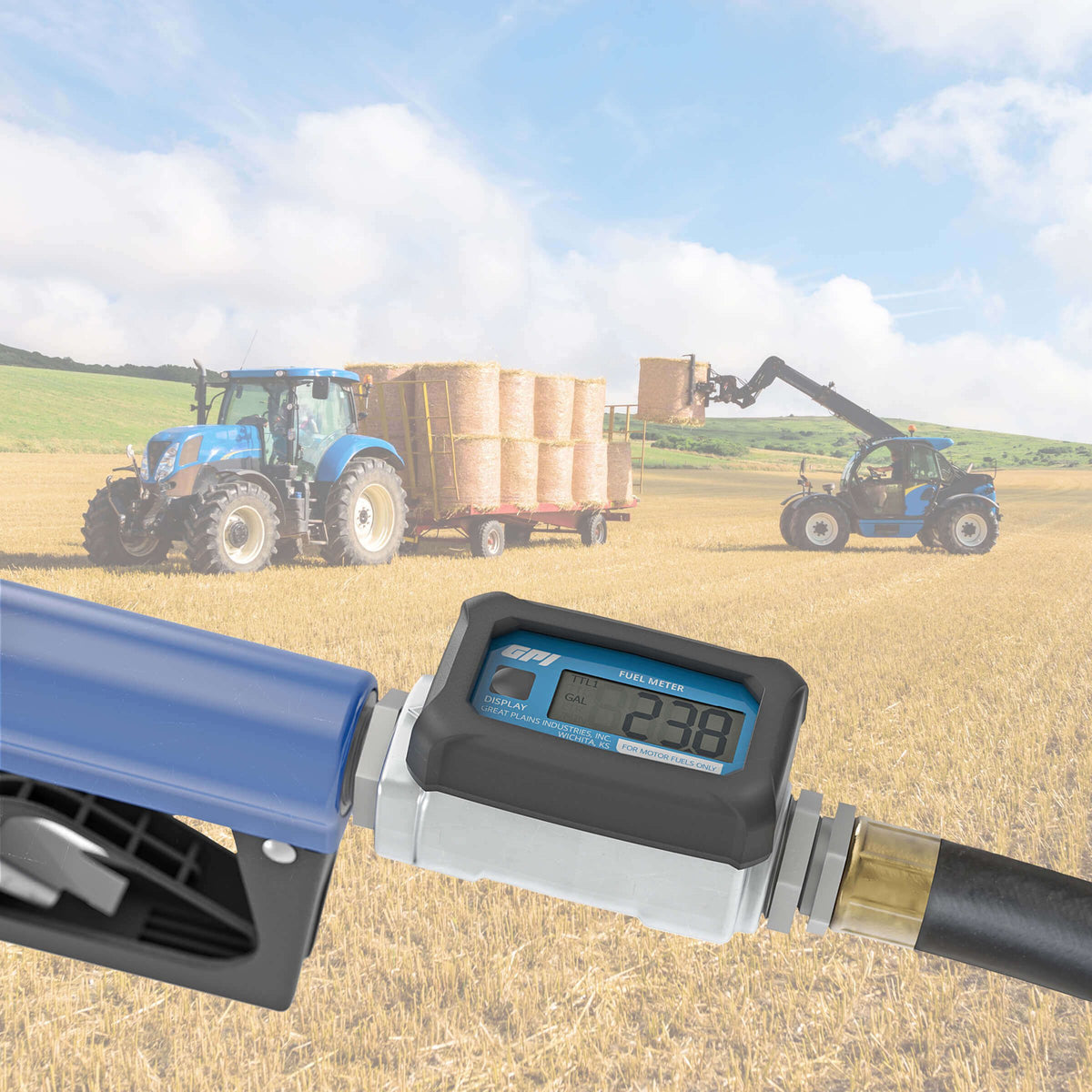

The GPI 01A digital fuel meter installs between your hose and nozzle so you know exactly how much fuel goes into each truck or machine. It reads 3 to 30 gallons per minute with +/- 2.5% accuracy, comes factory calibrated for diesel, gasoline (up to E15) and kerosene, and runs on two AAA batteries. It works with an electric transfer pump or a gravity-feed tank.
Features
- Mounts between the hose and nozzle with 1 in. NPT connections
- Reads 3 to 30 GPM in gallons, +/- 2.5% accuracy

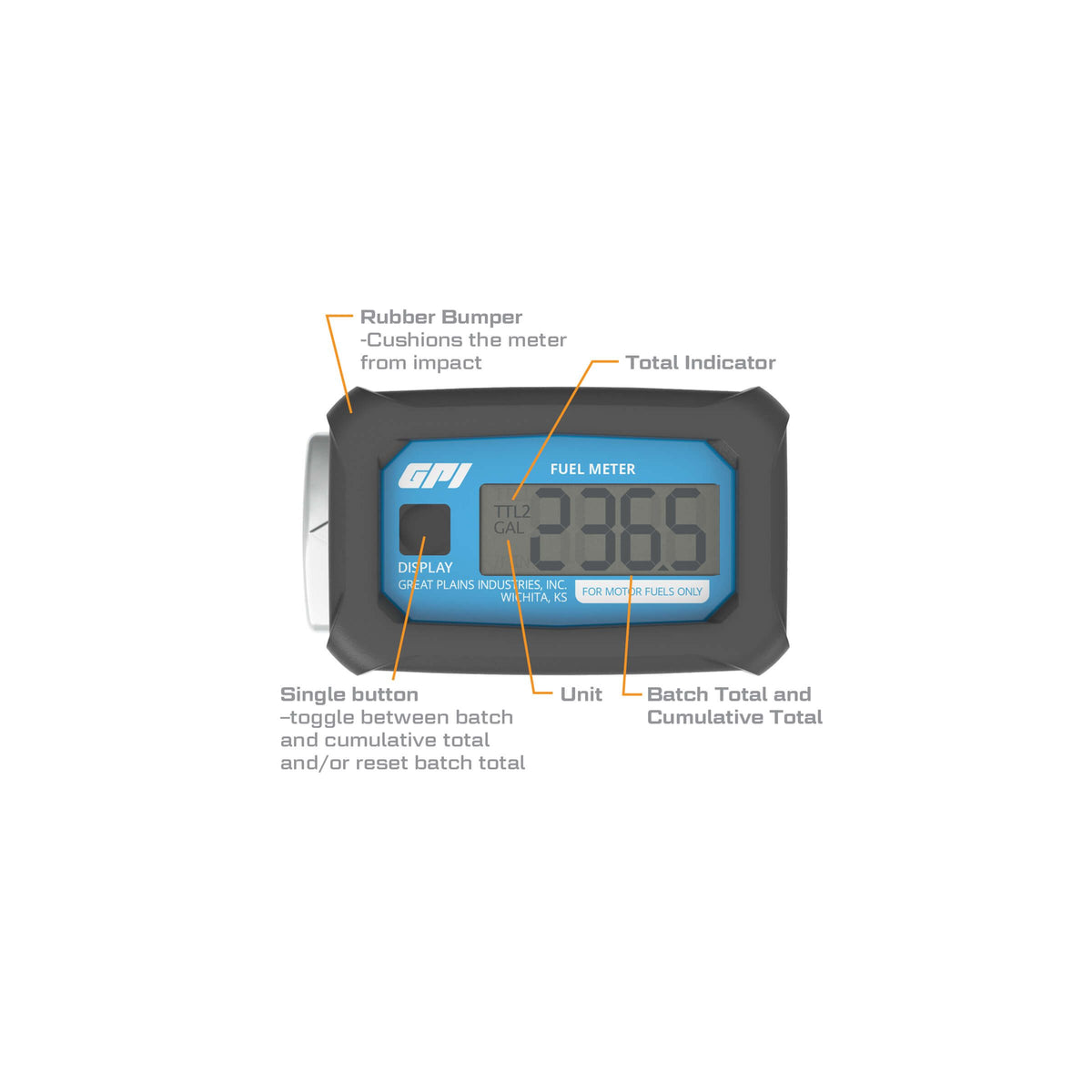

- 4-digit LCD shows the batch total and the running total
- One button switches between totals and resets the batch

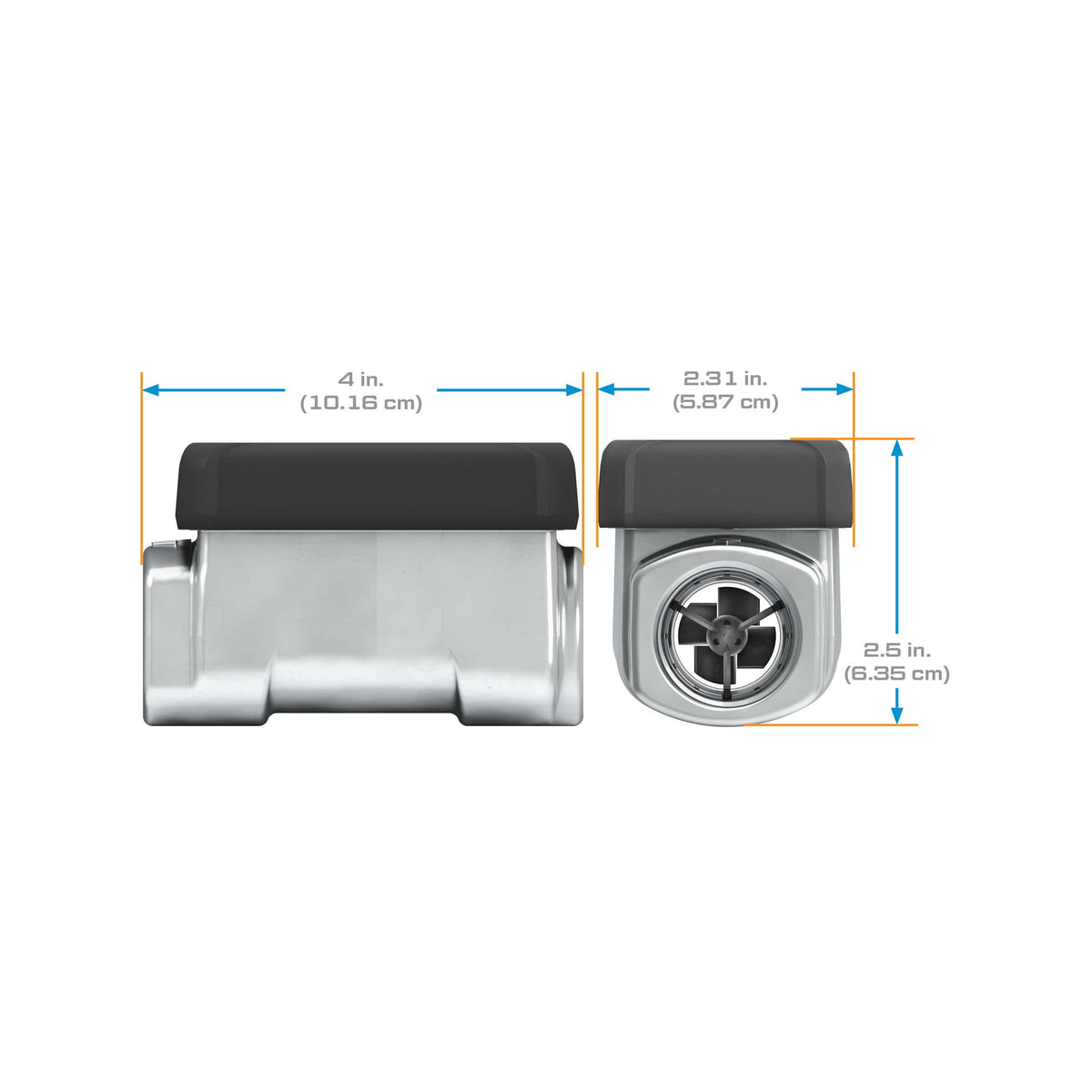

- Compact 24 oz. aluminum body with a rubber bumper for protection
- Includes two 1 in. x 3/4 in. bushings and a 3/4 x 1-1/2 in. pipe nipple
- Runs on two AAA batteries (included)
- FM approved as intrinsically safe for Class I, Division 1, Group D
- For fuel only, not for water or chemicals
- 2-year warranty
Specifications
| Part number | 113255-1 |
|---|---|
| Model | 01A31GM |
| Flow range | 3 - 30 GPM (10-100 L/min) |
| Accuracy | +/- 2.5% |
| Display | 4-Digit LCD |
| Units | Gallon |
| Max pressure | 300 PSI (21 bar) |
| Batteries | (2) AAA Alkaline Batteries |
| Housing | Corrosion-Resistant Aluminum |
| Connections | NPT (Female), 1 in. |
| Meter type | Turbine |
| Operating temperature | 14° to 130° F (-10° to 55° C) |
| Fluids | Diesel up to B20, Gasoline up to E15, Kerosene |
| Wetted materials | 316 Stainless Steel, Aluminum, Ceramic, Ferrite, Nylon, Tungsten Carbide |
| Approvals | FM Approved to U.S. and Canadian Standards as Intrinsically Safe for Class 1, Div 1 Groups D |
| Warranty | 2 years |
| Shipping weight | 2 lb |

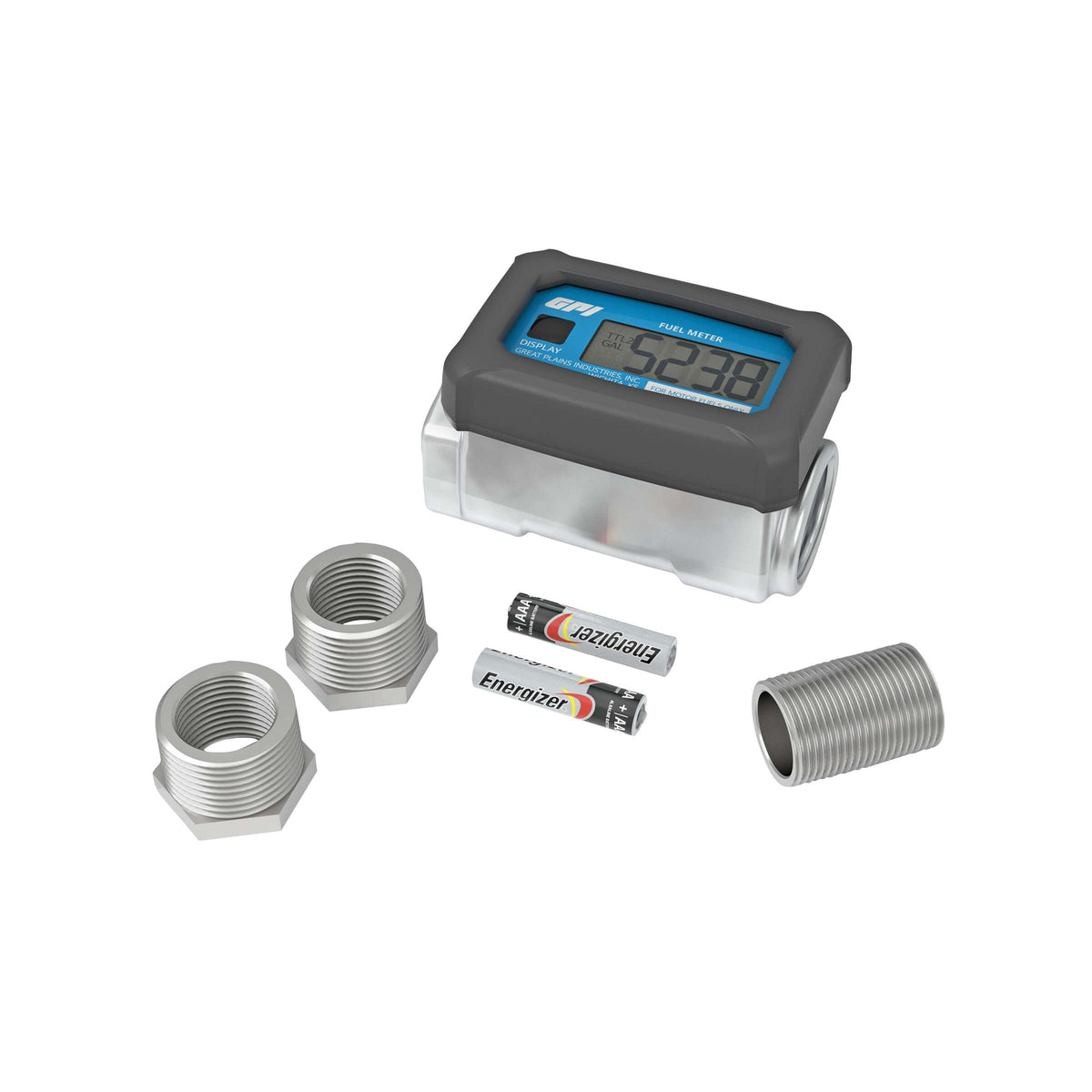

What's in the box
Digital fuel meter, rubber bumper, (2) 3/4" reducers, 3/4" x 1-1/2" pipe fitting, (2) alkaline AAA batteries, owner's manual
