Fill-Rite Sotera FR410B 12V Diaphragm Oil Transfer Pump with Hose and Nozzle
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details
The Fill-Rite Sotera FR410B is a 12-volt double-diaphragm pump for moving motor oil, hydraulic fluid and other petroleum-based oils from drums and aboveground tanks. It handles thick fluids up to 3,700 cP and moves about 12 gallons per minute of oil (13 GPM of thin fluids). It can run dry without damage, and there is no internal bypass: when you close the nozzle the pump simply stops pushing. It mounts on a 2 in. NPT bung and comes with a 1 in. x 12 ft. hose, a manual nozzle and a telescoping suction pipe.
Features
- About 12 GPM (45 L/min) of oil at 350 cP; 13 GPM (49 L/min) of thin fluids
- Handles viscosities up to 3,700 cP and particles up to 1/10 in.
- Runs dry without damage
- No internal bypass: the pump goes to neutral when the nozzle closes
- Internal check valves stop fluid from draining back into the drum or tote
- Glass-reinforced polypropylene body; Hytrel diaphragms and EPDM seals for petroleum oils
- Thermally protected 1/4 HP motor; 30 min on / 30 min off
- 2 in. NPT cast-iron bung mount
- Not for strong acids or bases, bleach, or flammable liquids with a flash point below 100°F
Specifications
| Part number | FR410B |
|---|---|
| Flow rate | About 13 GPM (49 L/min) at 1.5 cP; 12 GPM (45 L/min) at 350 cP |
| Power | 12V DC, 20 A |
| Motor | 1/4 HP, thermally protected |
| Duty cycle | 30 min on / 30 min off |
| Pump type | Electric double diaphragm |
| Max viscosity | 3,700 cP |
| Max particle size | 1/10 in. (2.54 mm) |
| Suction lift | 9 ft. (water) |
| Discharge head | 34 ft. (15 PSI) |
| Inlet | 1 in. NPT |
| Outlet | 1 in. NPT |
| Mounting | 2 in. NPT bung mount |
| Diaphragm / seals | Hytrel / EPDM, NBR |
| Explosion-proof motor | No |
| Operating temperature | -10°F to 130°F |
| Fluids | Motor oil, gear oil, hydraulic fluid and other petroleum-based oils |
| Certification | cULus (nozzle) |
| Warranty | 5 years on the pump, 2 years on the motor |
| Shipping weight | 22 lb |

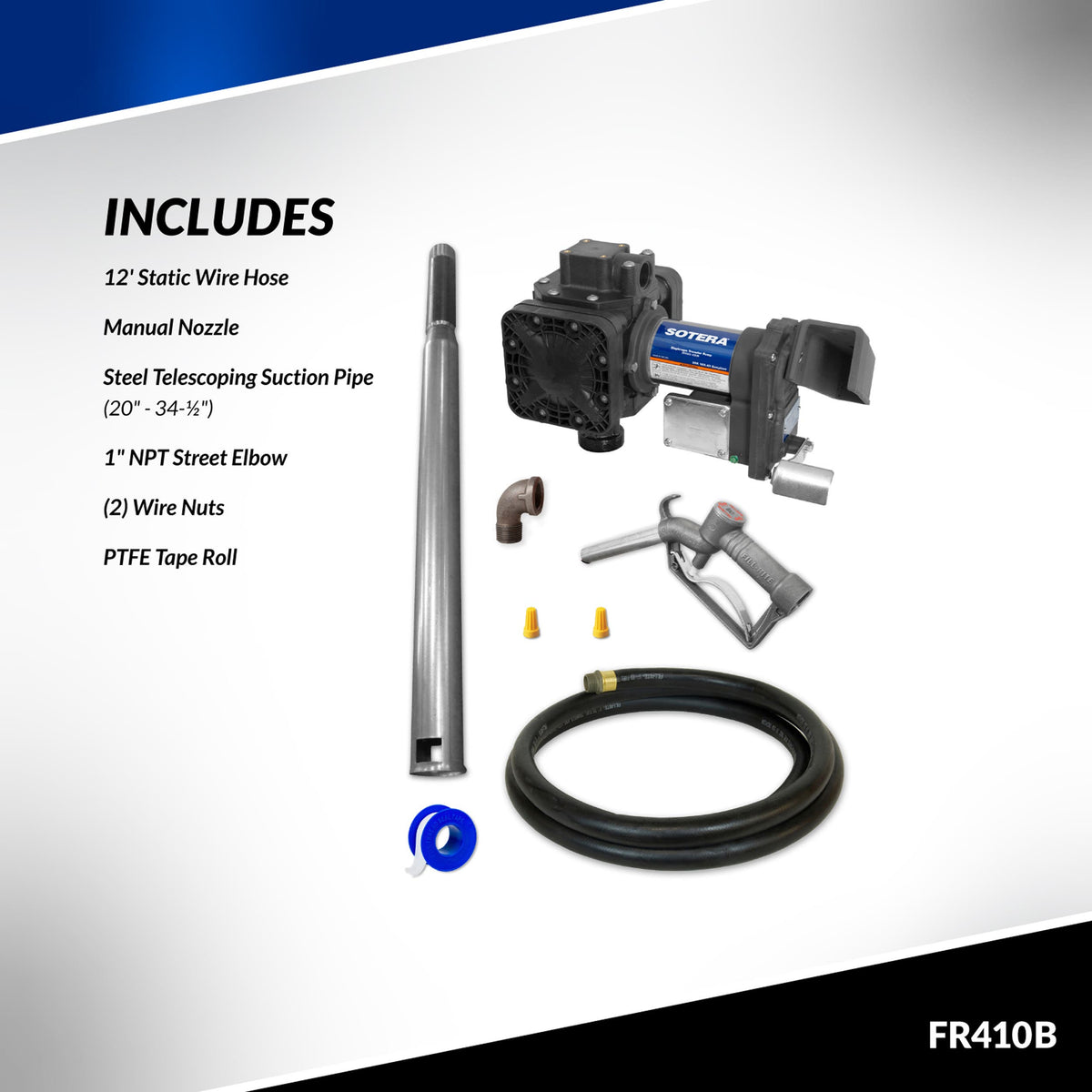

What's in the box

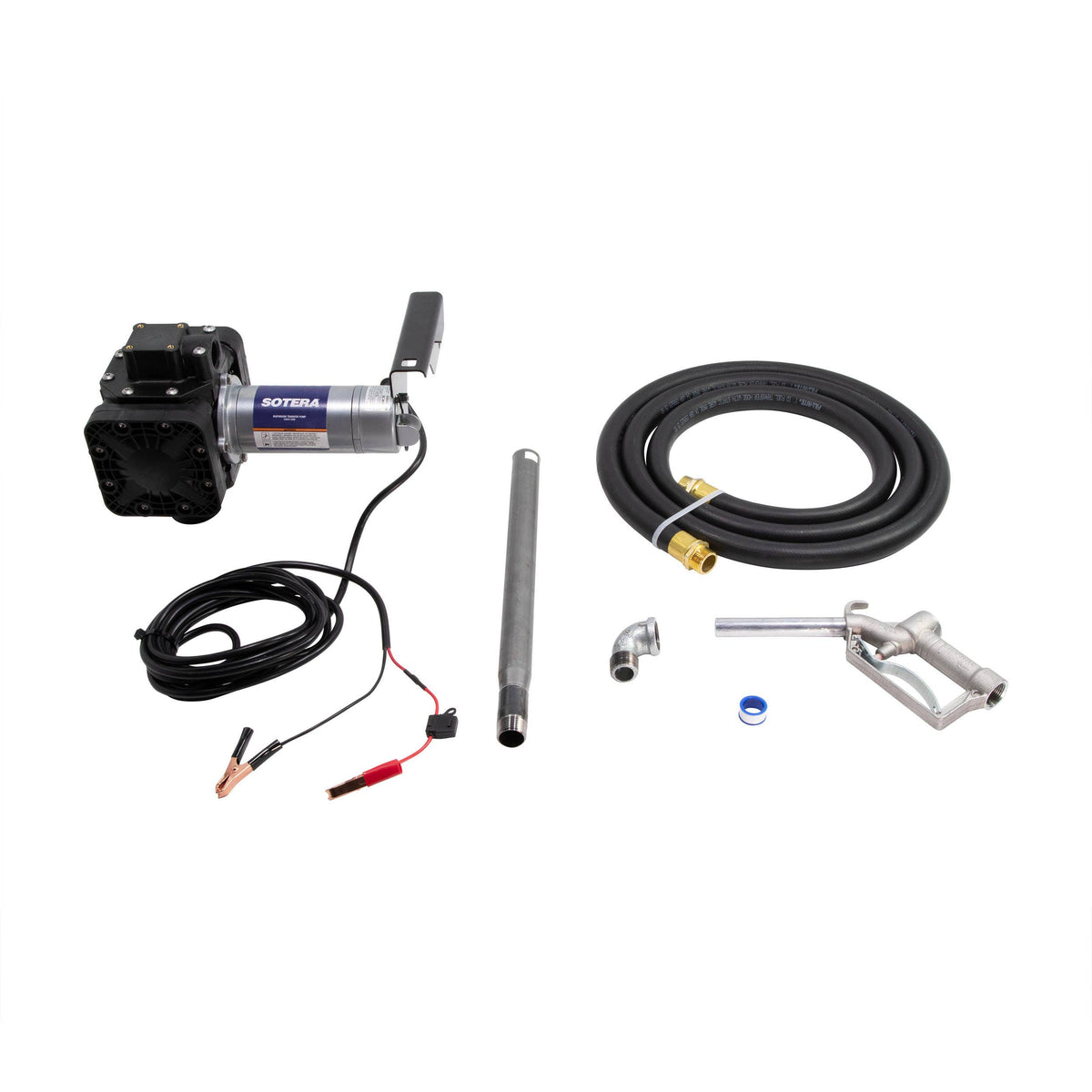

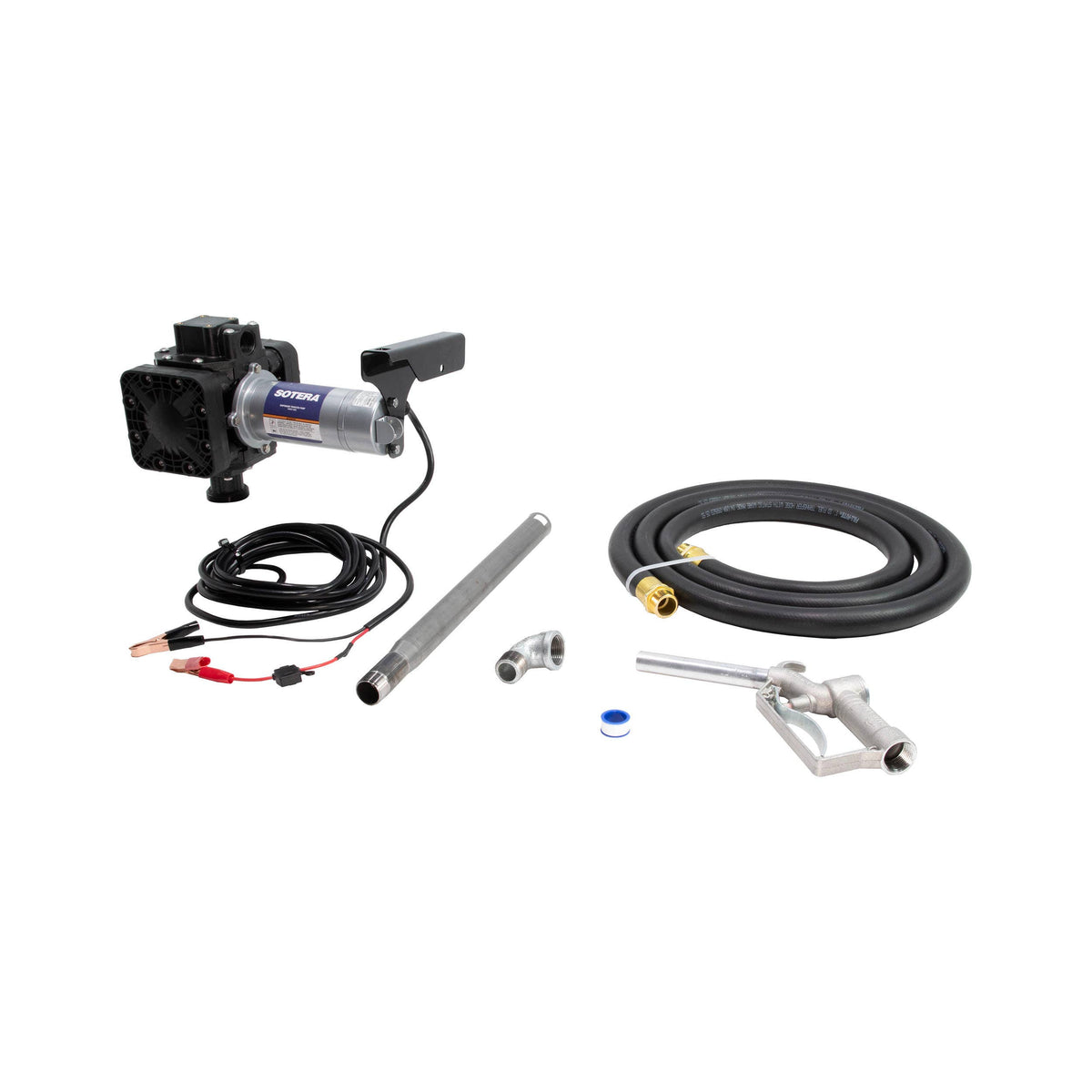

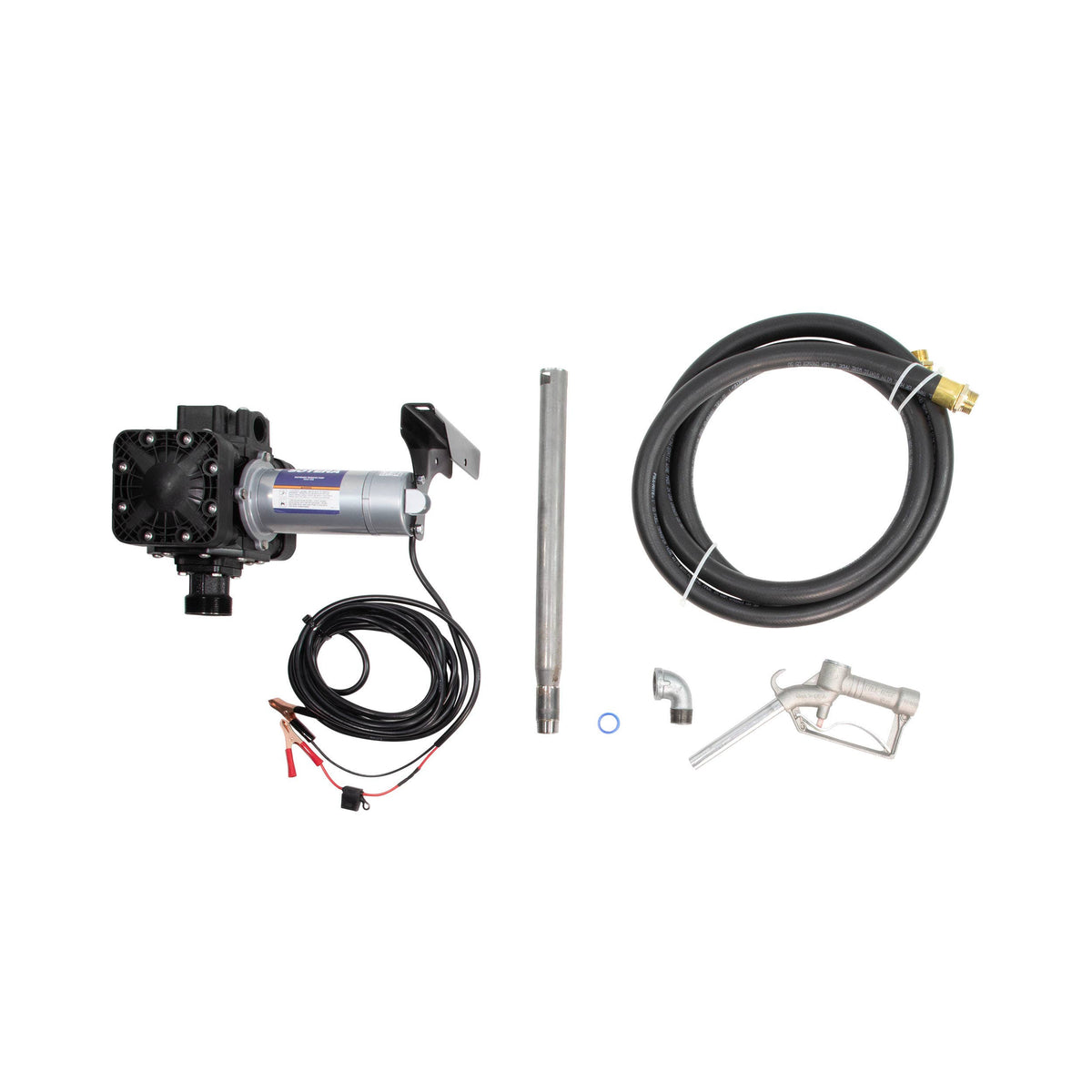

Pump, 1 in. x 12 ft. hose with static ground wire, 1 in. cast aluminum manual nozzle, nozzle boot, 23 to 40-1/2 in. telescoping suction pipe, 1 in. NPT street elbow and PTFE tape
