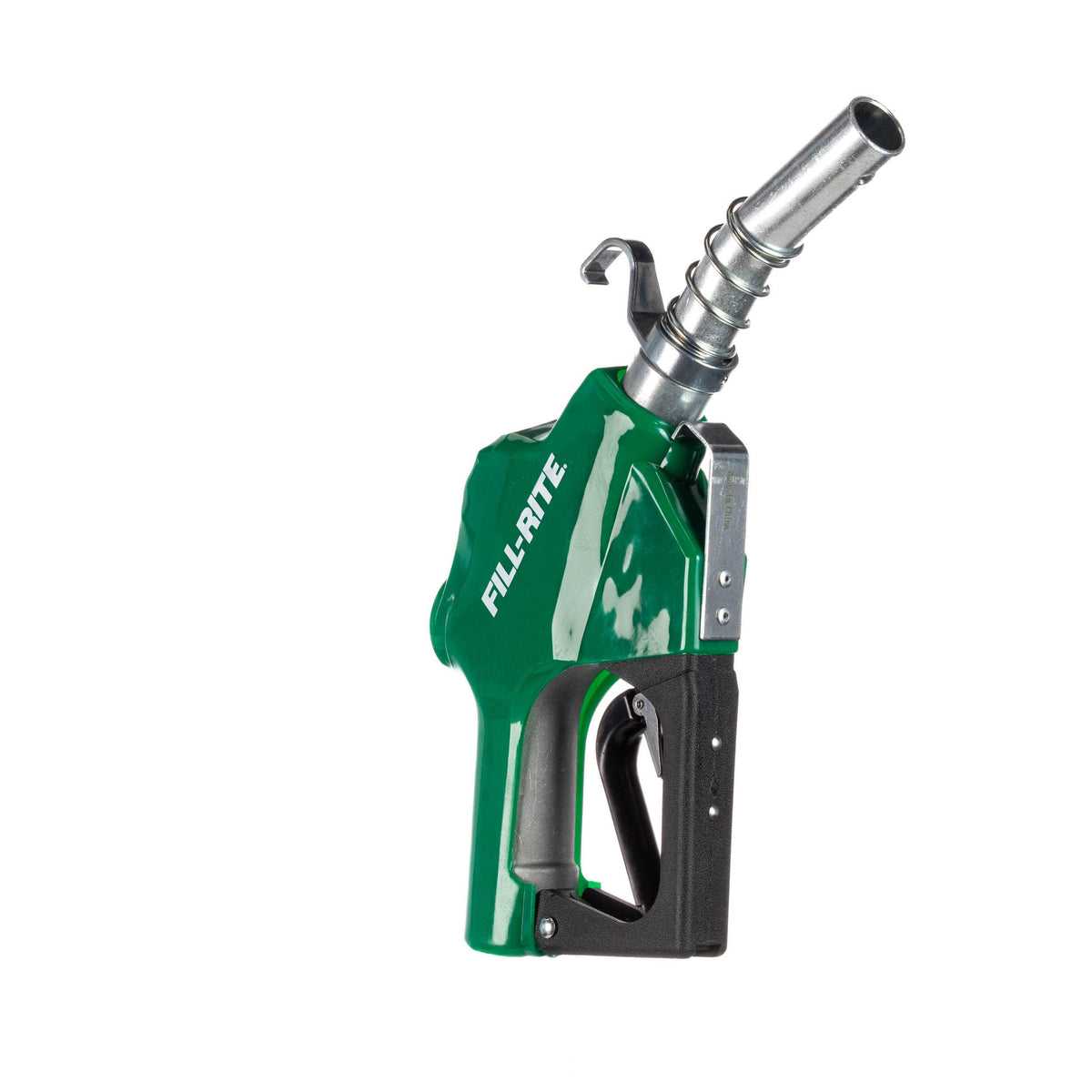

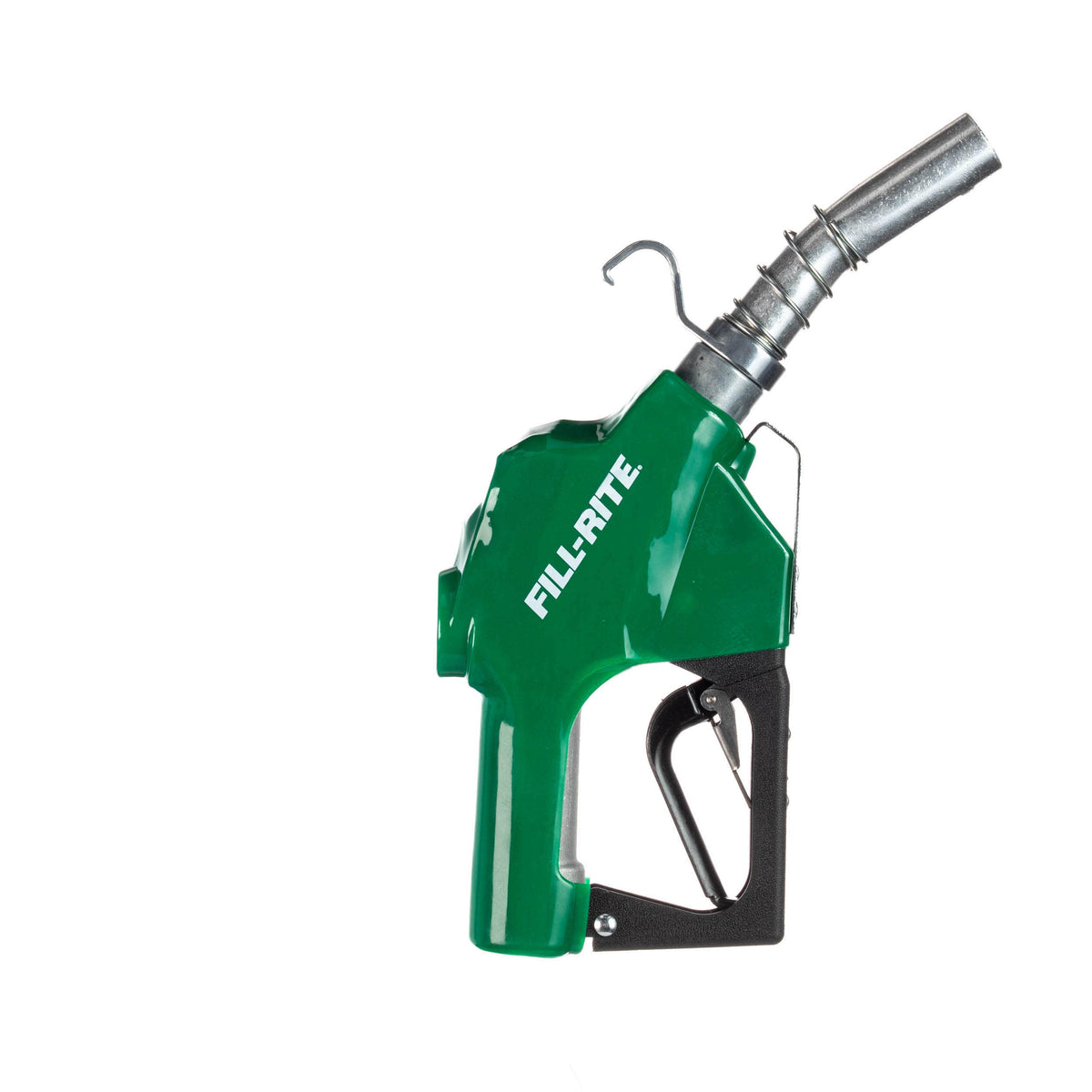

Fill-Rite SDN100GAN 1 in. Standard-Duty Automatic Diesel Nozzle, Green
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

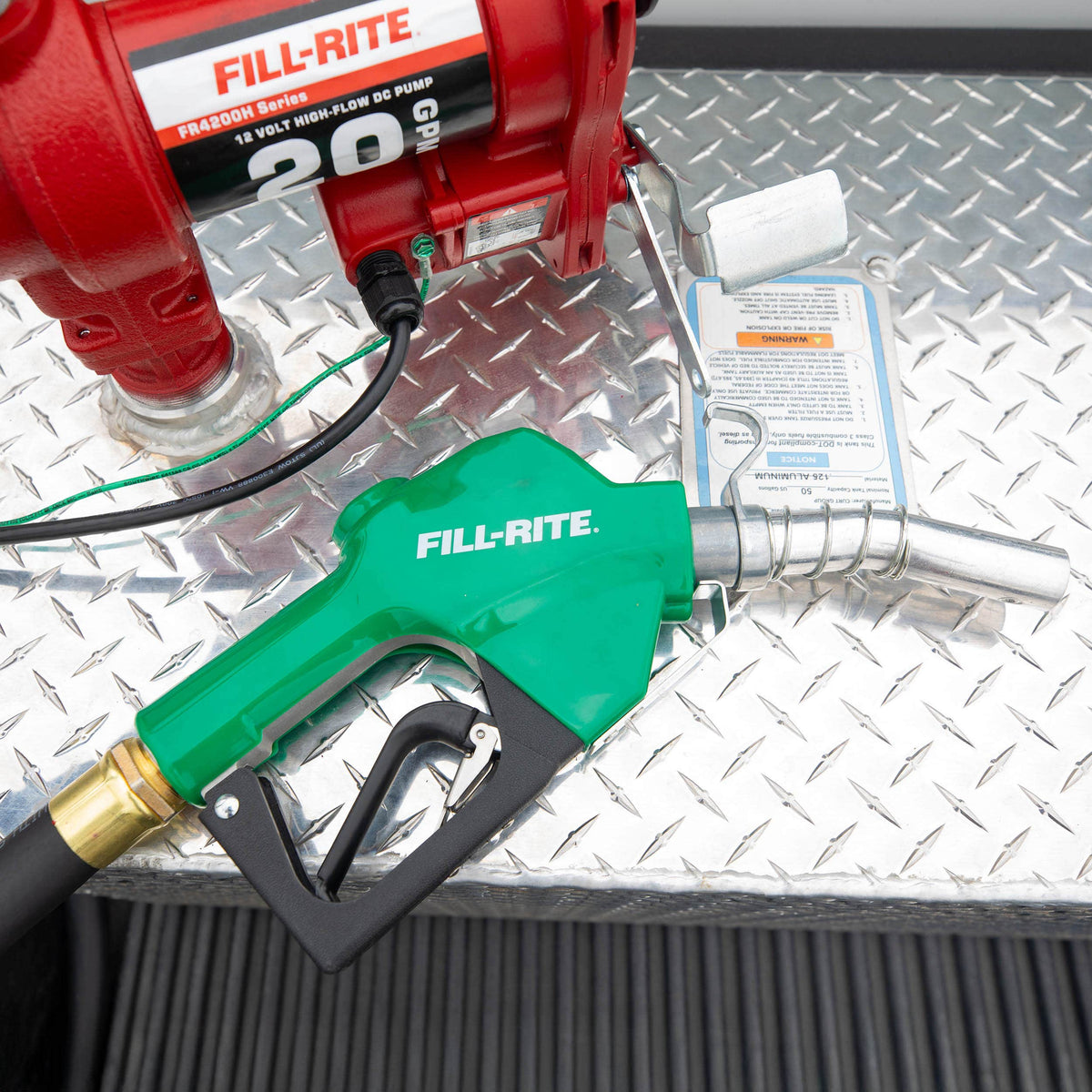

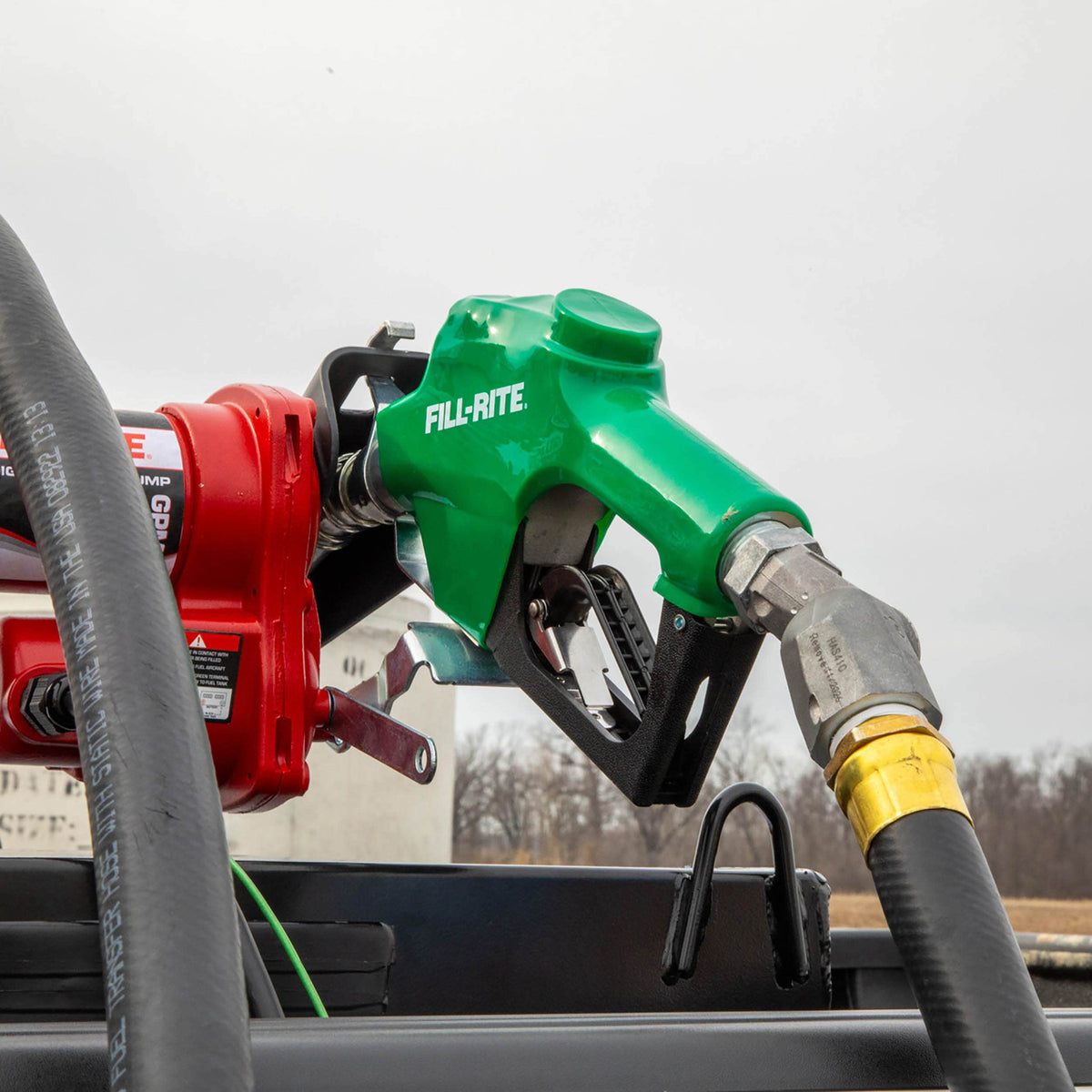

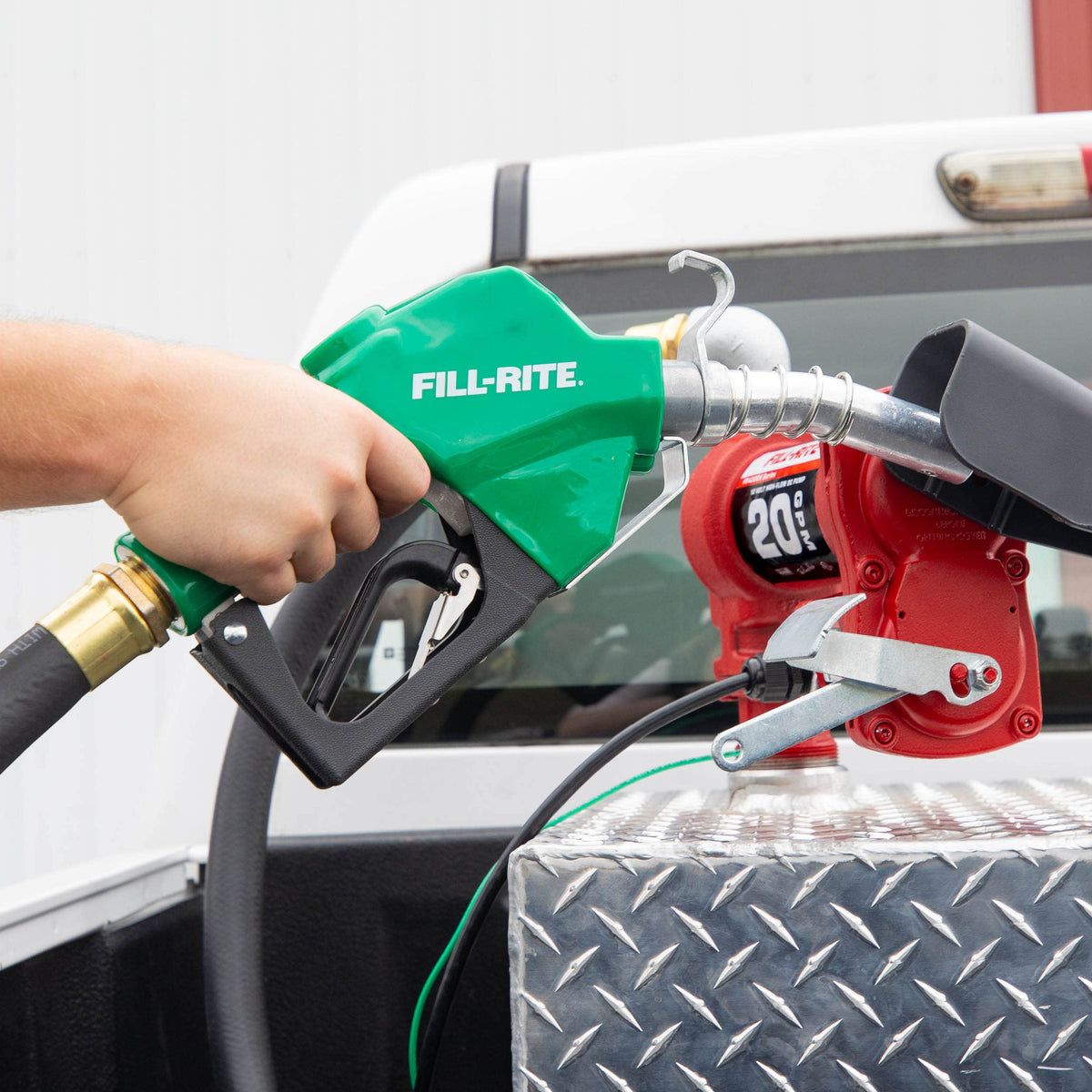

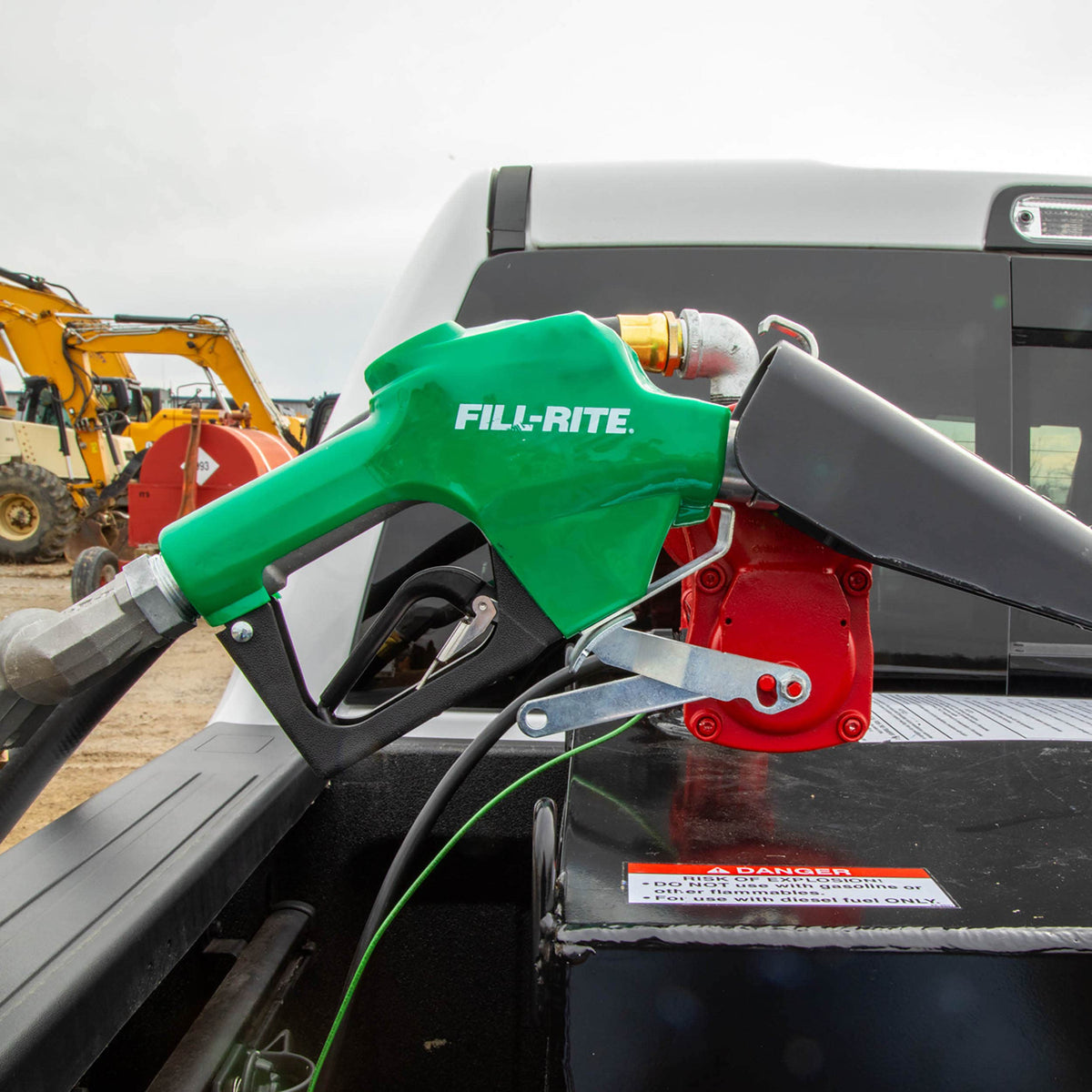

Fill-Rite's SD nozzles are the standard-duty line: solid cast-aluminum automatic nozzles at a lower price. This 1 in. high-flow model has a 1-1/8 in. diesel spout and a green cover, flows up to 25 gallons per minute and shuts off when the tank is full.
Features
- Up to 25 GPM
- Automatic shut-off stops the flow when the tank is full to prevent overfills and spills
- No pressure, no flow: the latch only holds open while the pump is pressurizing the line
- 3-position hold-open latch lets you set the flow for different equipment
- Rugged cast-aluminum construction
- 1-1/8 in. diesel-size spout
- Integral spout spring
- Viton and Buna-N seals
- For diesel, biodiesel (up to B20), gasoline (up to E15) and kerosene
- Needs pump pressure to work, so it is not for gravity-feed tanks
- UL and cUL listed; 1-year warranty
Specifications
| Part number | SDN100GAN |
|---|---|
| Nozzle type | Automatic shut-off |
| Inlet | 1 in. NPT |
| Spout | 1-1/8 in. (29 mm) |
| Cover color | Green |
| Max flow | 25 GPM |
| Pressure drop | 12 PSI at 25 GPM |
| Max working pressure | 50 PSI |
| Latch positions | 3 |
| No-pressure, no-flow | Yes, 2 to 3.5 PSI |
| Seals | Viton and Buna-N |
| Min operating temperature | -20°F |
| Fluids | Diesel, biodiesel (up to B20), gasoline (up to E15), kerosene |
| Certification | UL, cUL |
| Warranty | 1 year |
| Shipping weight | 3.95 lb |
