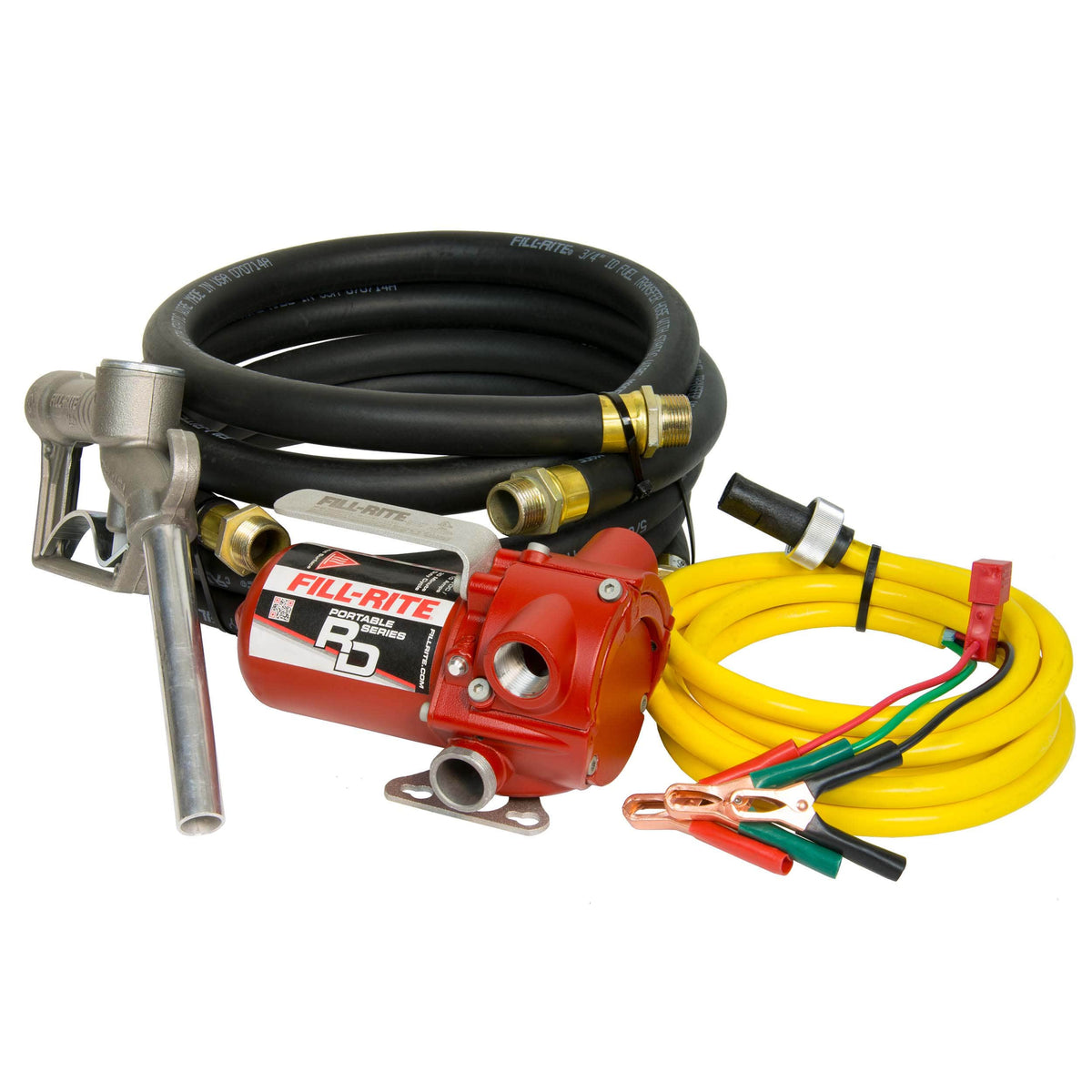

Fill-Rite RD812NH 8 GPM 12V Portable Fuel Transfer Pump with Manual Nozzle
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

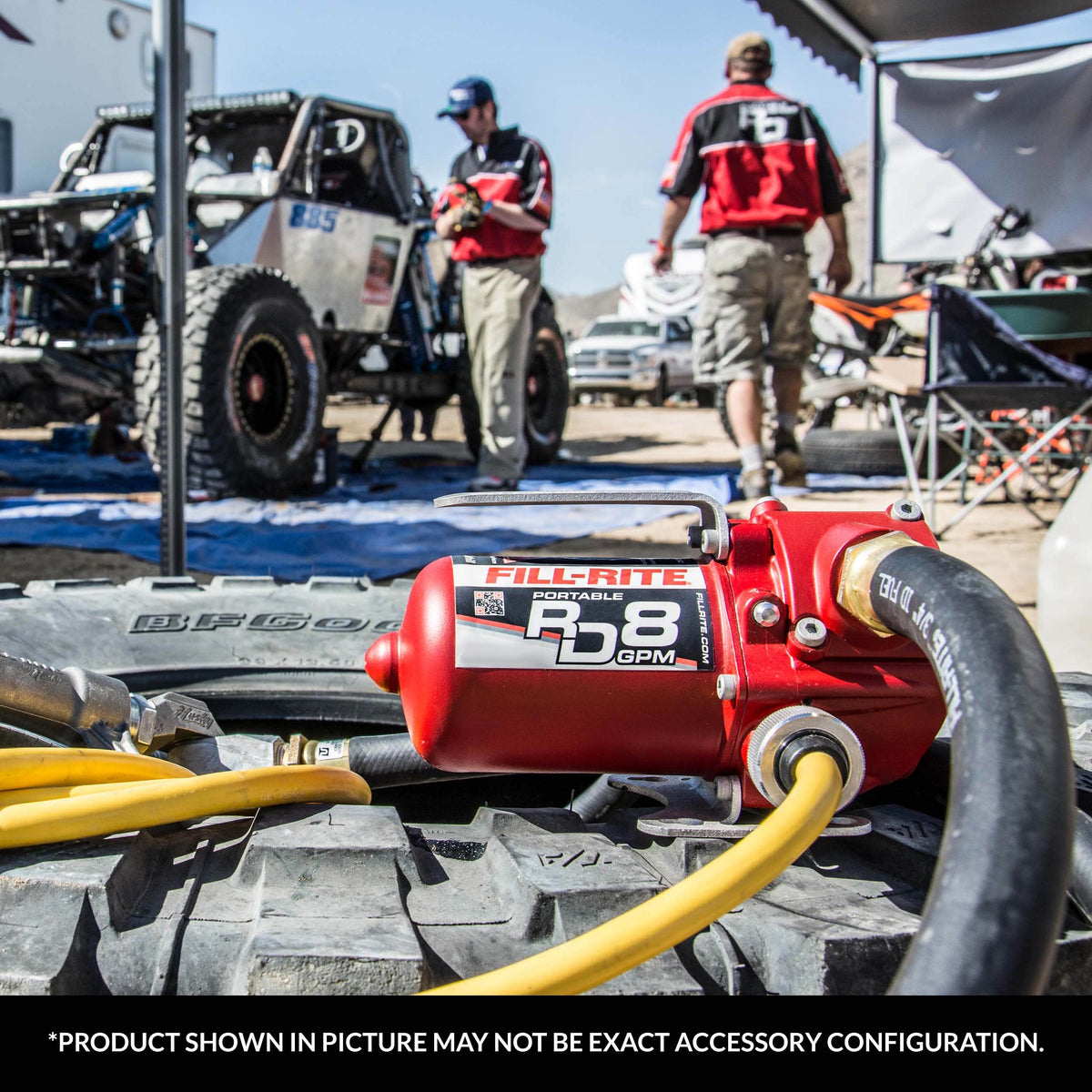

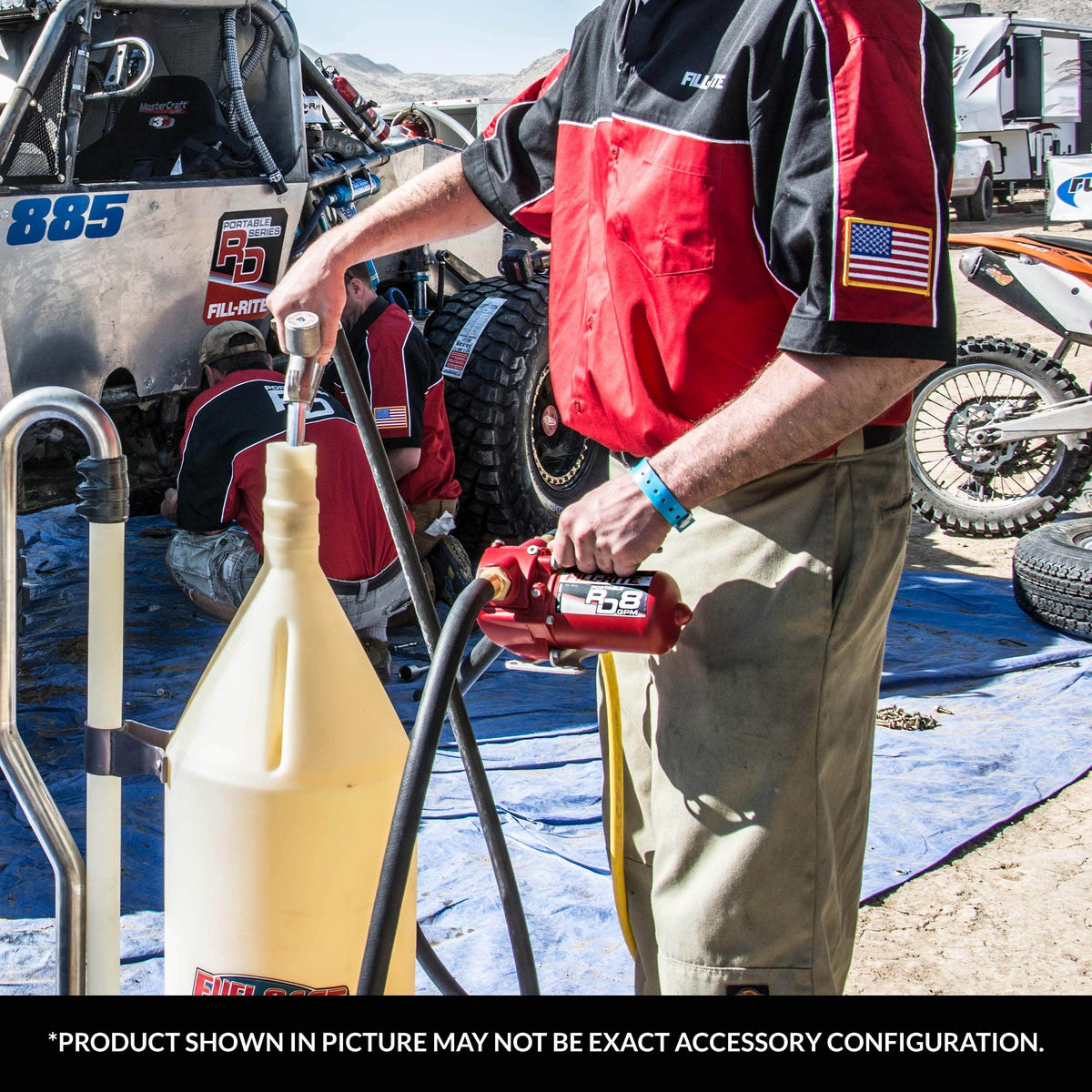

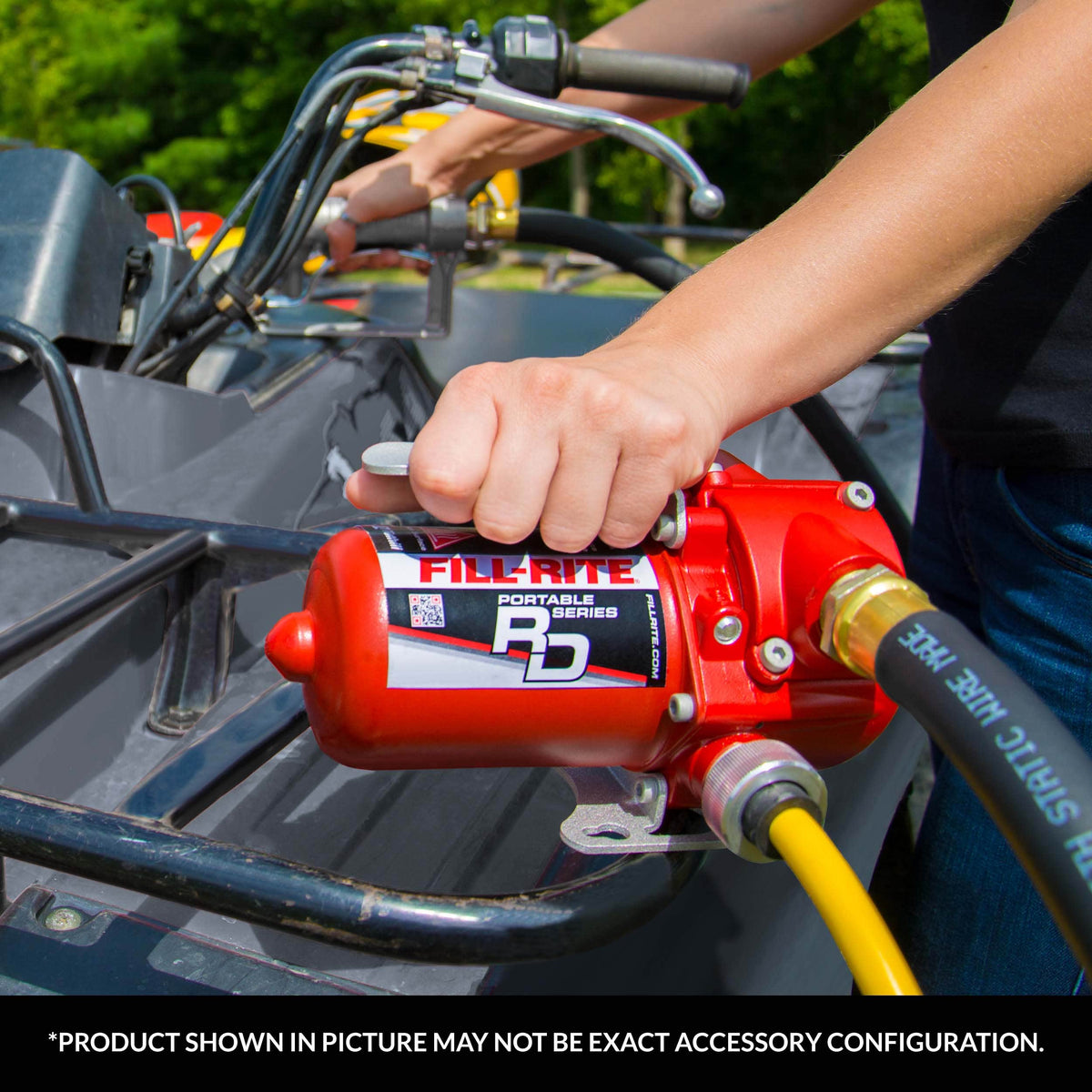

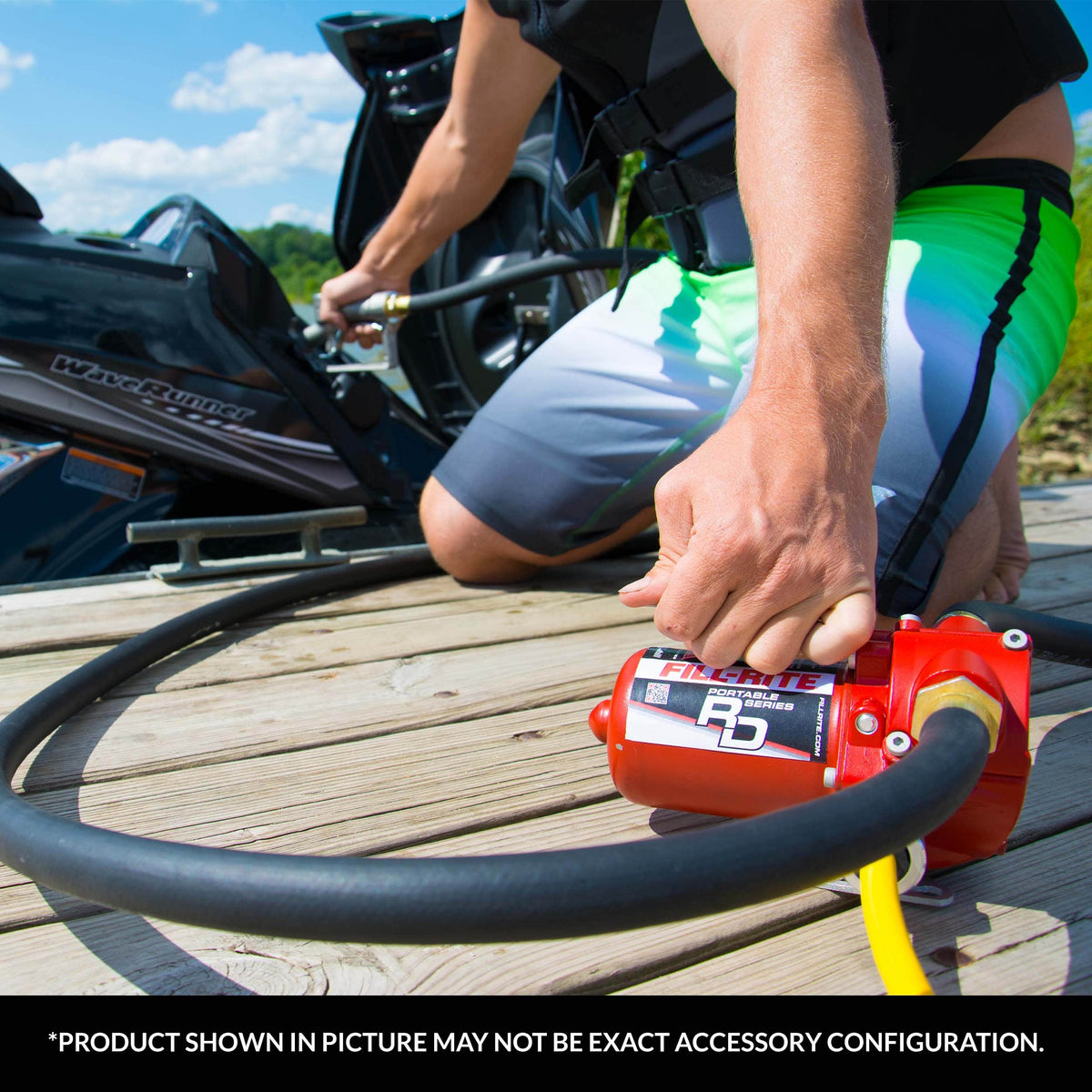

The Fill-Rite RD812NH is a portable 12-volt pump you carry to the job. Clip it to a battery, drop the suction hose into a drum or tank and fuel boats, ATVs, race cars, generators or equipment at up to 8 gallons per minute. It doesn't need a bung mount, and everything you need to start pumping comes in the box.
Features
- Up to 8 GPM (30 L/min)
- Portable: carry it by the handle from drum to tank to boat
- Ready to run out of the box with a power cord and battery clips
- 6 ft. suction hose draws from drums and tanks, no bung mount needed
- Cast-iron and cast-aluminum construction resists corrosion
- 30 min on / 30 min off duty cycle
- For diesel, biodiesel (up to B20), gasoline, kerosene and mineral spirits
- cULus listed; ATEX, IECEx and CE certified
- 2-year warranty
Specifications
| Part number | RD812NH |
|---|---|
| Flow rate | Up to 8 GPM (30 L/min) |
| Power | 12V DC, 14 A |
| Duty cycle | 30 min on / 30 min off |
| Inlet | 3/4 in. NPT |
| Outlet | 3/4 in. NPT |
| Mounting | Portable, carry handle |
| Suction lift | 6 ft. |
| Discharge head | 37 ft. (16 PSI) |
| Power cord | With battery clips |
| Fluids | Diesel, biodiesel (up to B20), gasoline, kerosene, mineral spirits |
| Certification | cULus, ATEX, IECEx, CE |
| Warranty | 2 years |
| Shipping weight | 18 lb |

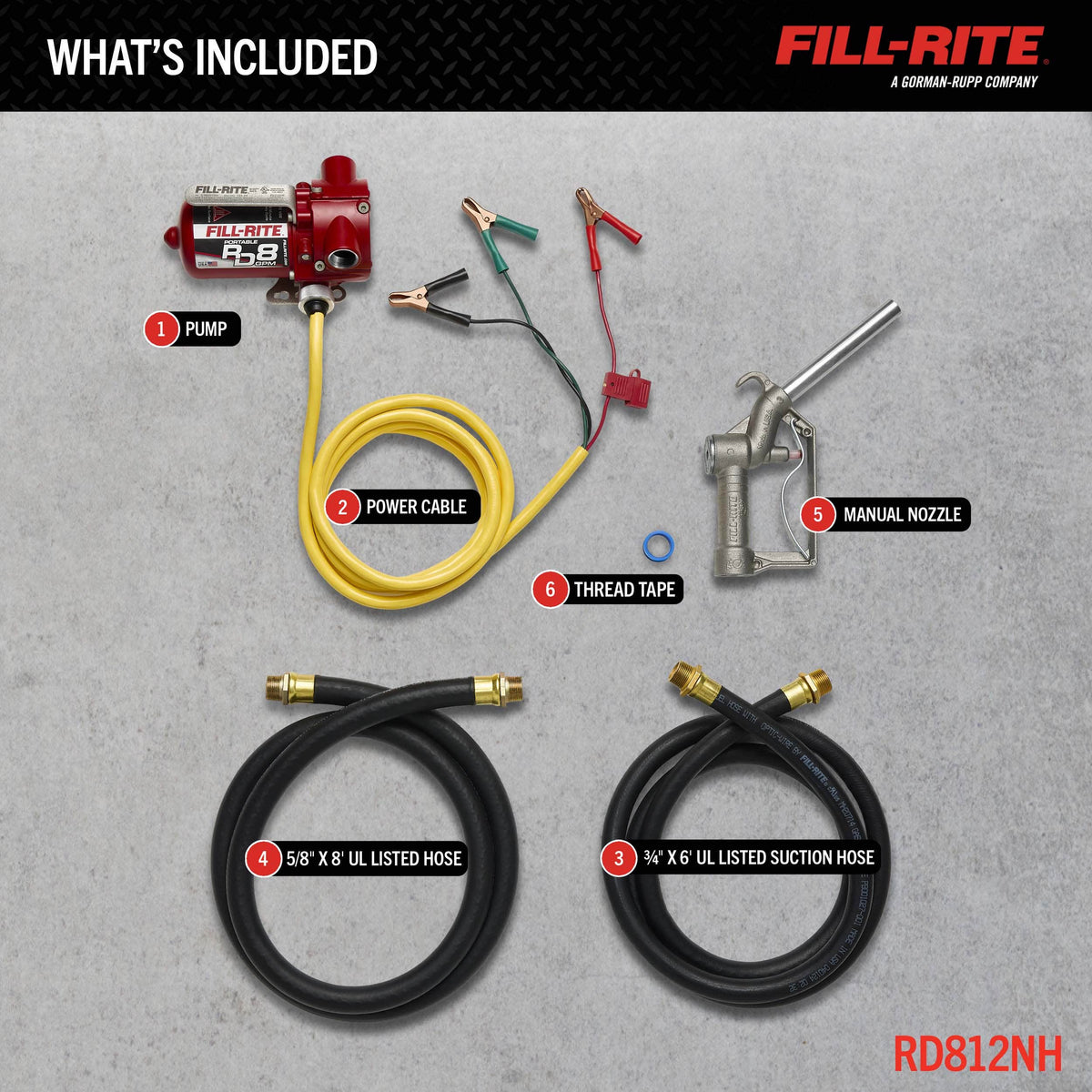

What's in the box
Pump, power cord with battery clips, 5/8 in. x 8 ft. UL listed hose with static ground wire, 3/4 in. x 6 ft. suction hose with static wire and 3/4 in. cast aluminum manual nozzle
