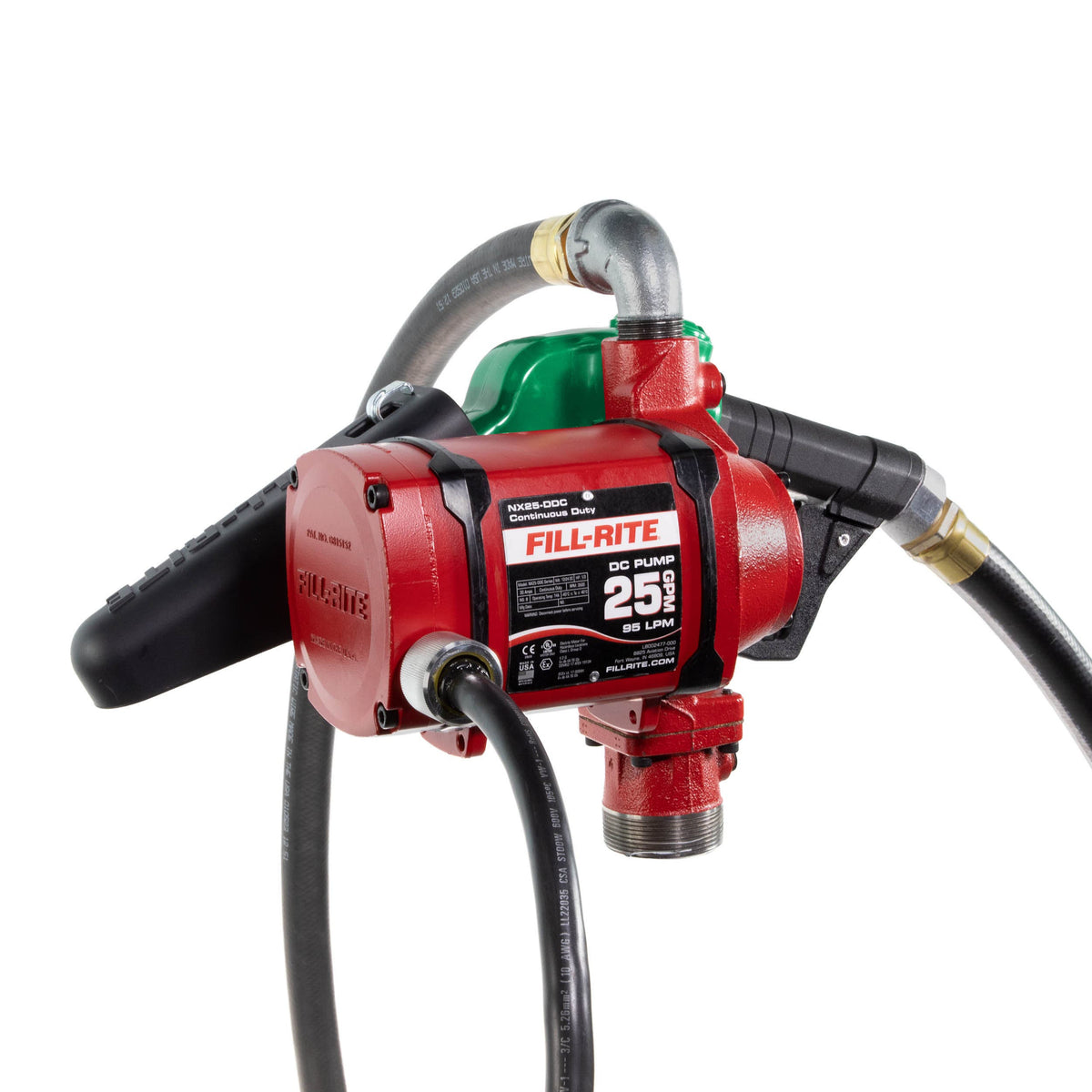

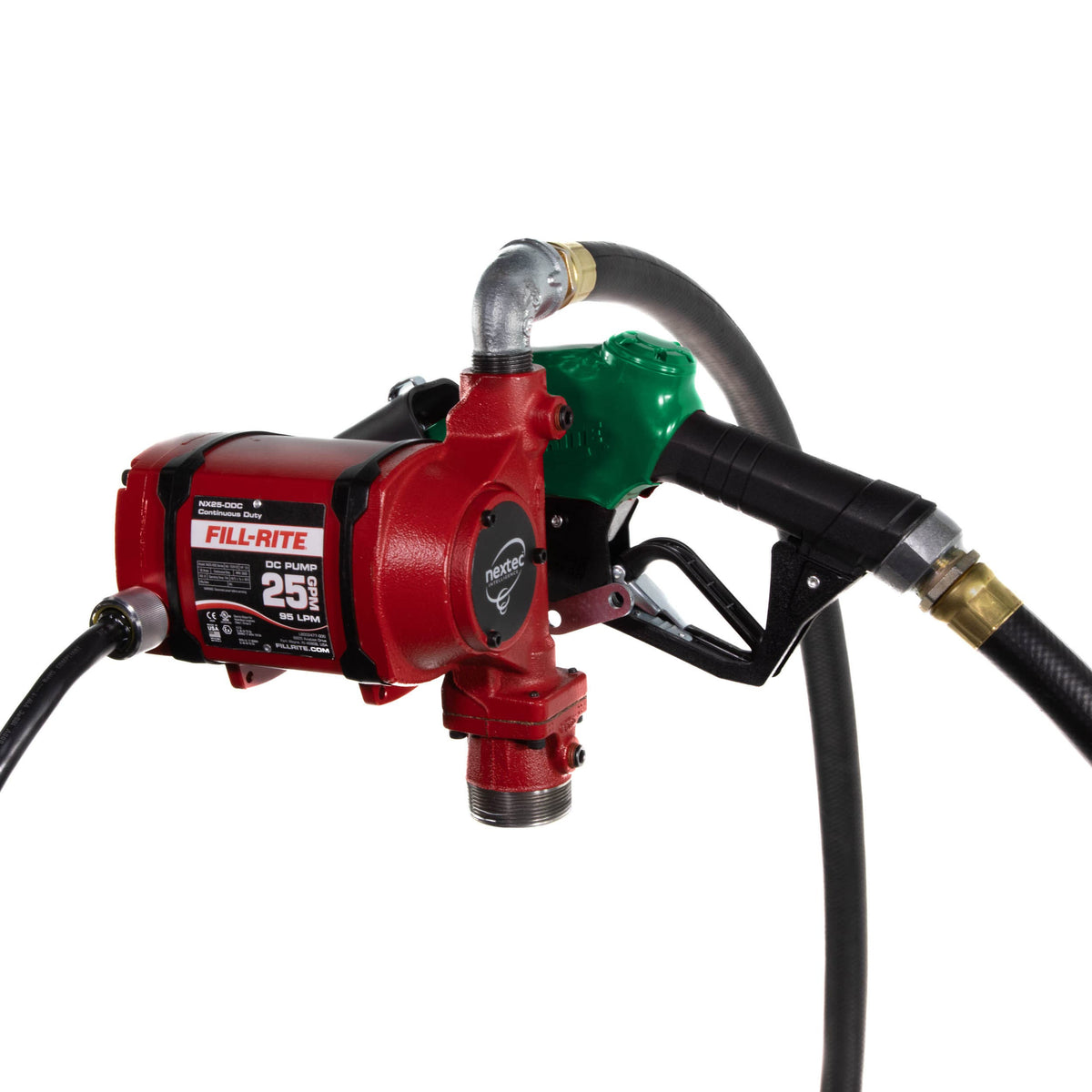

Fill-Rite nextec NX25-DDCNB-AA 25 GPM 12/24V Continuous-Duty Fuel Pump with Auto Diesel Nozzle
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details
The Fill-Rite nextec NX25 is a continuous-duty fuel transfer pump for fleets and farms that pump all day. Its variable-speed motor moves up to 25 gallons per minute without overheating, adjusts itself for the best flow and suction lift, and runs on either 12V or 24V DC, so it works on more trucks and equipment. It shuts itself off after 20 minutes without use and uses alert tones to tell you when something needs attention.
This kit comes with a 1 in. x 18 ft. hose with static ground wire, a 1 in. ultra high-flow automatic diesel nozzle (green cover) and a removable power cord with battery clips. A suction pipe is not included.
Features
- Continuous duty: up to 25 GPM (95 L/min) with no cool-down time
- Dual voltage: runs on 12V or 24V DC batteries
- Variable-speed motor adjusts itself for the best flow and suction lift
- Up to 12 ft. of suction lift and 48 ft. of discharge head
- Turns itself off after 20 minutes of inactivity to save the battery and reduce wear
- Audible alert tones tell you when the pump needs attention
- Cast-iron and cast-aluminum build with a powder-coated finish for corrosion protection
- 2 in. NPT bung mount; 1-1/4 in. inlet and 1 in. outlet
- Removable power cord with battery clips
- For diesel, biodiesel (up to B20), gasoline (up to E15), kerosene and mineral spirits
- cULus listed; ATEX, IECEx and CE certified
Specifications
| Part number | NX25-DDCNB-AA |
|---|---|
| Flow rate | Up to 25 GPM (95 L/min) |
| Power | 12V or 24V DC, 30 A |
| Duty cycle | Continuous |
| Motor | Variable speed |
| Inlet | 1-1/4 in. NPT |
| Outlet | 1 in. NPT |
| Mounting | 2 in. NPT bung mount |
| Suction lift | 12 ft. |
| Discharge head | 48 ft. (21 PSI) |
| Power cord | Removable, with battery clips |
| Fluids | Diesel, biodiesel (up to B20), gasoline (up to E15), kerosene, mineral spirits |
| Certification | cULus, ATEX, IECEx, CE |
| Warranty | Limited lifetime on pump castings; 5 years on the motor; 2 years on wear parts; 1 year on included accessories |
| Shipping weight | 49.5 lb |

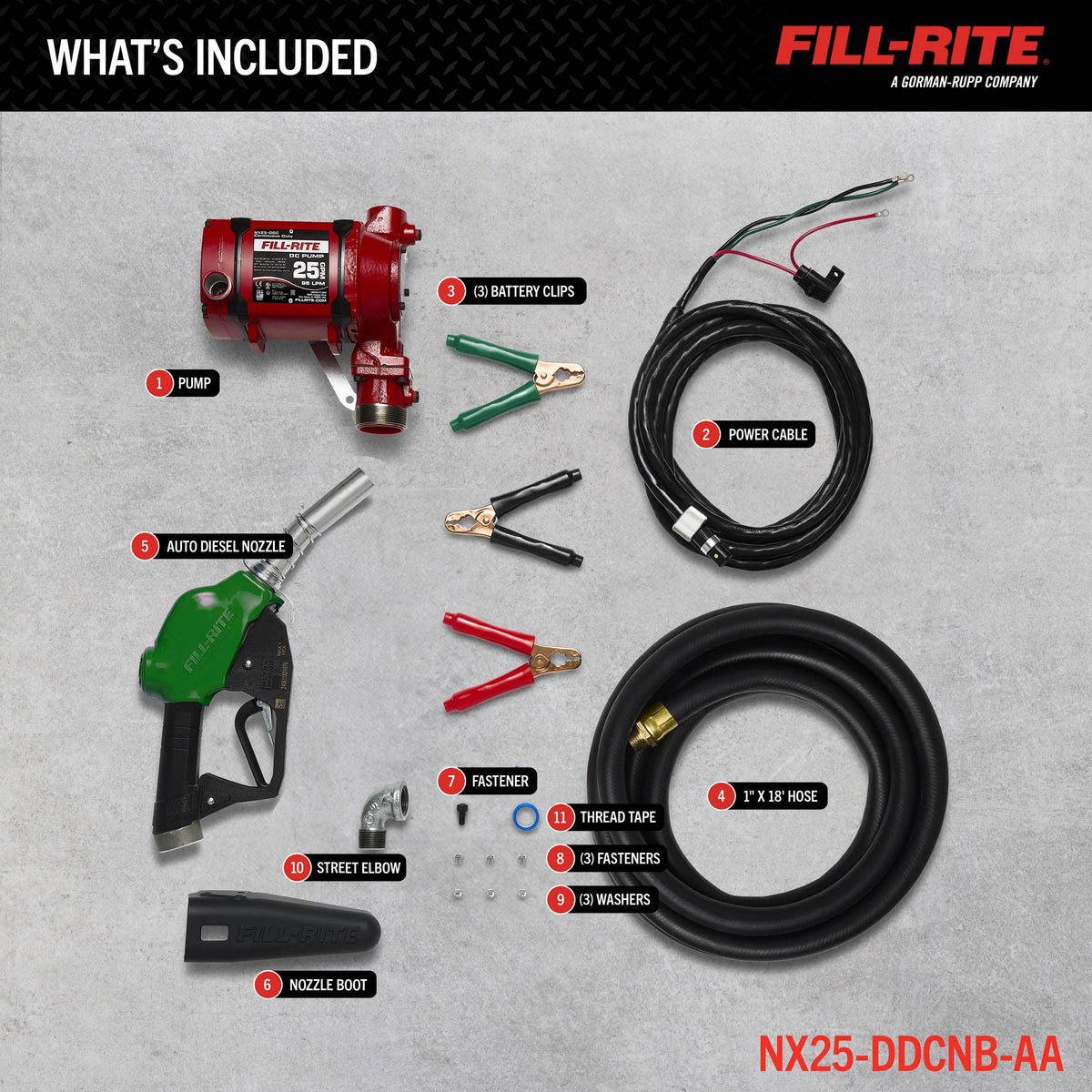

What's in the box
Pump, removable power cord with battery clips, 1 in. x 18 ft. hose with static ground wire and 1 in. ultra high-flow automatic diesel nozzle (green)
