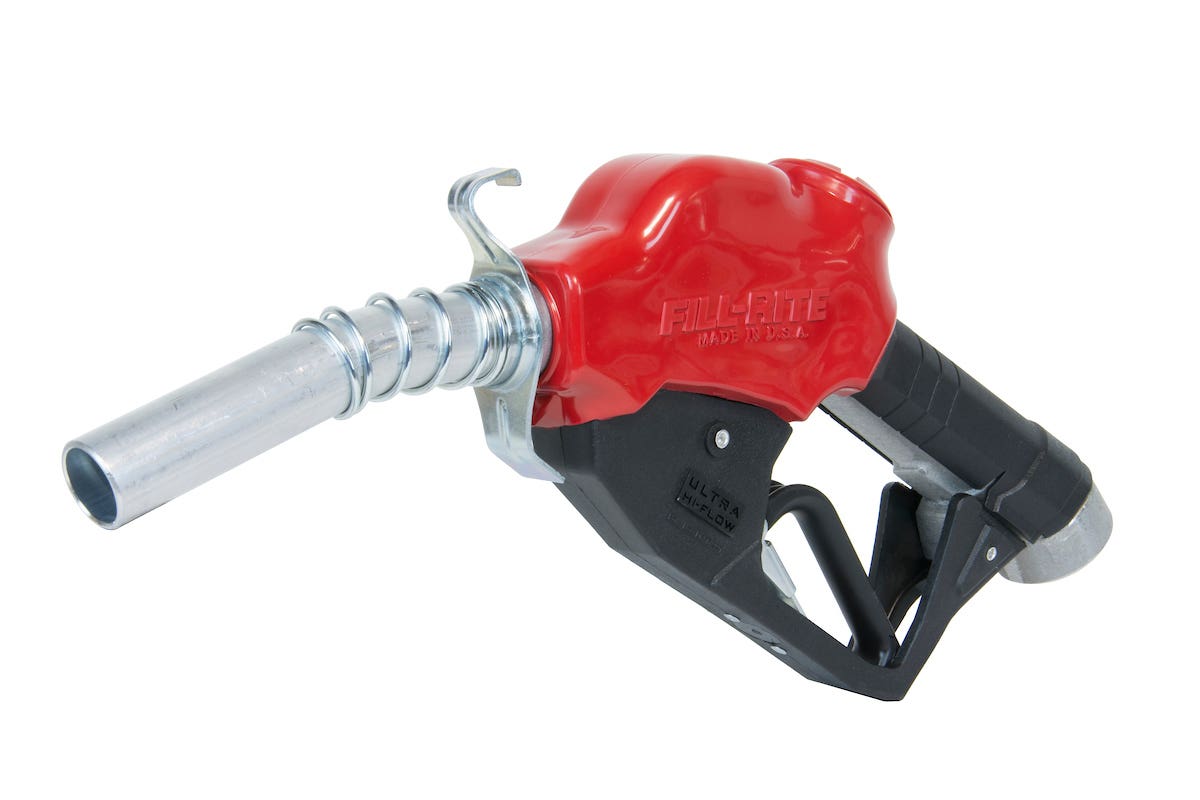

Fill-Rite N100DAU13 1 in. Ultra High-Flow Automatic Nozzle, Red

Part # N100DAU13 Fuel Nozzle
$247.99
Available to order · ships direct
FREE shipping on this itemFree UPS Ground to the lower 48 states. Ships direct in about 3–7 business days.
Price Match GuaranteeFind the same new item for less at an authorized US retailer and we'll match it. How it works
Check fit for your truck.

Pick your year, make and model to see if this part fits.

Select or change truck

Secure checkout with Shop Pay, Apple Pay, Google Pay or card

Fitment supportWe can help verify the right part
30-day returnsOn unused parts in original packaging
Local installProfessional installation in Bemidji, MN
Ships in about 3–7 business daysMost in-stock parts ship direct from the manufacturer's warehouse. Orders of $100 or more ship free by UPS Ground to the lower 48 states.
Free pickup in Bemidji, MNChoose pickup at checkout and we'll email you when it's ready.
Need a fitment check?Call (218) 308-0045 before ordering and we’ll help confirm the application.
Product details

A 1 in. ultra high-flow automatic shut-off nozzle with a large 1-3/16 in. spout and a red cover, rated up to 40 gallons per minute for fueling heavy equipment and large trucks. Its low pressure drop keeps flow high, and its no-pressure, no-flow latch won't stay open unless the pump is running.

Features

  • Up to 40 GPM with only 8 PSI pressure drop at 25 GPM
  • Automatic shut-off stops the flow when the tank is full to prevent overfills and spills
  • No pressure, no flow: the latch only holds open while the pump is pressurizing the line
  • 3-position hold-open latch lets you set the flow for different equipment
  • 1-3/16 in. spout for heavy equipment and large vehicles
  • Integral spout spring
  • Viton seals
  • For diesel, biodiesel (up to B20), gasoline (up to E15) and kerosene
  • Needs pump pressure to work, so it is not for gravity-feed tanks
  • UL and cUL listed; 1-year warranty

Specifications

Part number N100DAU13
Nozzle type Automatic shut-off
Inlet 1 in. NPT
Spout 1-3/16 in. (30 mm)
Cover color Red
Max flow 40 GPM
Pressure drop 8 PSI at 25 GPM
Max working pressure 50 PSI
Latch positions 3
No-pressure, no-flow Yes, 2 to 3 PSI
Seals Viton
Min operating temperature -20°F
Fluids Diesel, biodiesel (up to B20), gasoline (up to E15), kerosene
Certification UL, cUL
Warranty 1 year
Shipping weight 4 lb
