Fill-Rite FR8 8 GPM 12V Fuel Transfer Pump with Manual Nozzle
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

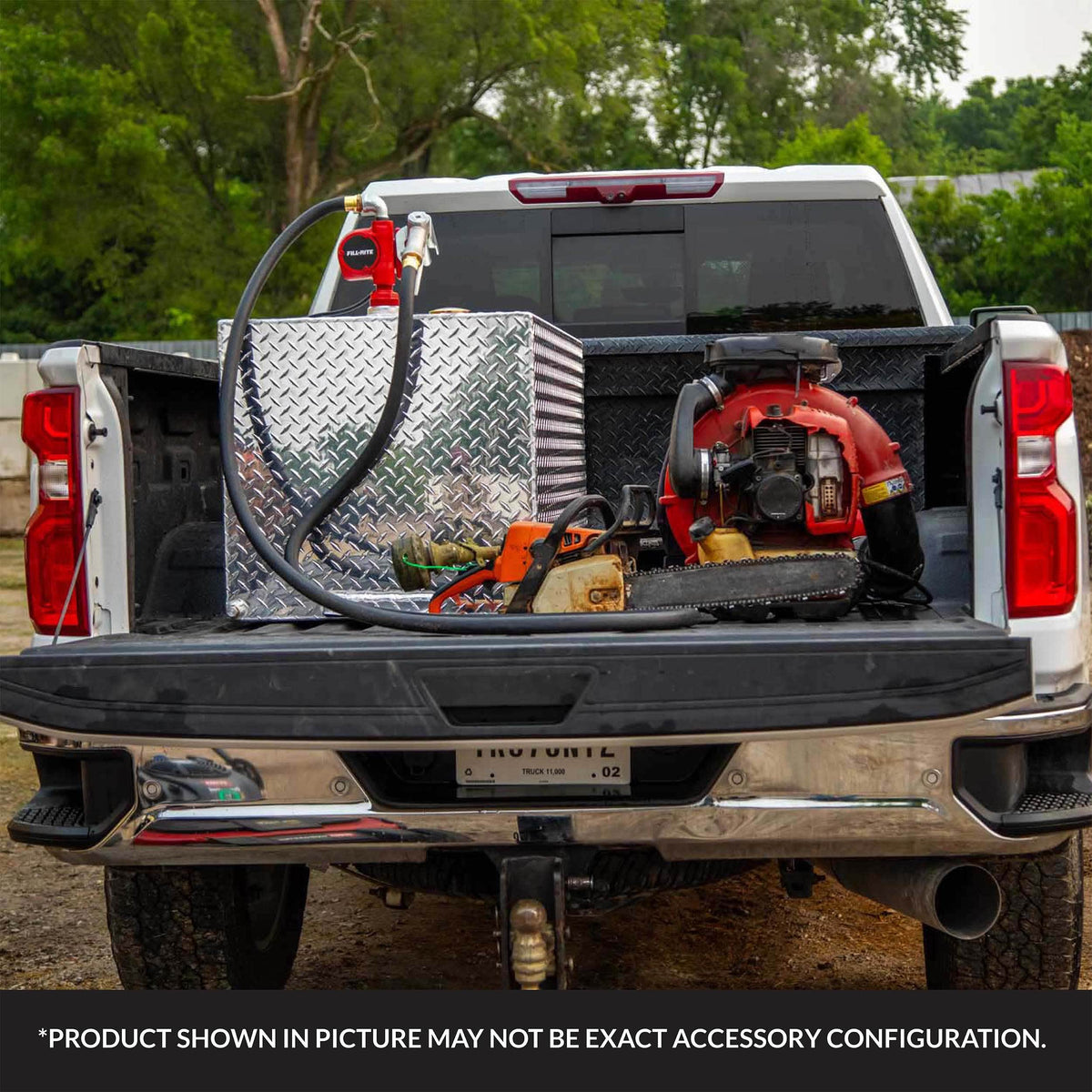

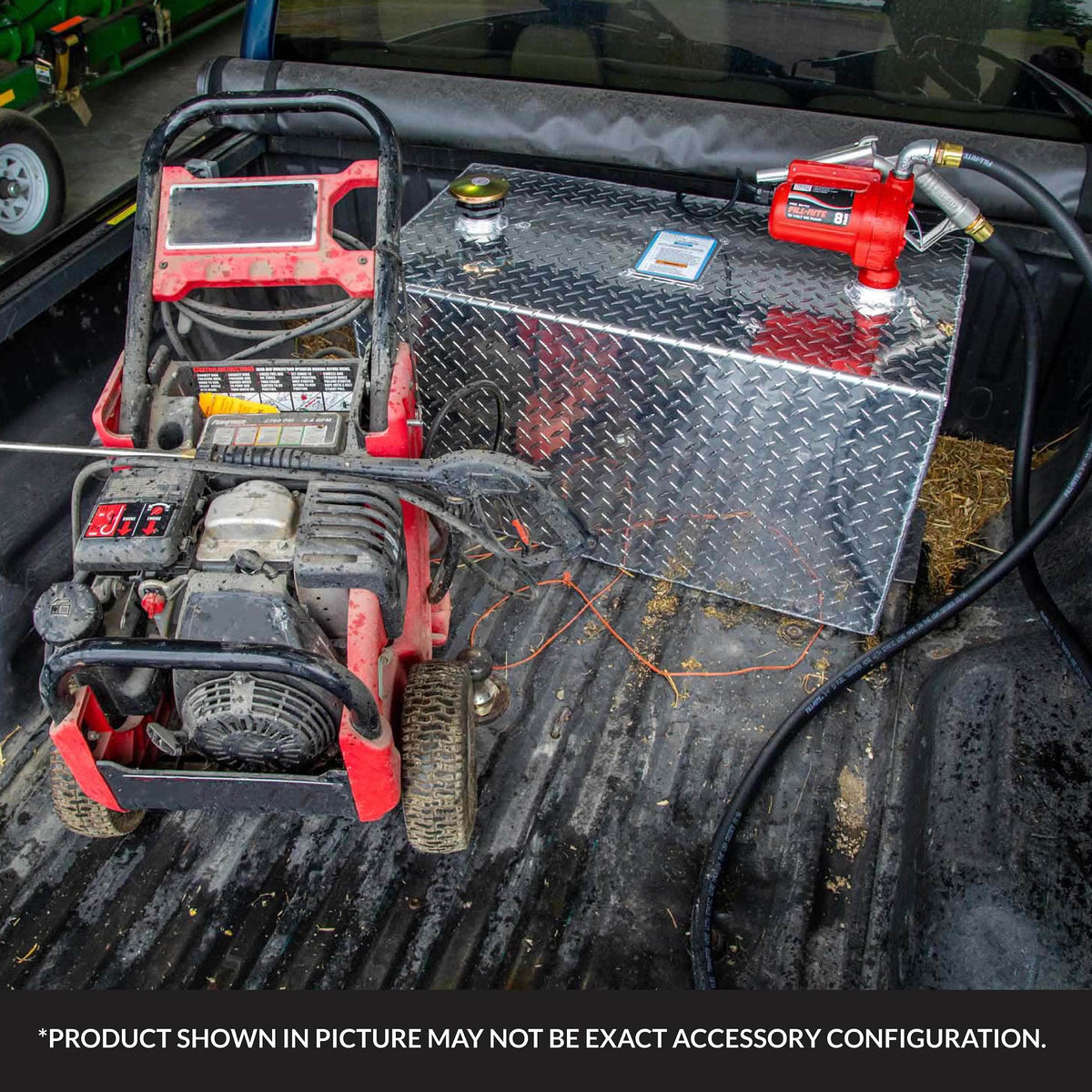

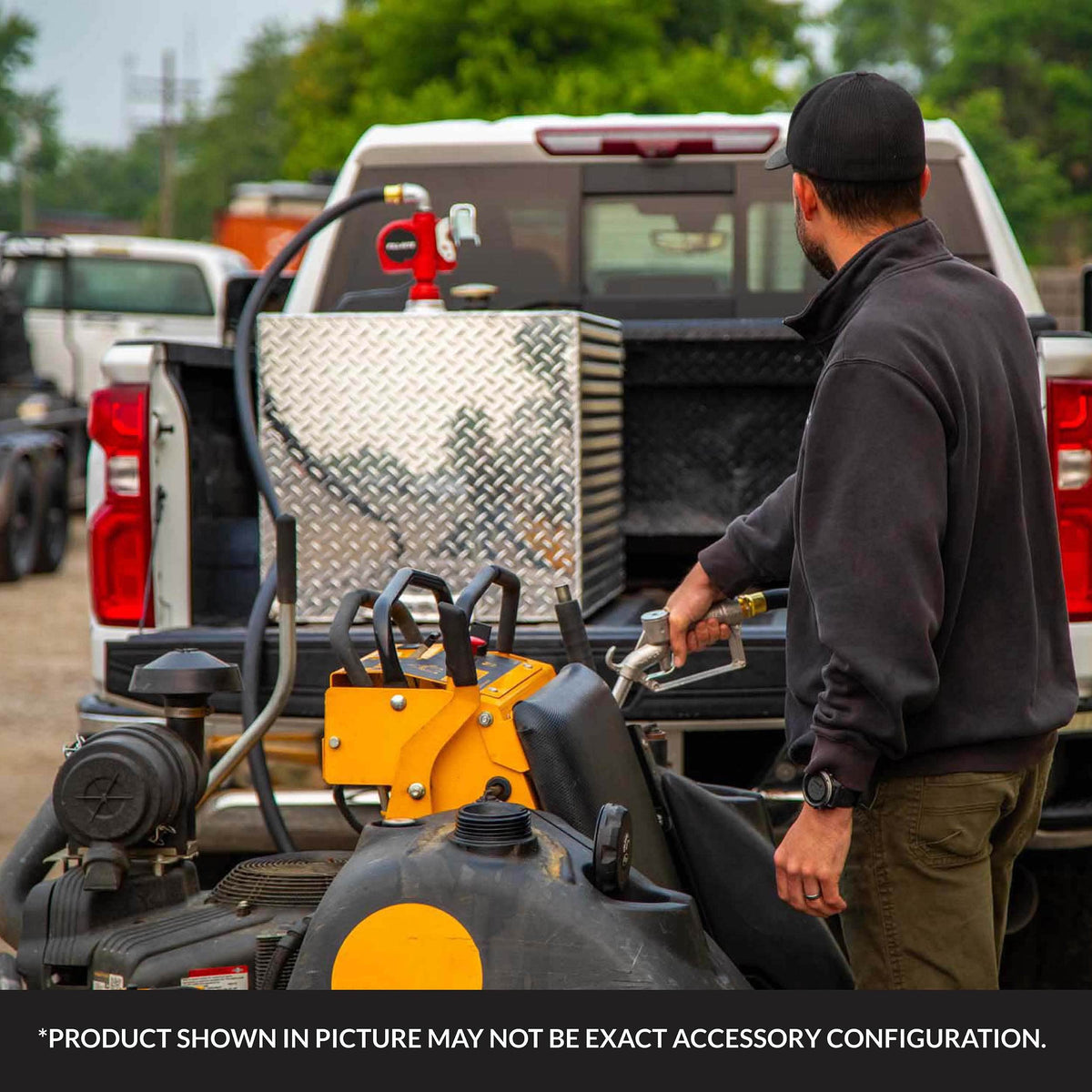

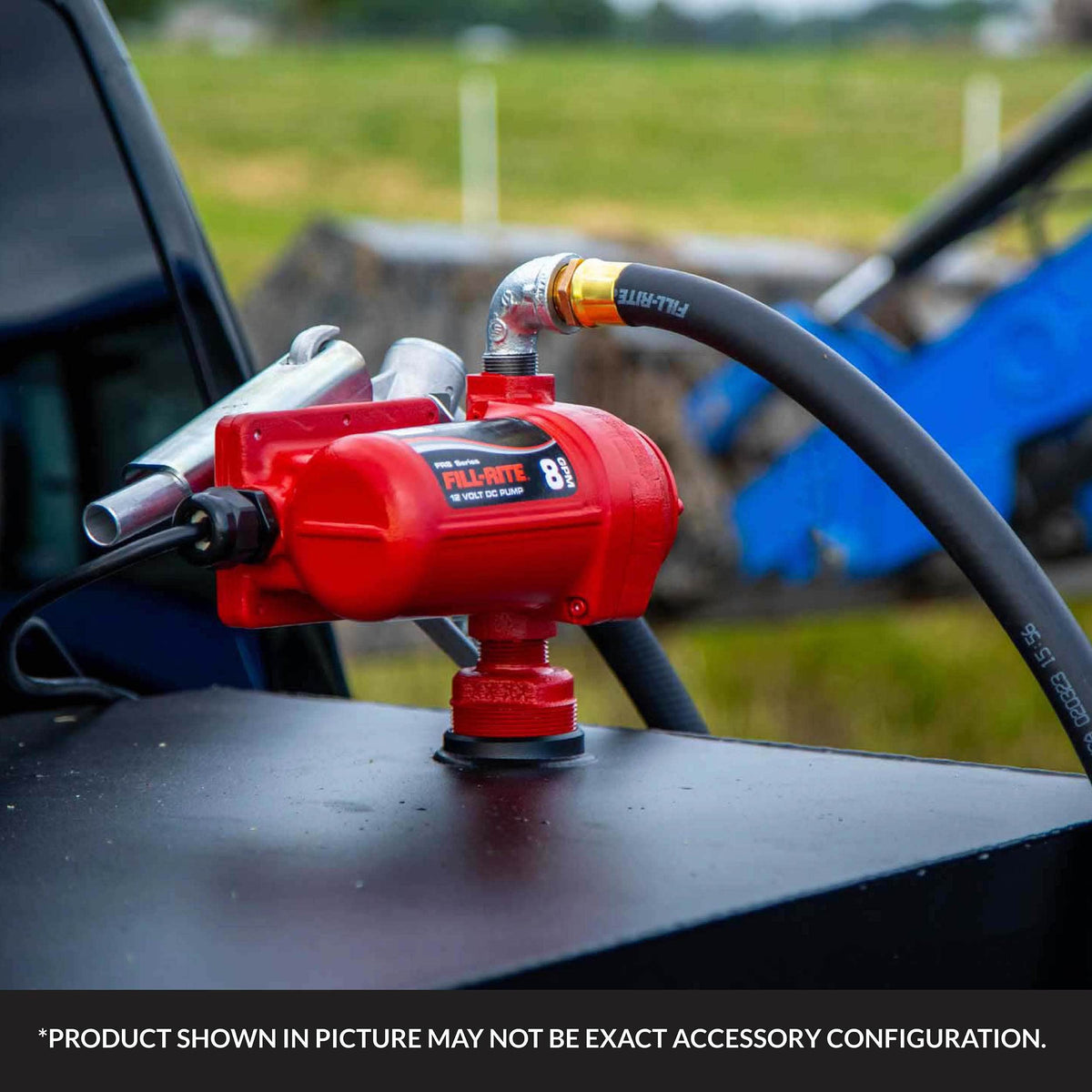

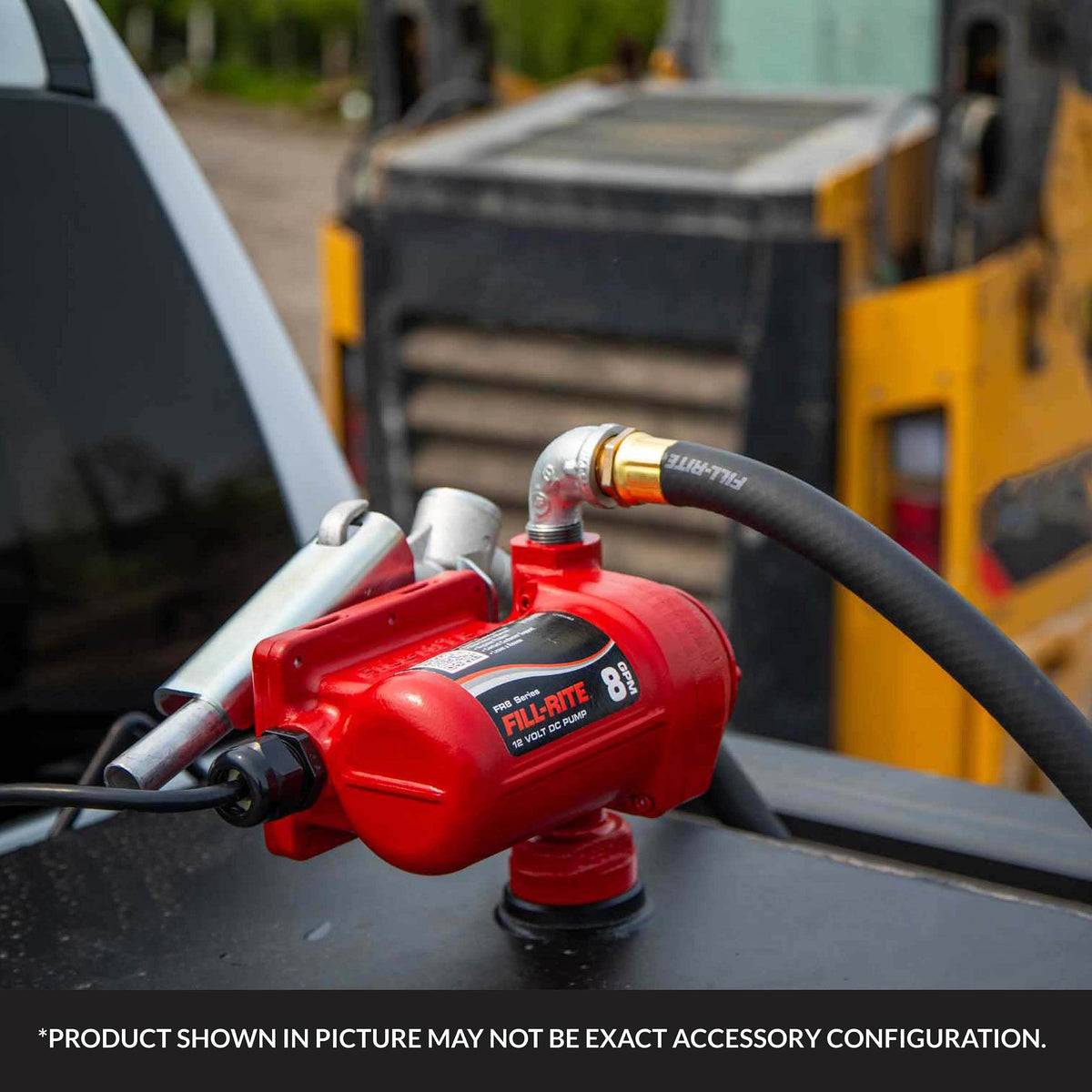

The Fill-Rite FR8 is a compact 12-volt pump for small transfer tanks in a pickup, on a trailer or on a UTV. It moves up to 8 gallons per minute, about what a gas station pump delivers, so it is ideal for refueling mowers, skid steers, mini excavators, ATVs and other equipment with 2 to 25 gallon tanks, without hauling gas cans. At under 13 lb. it is easy on a small tank.
This kit comes with a 15 ft. power cable, a 3/4 in. x 12 ft. hose with static ground wire, a 3/4 in. cast aluminum manual nozzle and a 3-piece steel suction pipe for tanks 12 to 36 in. deep.
Features
- Up to 8 GPM (30 L/min), about the same as a gas station pump
- Under 13 lb., so it won't stress a small transfer tank
- 15 min on / 15 min off duty cycle
- Self-priming sliding vane pump
- Thermally protected motor shuts down before it overheats
- Lockable power switch helps deter theft when the truck is parked
- Heavy-duty cast-iron construction for outdoor work
- For gasoline (up to E10), diesel, biodiesel (up to B20) and kerosene
- cULus listed; 2-year warranty
Specifications
| Part number | FR8 |
|---|---|
| Flow rate | Up to 8 GPM (30 L/min) |
| Power | 12V DC, 15 A |
| Motor | 1/12 HP, thermally protected |
| Duty cycle | 15 min on / 15 min off |
| Pump type | Sliding vane, self-priming |
| Inlet | 1 in. NPT |
| Outlet | 3/4 in. NPT |
| Mounting | 2 in. NPT bung mount |
| Suction lift | 6 ft. |
| Discharge head | 32 ft. (12 PSI) |
| Inlet strainer | 20 x 20 mesh |
| Viscosity range | 0.5 to 5.5 cSt |
| Operating temperature | -20°F to 150°F |
| Power cable | 15 ft., 14 gauge |
| Fluids | Gasoline (up to E10), diesel, biodiesel (up to B20), kerosene |
| Certification | cULus |
| Warranty | 2 years |
| Shipping weight | 25 lb |

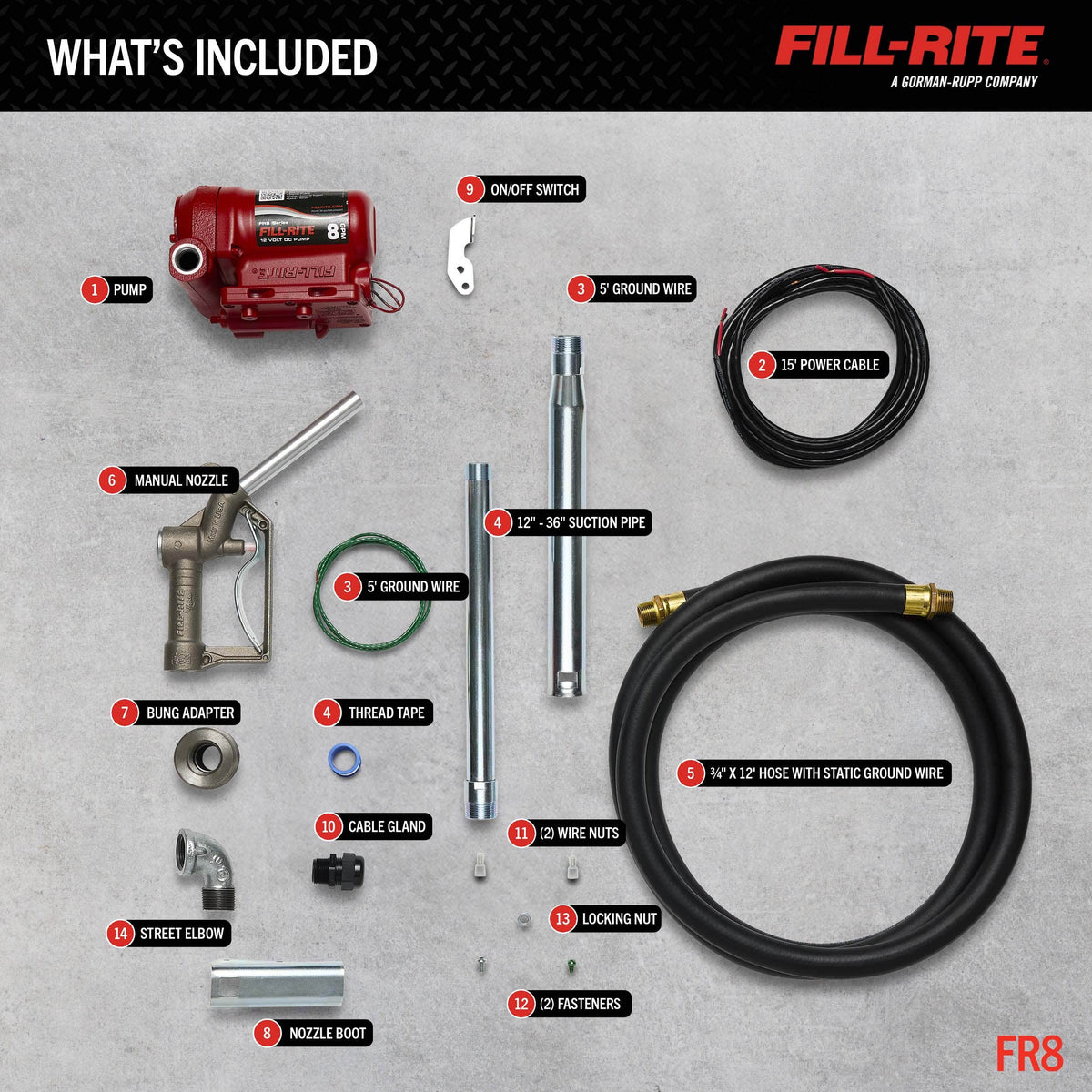

What's in the box
Pump, 15 ft. 14-gauge power cable, 3/4 in. x 12 ft. hose with static ground wire, 3/4 in. cast aluminum manual nozzle, 12 to 36 in. 3-piece steel suction pipe and ground wire
