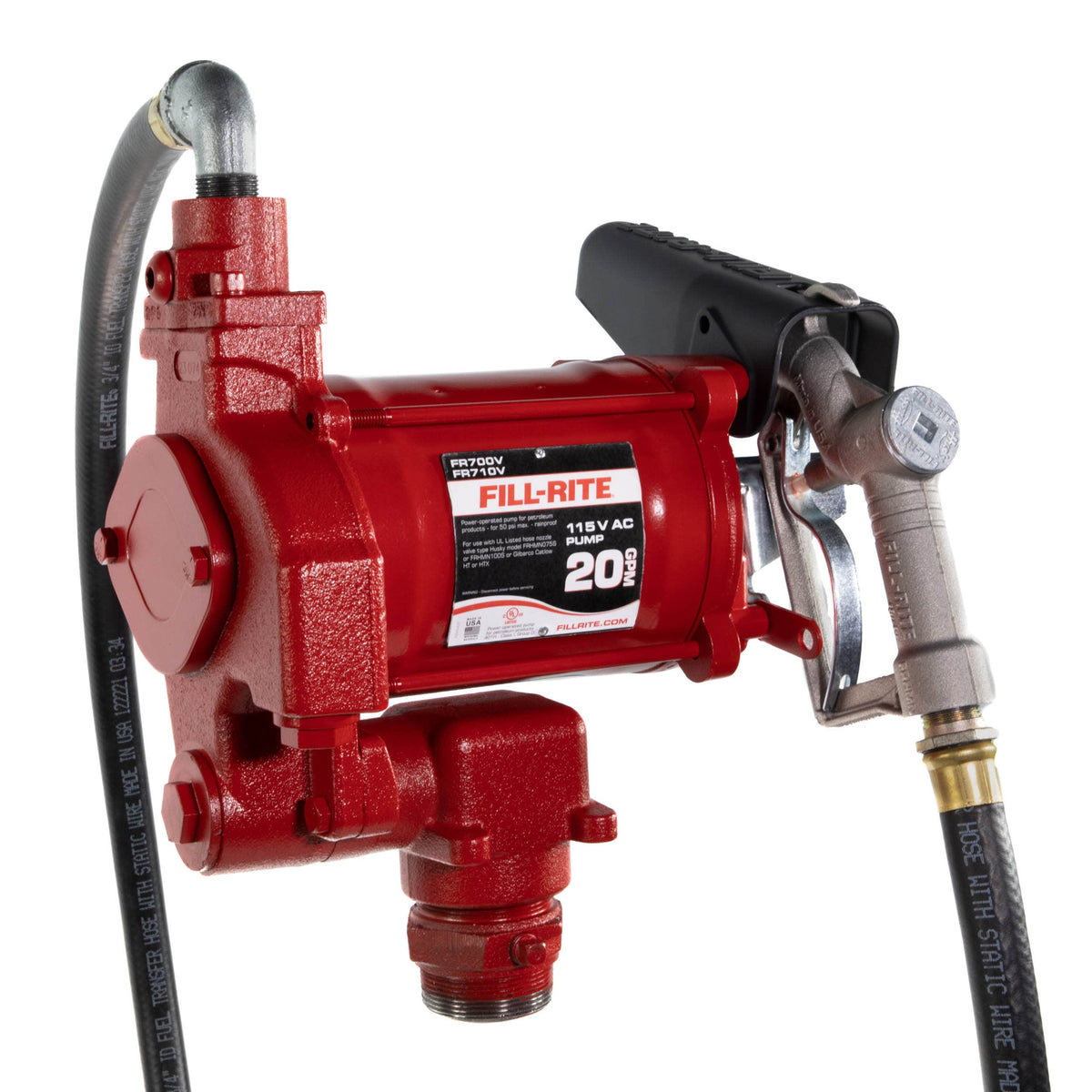

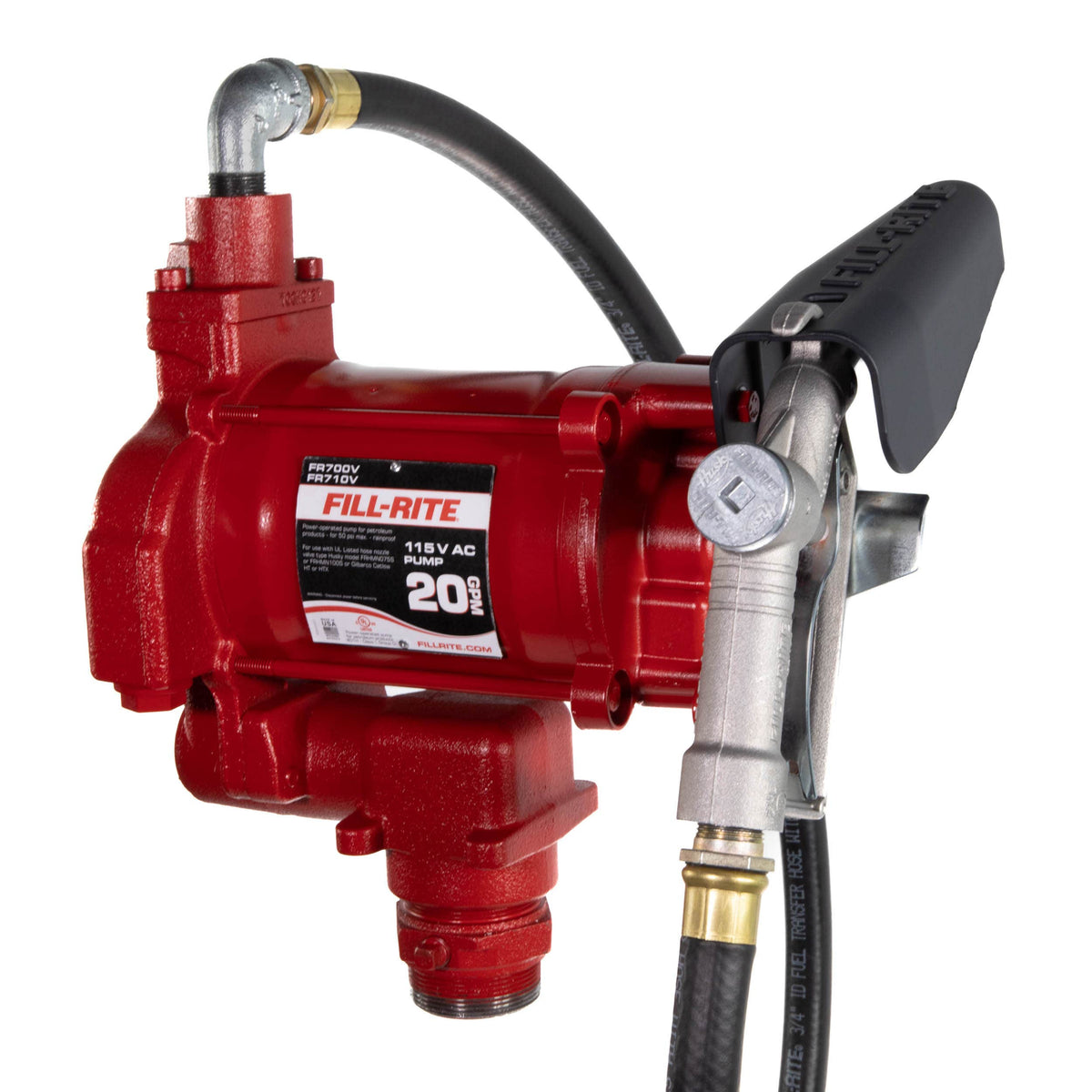

Fill-Rite FR700V 20 GPM 115V AC Fuel Transfer Pump with Manual Nozzle
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details
The Fill-Rite FR700V is a 115-volt AC pump for stationary aboveground fuel tanks that fill large equipment with 20 to 80 gallon tanks. It moves up to 20 gallons per minute with 15 ft. of suction lift and 53 ft. of discharge head, and its rotary vane design keeps performing as it wears in. The heavy cast-iron pump mounts on a 2 in. NPT tank opening.
This kit comes with a 3/4 in. x 12 ft. UL listed hose with static ground wire and a 3/4 in. cast aluminum manual nozzle. The pump has a 1-1/4 in. inlet; a suction pipe is not included.
Features
- Up to 20 GPM (75 L/min) on 115V AC power
- 15 ft. of suction lift and 53 ft. of discharge head (23 PSI)
- Self-priming rotary vane pump keeps its performance as it wears in
- Thermally protected 1/3 HP motor
- Built-in mesh strainer protects the pump and your equipment
- Heavy-duty cast-iron construction
- 2 in. NPT bung mount with a 1-1/4 in. inlet
- For diesel, biodiesel (up to B20), gasoline (up to E15), kerosene, mineral spirits, heptane and Stoddard solvents
- cULus listed; limited lifetime warranty on the pump castings
Specifications
| Part number | FR700V |
|---|---|
| Flow rate | Up to 20 GPM (75 L/min) |
| Power | 115V AC, 5.5 A |
| Motor | 1/3 HP, thermally protected |
| Duty cycle | 30 min on / 30 min off |
| Pump type | Rotary vane, self-priming |
| Inlet | 1-1/4 in. NPT |
| Outlet | 3/4 in. NPT |
| Mounting | 2 in. NPT bung mount |
| Suction lift | 15 ft. |
| Discharge head | 53 ft. (23 PSI) |
| Viscosity range | 0.5 to 5.5 cSt |
| Operating temperature | -13°F to 150°F |
| Wiring | Hard-wired |
| Fluids | Diesel, biodiesel (up to B20), gasoline (up to E15), kerosene, mineral spirits, heptane, Stoddard solvents |
| Certification | cULus |
| Warranty | Limited lifetime on pump castings; 5 years on the motor; 2 years on wear parts; 1 year on included accessories |
| Shipping weight | 57.4 lb |

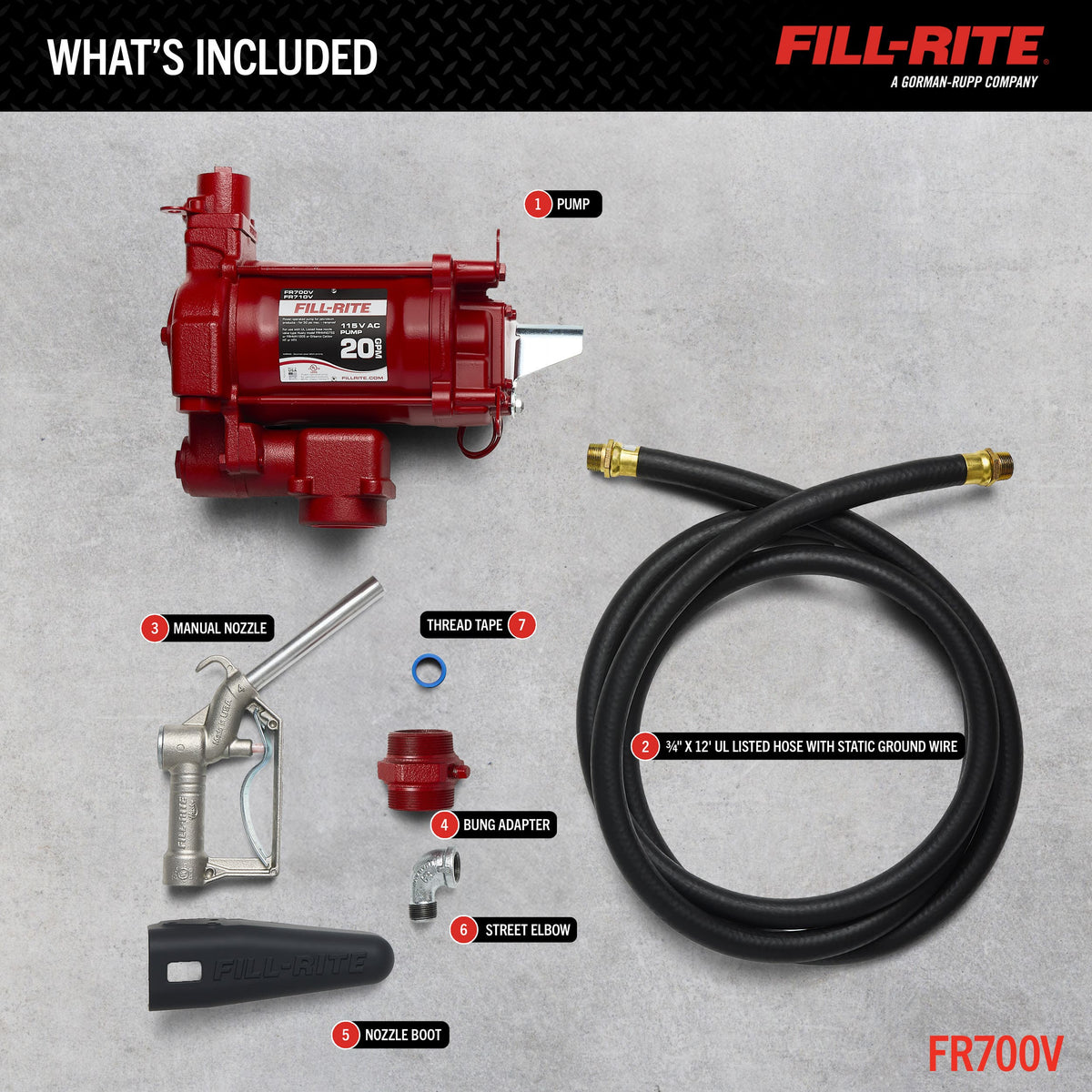

What's in the box
Pump, 3/4 in. x 12 ft. UL listed hose with static ground wire, 3/4 in. cast aluminum manual nozzle, nozzle boot, 3/4 in. NPT street elbow, PTFE tape, locking nut and fastener
