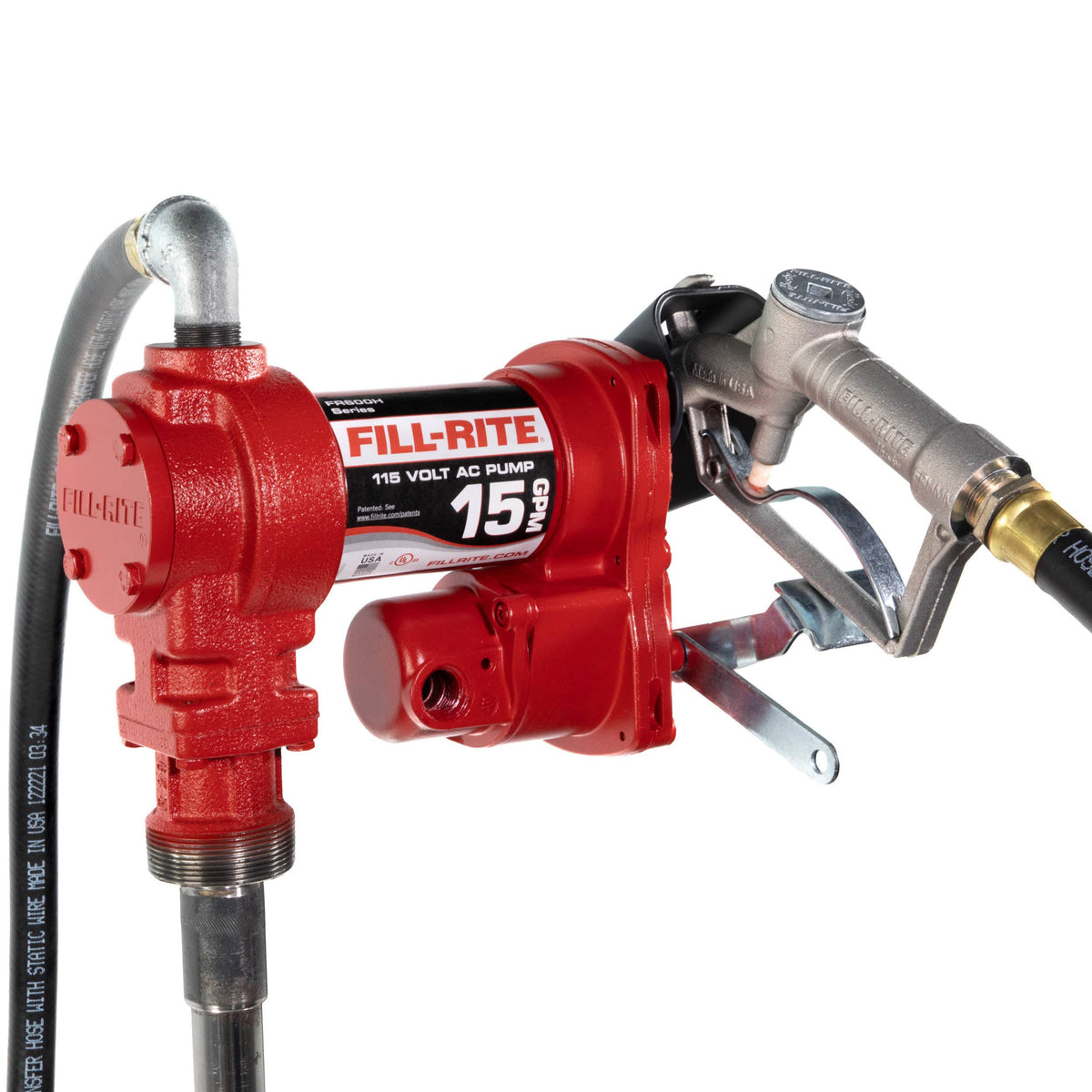

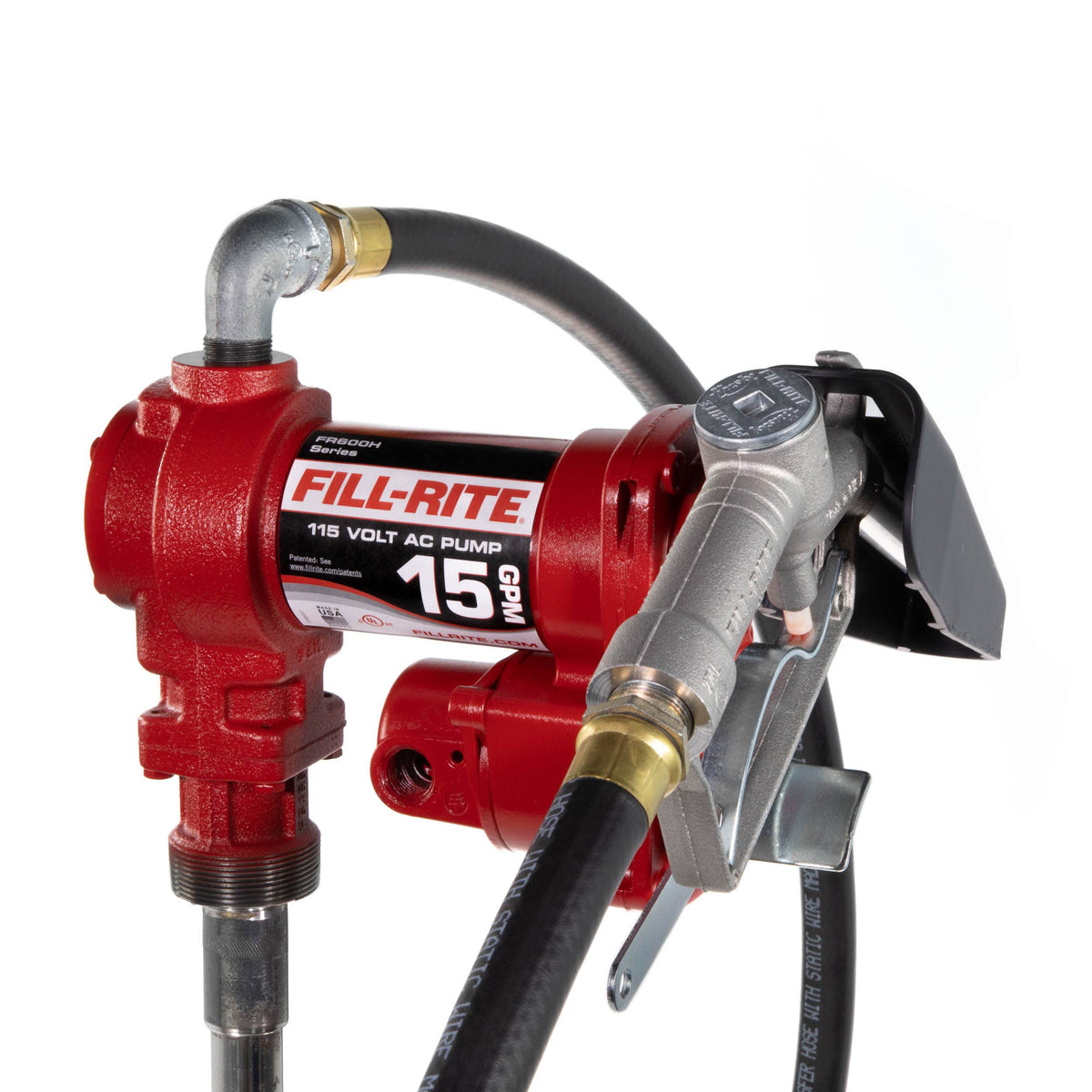

Fill-Rite FR610H 15 GPM 115V AC Fuel Transfer Pump with Manual Nozzle
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details
The Fill-Rite FR600 is a 115-volt AC version of Fill-Rite's cast-iron rotary vane pump, made for stationary aboveground fuel tanks on farms, jobsites and shops. It wires to a standard 115V AC supply and moves up to 15 gallons per minute of diesel, gasoline (up to E15), biodiesel (up to B20) or kerosene, mounted on a 2 in. NPT tank opening.
This kit comes with a 3/4 in. x 12 ft. UL listed hose with static ground wire, a 3/4 in. cast aluminum manual nozzle and a steel suction pipe that telescopes from 20 to 34-1/2 in.
Features
- Up to 15 GPM (57 L/min) on 115V AC power

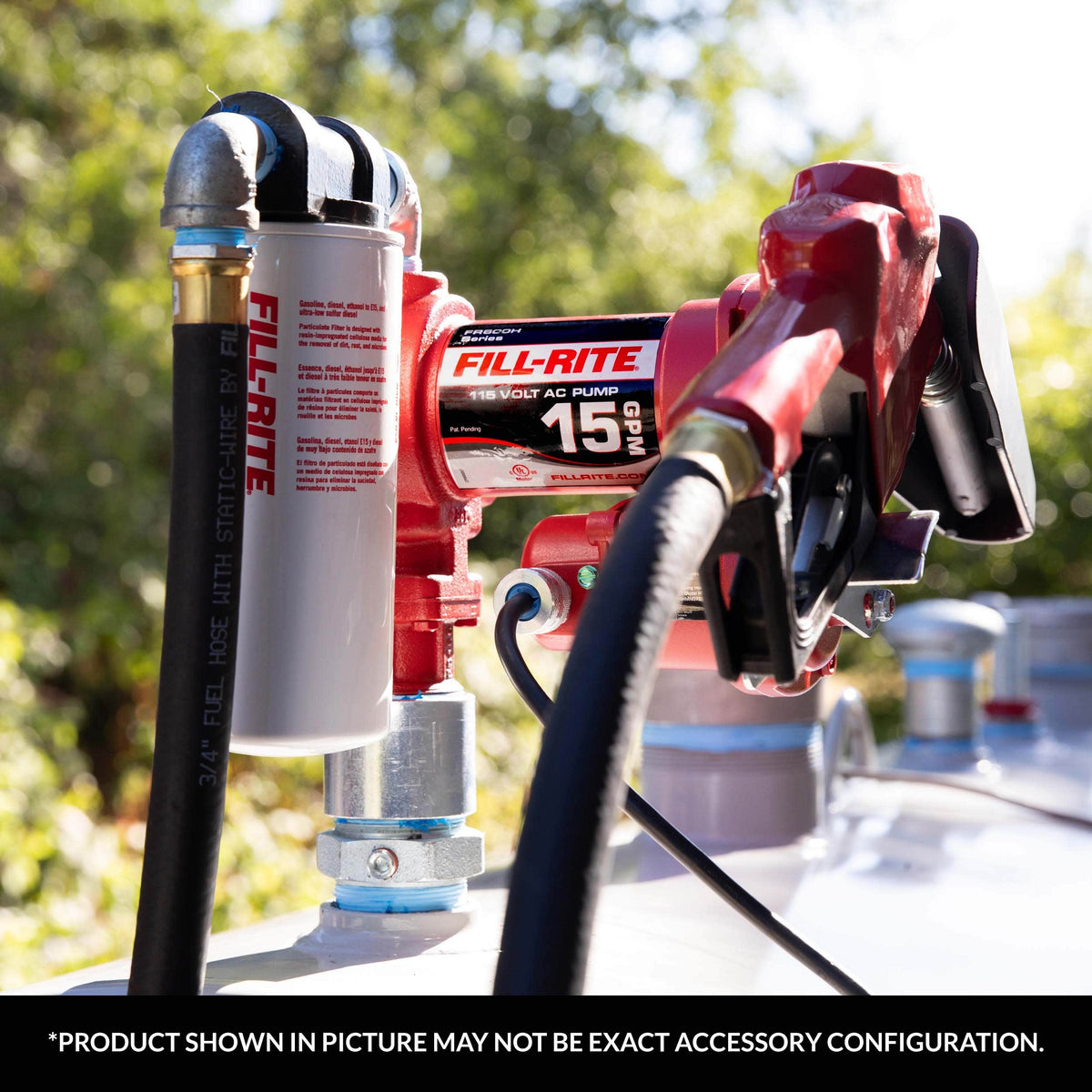

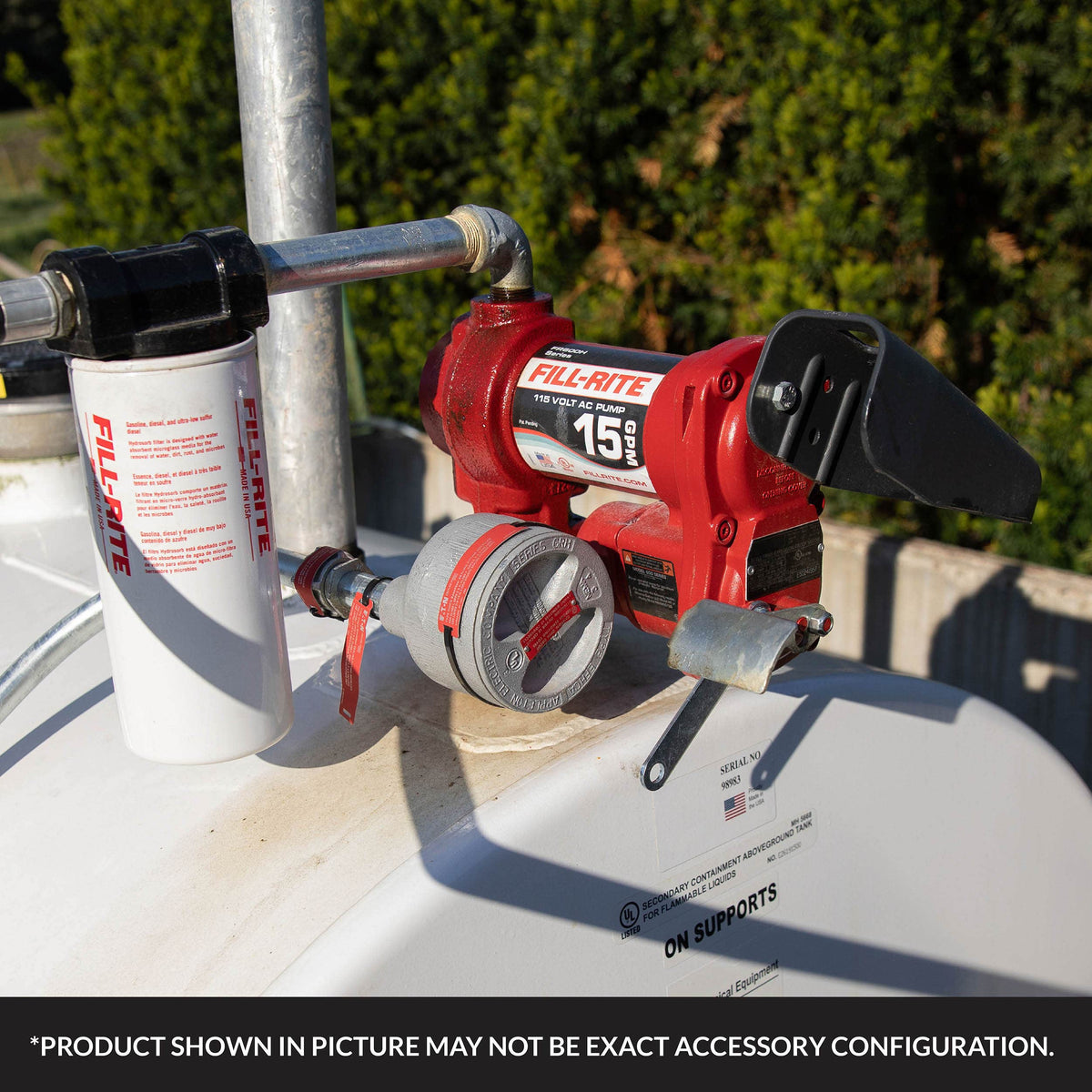

- For stationary aboveground storage tanks

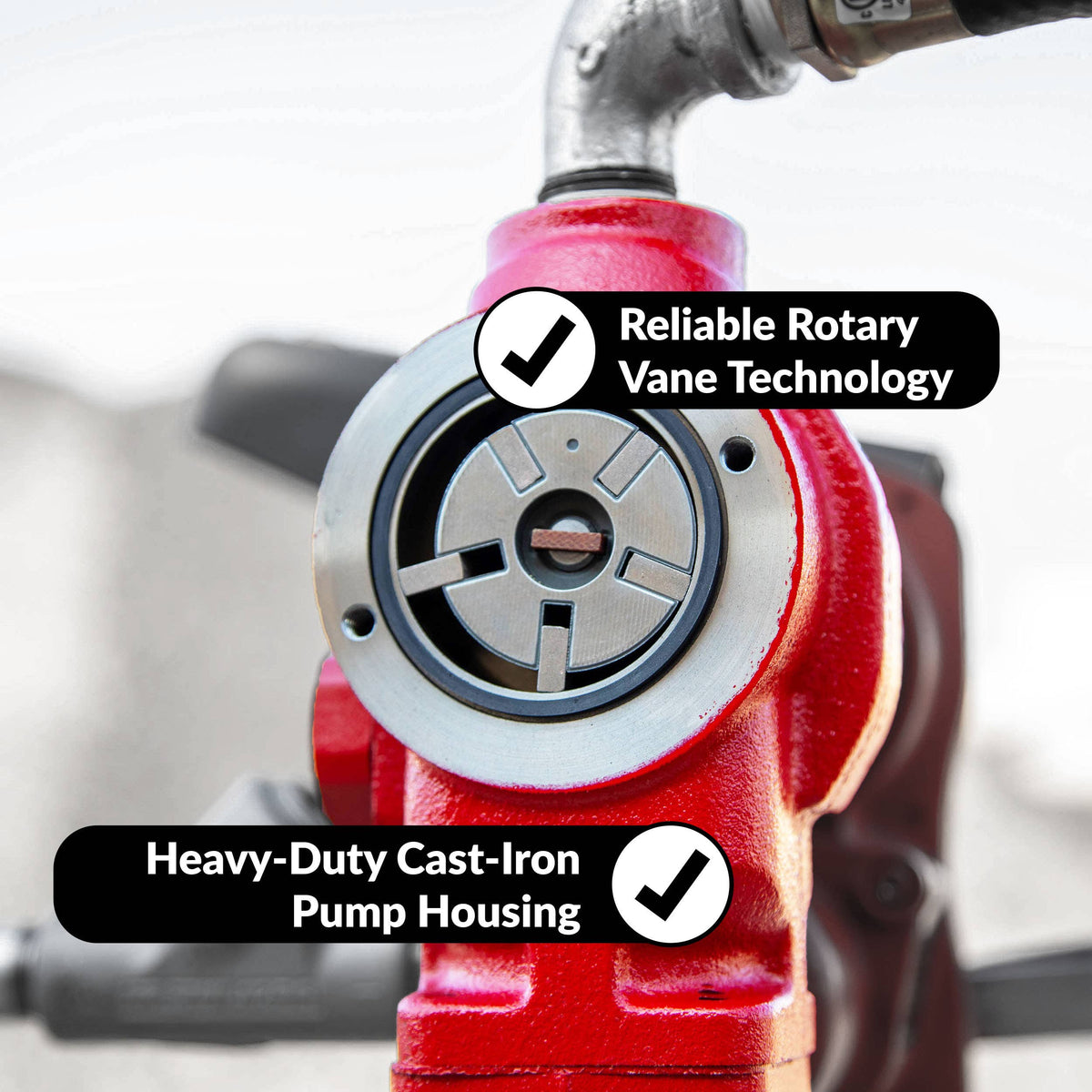

- Self-priming rotary vane pump with 8 ft. of suction lift
- Heavy-duty cast-iron housing; junction box rotates 180° for easier wiring
- Thermally protected motor and built-in mesh strainer

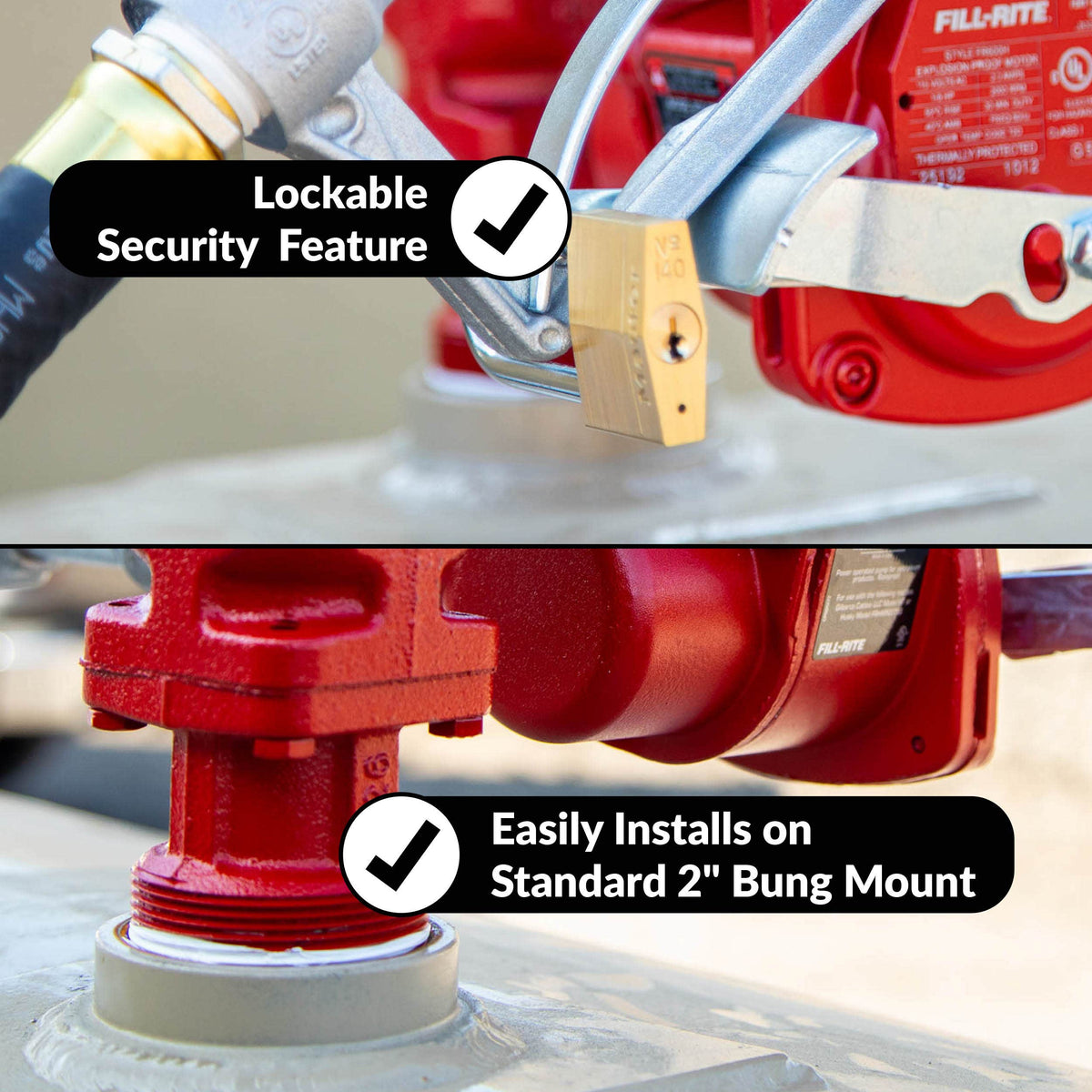

- 2 in. NPT bung mount

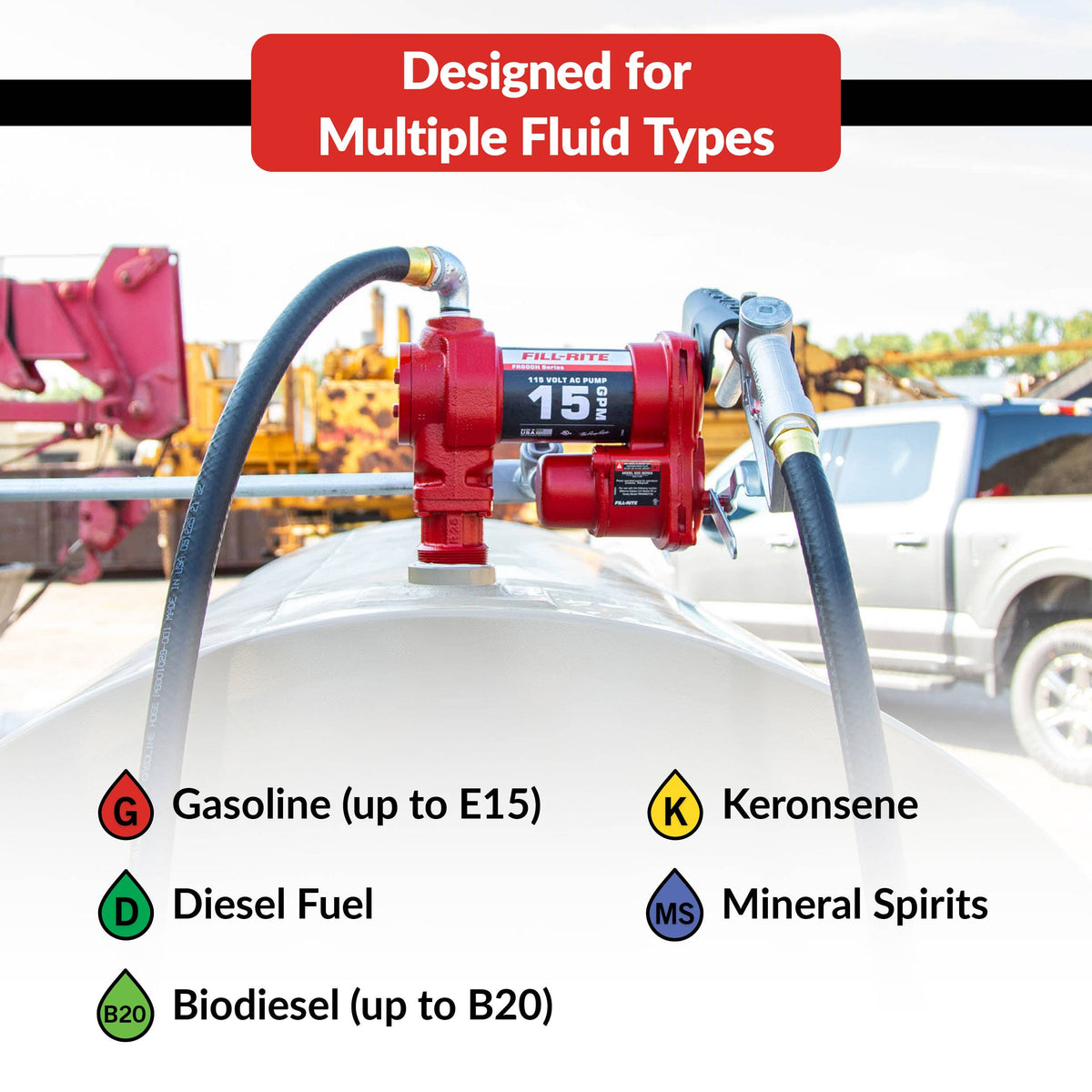

- For diesel, biodiesel (up to B20), gasoline (up to E15), kerosene and mineral spirits
- cULus listed; limited lifetime warranty on the pump castings
Specifications
| Part number | FR610H |
|---|---|
| Flow rate | Up to 15 GPM (57 L/min) |
| Power | 115V AC, 2 A |
| Motor | 1/6 HP, thermally protected |
| Duty cycle | 30 min on / 30 min off |
| Pump type | Rotary vane, self-priming |
| Inlet | 1 in. NPT |
| Outlet | 3/4 in. NPT |
| Mounting | 2 in. NPT bung mount |
| Suction lift | 8 ft. |
| Discharge head | 37 ft. (16 PSI) |
| Inlet strainer | 20 x 20 mesh |
| Viscosity range | 0.5 to 5.5 cSt |
| Operating temperature | -17°F to 104°F |
| Fluids | Diesel, biodiesel (up to B20), gasoline (up to E15), kerosene, mineral spirits |
| Certification | cULus |
| Warranty | Limited lifetime on pump castings; 5 years on the motor; 2 years on wear parts; 1 year on included accessories |
| Shipping weight | 30.2 lb |

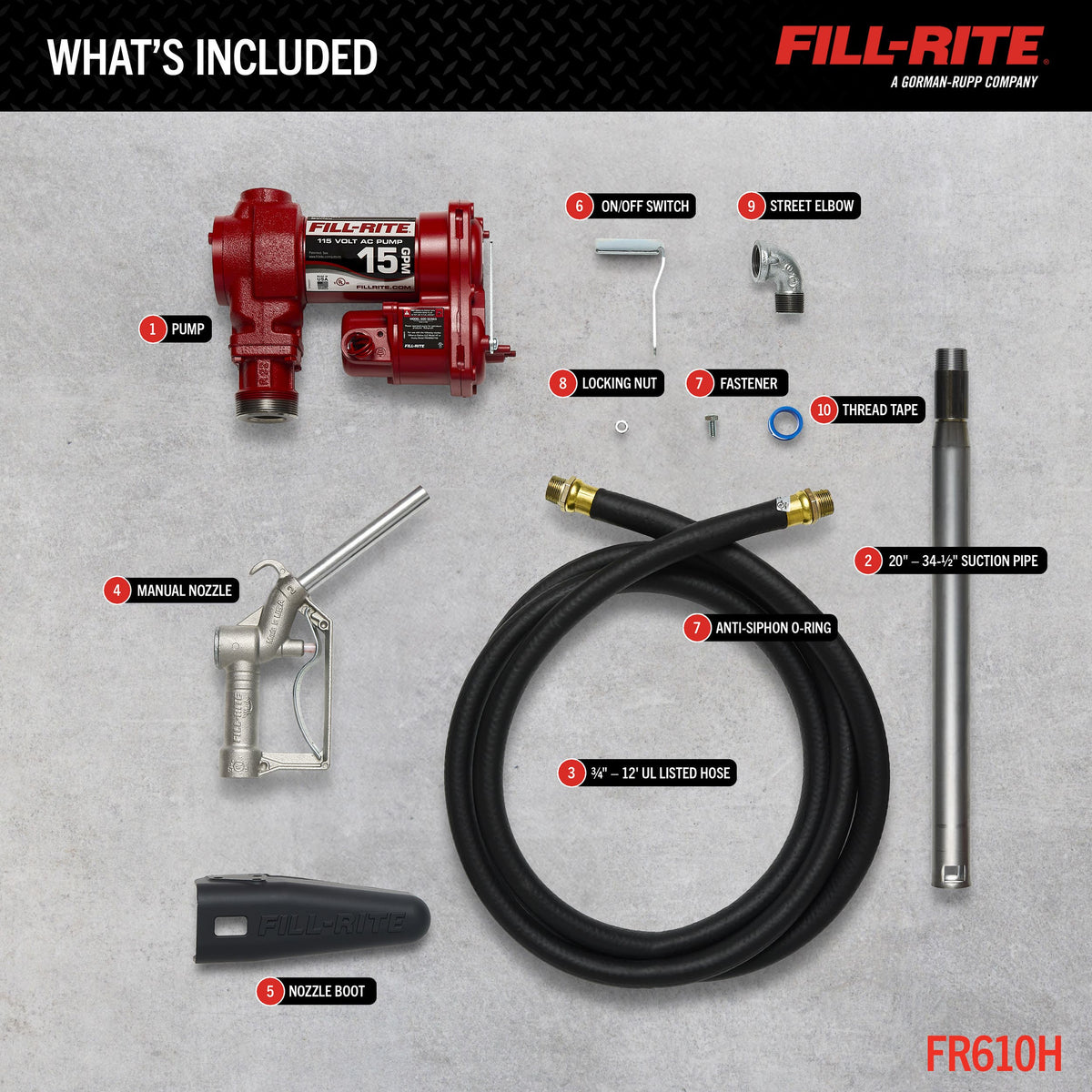

What's in the box
Pump, 3/4 in. x 12 ft. UL listed hose with static ground wire, 3/4 in. cast aluminum manual nozzle, 20 to 34-1/2 in. steel telescoping suction pipe, nozzle boot, 3/4 in. NPT street elbow, PTFE tape, locking nut and fastener
