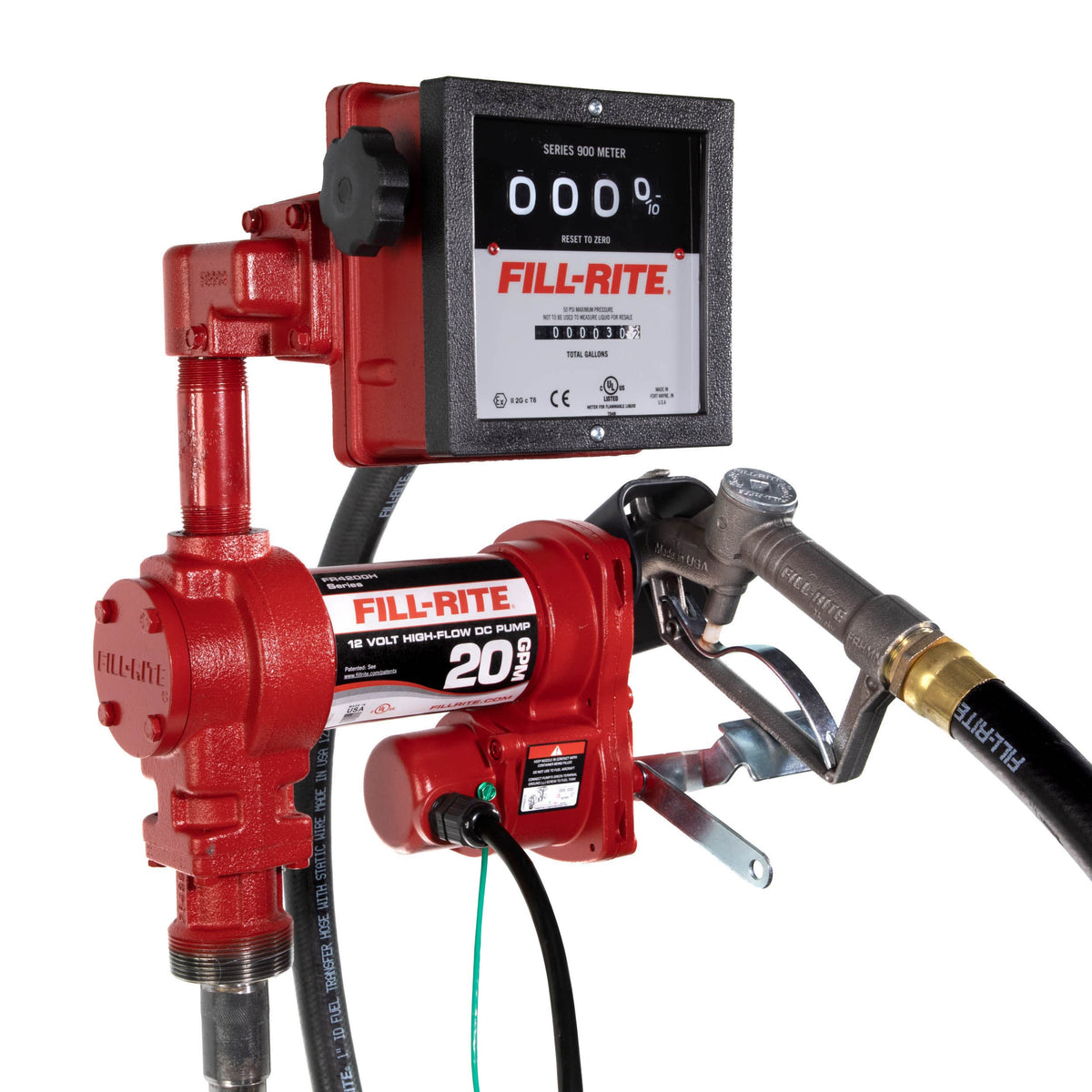

Fill-Rite FR4211H 20 GPM 12V Fuel Transfer Pump with Meter and Manual Nozzle
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

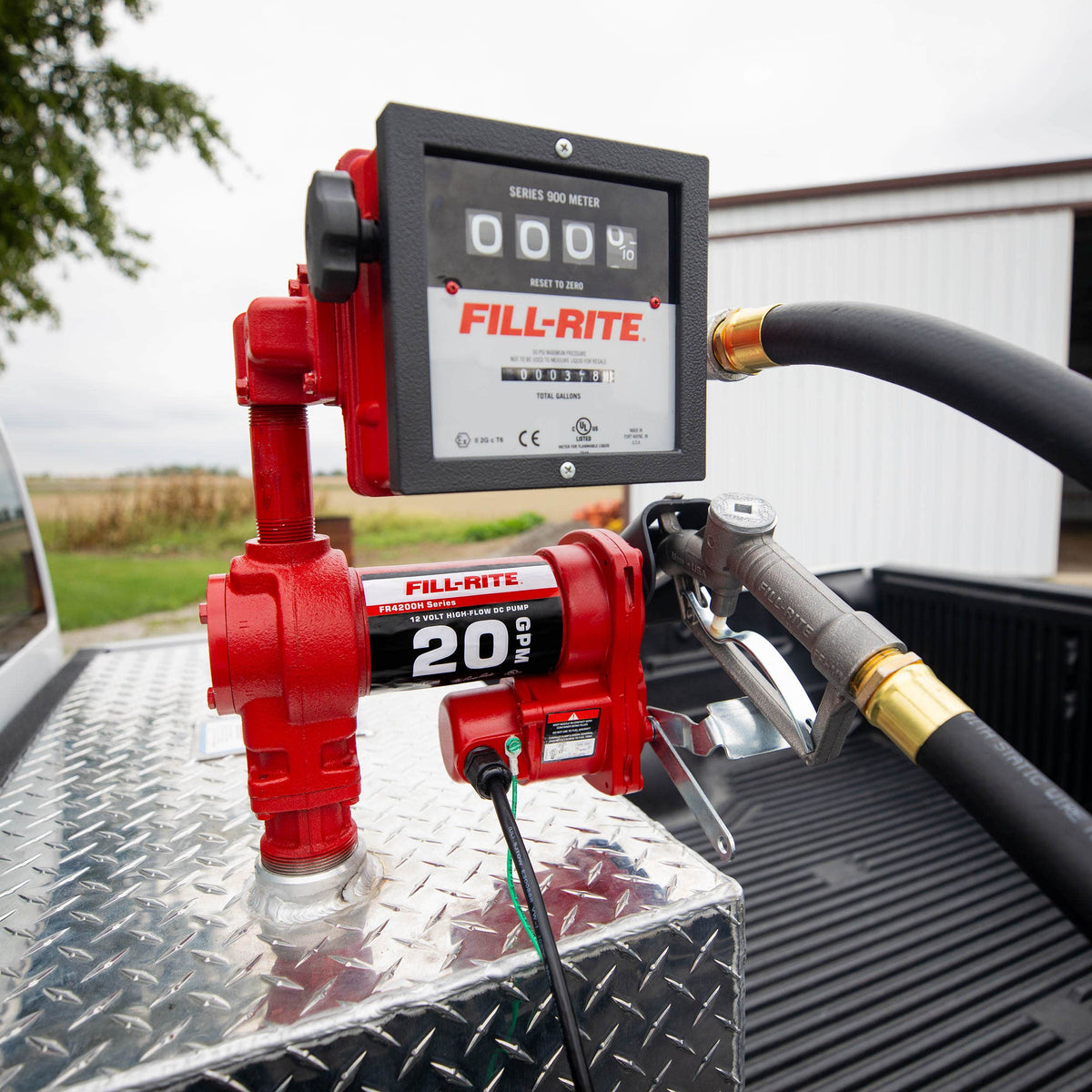

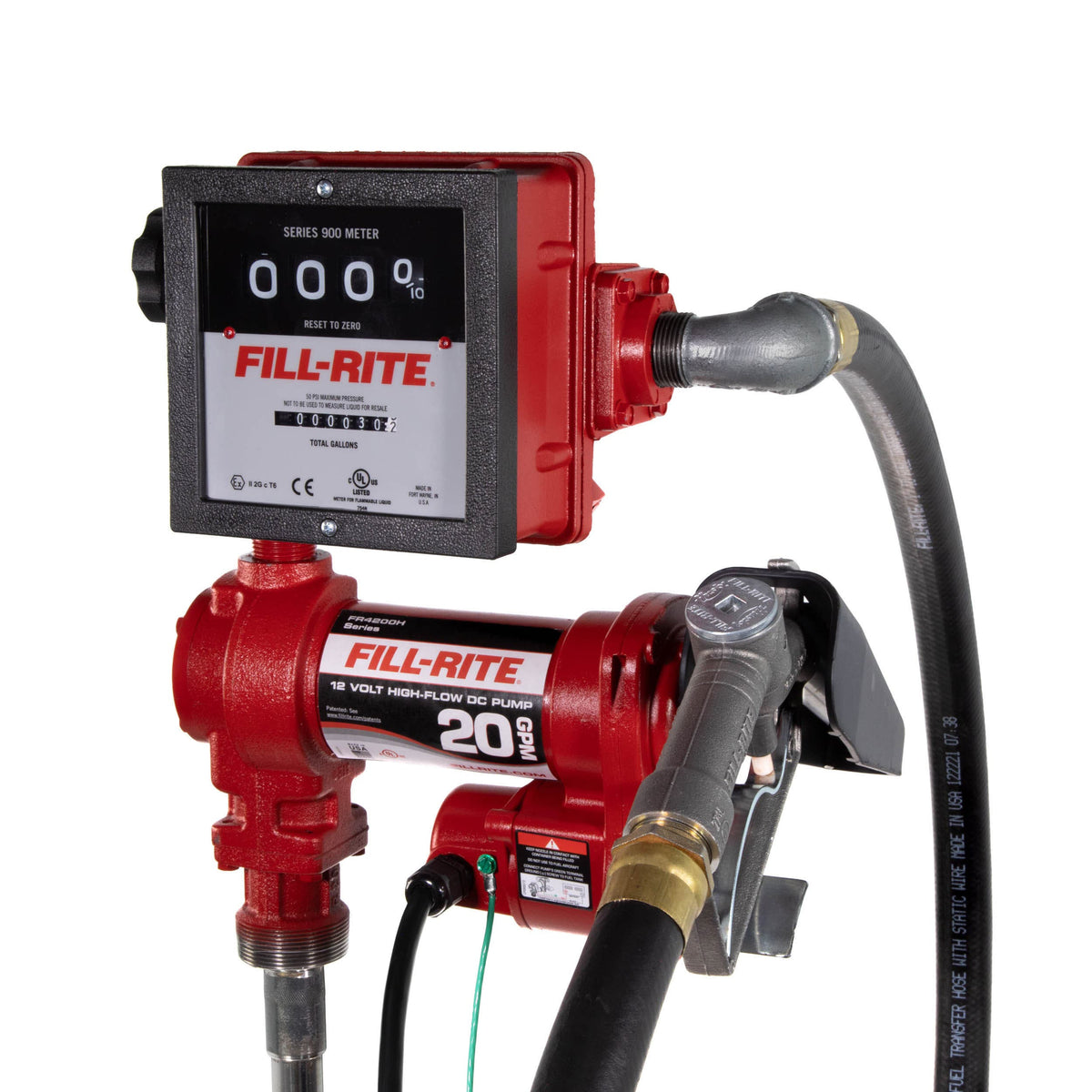

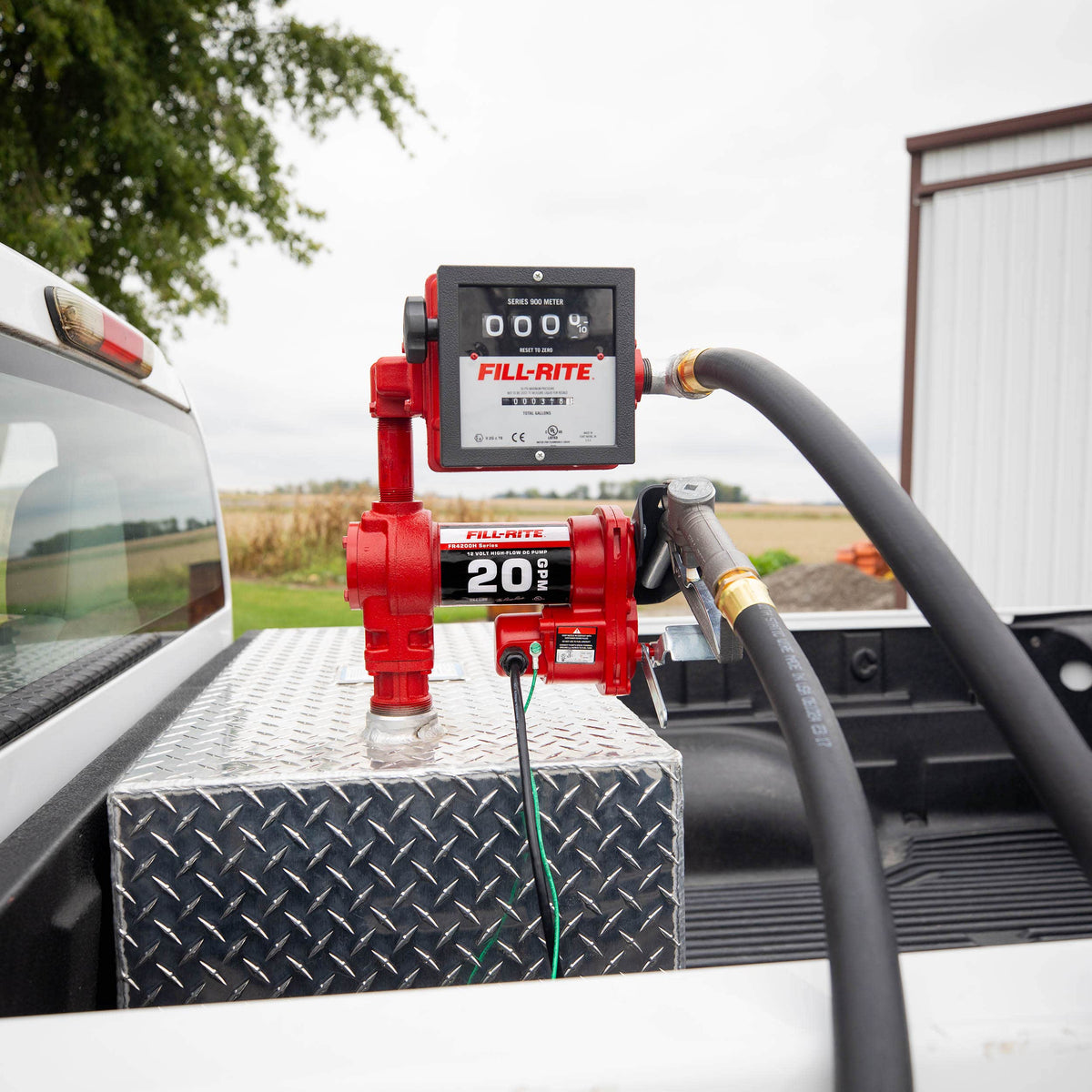

The Fill-Rite FR4200 is the high-flow version of Fill-Rite's 12-volt cast-iron transfer pump. It moves up to 20 gallons per minute of diesel, gasoline (up to E15), biodiesel (up to B20) or kerosene through a 1 in. outlet, so bigger equipment tanks fill faster. It threads onto a standard 2 in. NPT tank opening, runs off your truck battery, primes itself, and its thermally protected motor runs 30 minutes on, 30 minutes off.
This kit adds a Fill-Rite 901C mechanical meter that reads in gallons, so you can track the fuel going into each machine. It also includes a 1 in. x 12 ft. hose with static ground wire, a 1 in. cast aluminum manual nozzle, an 18 ft. power cable and a steel suction pipe that telescopes from 20 to 34-1/2 in.
Features
- Up to 20 GPM (75 L/min) through a 1 in. outlet

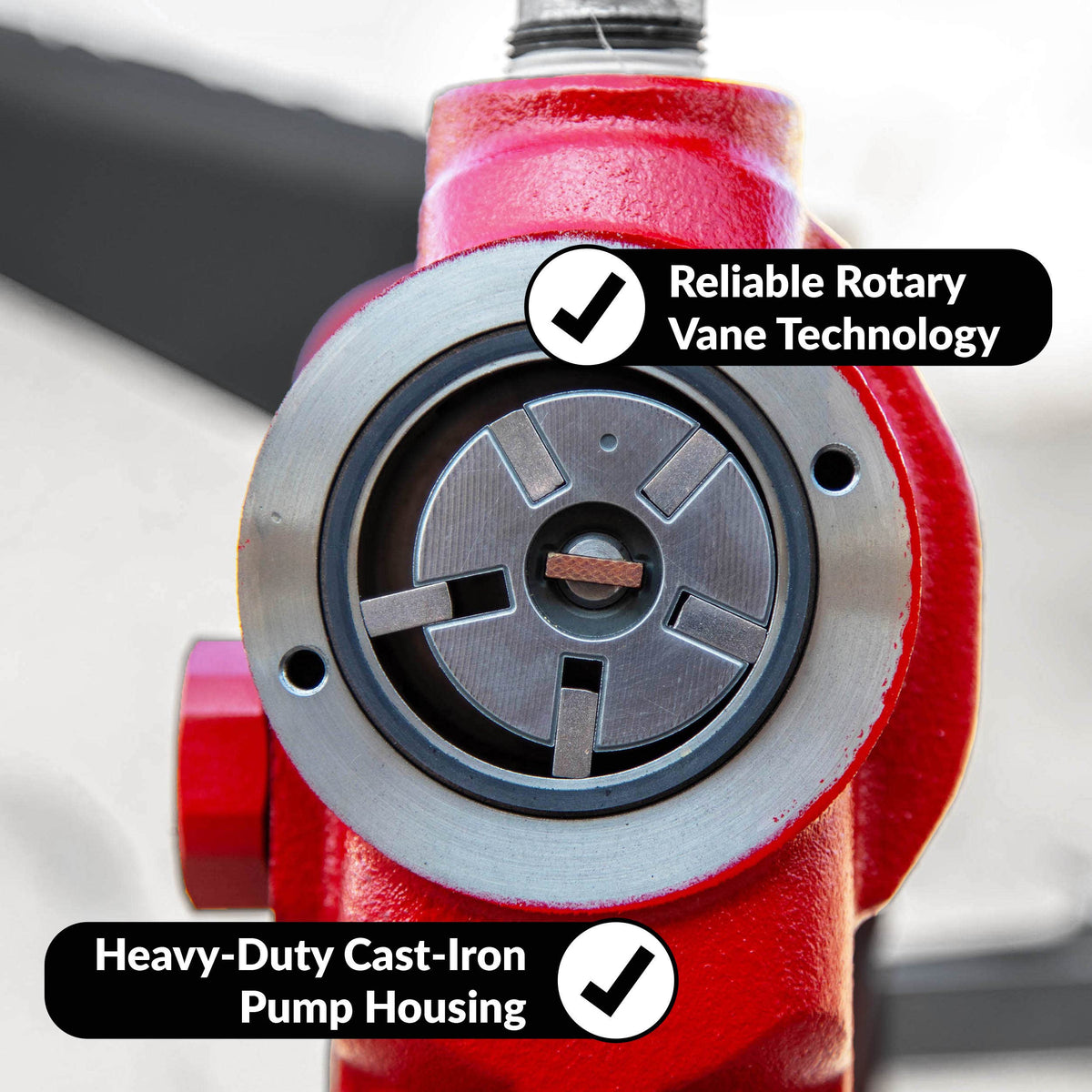

- Self-priming rotary vane pump with 8 ft. of suction lift
- Heavy-duty cast-iron housing stands up to daily work on the farm or jobsite

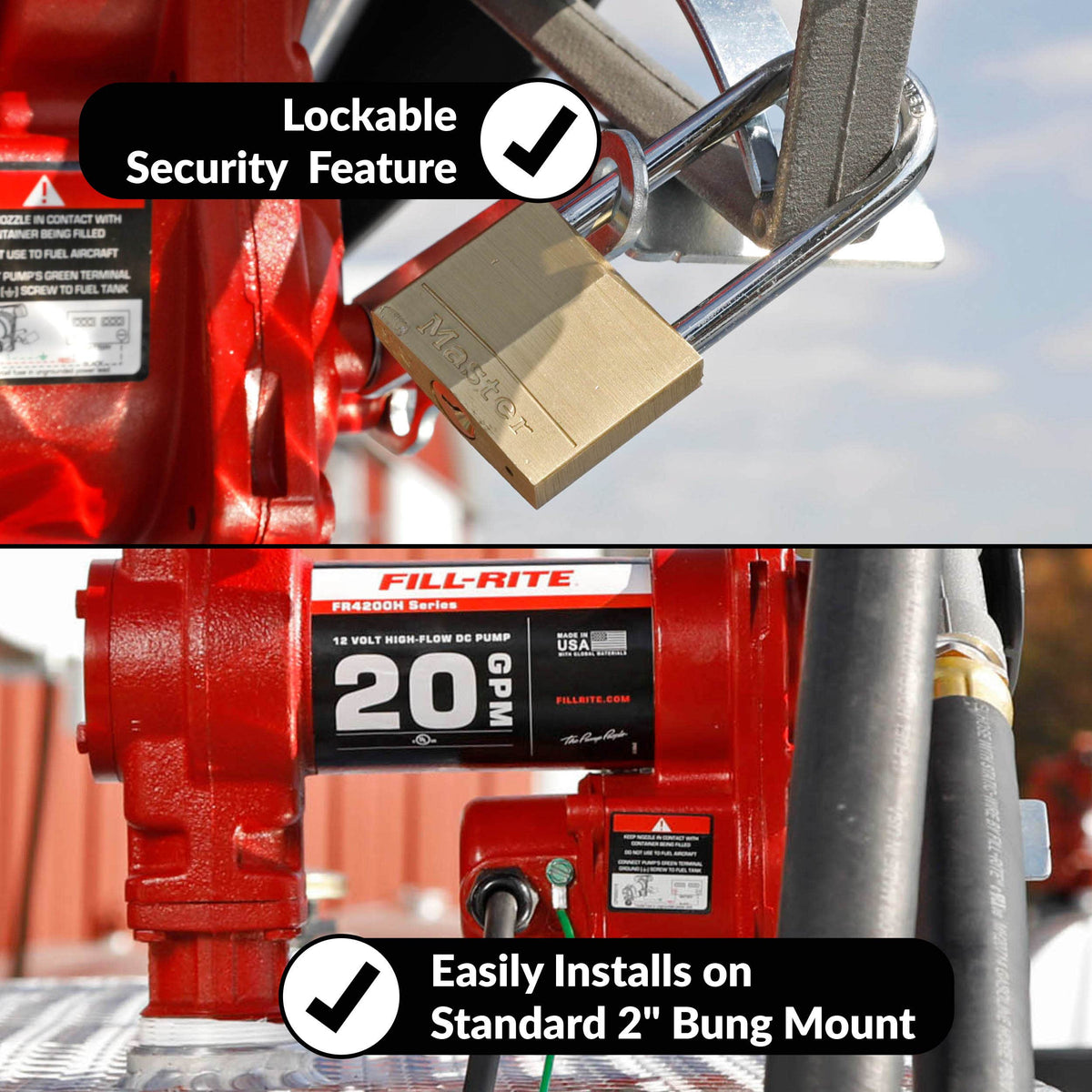

- 2 in. NPT bung mount fits truck bed transfer tanks and drums
- Junction box rotates 180° so wiring is easier in tight spots
- Thermally protected 1/4 HP motor shuts off before it overheats
- Built-in mesh strainer catches debris before it reaches your equipment
- On/off lever with a metal stop arm made for repeated use

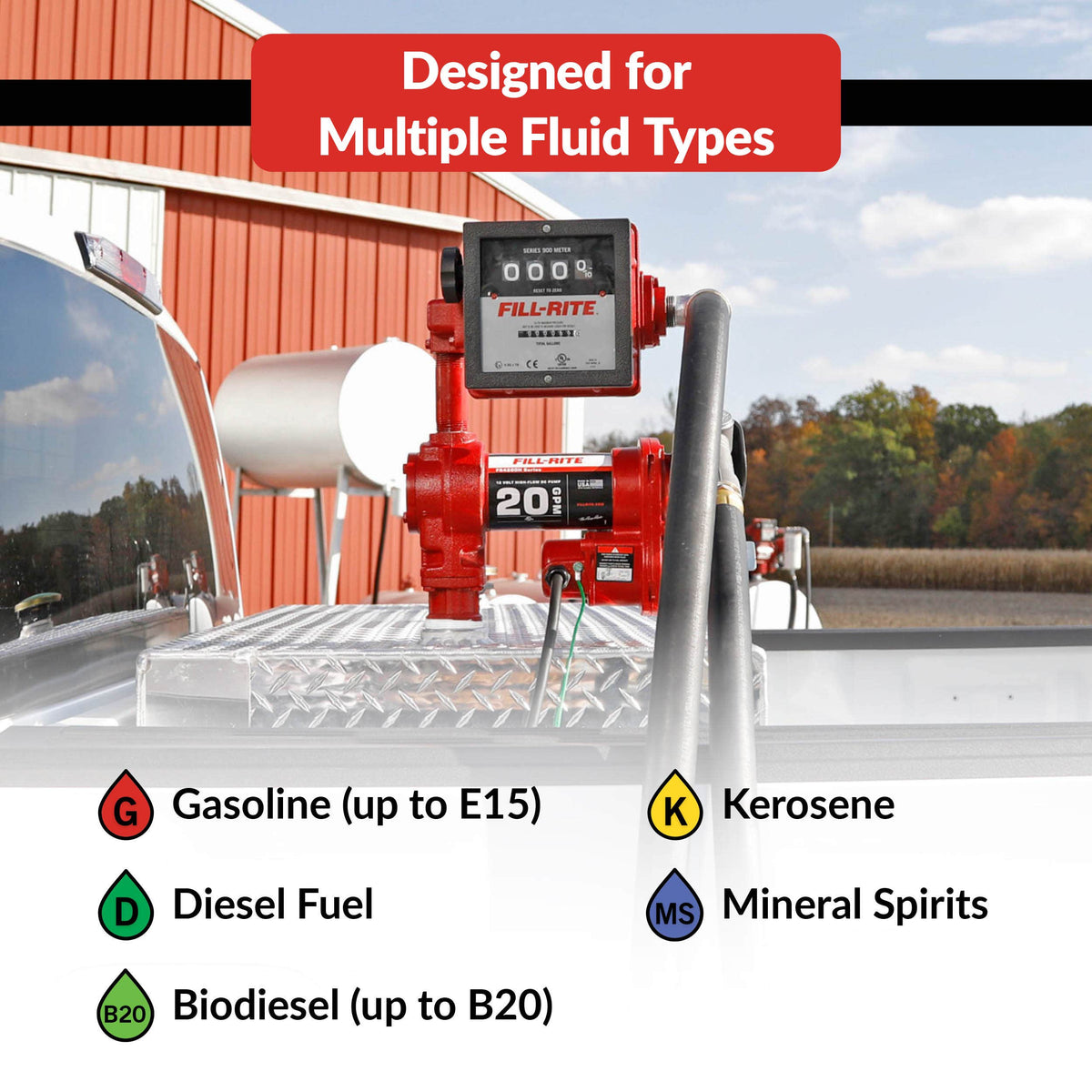

- For diesel, biodiesel (up to B20), gasoline (up to E15), kerosene and mineral spirits
- cULus listed; limited lifetime warranty on the pump castings
Specifications
| Part number | FR4211H |
|---|---|
| Flow rate | Up to 20 GPM (75 L/min) |
| Power | 12V DC, 19 A |
| Motor | 1/4 HP, thermally protected |
| Duty cycle | 30 min on / 30 min off |
| Pump type | Rotary vane, self-priming |
| Inlet | 1 in. NPT |
| Outlet | 1 in. NPT |
| Mounting | 2 in. NPT bung mount |
| Suction lift | 8 ft. |
| Discharge head | 37 ft. (16 PSI) |
| Inlet strainer | 20 x 20 mesh |
| Viscosity range | 0.5 to 5.5 cSt |
| Operating temperature | -15°F to 150°F |
| Power cable | 18 ft., 12 gauge, bare leads |
| Meter | 901C mechanical, 4-digit, gallons, +/- 2% accuracy |
| Fluids | Diesel, biodiesel (up to B20), gasoline (up to E15), kerosene, mineral spirits |
| Certification | cULus |
| Warranty | Limited lifetime on pump castings; 5 years on the motor; 2 years on wear parts; 1 year on included accessories |
| Shipping weight | 44.3 lb |

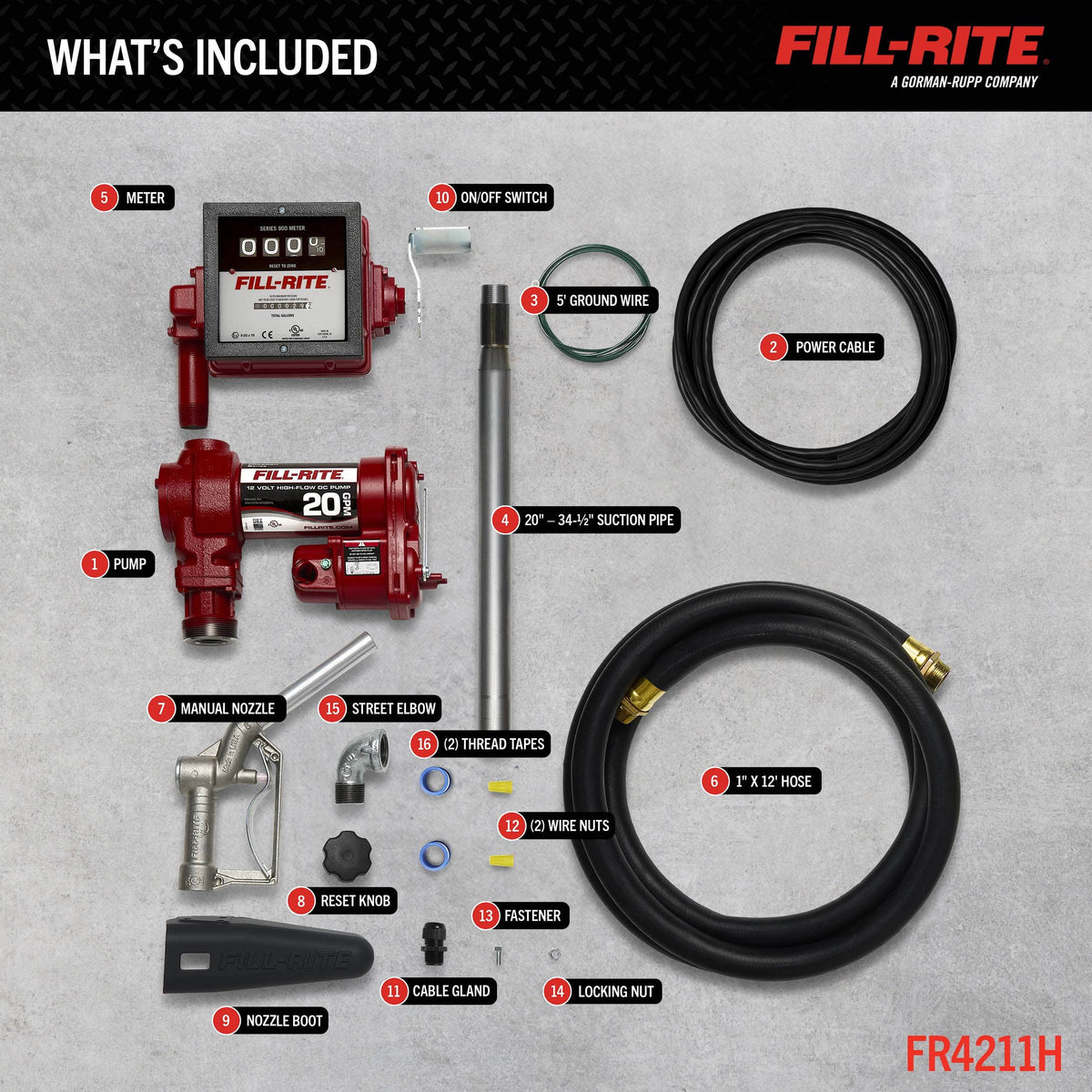

What's in the box
Pump, 18 ft. 12-gauge power cable, 901C mechanical meter (gallons) with reset knob, 1 in. x 12 ft. hose with static ground wire, 1 in. cast aluminum manual nozzle, 20 to 34-1/2 in. steel telescoping suction pipe, nozzle boot, 1 x 4 in. pipe nipple, 1 in. NPT street elbow, 2 rolls of PTFE tape, ground wire, cable gland, 2 wire nuts, locking nut and fastener
