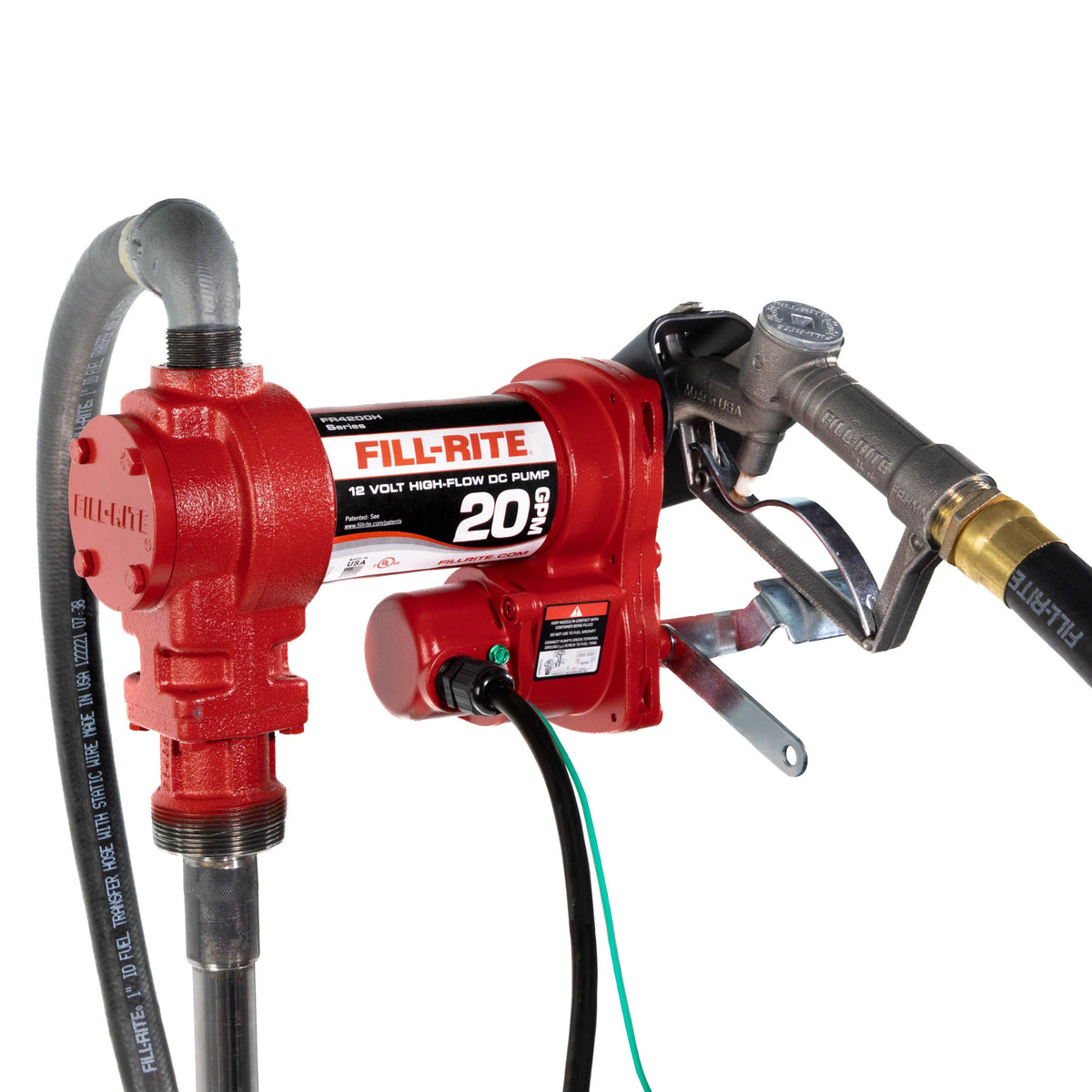

Fill-Rite FR4210HARC 20 GPM 12V Fuel Transfer Pump, Sub-Zero Hose and Auto Diesel Nozzle
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details
The Fill-Rite FR4200 is the high-flow version of Fill-Rite's 12-volt cast-iron transfer pump. It moves up to 20 gallons per minute of diesel, gasoline (up to E15), biodiesel (up to B20) or kerosene through a 1 in. outlet, so bigger equipment tanks fill faster. It threads onto a standard 2 in. NPT tank opening, runs off your truck battery, primes itself, and its thermally protected motor runs 30 minutes on, 30 minutes off.
This arctic kit is made for cold-weather fueling: the 1 in. x 20 ft. hose and the automatic diesel nozzle are both sub-zero rated, and a multi-plane swivel between them keeps the hose from twisting. It also includes an 18 ft. power cable and a steel suction pipe that telescopes from 20 to 34-1/2 in.
Features
- Up to 20 GPM (75 L/min) through a 1 in. outlet

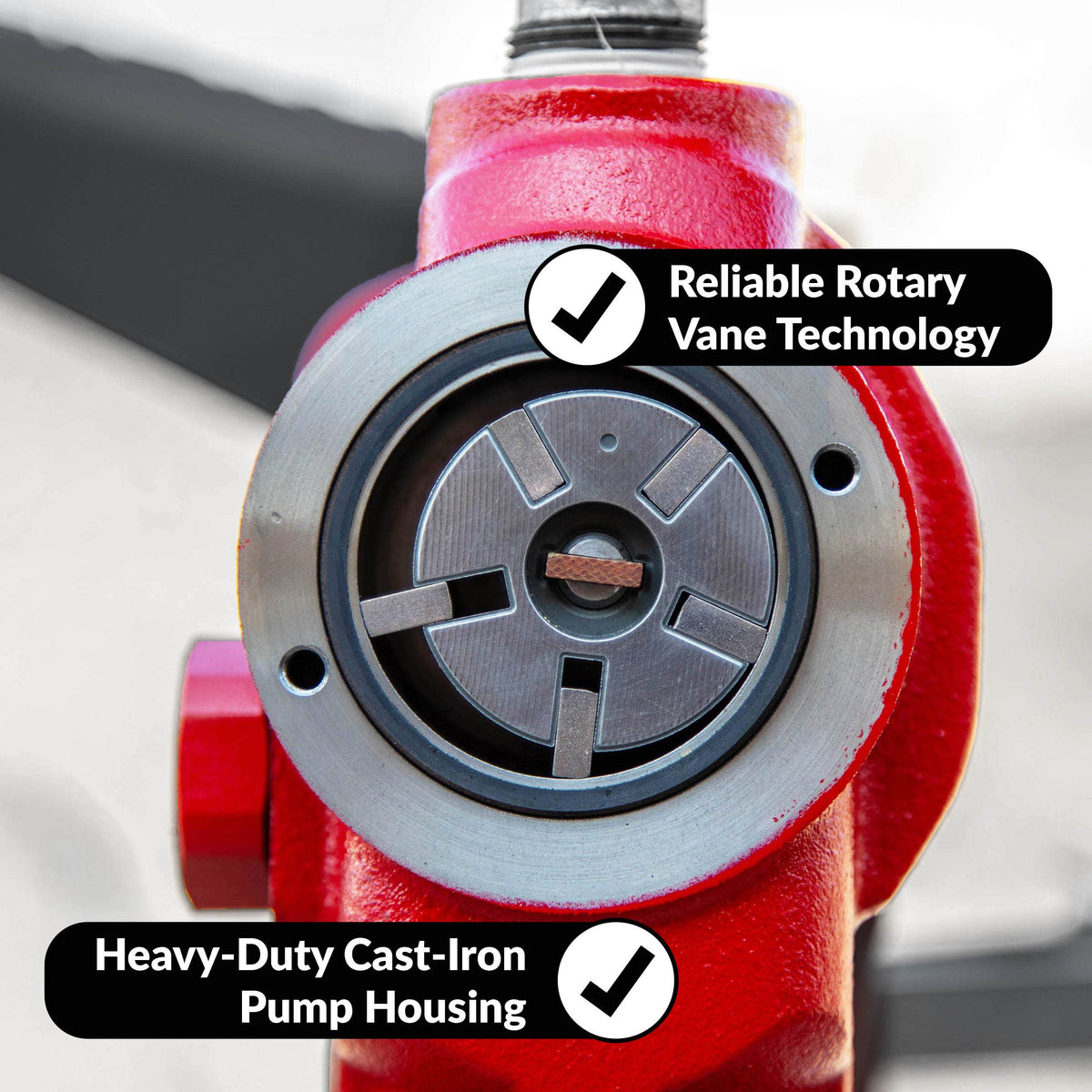

- Self-priming rotary vane pump with 8 ft. of suction lift
- Heavy-duty cast-iron housing stands up to daily work on the farm or jobsite

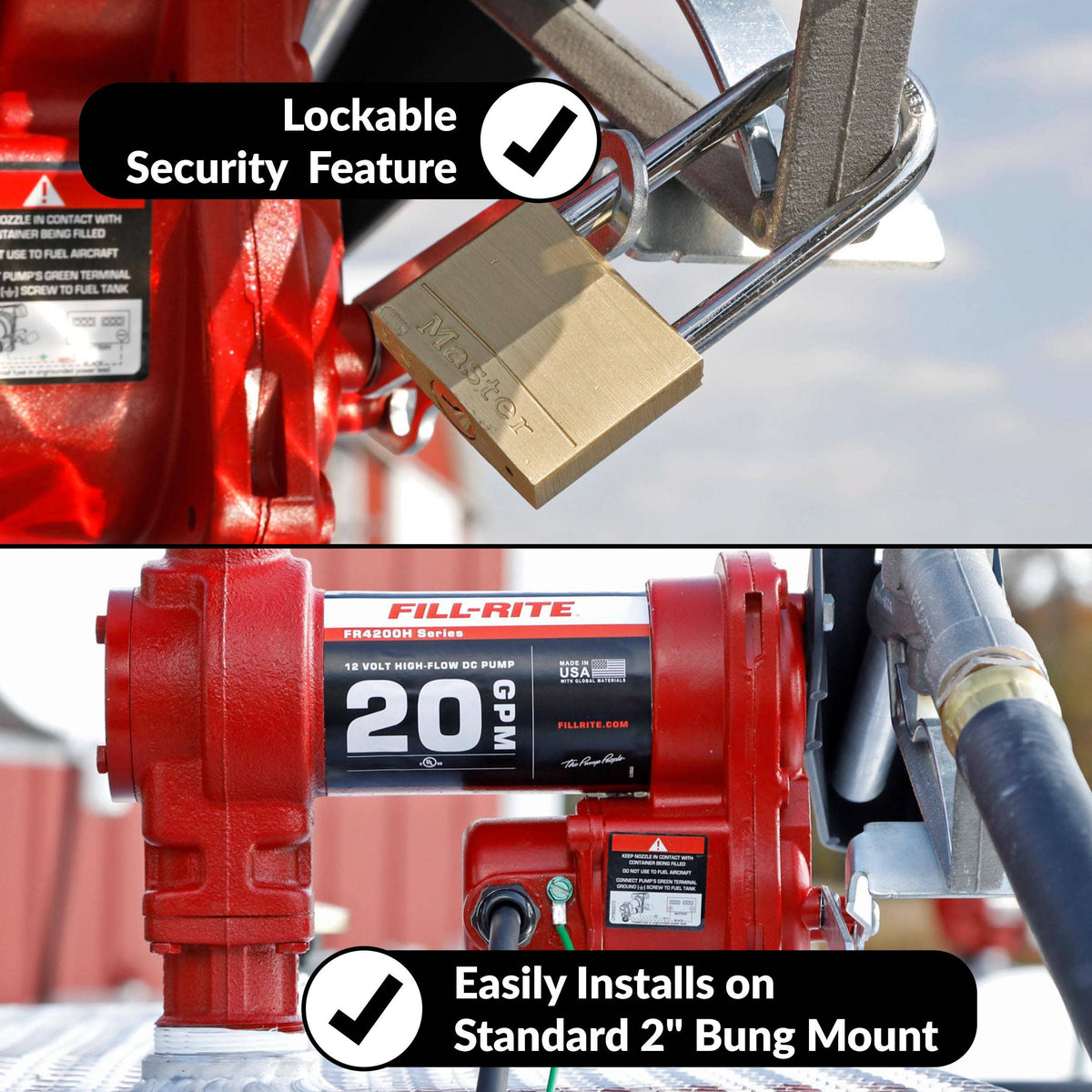

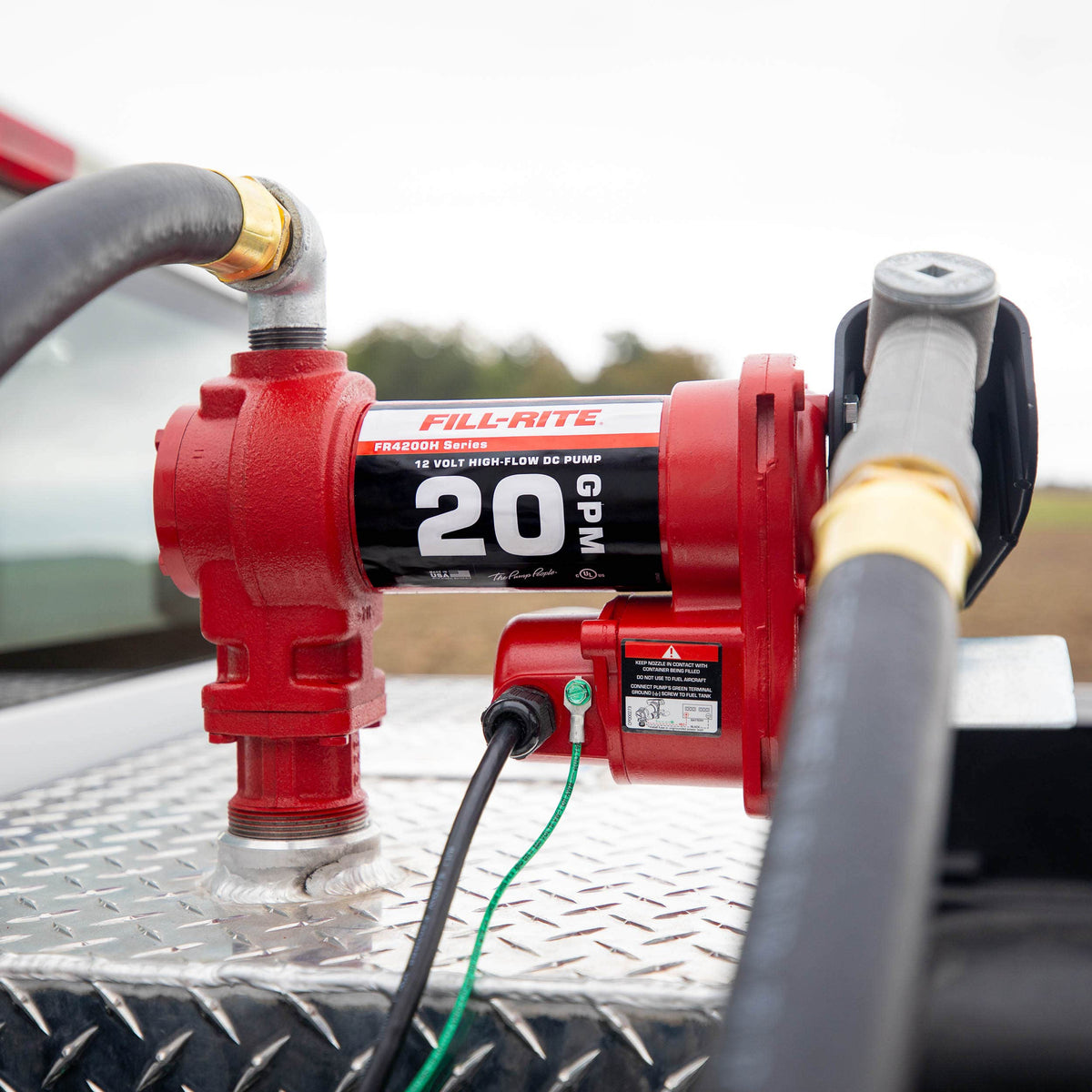

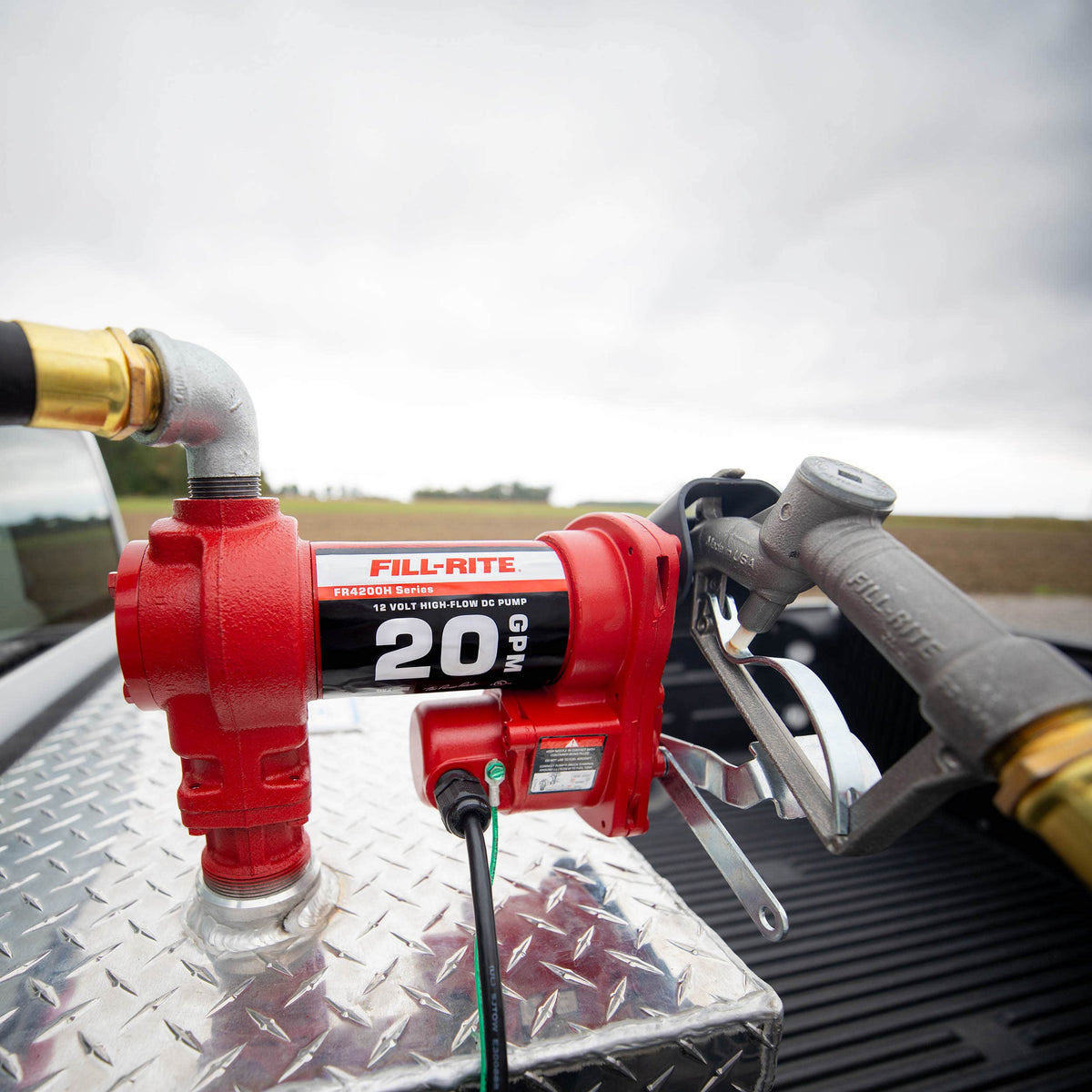

- 2 in. NPT bung mount fits truck bed transfer tanks and drums
- Junction box rotates 180° so wiring is easier in tight spots
- Thermally protected 1/4 HP motor shuts off before it overheats
- Built-in mesh strainer catches debris before it reaches your equipment
- On/off lever with a metal stop arm made for repeated use

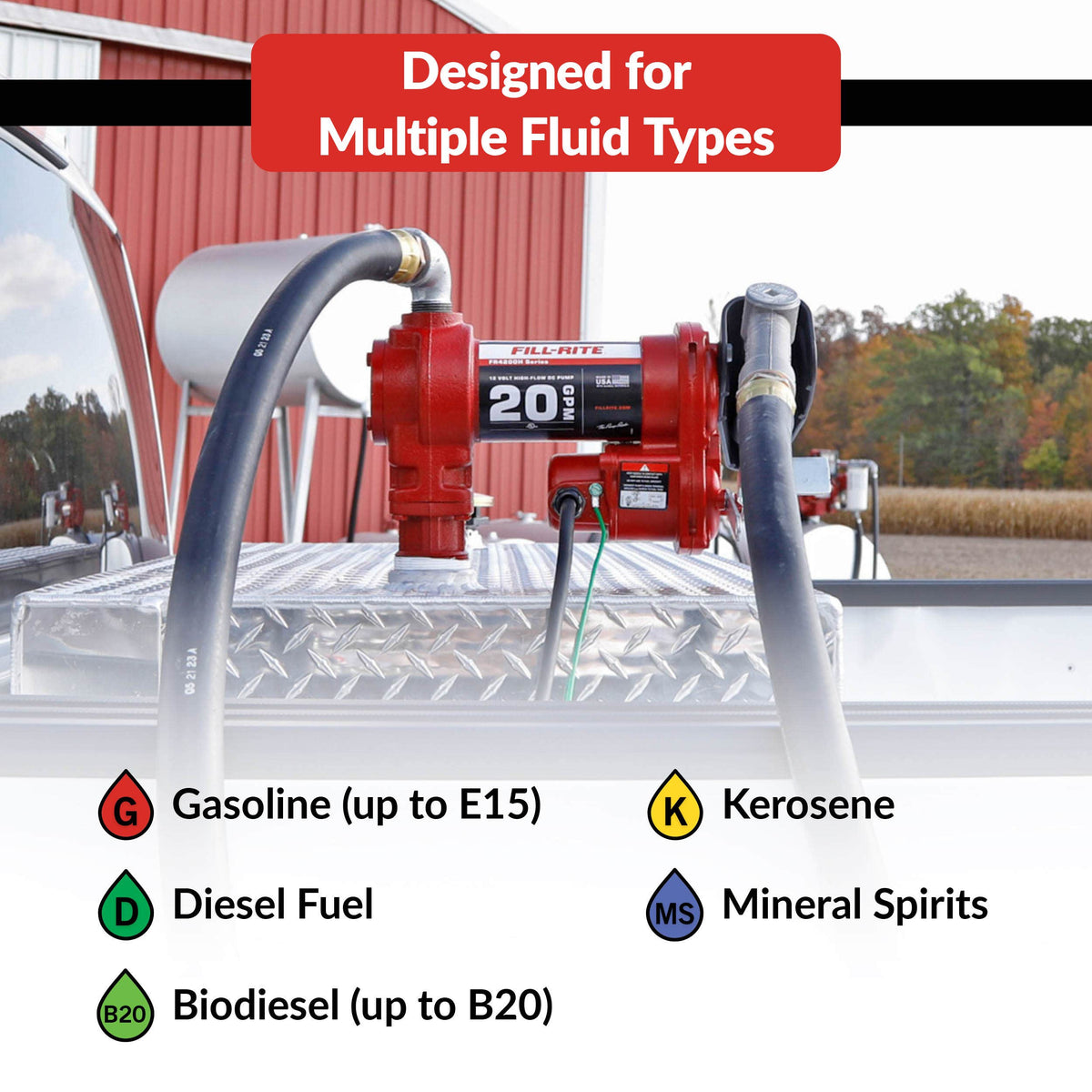

- For diesel, biodiesel (up to B20), gasoline (up to E15), kerosene and mineral spirits
- cULus listed; limited lifetime warranty on the pump castings
Specifications
| Part number | FR4210HARC |
|---|---|
| Flow rate | Up to 20 GPM (75 L/min) |
| Power | 12V DC, 19 A |
| Motor | 1/4 HP, thermally protected |
| Duty cycle | 30 min on / 30 min off |
| Pump type | Rotary vane, self-priming |
| Inlet | 1 in. NPT |
| Outlet | 1 in. NPT |
| Mounting | 2 in. NPT bung mount |
| Suction lift | 8 ft. |
| Discharge head | 37 ft. (16 PSI) |
| Inlet strainer | 20 x 20 mesh |
| Viscosity range | 0.5 to 5.5 cSt |
| Operating temperature | -15°F to 150°F |
| Power cable | 18 ft., 12 gauge, bare leads |
| Fluids | Diesel, biodiesel (up to B20), gasoline (up to E15), kerosene, mineral spirits |
| Certification | cULus |
| Warranty | Limited lifetime on pump castings; 5 years on the motor; 2 years on wear parts; 1 year on included accessories |
| Shipping weight | 45 lb |
What's in the box
Pump, 18 ft. 12-gauge power cable, 1 in. x 20 ft. sub-zero rated hose with static ground wire, 1 in. multi-plane swivel, 1 in. automatic sub-zero diesel nozzle, 20 to 34-1/2 in. steel telescoping suction pipe and installation parts
Manuals and documents

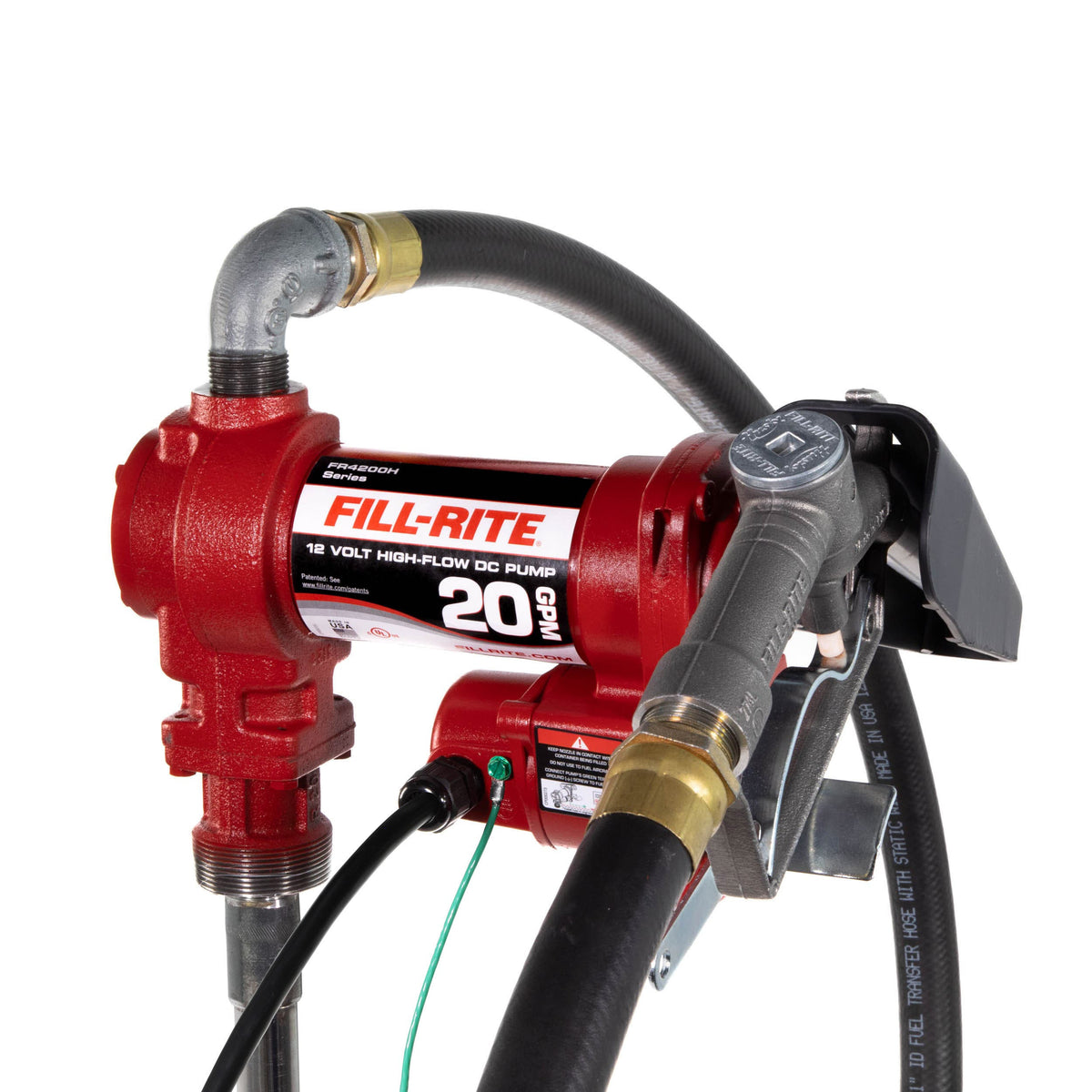

Photos show the base pump. The hose, swivel and nozzle that come in this kit are listed under What's in the box.
