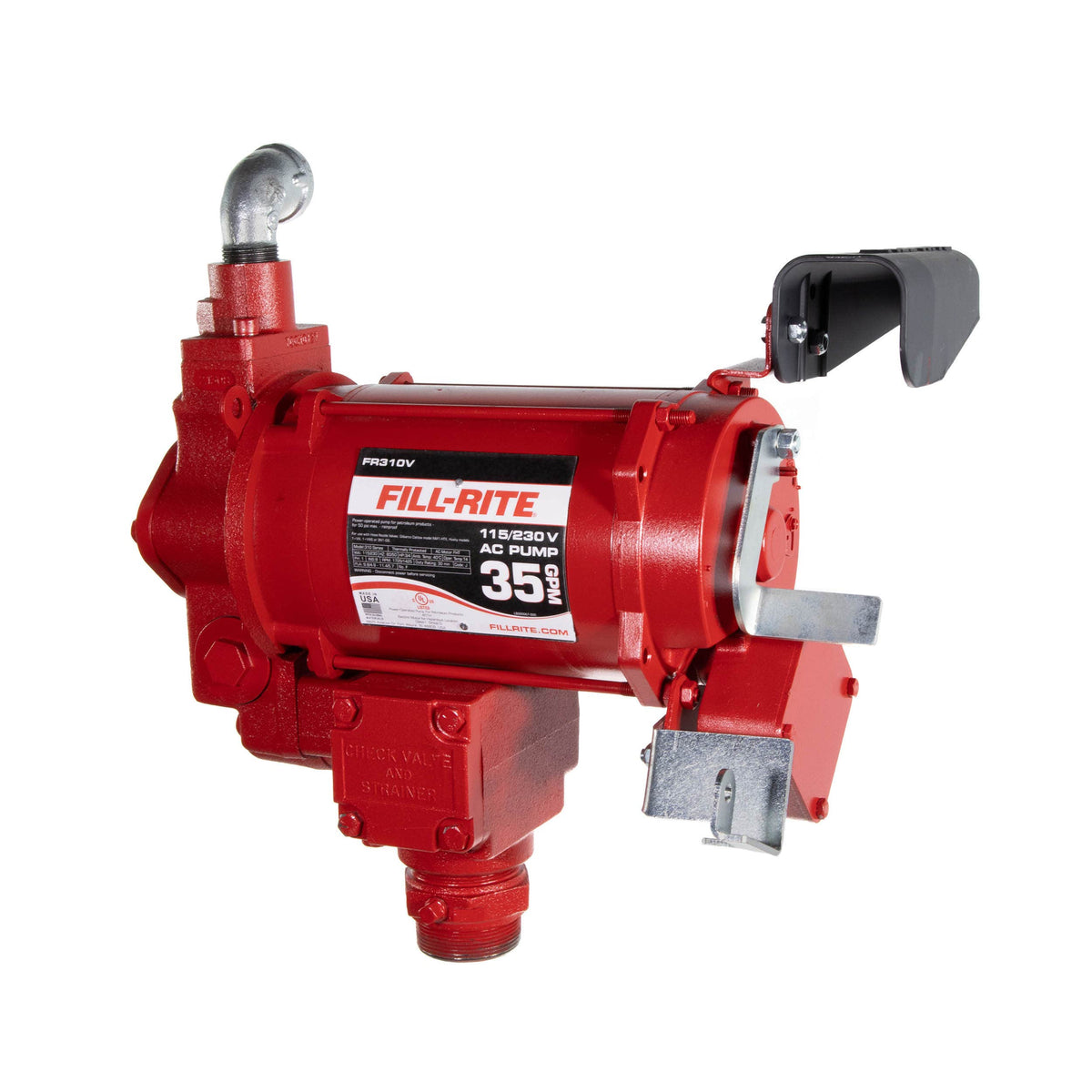

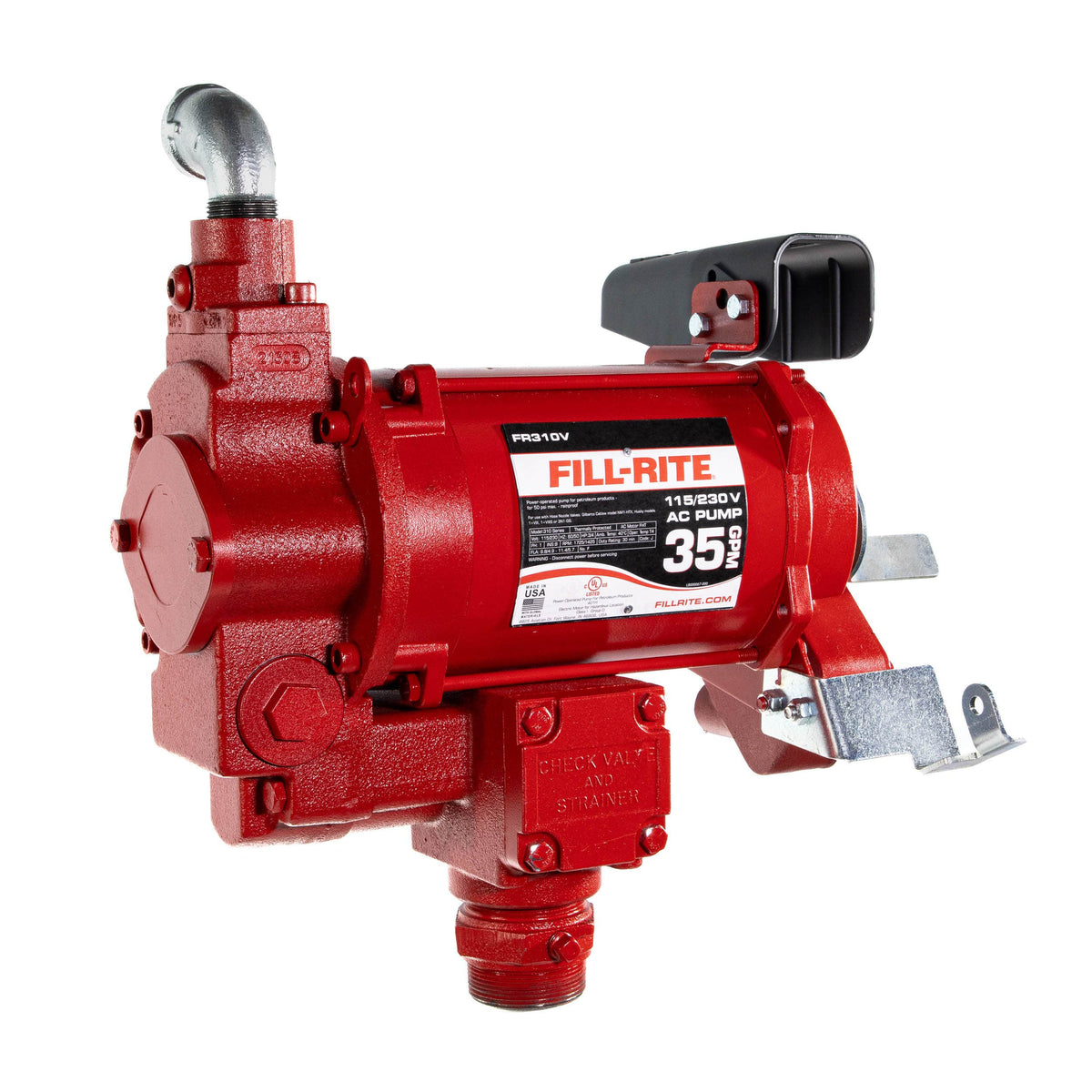

Fill-Rite FR310VN 35 GPM 115/230V AC Diesel Transfer Pump, Pump Only
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details
The Fill-Rite FR310VN is a 35 gallon per minute AC pump for large stationary diesel tanks that fill the biggest equipment, with fuel tanks of 35 to 140 gallons or more. Its dual-voltage 3/4 HP motor runs on 115V or 230V AC, selected with a switch at installation, and it pulls 18 ft. of suction lift. It is rated for diesel, biodiesel (up to B20), kerosene and similar fluids, not gasoline.
This is the pump only, with a 2 in. tank bung adapter and mounting hardware. The hose, nozzle and suction pipe are sold separately.
Features
- Up to 35 GPM (132 L/min)
- Dual-voltage 3/4 HP motor: 115V or 230V AC, set with a switch
- 18 ft. of suction lift and 60 ft. of discharge head (26 PSI)
- Self-priming rotary vane pump keeps its performance as it wears in
- Thermally protected motor and built-in mesh strainer
- Heavy-duty cast-iron construction
- 2 in. NPT bung mount; 1-1/4 in. inlet and 1 in. outlet
- For diesel, biodiesel (up to B20), kerosene, mineral spirits, heptane and Stoddard solvents; not for gasoline
- cULus listed; limited lifetime warranty on the pump castings
Specifications
| Part number | FR310VN |
|---|---|
| Flow rate | Up to 35 GPM (132 L/min) |
| Power | 115V AC, 9.8 A or 230V AC, 4.9 A |
| Motor | 3/4 HP, thermally protected |
| Duty cycle | 30 min on / 30 min off |
| Pump type | Rotary vane, self-priming |
| Inlet | 1-1/4 in. NPT |
| Outlet | 1 in. NPT |
| Mounting | 2 in. NPT bung mount |
| Suction lift | 18 ft. |
| Discharge head | 60 ft. (26 PSI) |
| Viscosity range | 0.5 to 5.5 cSt |
| Operating temperature | -13°F to 150°F |
| Fluids | Diesel, biodiesel (up to B20), kerosene, mineral spirits, heptane, Stoddard solvents. Not for gasoline. |
| Certification | cULus |
| Warranty | Limited lifetime on pump castings; 5 years on the motor; 2 years on wear parts; 1 year on included accessories |
| Shipping weight | 74.7 lb |

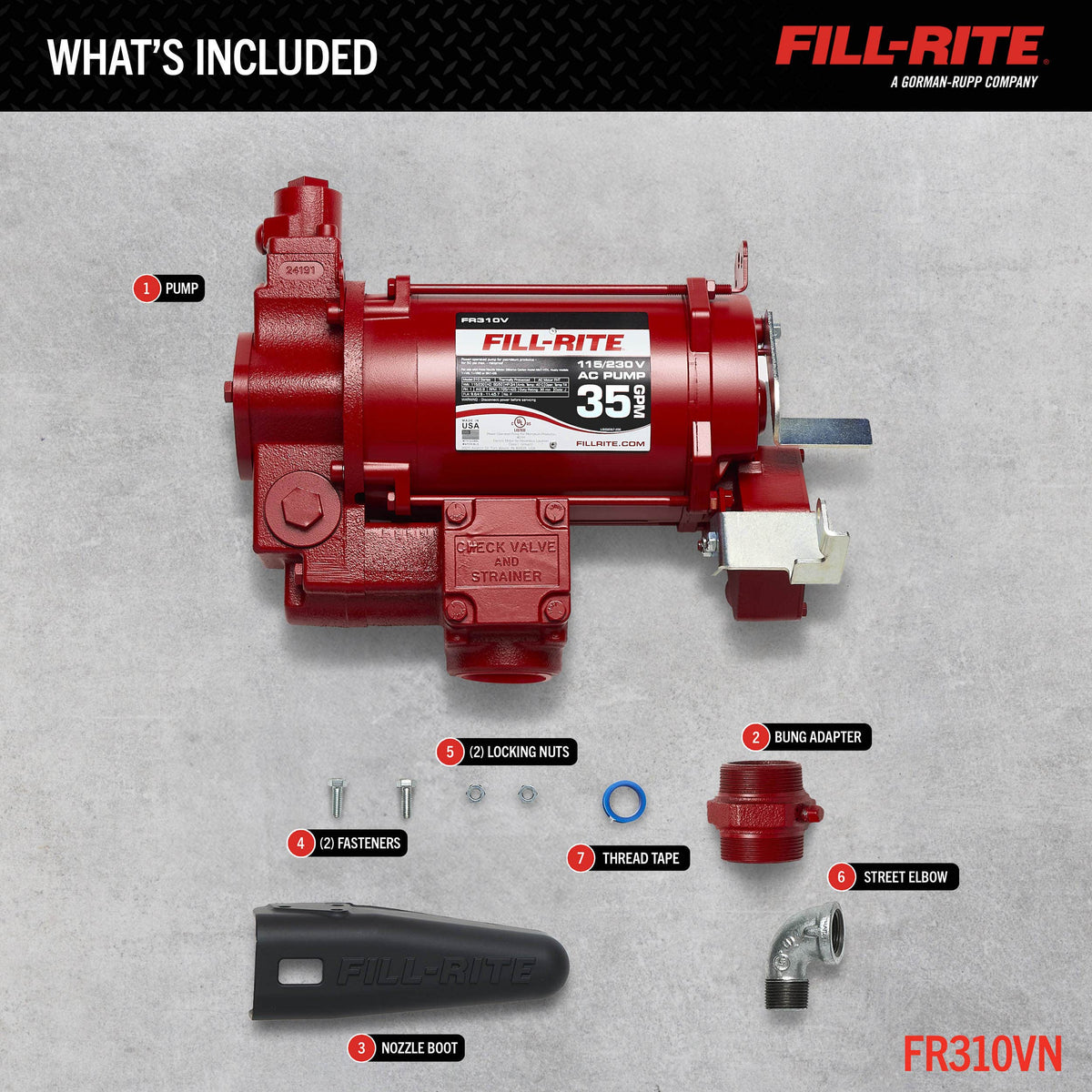

What's in the box
Pump, 2 in. tank bung adapter, nozzle boot, 1 in. NPT street elbow, PTFE tape, check valve cover, 2 locking nuts and 4 fasteners
