Fill-Rite FR152 Piston Hand Fuel Transfer Pump with Hose, Spout and Suction Pipe
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

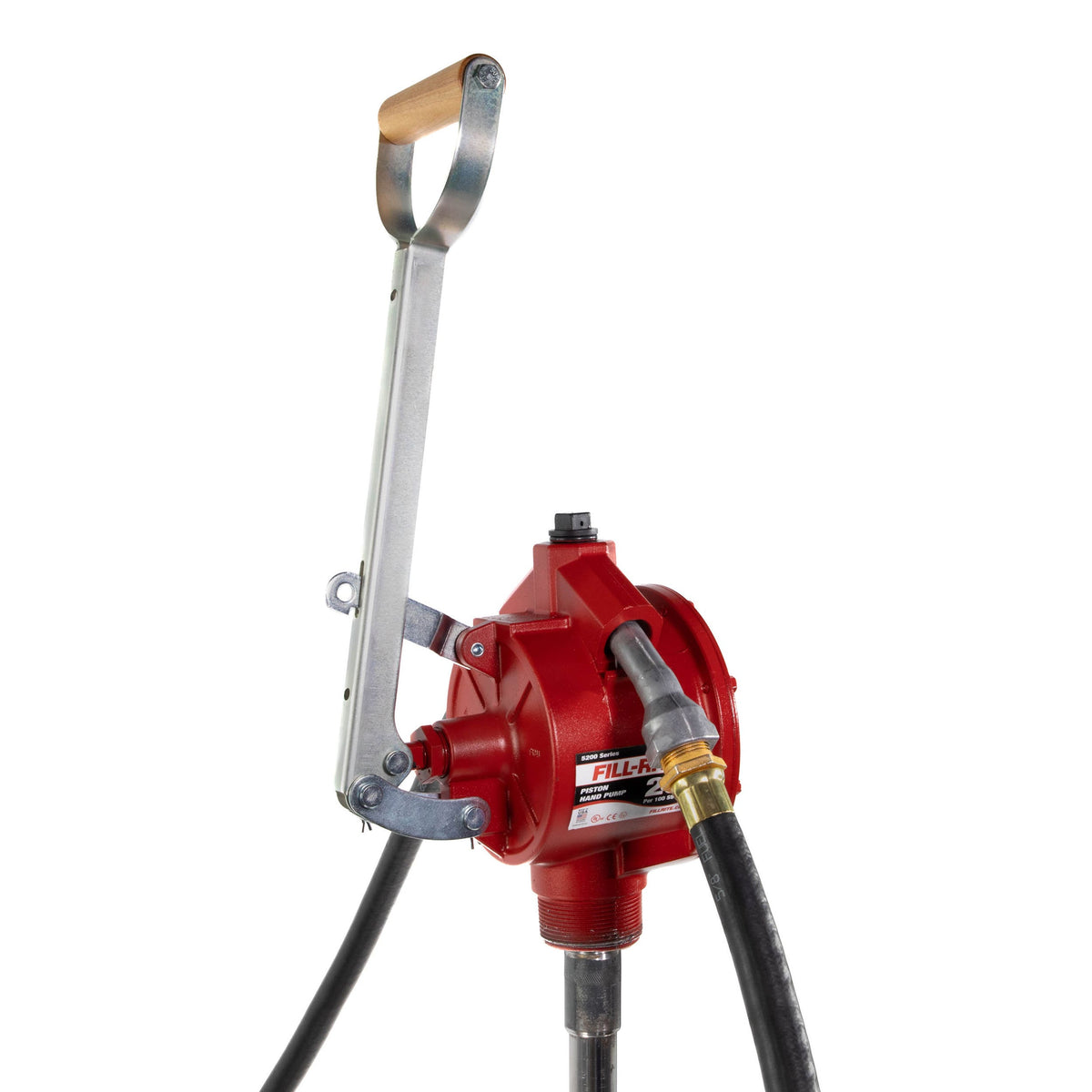

The Fill-Rite FR152 is a lever-action piston hand pump for drums and tanks where you don't have power or only move small amounts of fuel. It moves about 20 gallons for every 100 strokes, and a vacuum breaker helps give a smooth, steady flow at the spout. The cast-aluminum pump threads onto a 2 in. NPT bung and comes with an 8 ft. hose, a nozzle spout and a telescoping suction pipe.
Features
- About 20 gallons (75 L) per 100 strokes
- No power needed: works anywhere, mounted or moved from drum to drum
- Vacuum breaker helps deliver smoother, more consistent flow
- Rugged cast-aluminum construction resists corrosion
- For gasoline, diesel, kerosene, heptane, Stoddard solvents and mineral spirits
- UL listed; ATEX and CE certified; 2-year warranty
Specifications
| Part number | FR152 |
|---|---|
| Pump type | Piston, hand lever |
| Output | About 20 gal. (75 L) per 100 strokes |
| Inlet | 1 in. NPT |
| Outlet | 3/4 in. NPT |
| Mounting | 2 in. NPT bung mount |
| Hose | 5/8 in. x 8 ft. UL listed, with static ground wire |
| Fluids | Gasoline, diesel, kerosene, heptane, Stoddard solvents, mineral spirits |
| Certification | UL, ATEX, CE |
| Warranty | 2 years |
| Shipping weight | 14 lb |

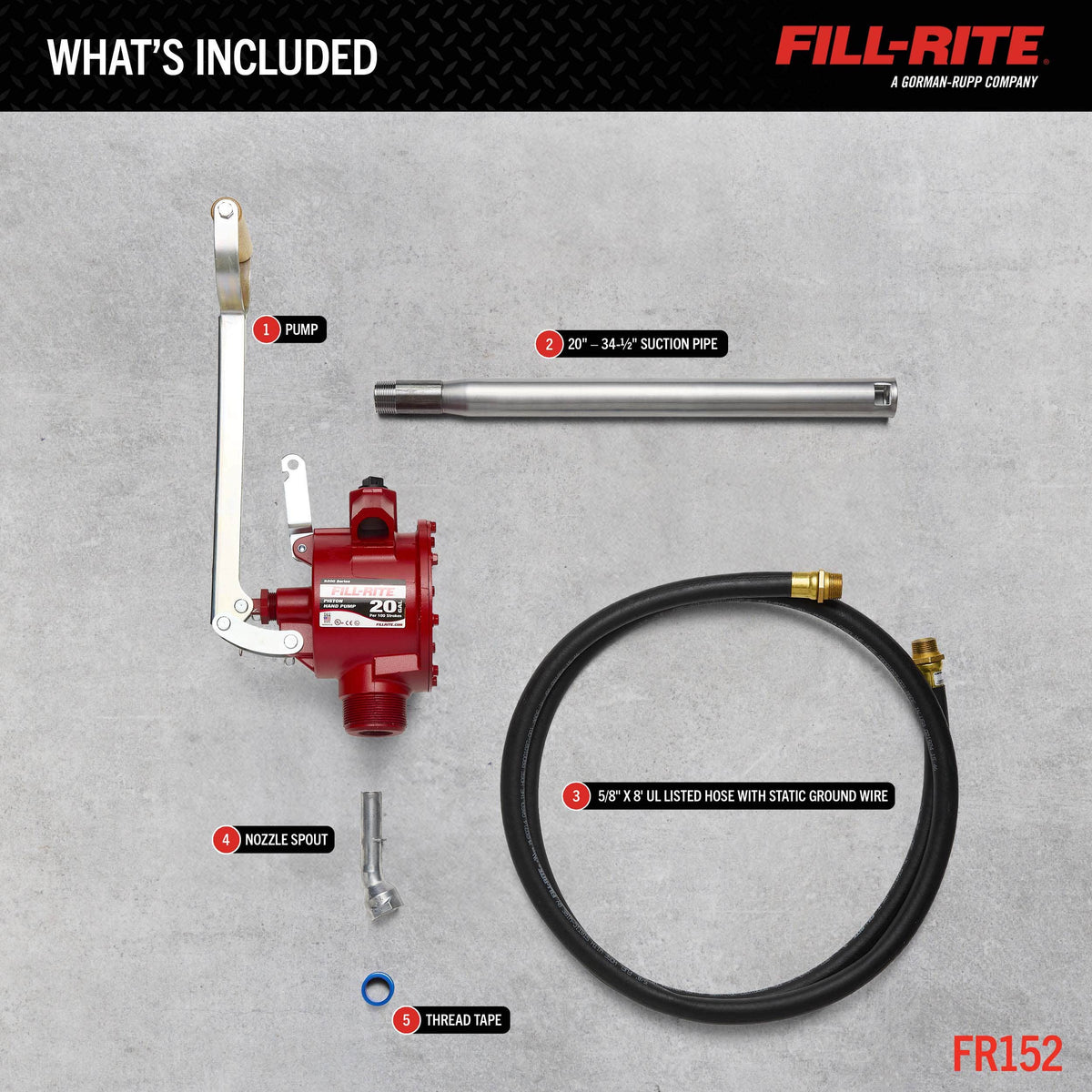

What's in the box
Pump, 5/8 in. x 8 ft. UL listed hose with static ground wire, 3/4 in. cast aluminum nozzle spout and 20 to 34-1/2 in. steel telescoping suction pipe
