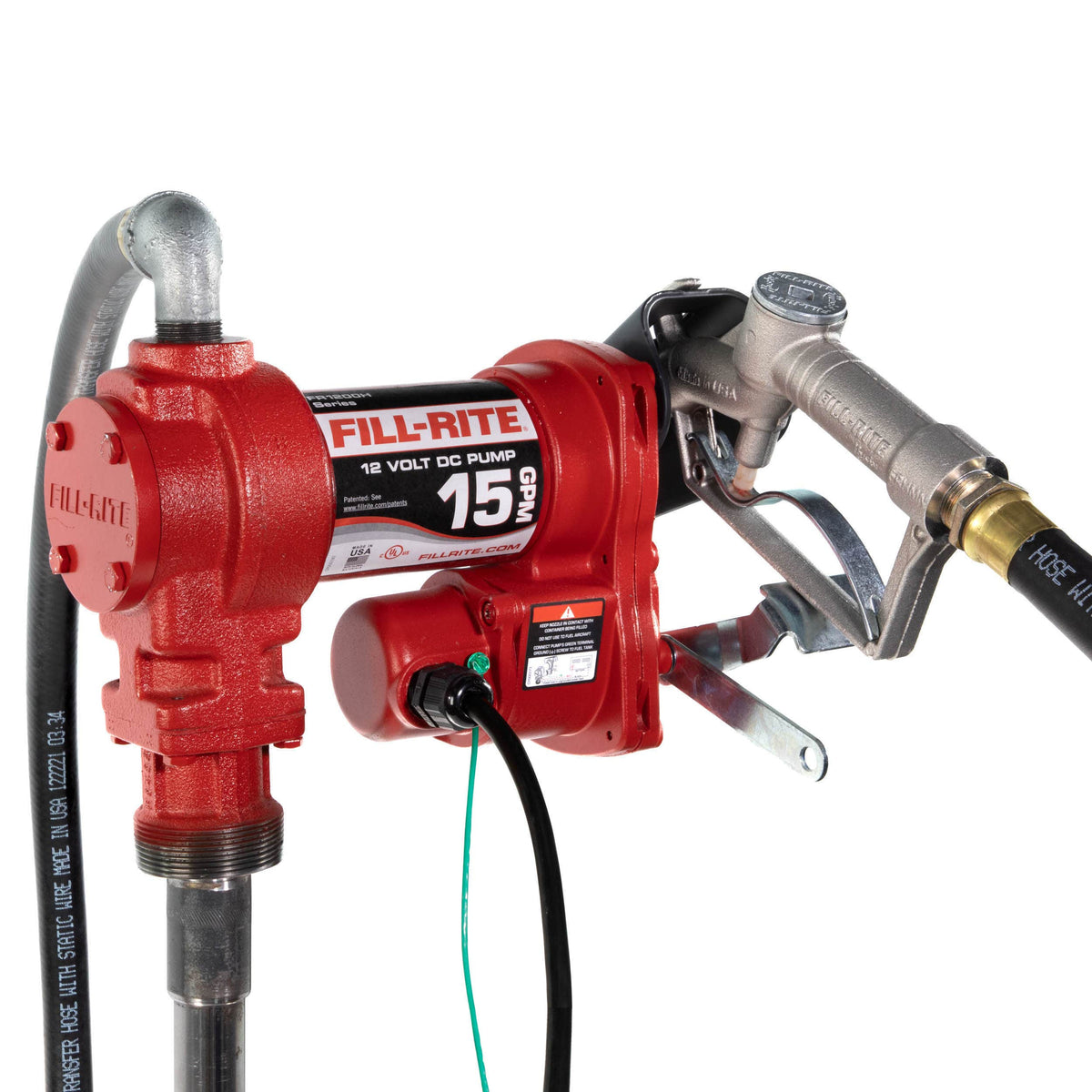

Fill-Rite FR1210H 15 GPM 12V Fuel Transfer Pump with Manual Nozzle
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

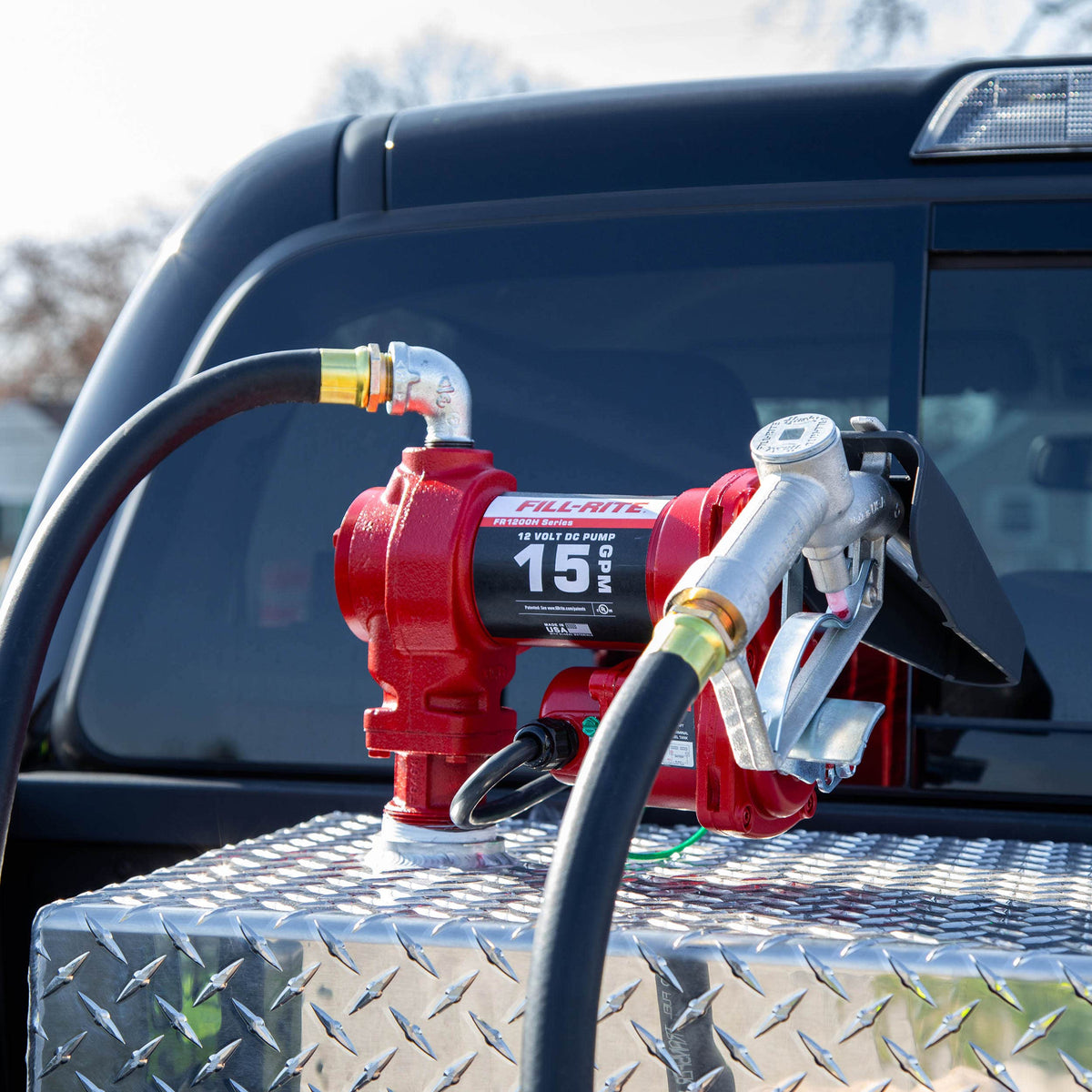

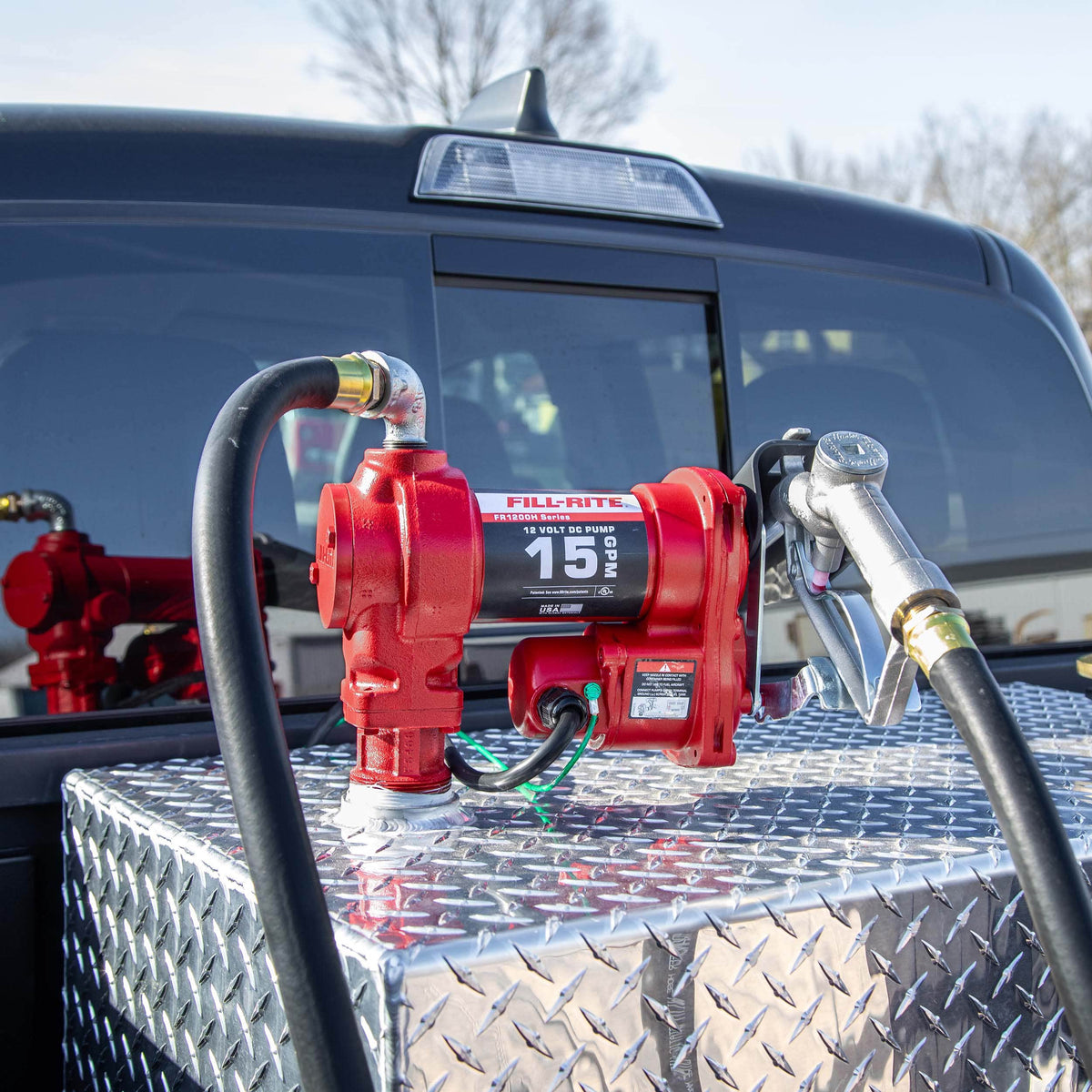

The Fill-Rite FR1200 is a 12-volt rotary vane pump for truck bed transfer tanks and farm or jobsite fuel tanks. It moves up to 15 gallons per minute of diesel, gasoline (up to E15), biodiesel (up to B20) or kerosene, enough to fill equipment tanks of 15 to 60 gallons. The heavy cast-iron pump threads onto a standard 2 in. NPT tank opening, runs off your truck battery and primes itself, and its thermally protected motor runs 30 minutes on, 30 minutes off.

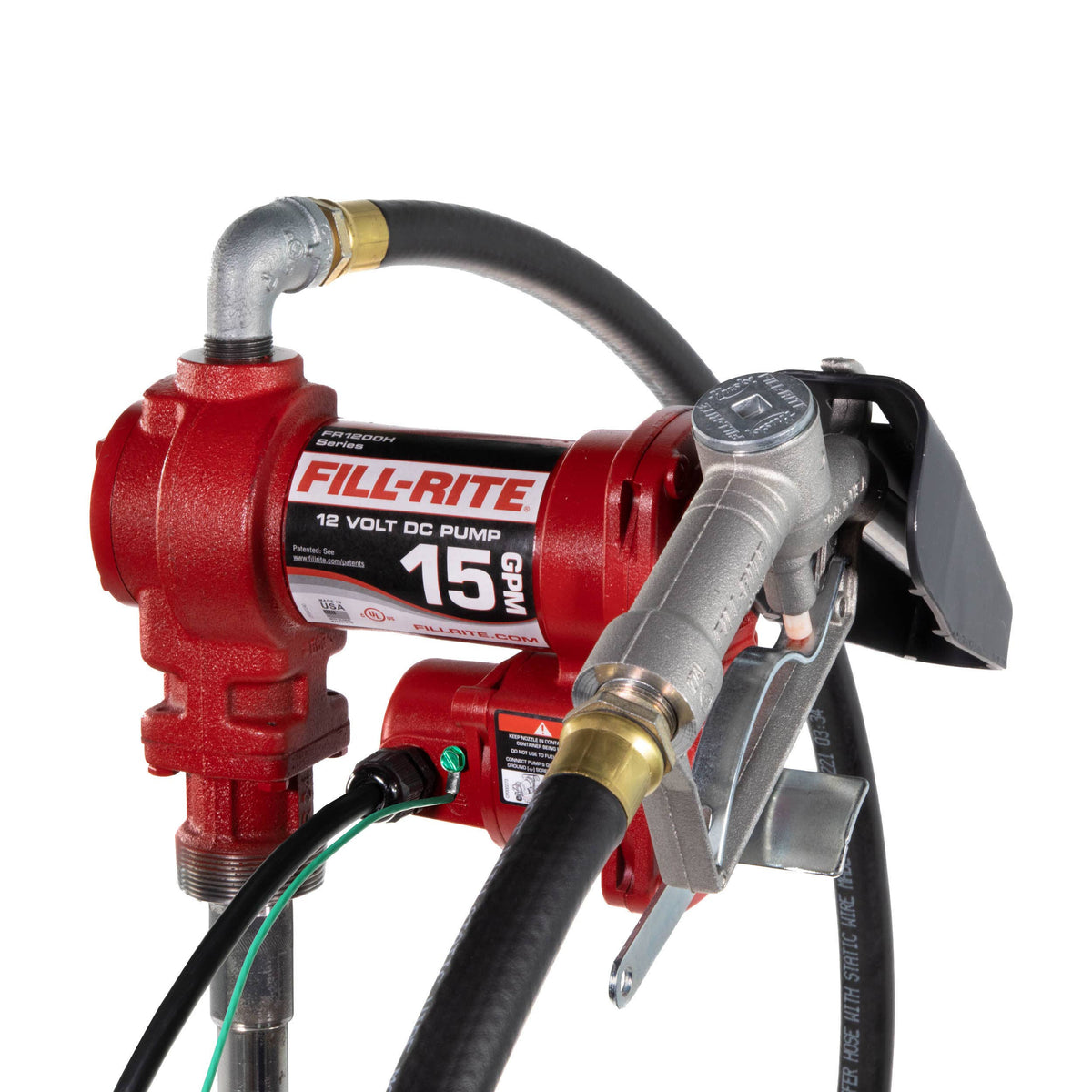

This kit is ready to install with an 18 ft. power cable, a 3/4 in. x 12 ft. hose with static ground wire, a 3/4 in. cast aluminum manual nozzle and a steel suction pipe that telescopes from 20 to 34-1/2 in.
Features
- Up to 15 GPM (57 L/min) through a 3/4 in. outlet
- Self-priming rotary vane pump with 8 ft. of suction lift
- Heavy-duty cast-iron housing stands up to daily work on the farm or jobsite

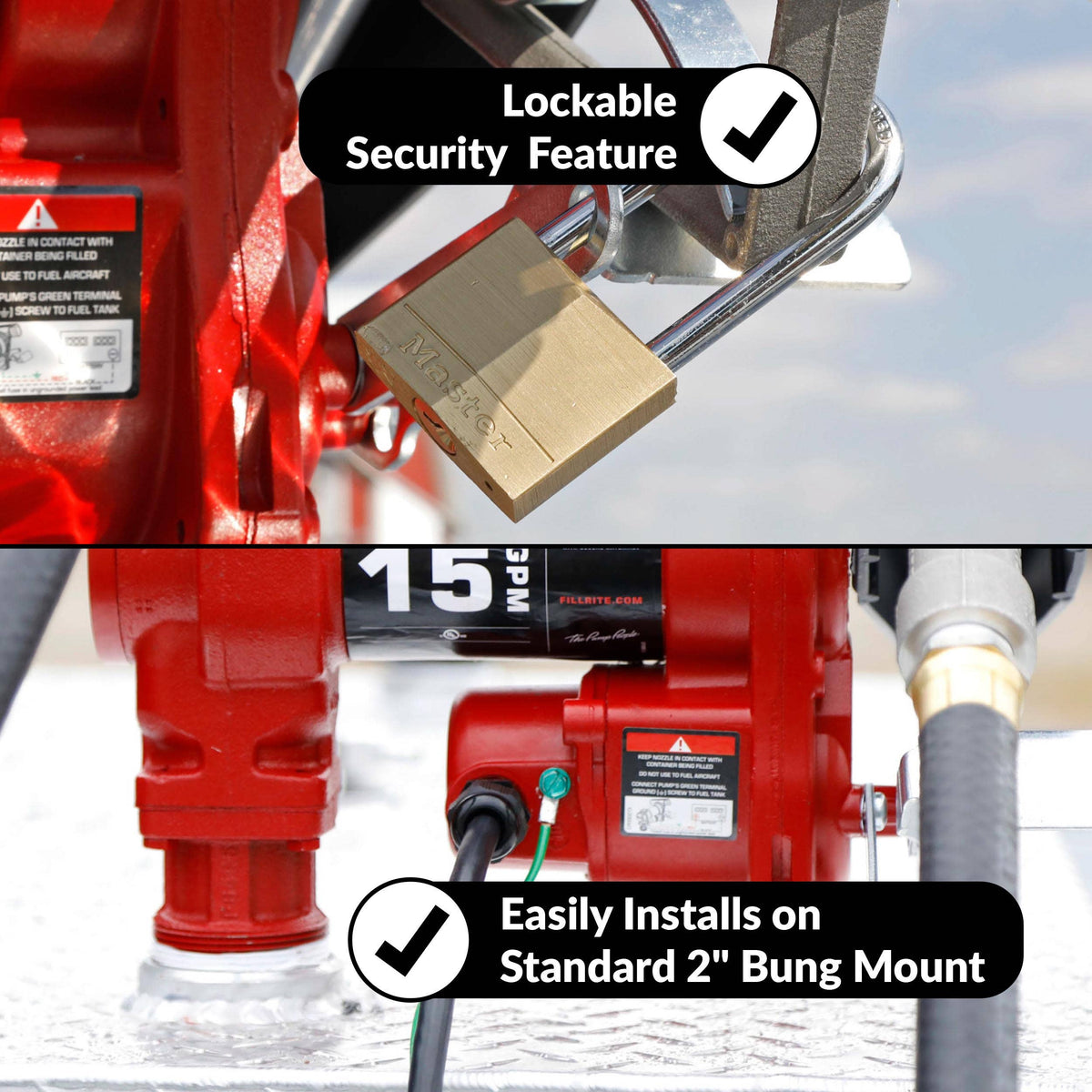

- 2 in. NPT bung mount fits truck bed transfer tanks and drums
- Junction box rotates 180° so wiring is easier in tight spots
- Thermally protected 1/4 HP motor shuts off before it overheats
- Built-in mesh strainer catches debris before it reaches your equipment
- On/off lever with a metal stop arm made for repeated use

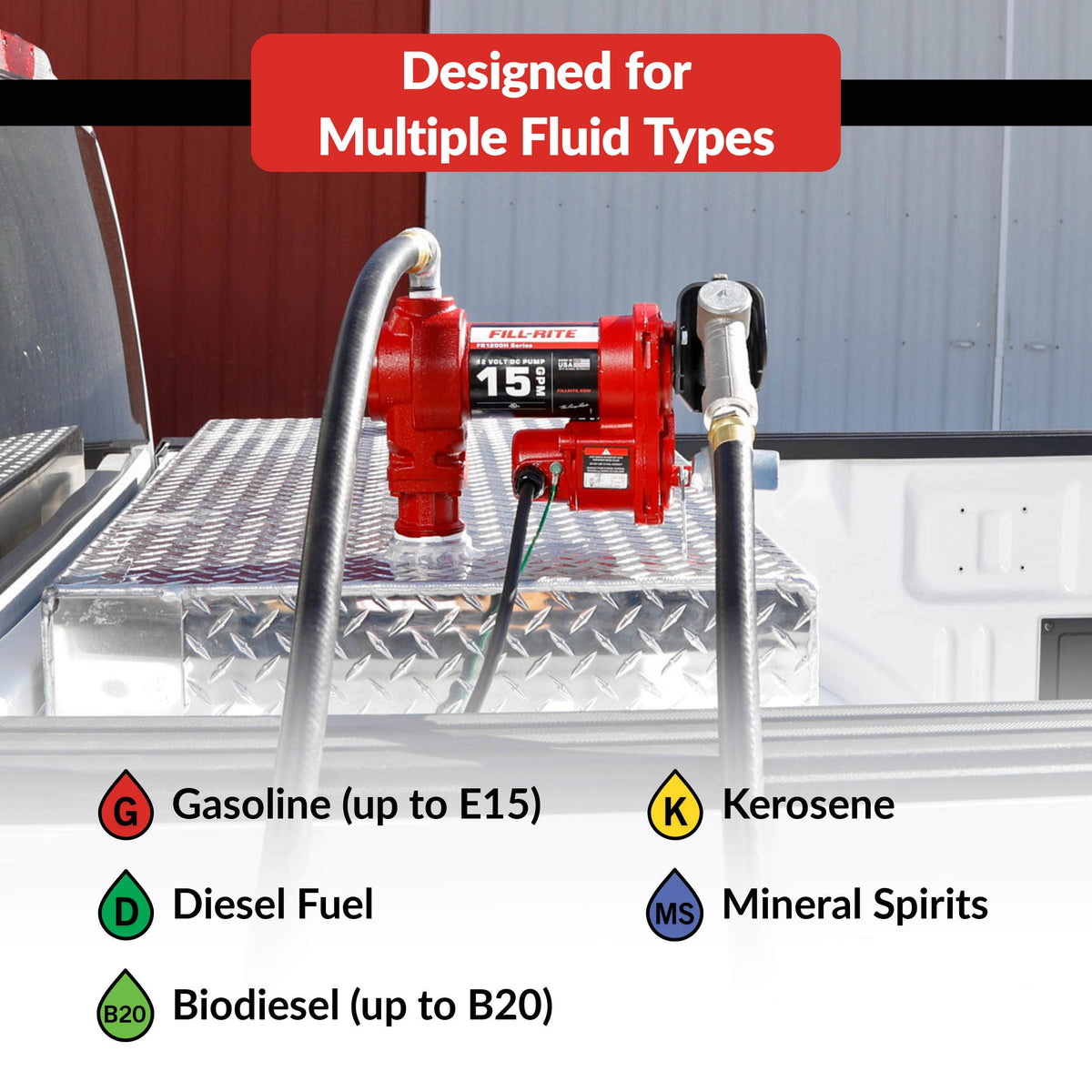

- For diesel, biodiesel (up to B20), gasoline (up to E15), kerosene and mineral spirits
- cULus listed; limited lifetime warranty on the pump castings
Specifications
| Part number | FR1210H |
|---|---|
| Flow rate | Up to 15 GPM (57 L/min) |
| Power | 12V DC, 20 A |
| Motor | 1/4 HP, thermally protected |
| Duty cycle | 30 min on / 30 min off |

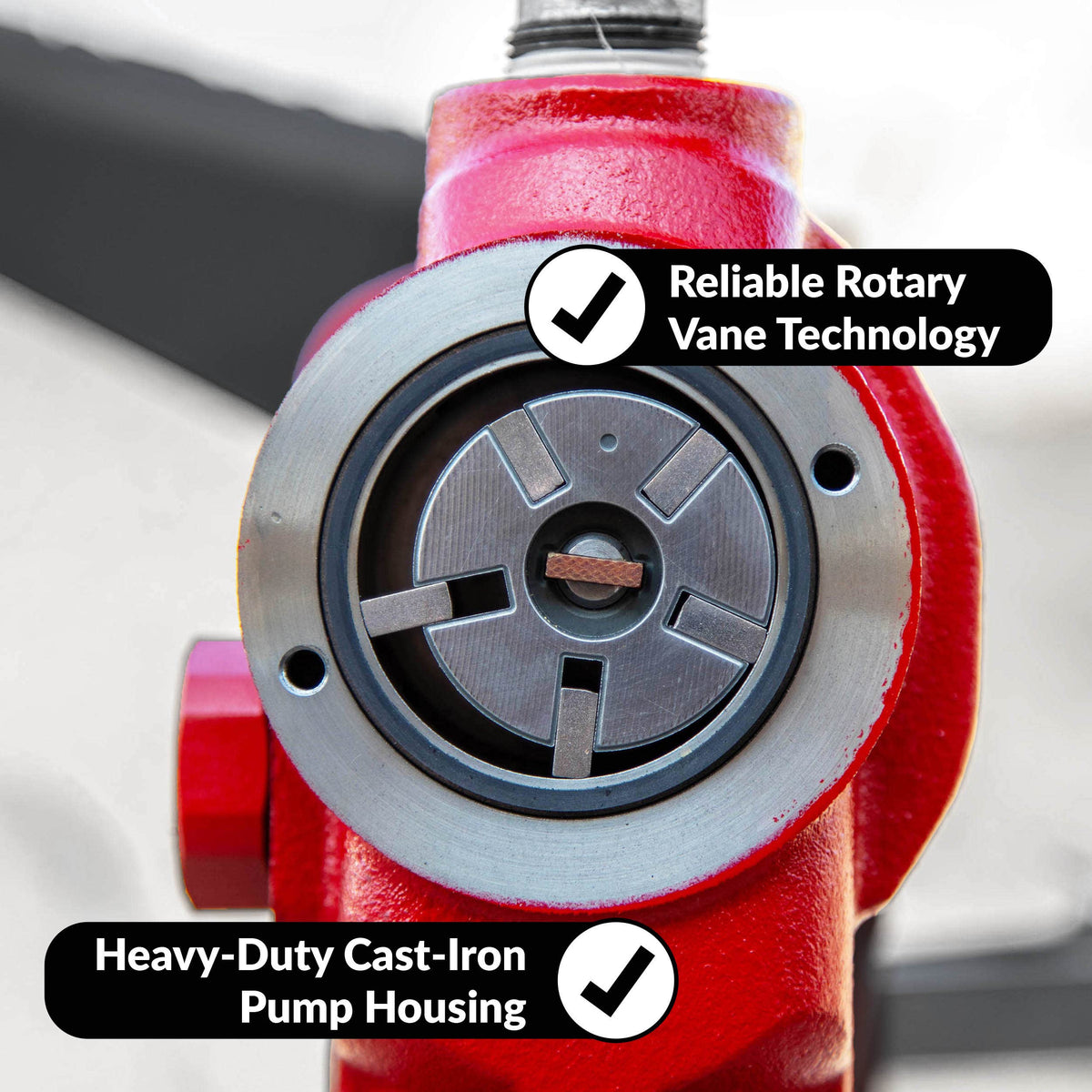

| Pump type | Rotary vane, self-priming |
| Inlet | 1 in. NPT |
| Outlet | 3/4 in. NPT |
| Mounting | 2 in. NPT bung mount |
| Suction lift | 8 ft. |
| Discharge head | 37 ft. (16 PSI) |
| Inlet strainer | 20 x 20 mesh |
| Viscosity range | 0.5 to 5.5 cSt |
| Operating temperature | -15°F to 150°F |
| Power cable | 18 ft., 12 gauge, bare leads |
| Fluids | Diesel, biodiesel (up to B20), gasoline (up to E15), kerosene, mineral spirits |
| Certification | cULus |
| Warranty | Limited lifetime on pump castings; 5 years on the motor; 2 years on wear parts; 1 year on included accessories |
| Shipping weight | 32 lb |

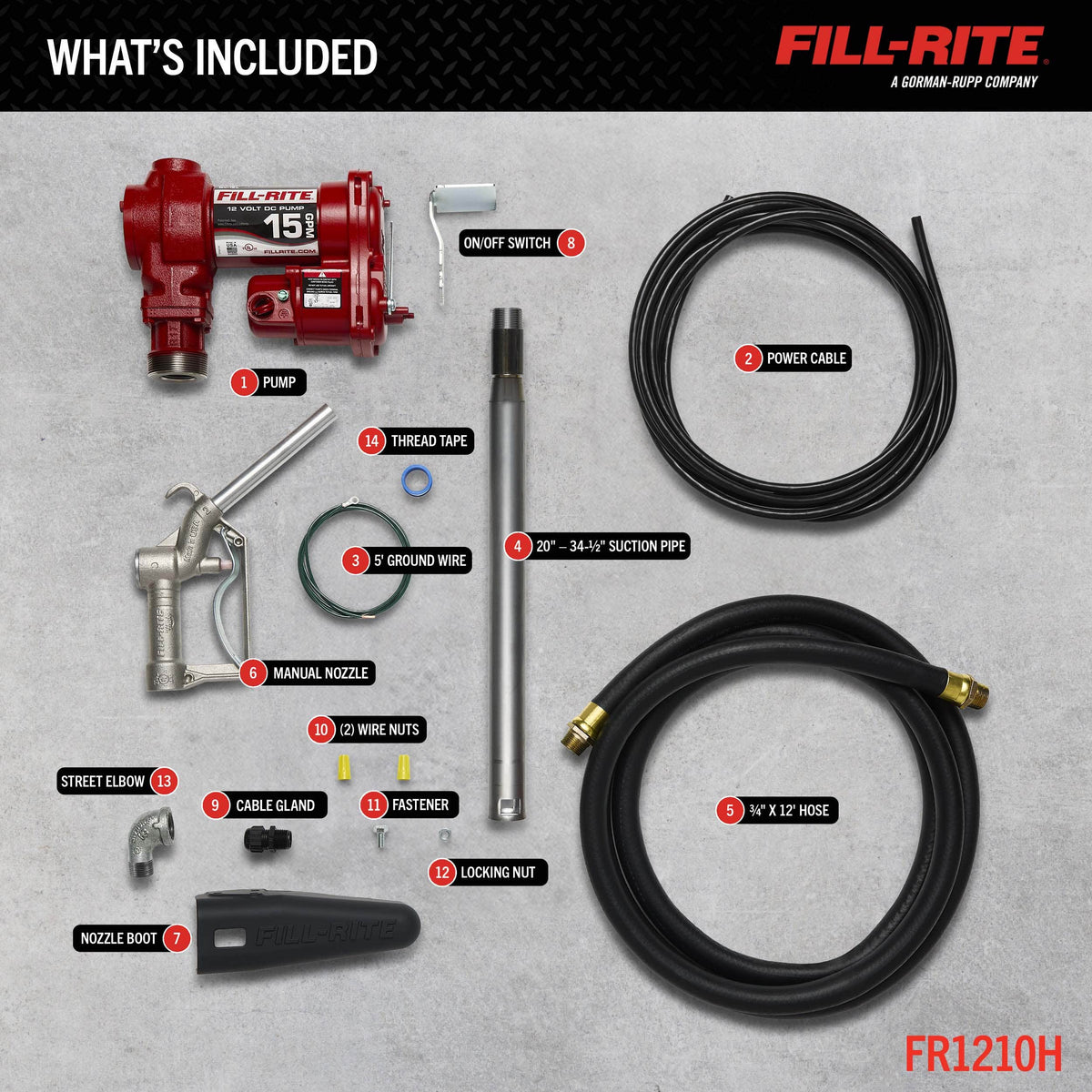

What's in the box
Pump, 18 ft. 12-gauge power cable, 3/4 in. x 12 ft. hose with static ground wire, 3/4 in. cast aluminum manual nozzle, 20 to 34-1/2 in. steel telescoping suction pipe, nozzle boot, 3/4 in. NPT street elbow, PTFE tape, ground wire, cable gland, 2 wire nuts, locking nut and fastener
