Fill-Rite FR112 Rotary Hand Fuel Transfer Pump with Hose, Spout and Suction Pipe
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details

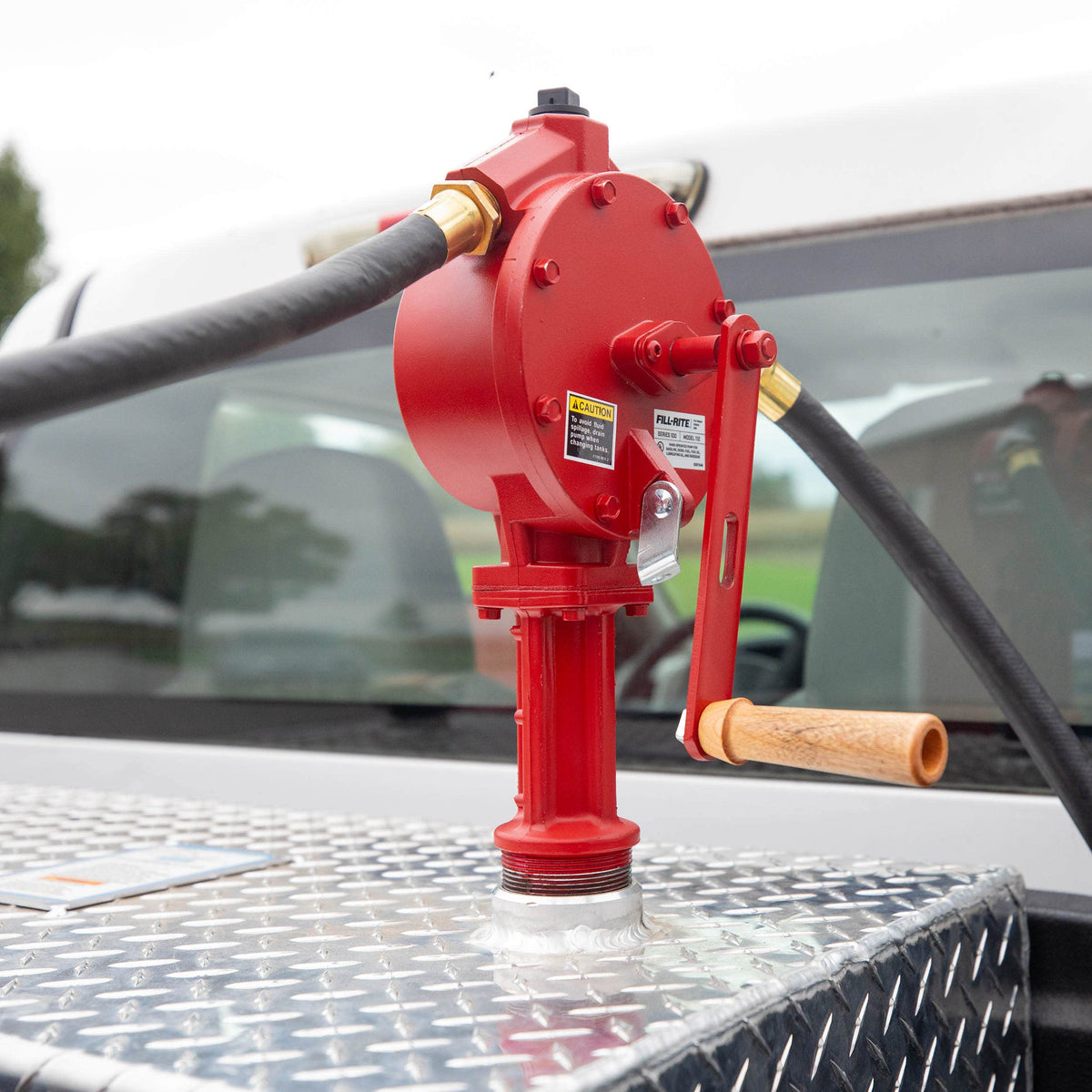

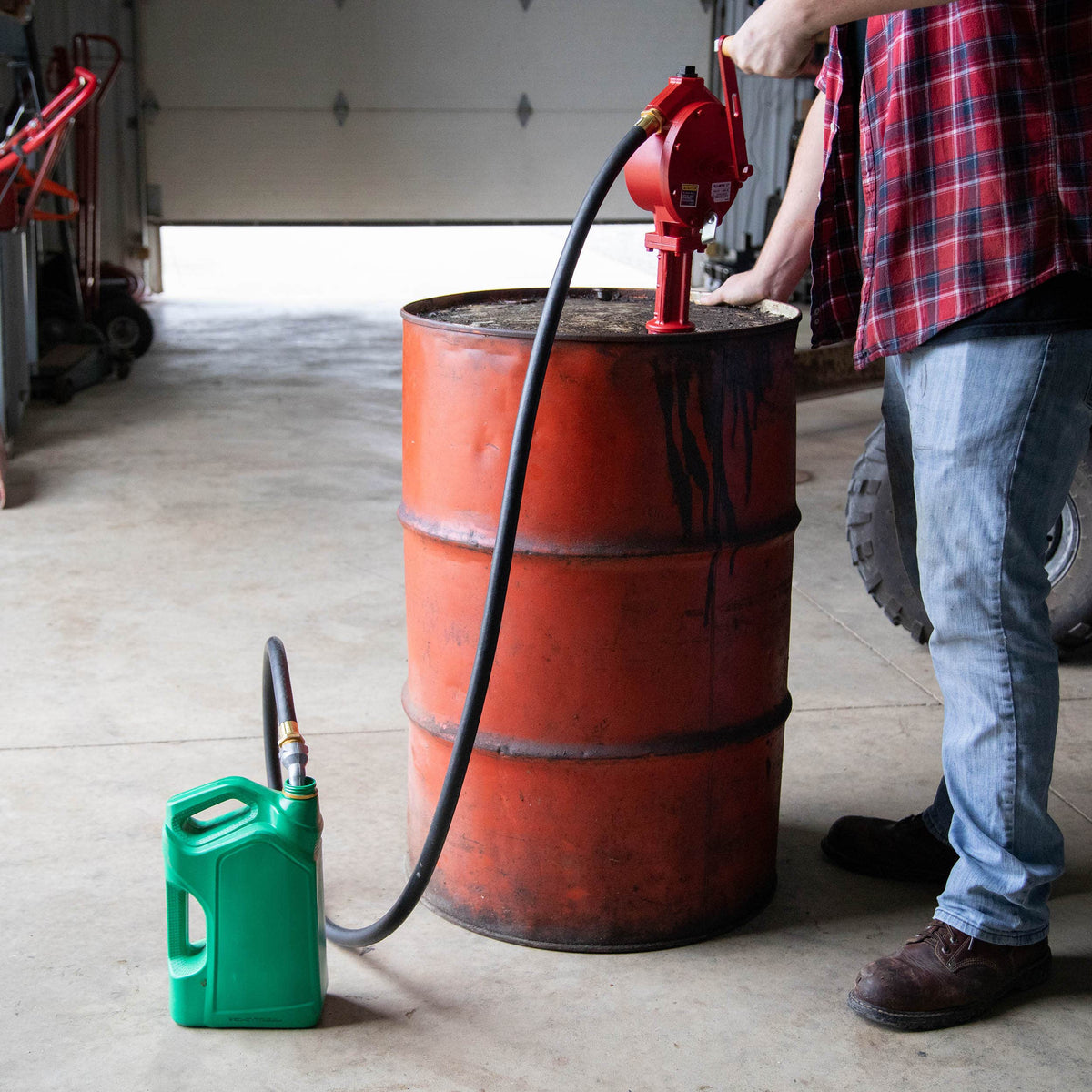

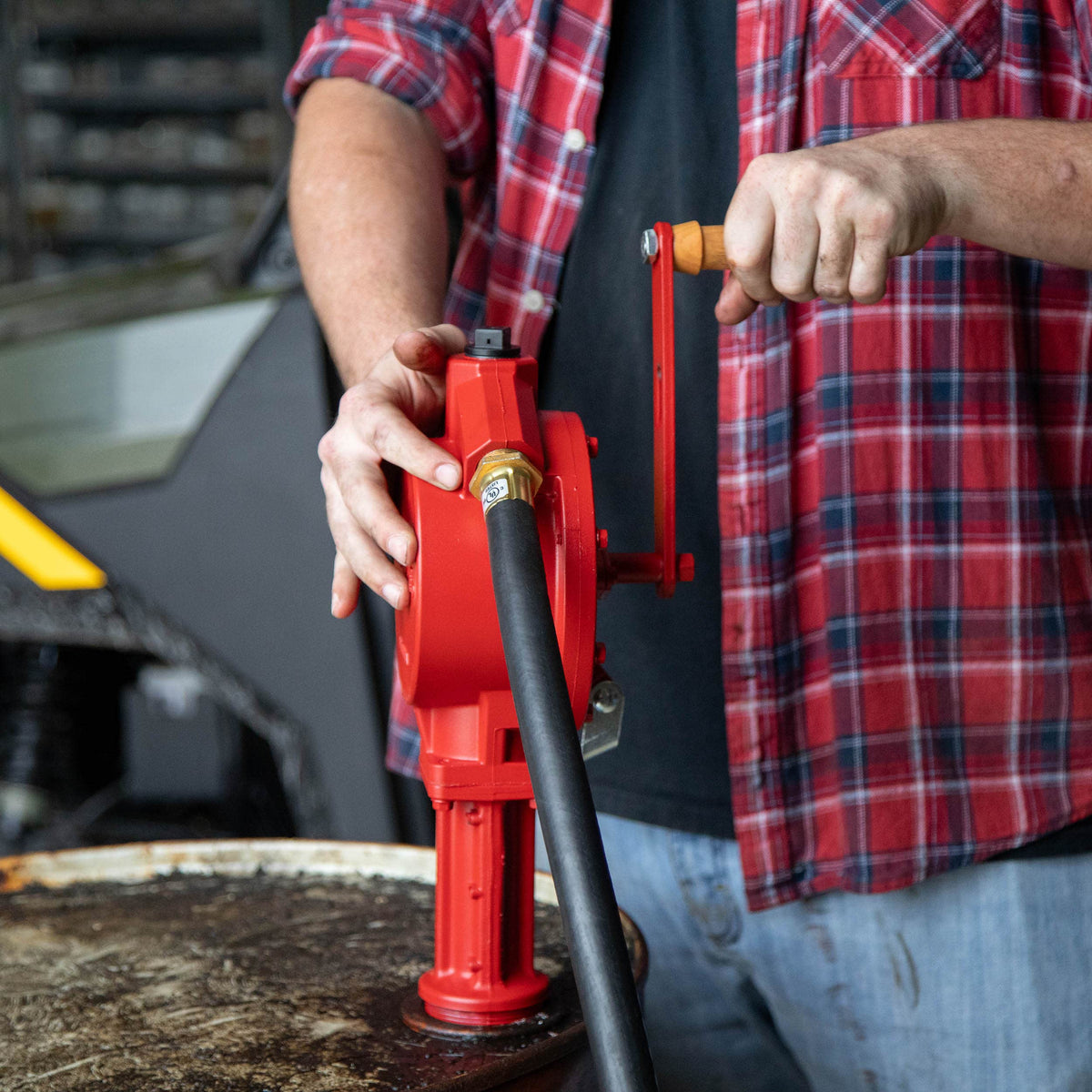

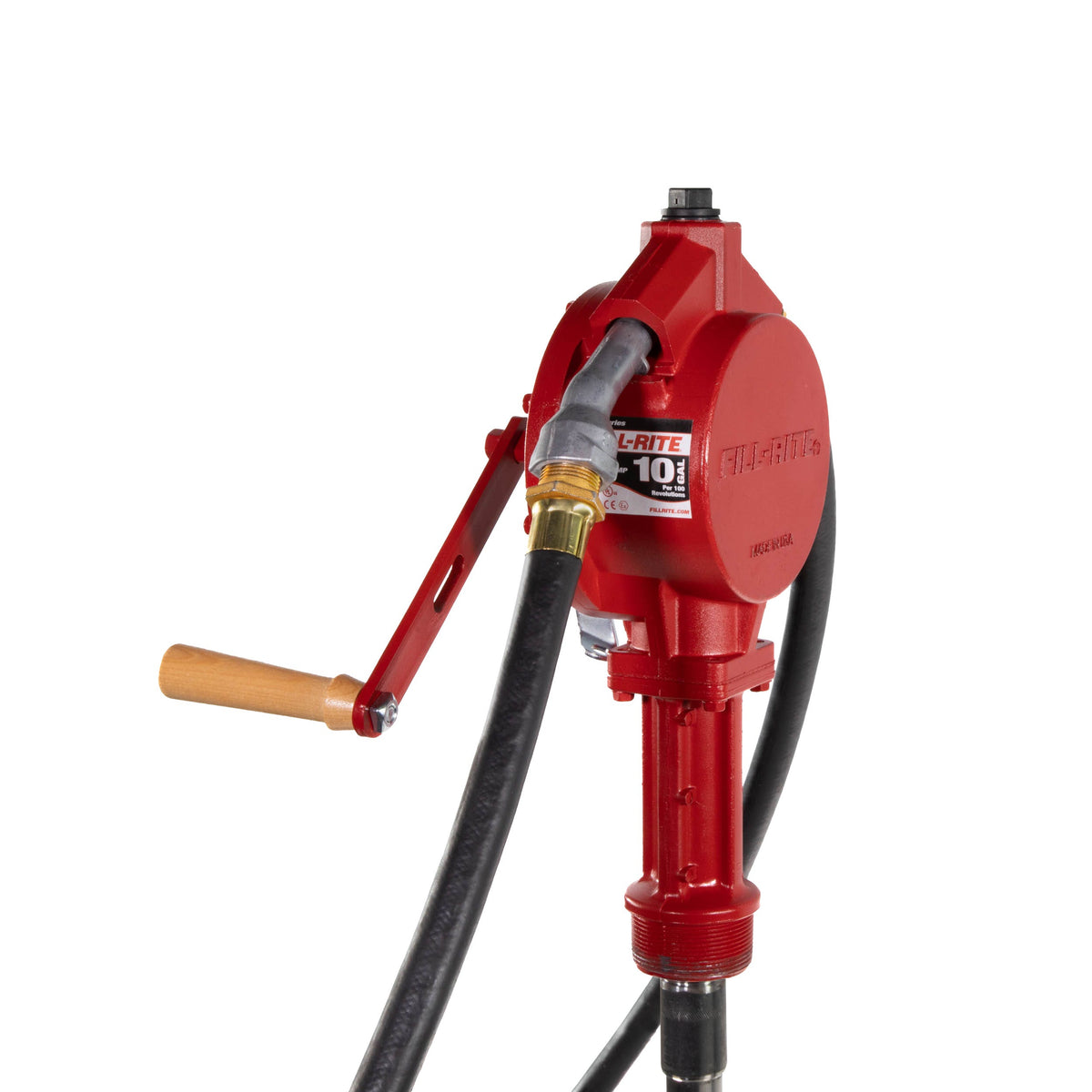

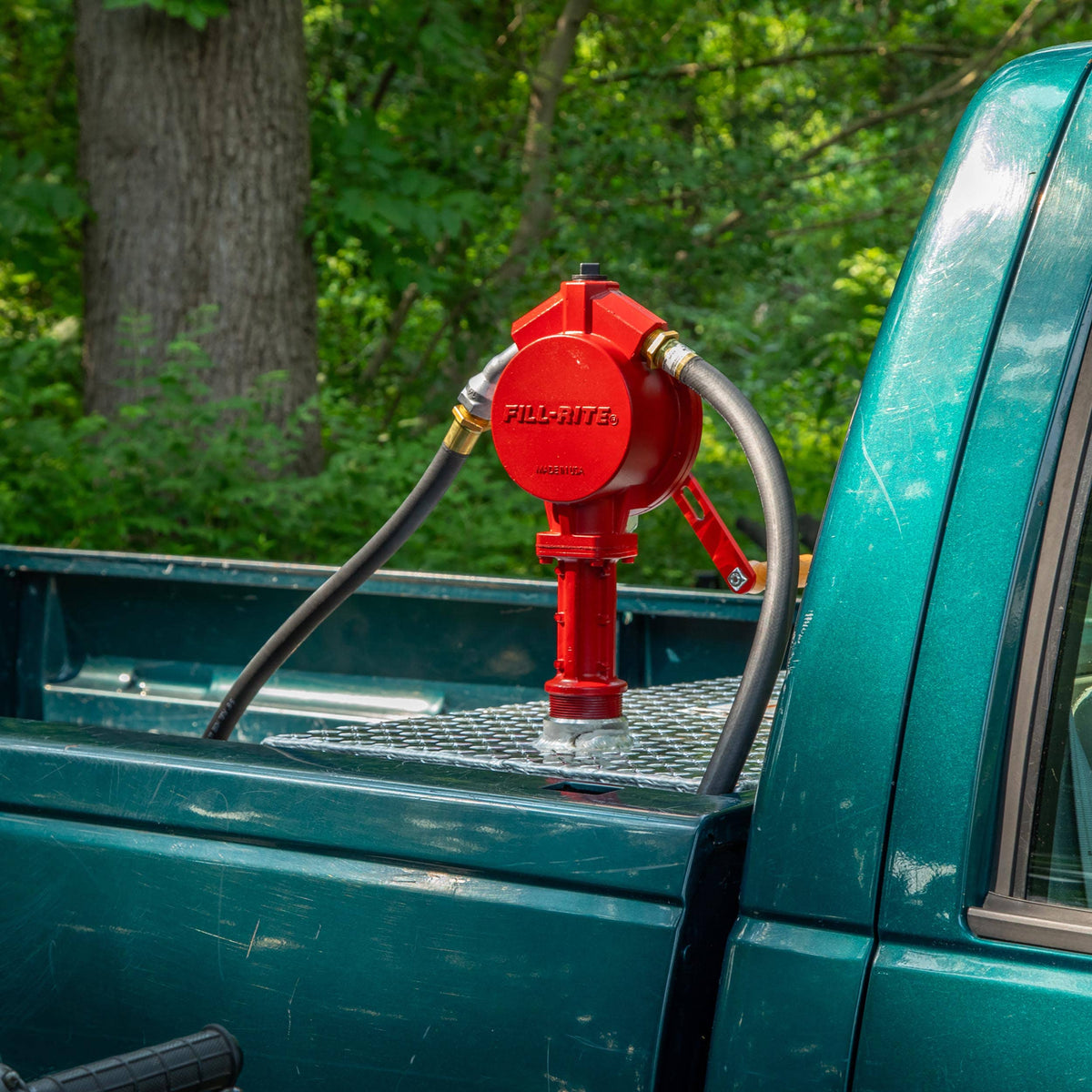

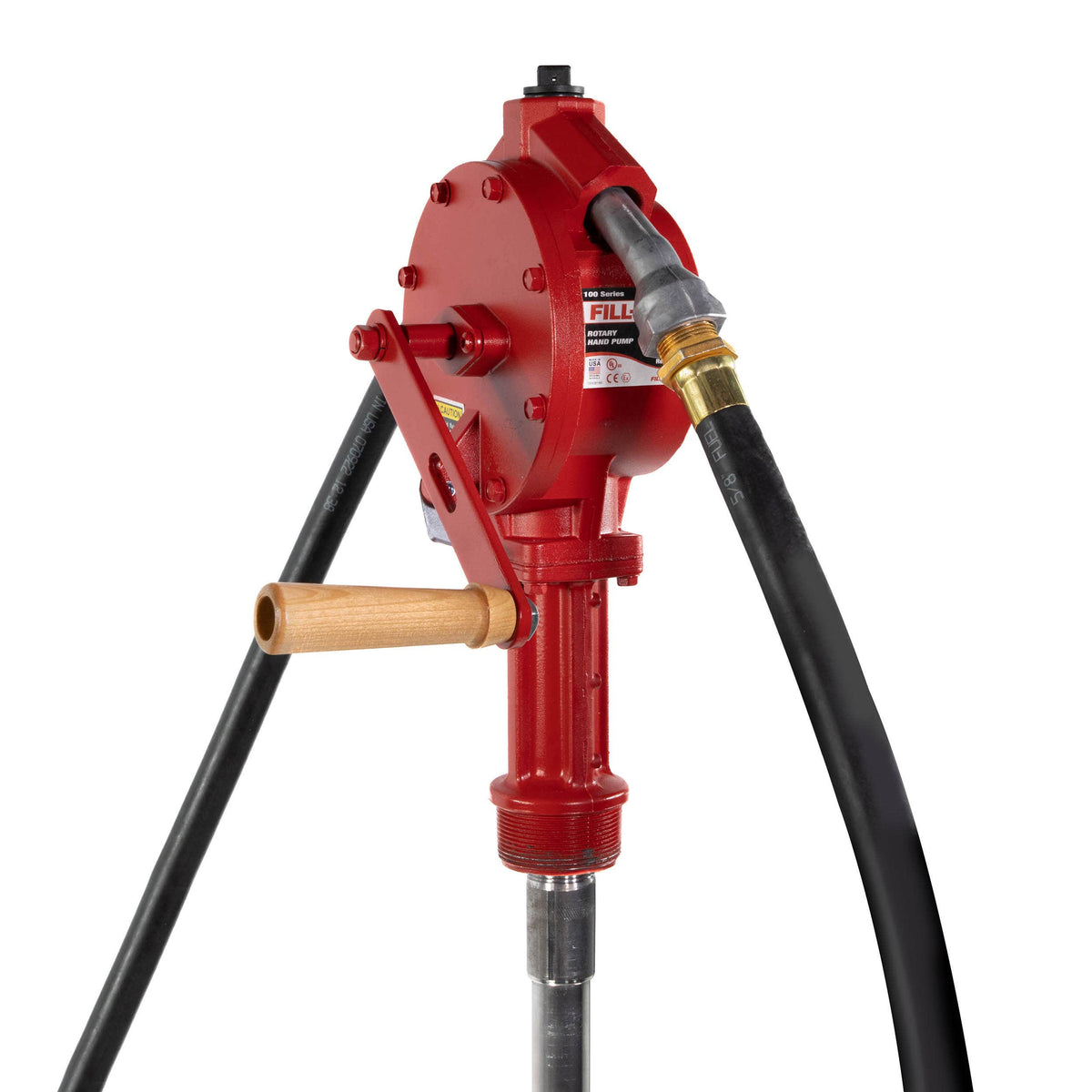

The Fill-Rite FR112 is a rotary hand pump for drums and tanks where you don't have power or only move small amounts of fuel. It moves about 10 gallons for every 100 turns of the crank, and its reversible flow lets you drain a vehicle tank as well as fill one. The cast-aluminum pump threads onto a 2 in. NPT bung and comes with an 8 ft. hose, a nozzle spout and a telescoping suction pipe.
Features
- About 10 gallons (38 L) per 100 turns of the handle
- No power needed: works anywhere, mounted or moved from drum to drum
- Reversible flow for filling or draining vehicle tanks
- Padlock-ready handle helps prevent theft
- Nozzle storage and anti-siphon design help prevent spills
- Strainer keeps large debris out of your equipment
- Rugged cast-aluminum construction resists corrosion
- For gasoline, diesel, kerosene, heptane, Stoddard solvents, light oils and mineral spirits
- UL listed; ATEX and CE certified; 2-year warranty
Specifications
| Part number | FR112 |
|---|---|
| Pump type | Rotary vane, hand operated |
| Output | About 10 gal. (38 L) per 100 revolutions |
| Inlet | 1 in. NPT |
| Outlet | 3/4 in. NPT |
| Mounting | 2 in. NPT bung mount |
| Hose | 5/8 in. x 8 ft. UL listed, with static ground wire |
| Fluids | Gasoline, diesel, kerosene, heptane, Stoddard solvents, mineral spirits |
| Certification | UL, ATEX, CE |
| Warranty | 2 years |
| Shipping weight | 16 lb |

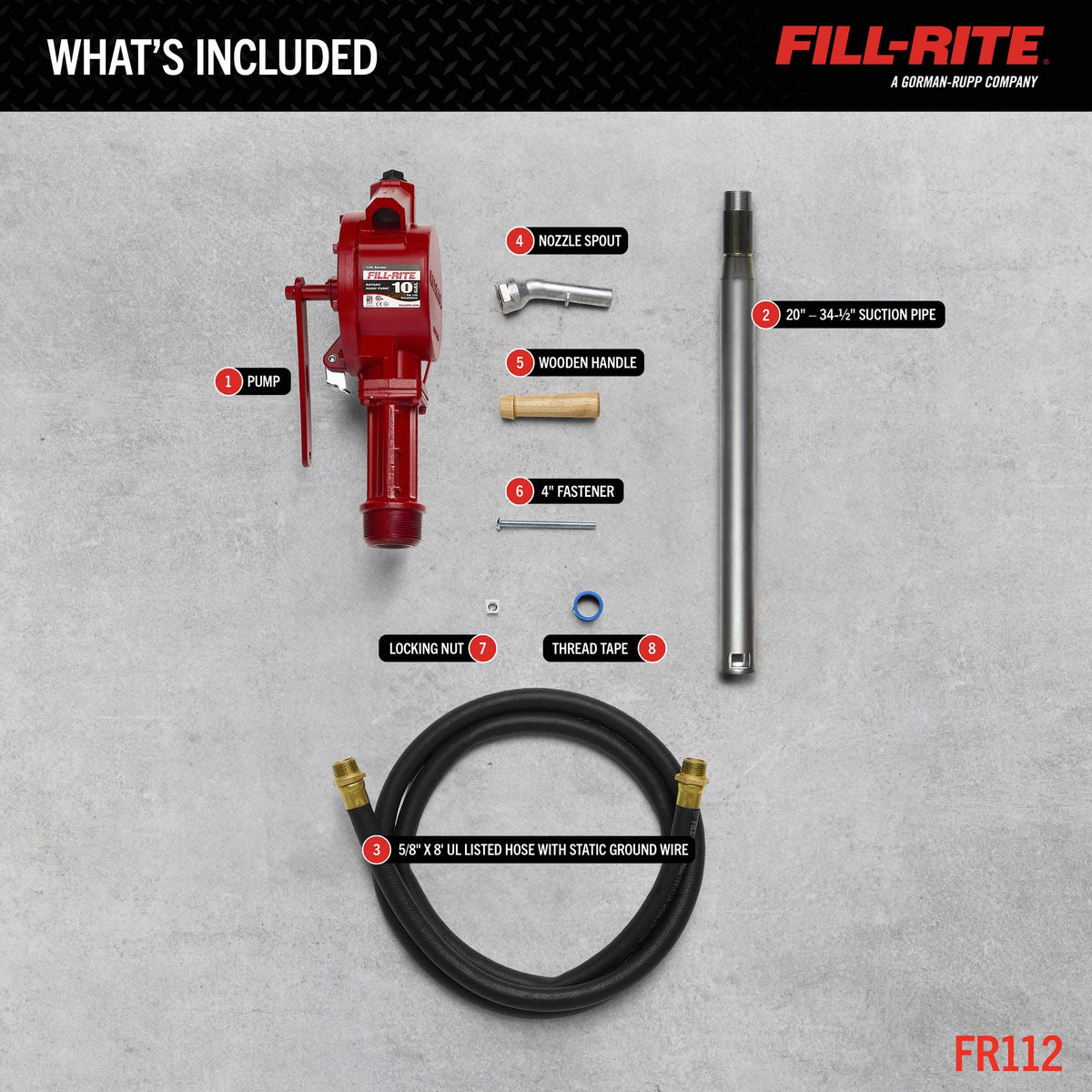

What's in the box
Pump, 5/8 in. x 8 ft. UL listed hose with static ground wire, 3/4 in. cast aluminum nozzle spout, 20 to 34-1/2 in. steel telescoping suction pipe and PTFE tape
