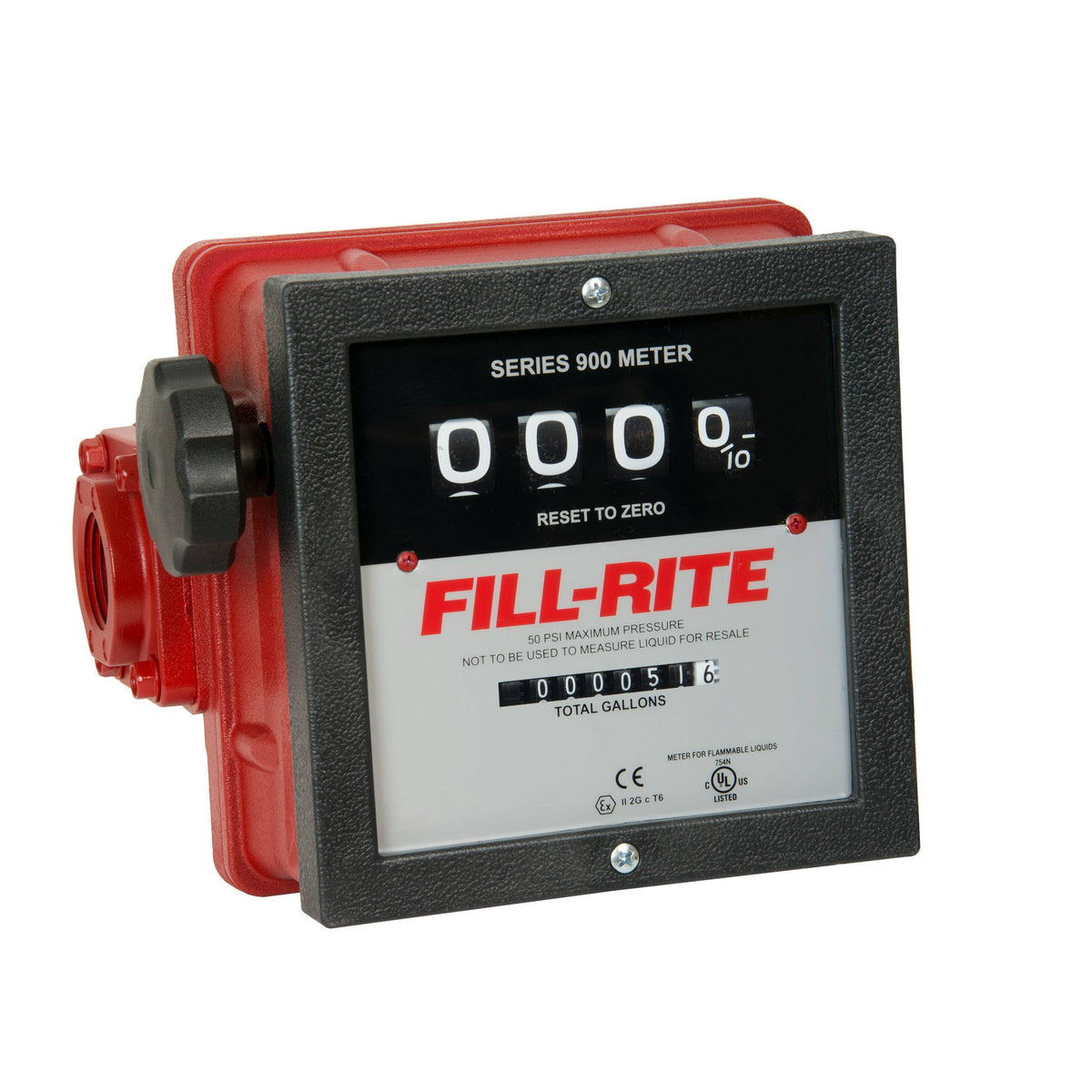

Fill-Rite 901C 1 in. Mechanical Fuel Meter, 6-40 GPM, Gallons
Pick your year, make and model to see if this part fits.
Shop parts for my truckSelect or change truck
Product details
The Fill-Rite 901C is a mechanical meter for higher-flow pumps that fill heavy equipment. It reads 6 to 40 gallons per minute within +/- 2%, shows each fill on a 4-digit resettable counter and keeps a 7-digit lifetime total. It needs no batteries, installs with 1 in. NPT connections, and its nutating disc design is tolerant of the rust and small debris that can jam other meters.
Features
- Reads 6 to 40 GPM within +/- 2%
- 4-digit resettable counter shows each fill, up to 999.9 gallons
- 7-digit non-resettable totalizer tracks lifetime gallons
- Nutating disc design handles rust and small debris that can jam other meters
- Mechanical: no batteries or power needed
- 1 in. NPT female inlet and outlet
- Rugged cast-aluminum housing resists corrosion
- For diesel, gasoline, kerosene, mineral spirits, heptane and hexane
- For tracking only: not a legal-for-trade meter for fuel resale
- cULus listed; ATEX and CE certified; 2-year warranty
Specifications
| Part number | 901C |
|---|---|
| Meter type | Mechanical, nutating disc |
| Flow range | 6 to 40 GPM |
| Accuracy | +/- 2% |
| Repeatability | +/- 0.38% |
| Display | 4-digit resettable, 7-digit totalizer |
| Units | Gallons |
| Inlet / outlet | 1 in. NPT (female) |
| Max pressure | 50 PSI |
| Operating temperature | -15°F to 150°F |
| Fluids | Diesel, gasoline, kerosene, mineral spirits, heptane, hexane |
| Certification | cULus, ATEX, CE |
| Warranty | 2 years |
| Shipping weight | 8.1 lb |
What's in the box
Meter and reset knob
Manuals and documents
